Computer/Integrating Systems Component Views
| Callout | Component Name |
|---|---|
| 1 | Body Control Module (BCM) |
| 2 | Body Control Module (BCM) C1 (Body Harness) |
| 3 | Body Control Module (BCM) C2 (I/P Harness) |
| 4 | C201 I/P Harness to Body Harness |

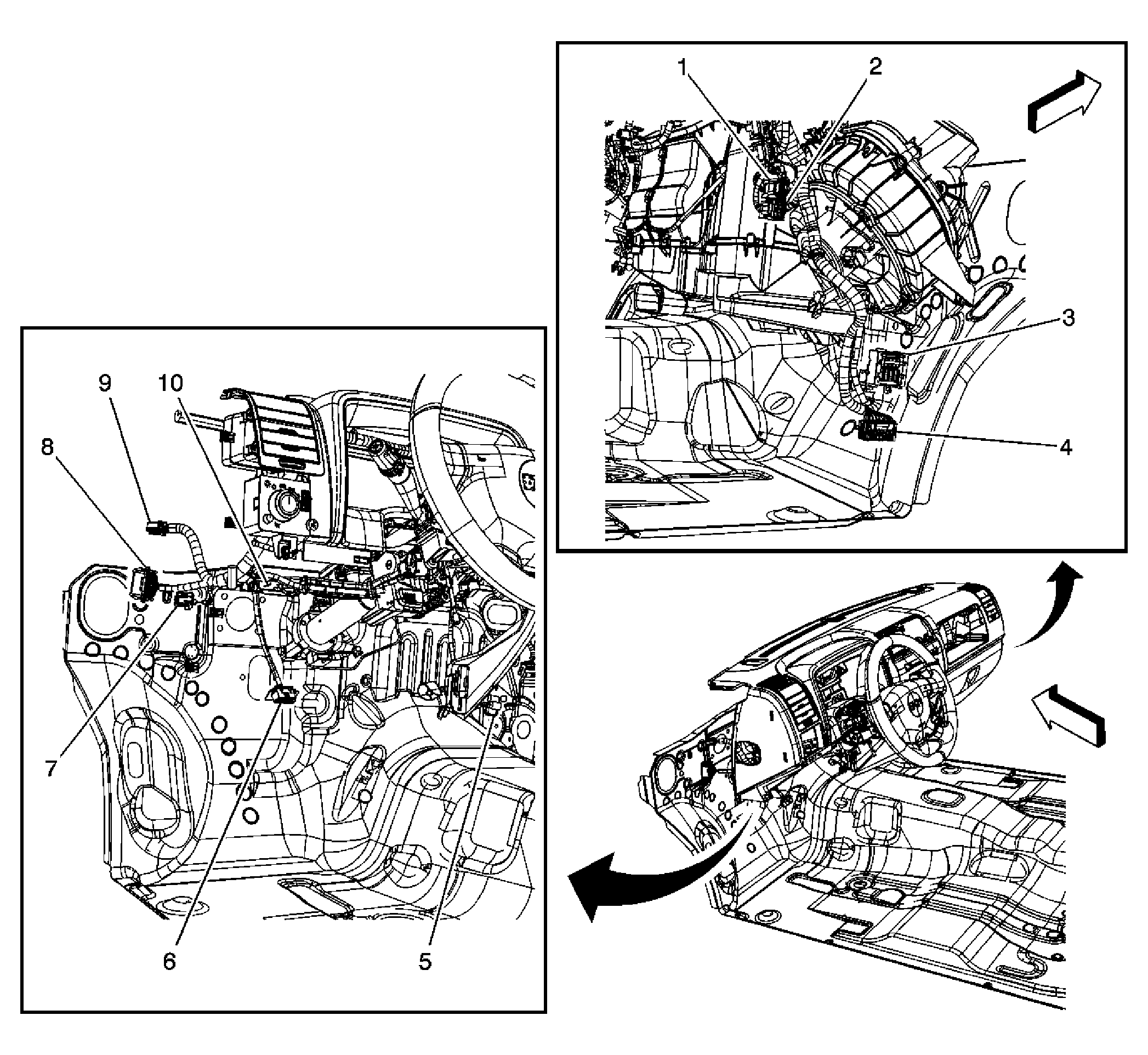

| Callout | Component Name |
|---|---|
| 1 | C203 I/P Harness to HVAC Module Harness |
| 2 | C205 I/P Harness to HVAC Module Harness |
| 3 | Body Control Module (BCM) Connector |
| 4 | C204 I/P Harness to Body Harness |
| 5 | Trailer Blunt-Cut Harness Wires |
| 6 | Data Link Connector (DLC) |
| 7 | C208 I/P Harness to Body Harness |
| 8 | C200 I/P Harness to Body Harness |
| 9 | C207 I/P Harness to Body Harness |
| 10 | C201 I/P Harness to Steering Column Harness |
