Fig 1: Power, Ground, and Subsystem References to DLC, A/T Shift Lock Control, HVAC, Starting and Charging, Engine Controls, and Door Lock/Indicator Systems
Courtesy of GENERAL MOTORS CORP.

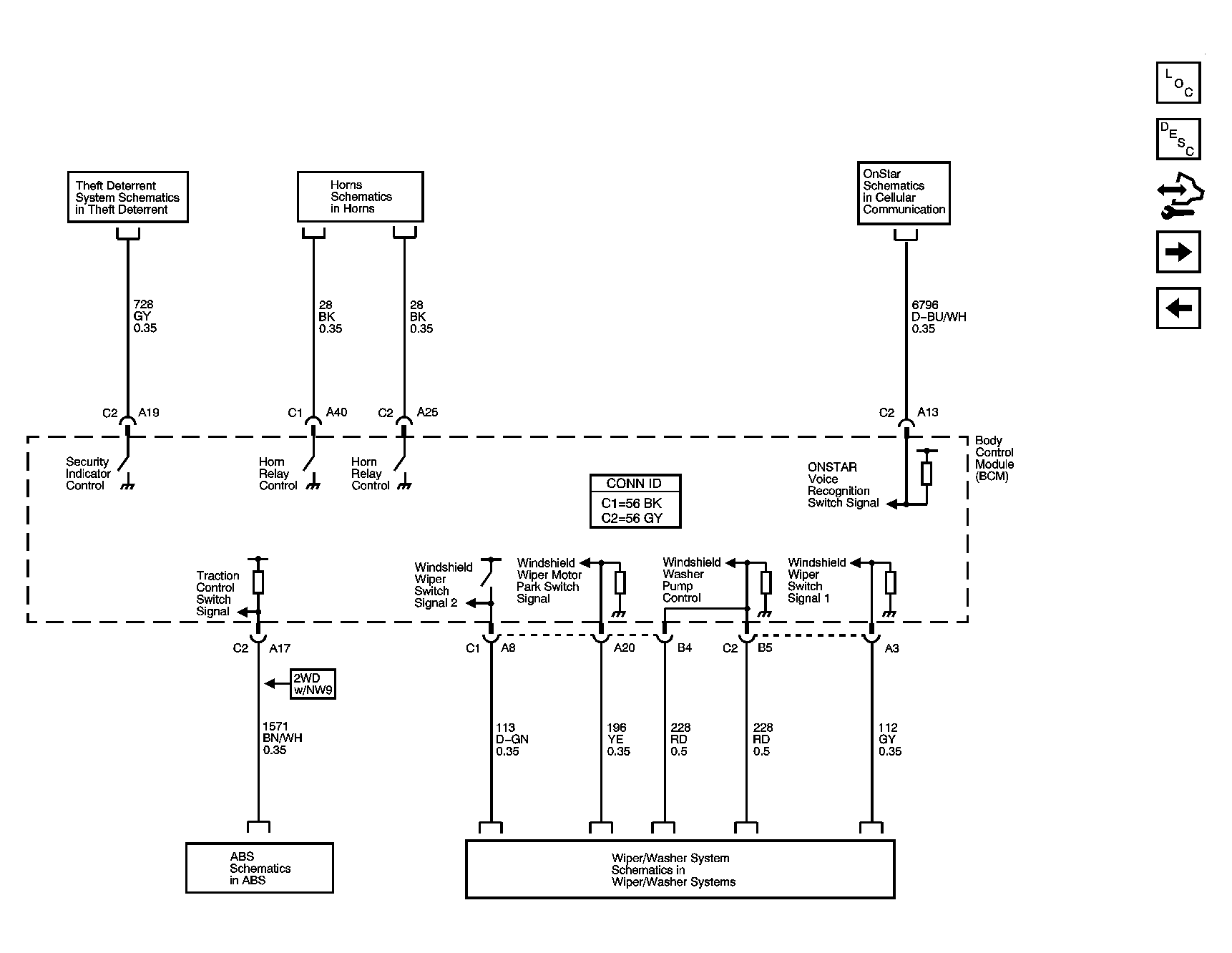

Fig 2: Subsystem References to ABS, Horn, Theft, and Wiper/Washer Systems
Courtesy of GENERAL MOTORS CORP.

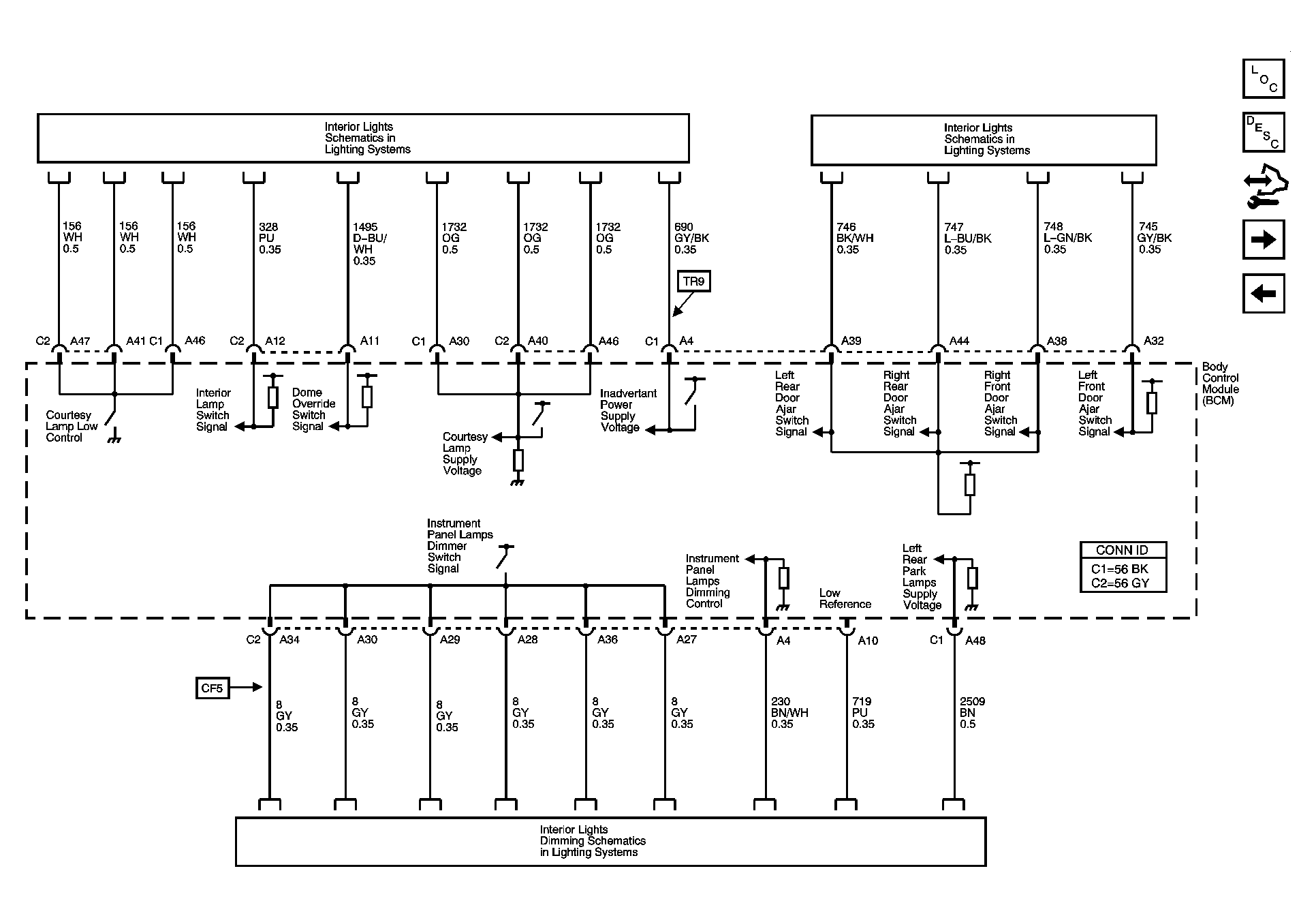

Fig 3: Subsystem References to Interior Lights and Interior Lights Dimming Systems
Courtesy of GENERAL MOTORS CORP.

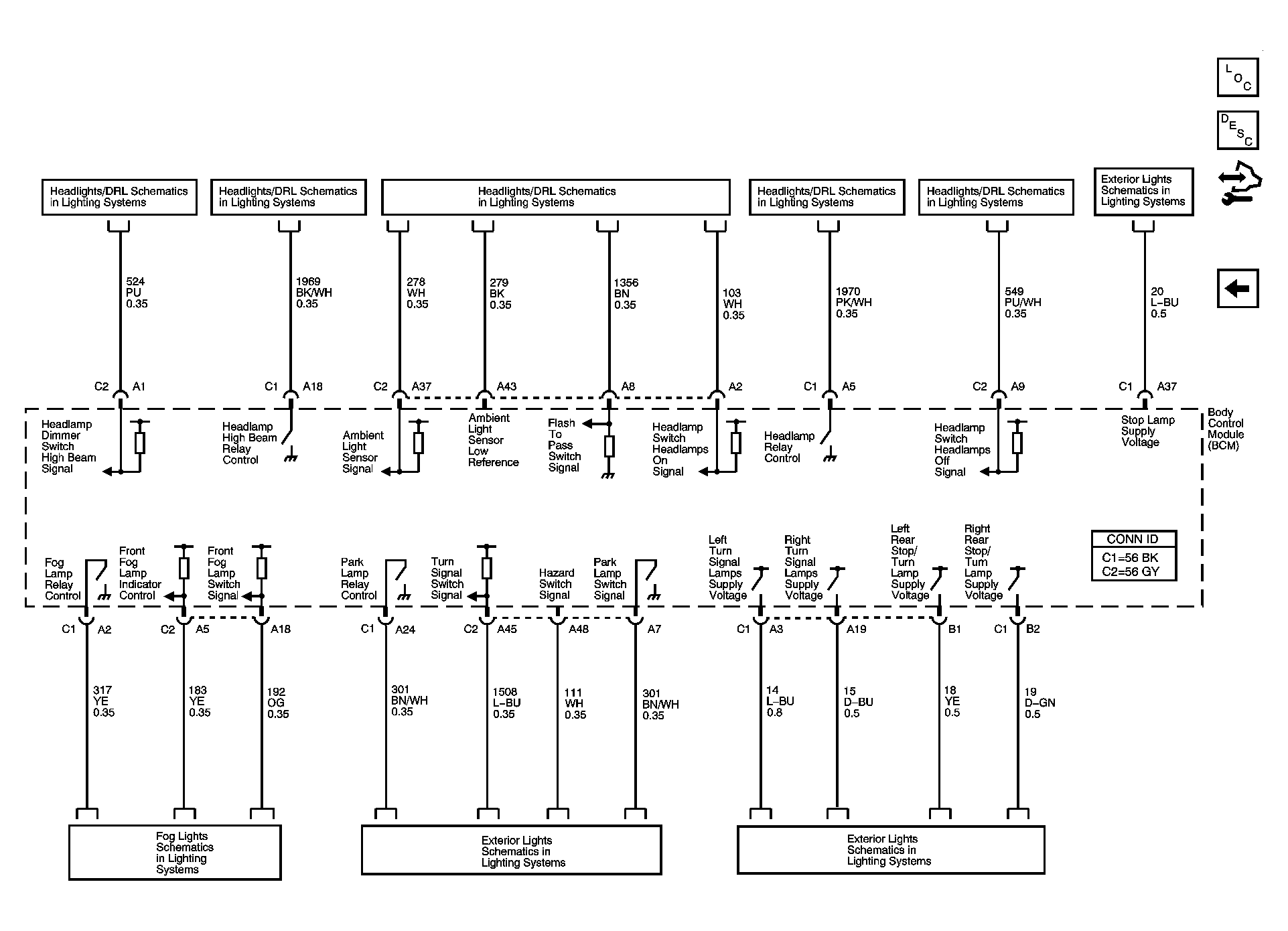

Fig 4: Subsystem References to Exterior Lighting and Fog Lights
