Communication Interface Module Replacement

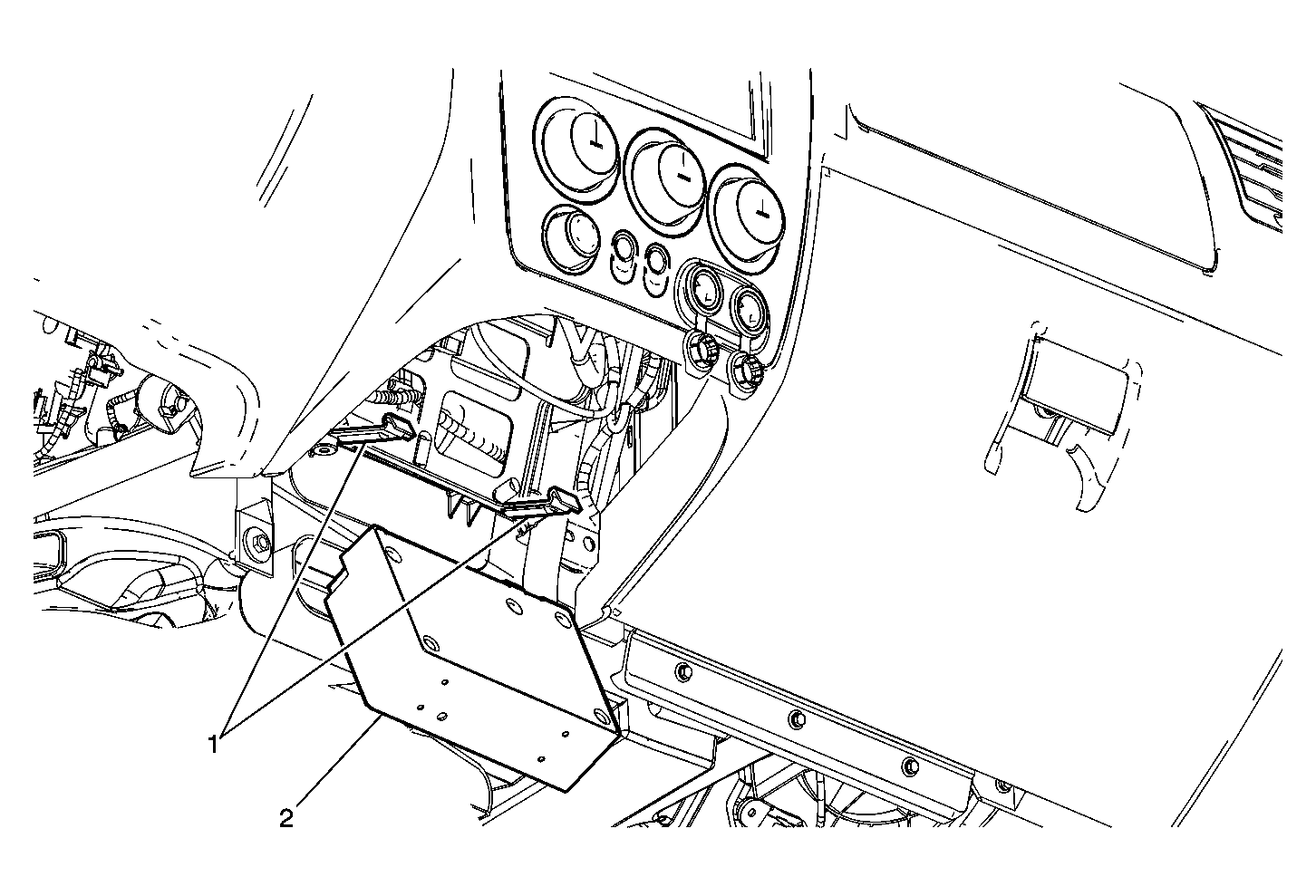

Fig 1: Locating Communication Interface Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the center console. Refer to Console Replacement . Program the communication interface module (OnStar®) after replacement. Refer to Control Module References .
1	Bracket, Transceiver Assembly Tip: Pushing down on the bracket tabs releases the transceiver from the bracket.
2	Transceiver, Vehicle Communication Interface Module Tip: Partially remove the transceiver to access antenna and electrical connections.

Callout

Component Name

Fastener Tightening Specifications Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the center console. Refer to Console Replacement .
Program the communication interface module (OnStar®) after replacement. Refer to Control Module References .

Bracket, Transceiver Assembly
Tip: Pushing down on the bracket tabs releases the transceiver from the bracket.

Transceiver, Vehicle Communication Interface Module
Tip: Partially remove the transceiver to access antenna and electrical connections.
