Power Seat Systems Component Views
| Callout | Component Name |
|---|---|
| 1 | Heater Element Seat Back - Driver (KA1) |
| 2 | Bolster Motor |
| 3 | Heater Element Seat Cushion - Driver (KA1) |
| 4 | Seat Motors - Driver |
| 5 | C307 Driver Seat Harness to Body Harness |
| 6 | Seat Adjuster Switch - Driver |
| 7 | Seat Belt Switch - Left |

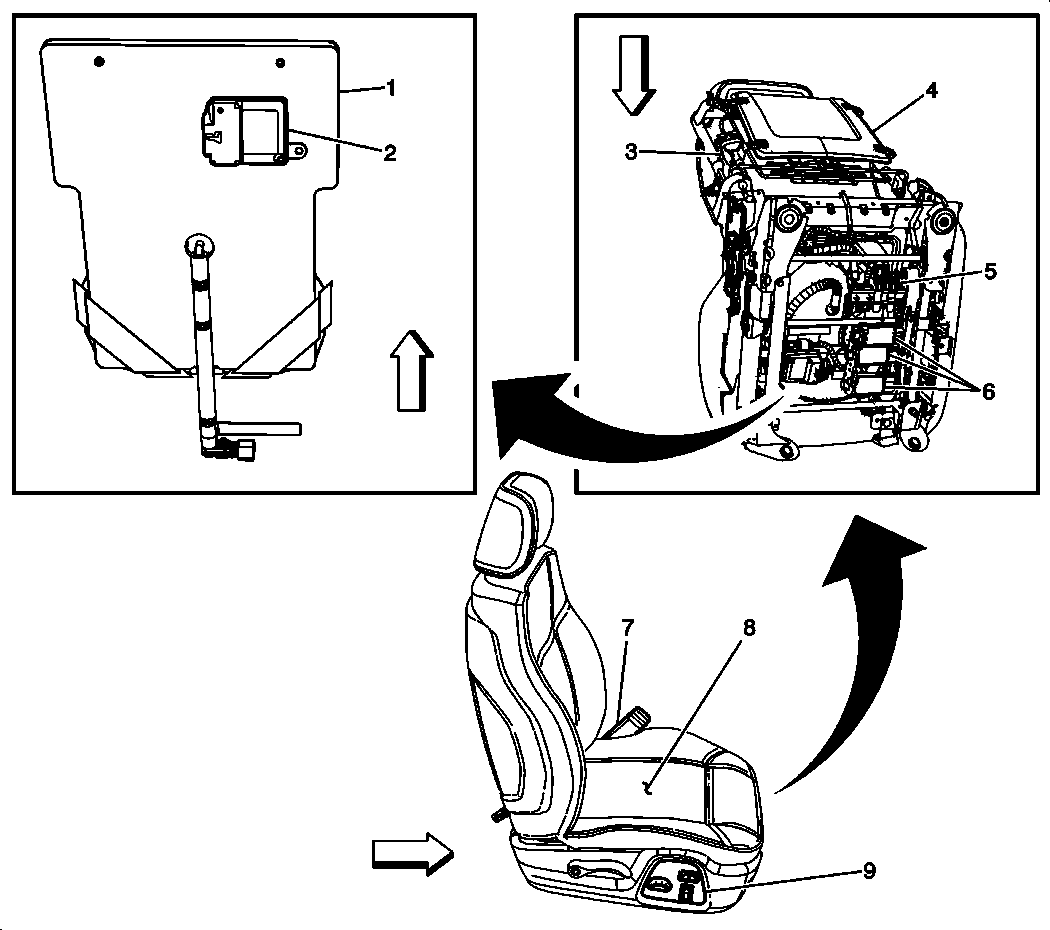

| Callout | Component Name |
|---|---|
| 1 | Heater Element Seat Cushion - Passenger (KA1) |
| 2 | Inflatable Restraint Passenger Presence Module |
| 3 | Lumbar Pump Motor - Passenger |
| 4 | Heater Element Seat Back - Passenger (KA1) |
| 5 | C315 Passenger Seat Harness to Body Harness |
| 6 | Seat Motors - Passenger |
| 7 | Seat Belt Switch - Right |
| 8 | Seat Adjuster Switch - Passenger |
