Head Restraint Replacement

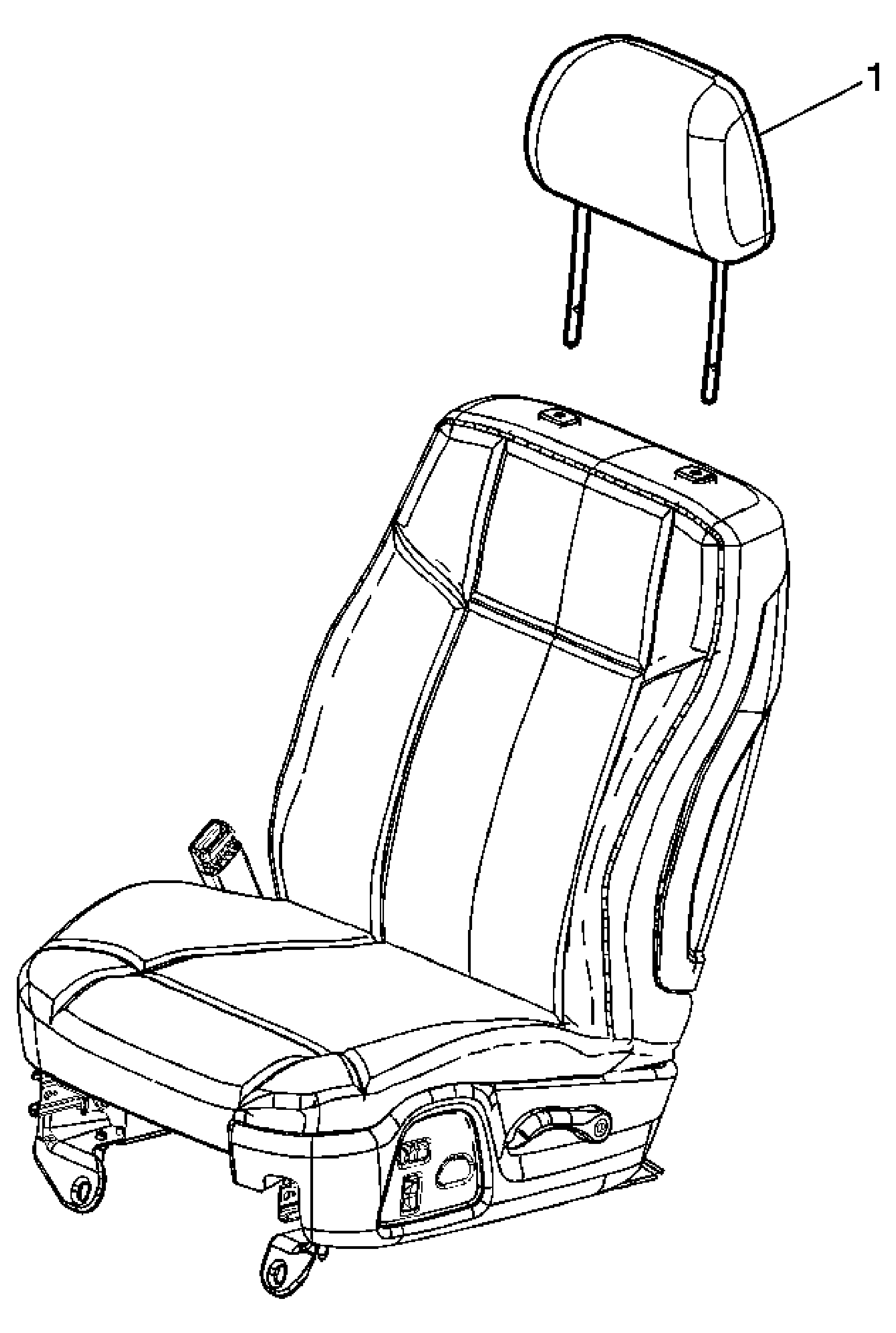

Fig 1: Head Restraint Replacement
GM1552301Courtesy of GENERAL MOTORS CORP.
Head Restraint Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Restraint, Front Seat Head
Tip:  Push in the button on the head restraint guide and pull up on the head restraint to remove.
