Power Door Systems Component Views

Fig 1: Driver Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Driver
2	Outside Rearview Mirror Switch
3	C510 Driver Door Harness to Outside Rearview Mirror Harness
4	C500 Door Harness to Body Harness
5	Window Motor - Driver
6	Speaker - LF Door
7	Door Lock and Window Switch - Driver
8	Door Lock and Window Switch - Driver C1
9	Door Lock and Window Switch - Driver C2
10	Door Lock Actuator - Driver
11	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
12	Key Lock Cylinder

Fig 2: Passenger Door Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor - Passenger
2	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
3	Door Lock Actuator - Passenger
4	Door Lock/Window Switch - Passenger
5	Speaker - RF
6	C600 Passenger Door Harness to Body Harness
7	C610 Passenger Door Harness to Rearview Mirror Harness
8	Outside Rearview Mirror - Passenger

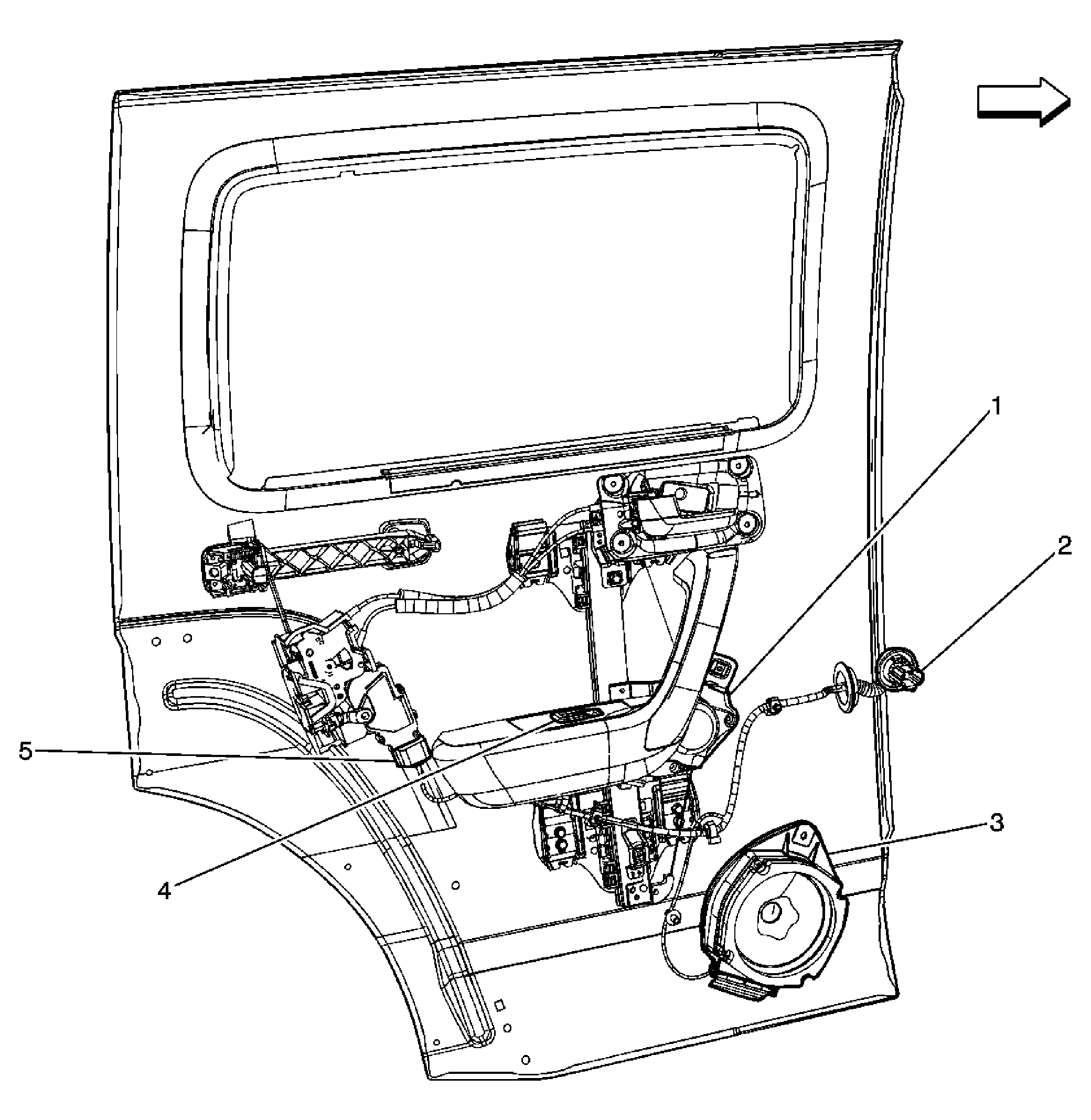

Fig 3: Left Rear Door Components (RR Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor - LR
2	C700 Left Rear Door Harness to Body Harness
3	Speaker - LR
4	Window Switch - LR
5	Door Lock Actuator - LR

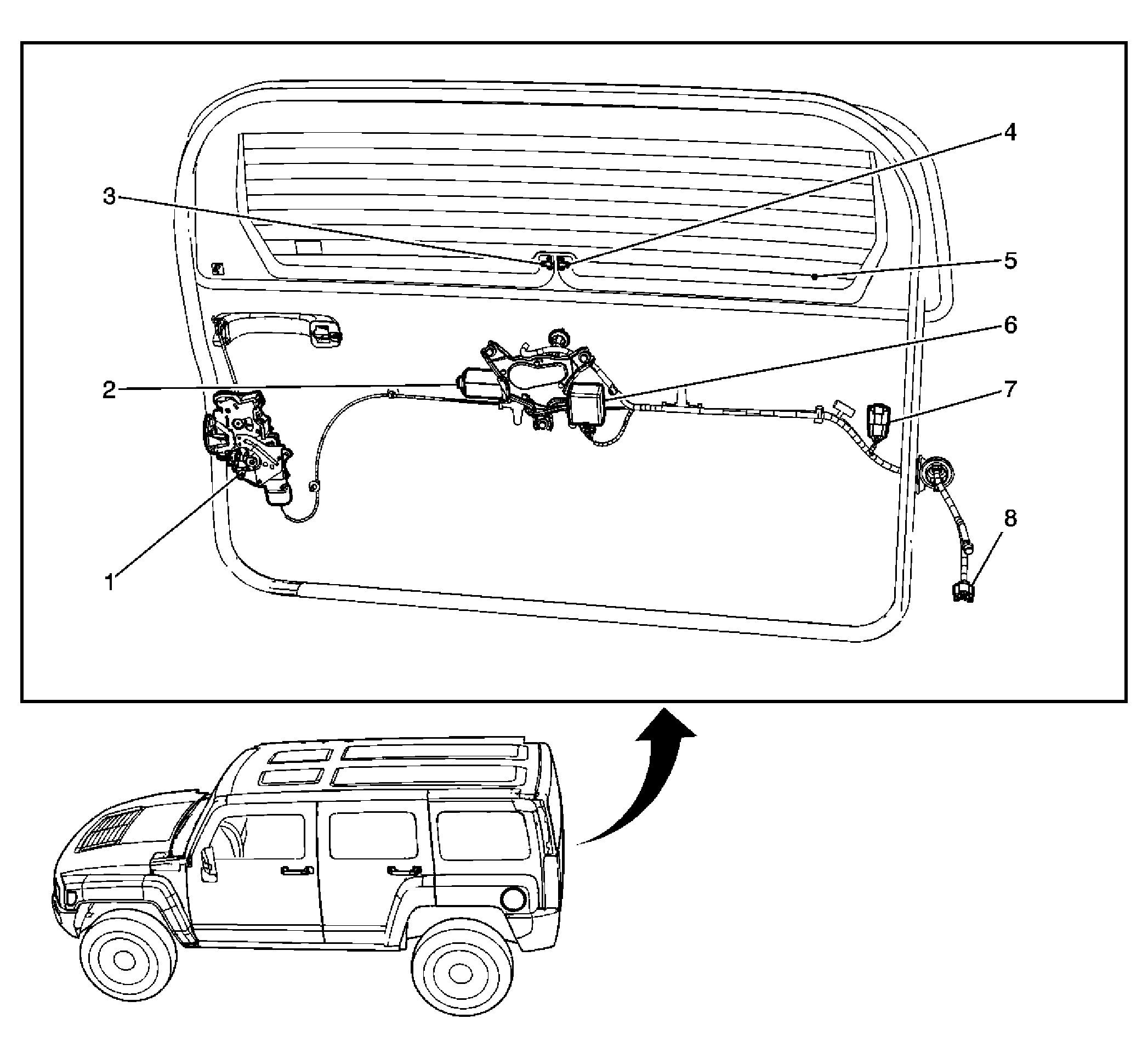

Fig 4: Endgate Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Actuator - Endgate
2	Rear Window Wiper Motor
3	Rear Window Defogger Connector
4	Rear Window Defogger Connector
5	Rear Window Defogger
6	Rear Window Wiper/Washer Module
7	C470 CHMSL Jumper Harness to Endgate Harness
8	C450 Body Harness to Endgate Harness
