Window Switch - LR
Window Switch - LR Connector Parts Information
Connector Part Information
|
Terminal Part Information
|

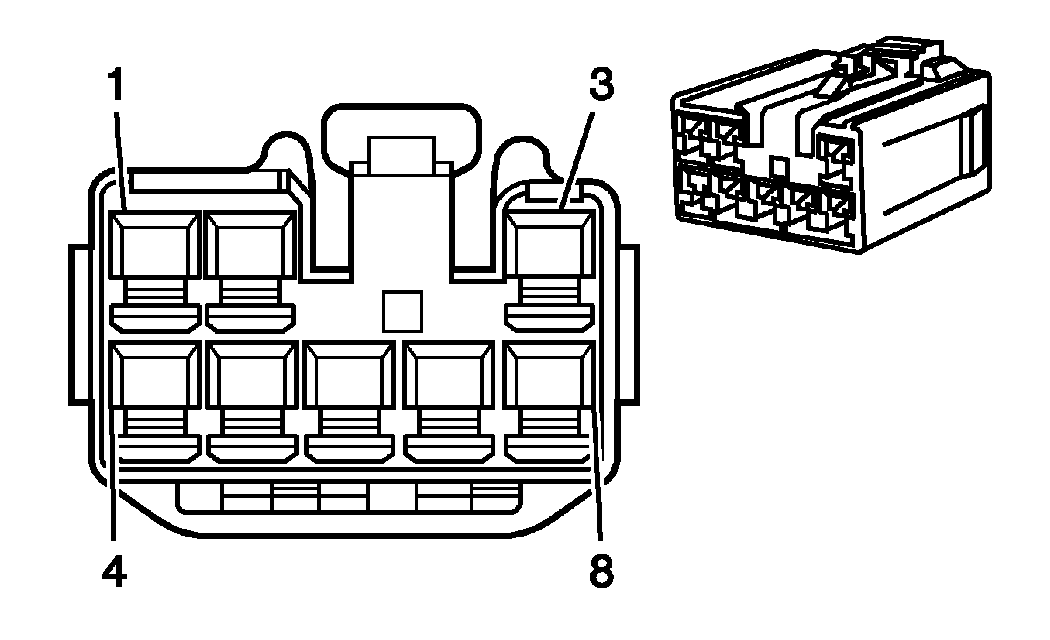

Window Switch - LR Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | D-GN | 168 | Power Window Master Switch Left Rear Up Signal |
| 2 | BN | 9 | Park Lamp Supply Voltage |
| 3 | BK | 1450 | Ground |
| 4 | PU | 169 | Power Window Master Switch Left Rear Down Signal |
| 5 | D-BU | 1307 | Power Window Master Switch Lockout Signal |
| 6 | YE | 643 | Accessory Voltage |
| 7 | BN | 671 | Power Window Motor Right Rear Down Control |
| 8 | D-BU | 670 | Power Window Motor Right Rear Up Control |
