Mirror Replacement
Mirror Replacement

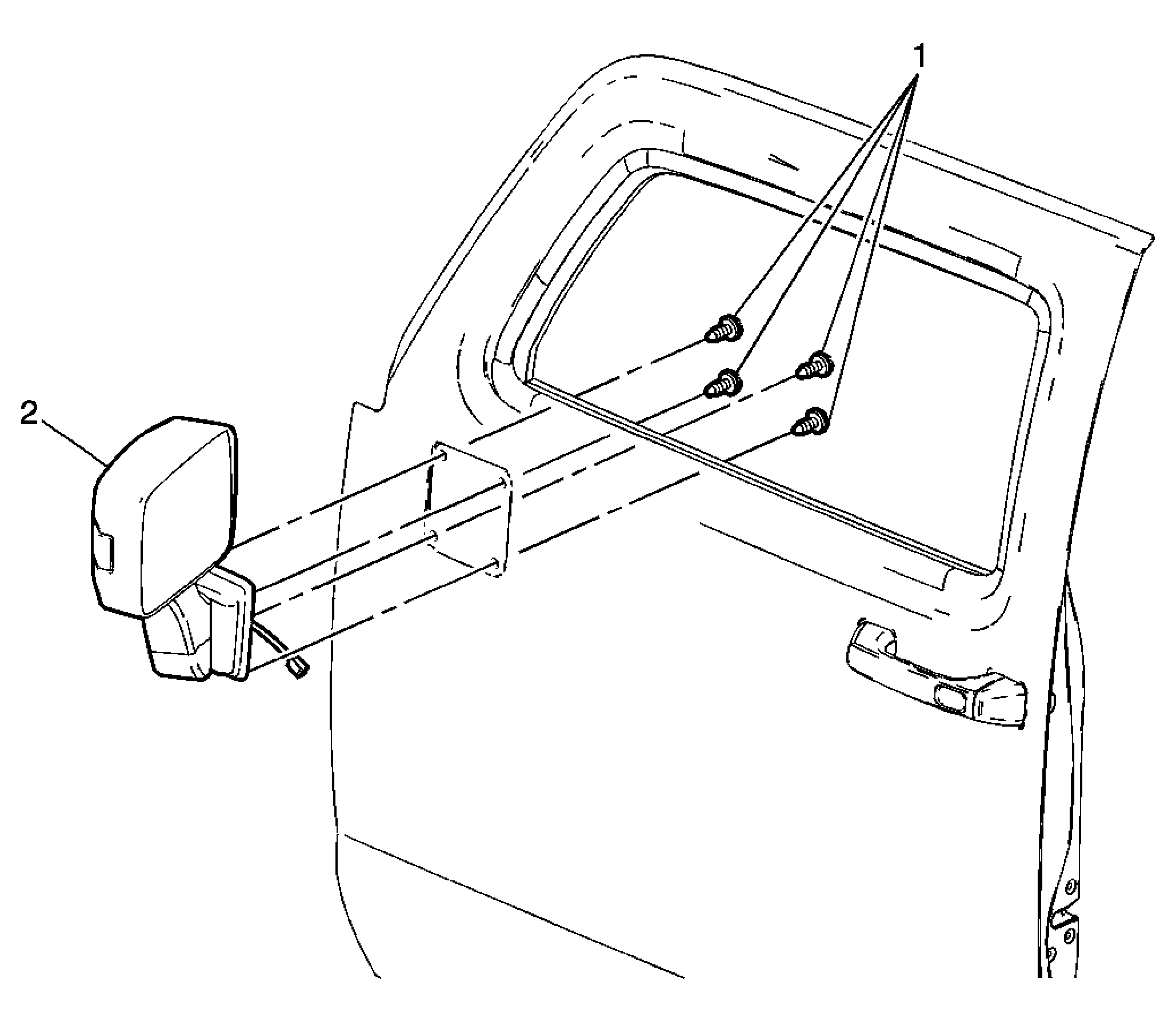

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door . |
|
| 1 | Bolt, Mirror Outside Rear View (Qty: 4) Tip: Disconnect mirror electrical connector. Tighten: 10 N.m (89 lb in) |
| 2 | Mirror Assembly, Outside Rear View |
