Module Replacement - Front Power Window

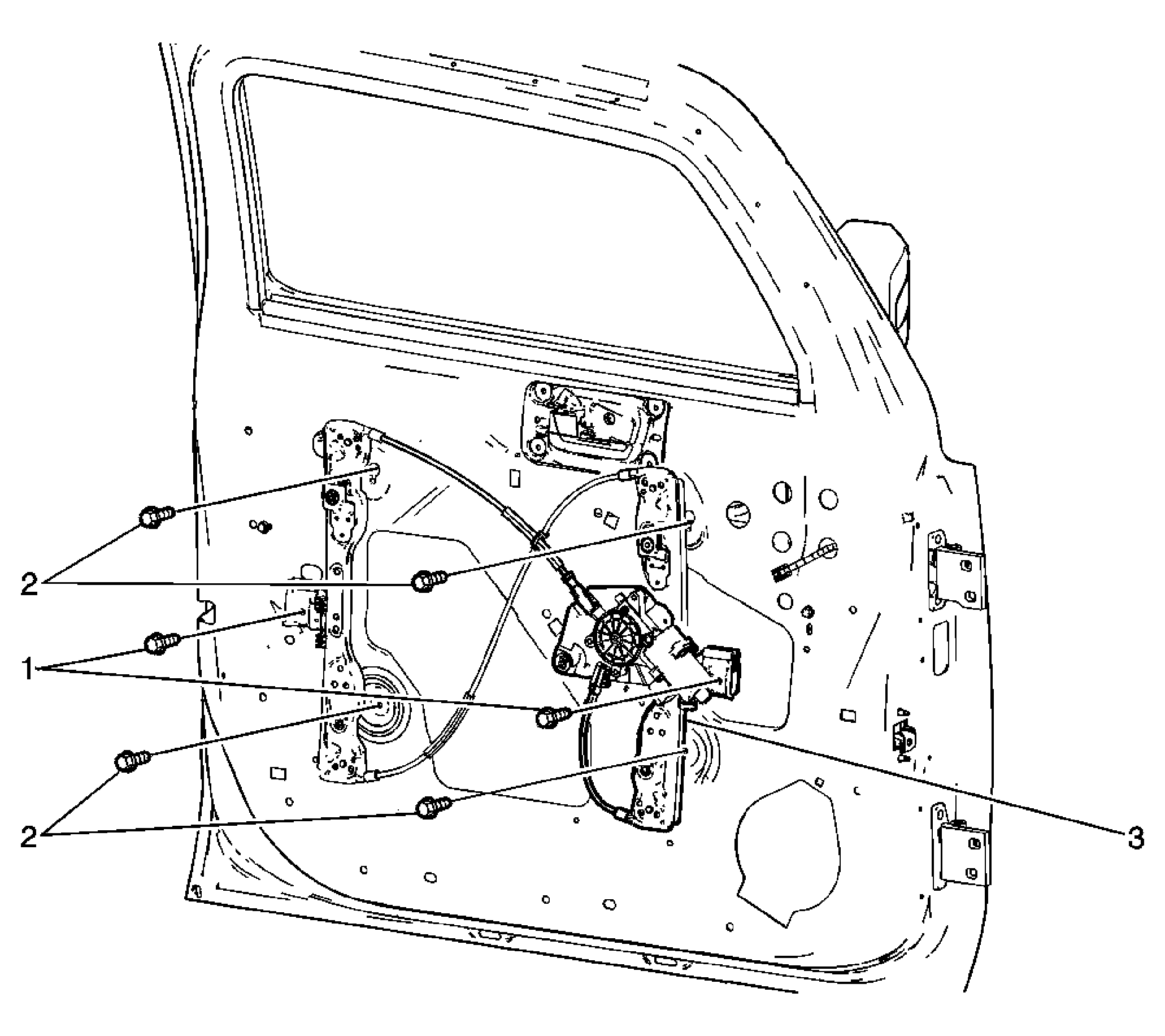

Fig 1: Module Replacement - Front Power Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the water deflector. Refer to Water Deflector Replacement - Front Door . Move the window to the full up position and secure in place with tape.
1	Bolt, Front Side Door Window to Regulator (Qty: 2) Tighten: 10 N.m (89 lb in)
2	Bolt, Front Side Door Window Regulator (Qty: 4) Tighten: 10 N.m (89 lb in)
3	Regulator Assembly, Front Side Door Window Tip: Disconnect the electrical connector.
