Module Replacement - Rear Power Window

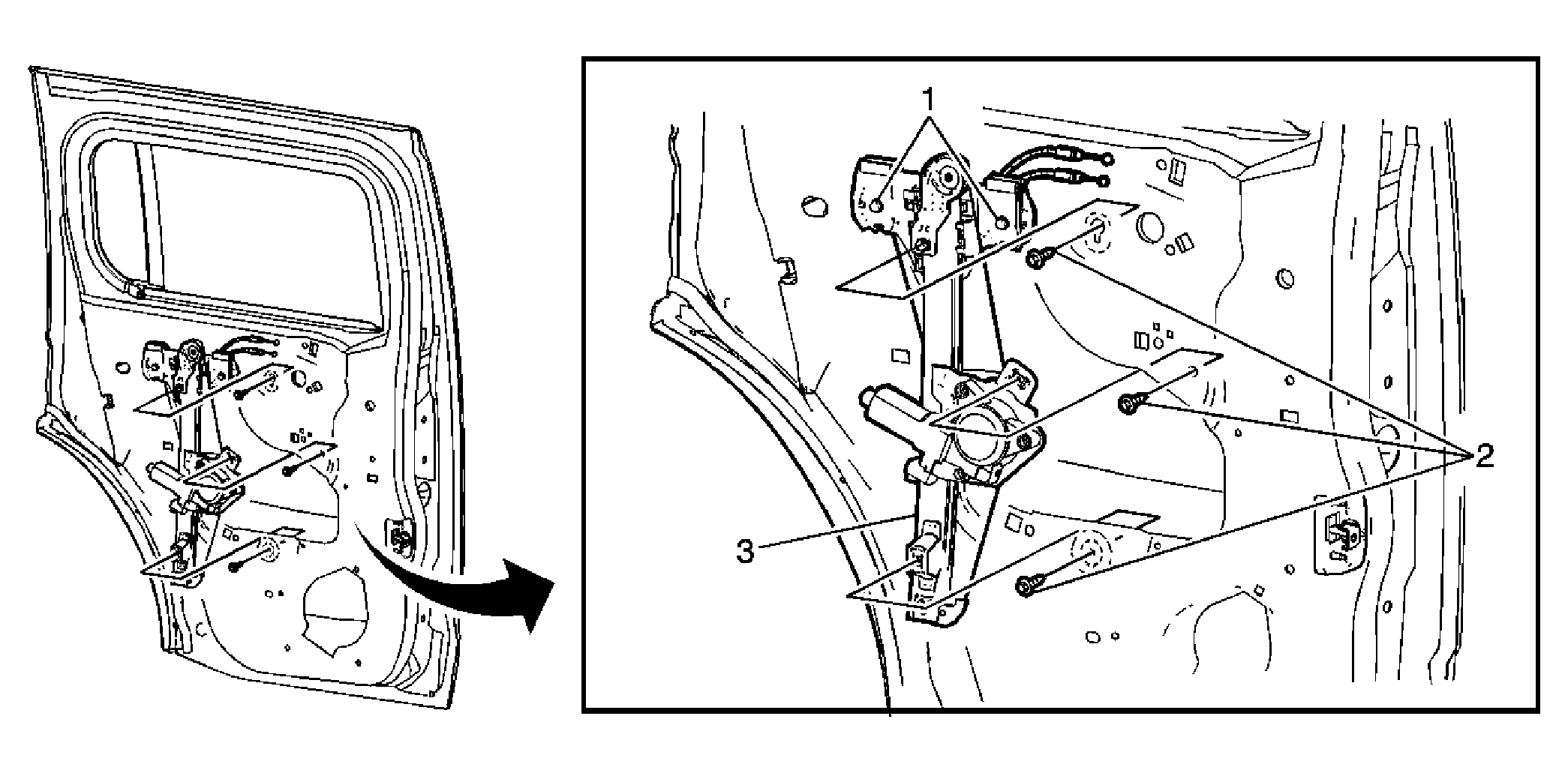

Fig 1: Module Replacement - Rear Power Window

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Move the window to the full up position and secure in place with tape. Remove the interior trim panel. Refer to Trim Panel Replacement - Side Rear Door . Remove the water deflector. Refer to Water Deflector Replacement - Rear Door . Remove the armrest bracket. Refer to Armrest Bracket Replacement .
1	Bolt, Rear Side Door Window to Regulator (Qty: 2) Tighten: 10 N.m (89 lb in)
2	Bolt, Rear Side Door Window Regulator (Qty: 3) Tighten: 10 N.m (89 lb in)
3	Regulator Assembly, Rear Side Door Window Tip: Disconnect the electrical connector.
