Window Weatherstrip Run Channel Assembly Replacement - Front

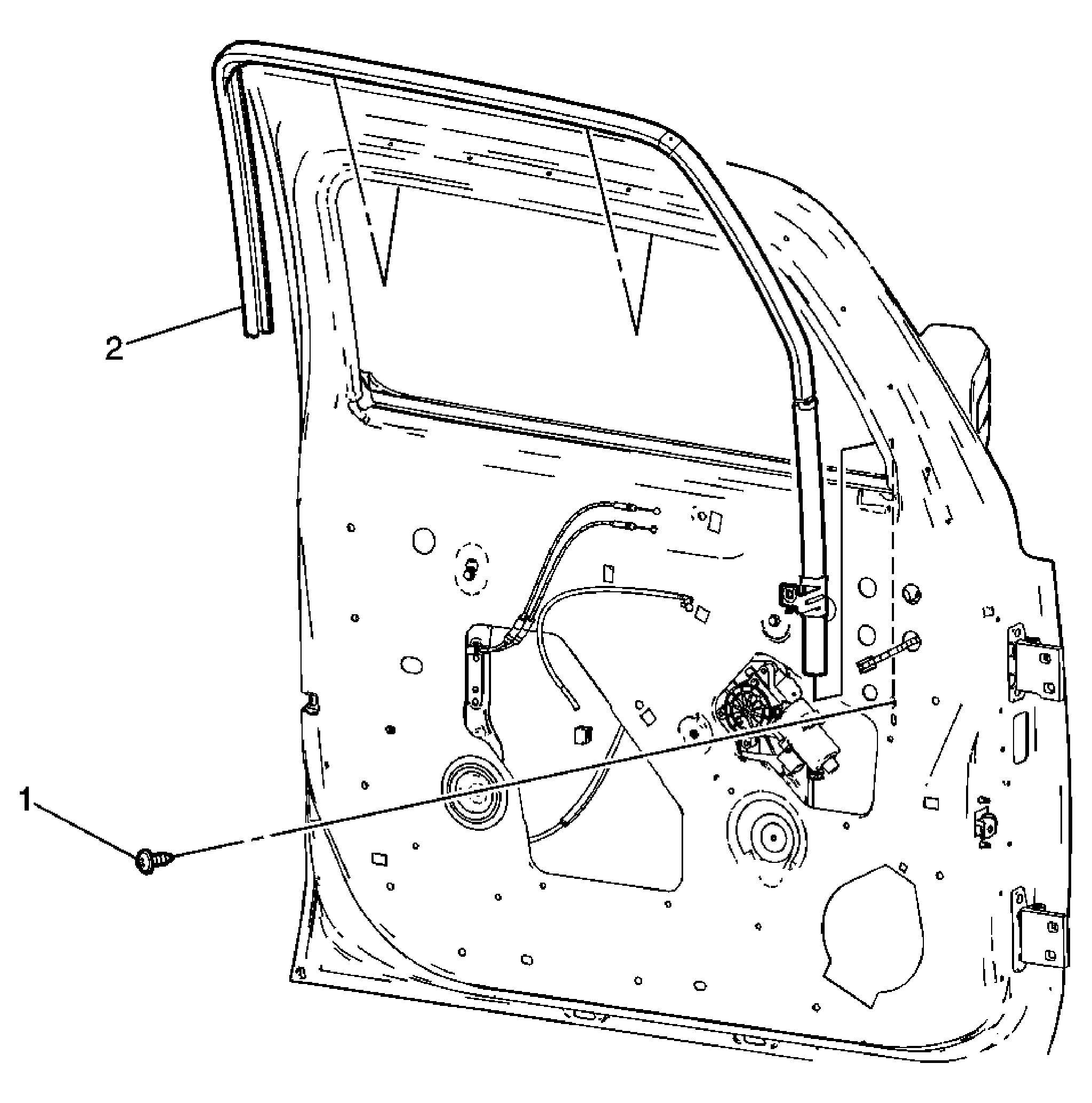

Fig 1: Window Weatherstrip Run Channel Assembly Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door Remove the water deflector. Refer to Water Deflector Replacement - Front Door Remove the front side door window. Refer to Window Replacement - Front Door
1	Bolt, Front Side Door Window Weatherstrip Run Channel Tighten: 10 N.m (89 lb in)
2	Weatherstrip Run Channel, Front Door Window Tip: Pull the weatherstrip run channel down from the window frame then up to remove it from the door.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications

Preliminary Procedures

Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door
Remove the water deflector. Refer to Water Deflector Replacement - Front Door
Remove the front side door window. Refer to Window Replacement - Front Door

Bolt, Front Side Door Window Weatherstrip Run Channel

Tighten: 10 N.m (89 lb in)

Weatherstrip Run Channel, Front Door Window
Tip: Pull the weatherstrip run channel down from the window frame then up to remove it from the door.
