Ambient Air Temperature Sensor Replacement

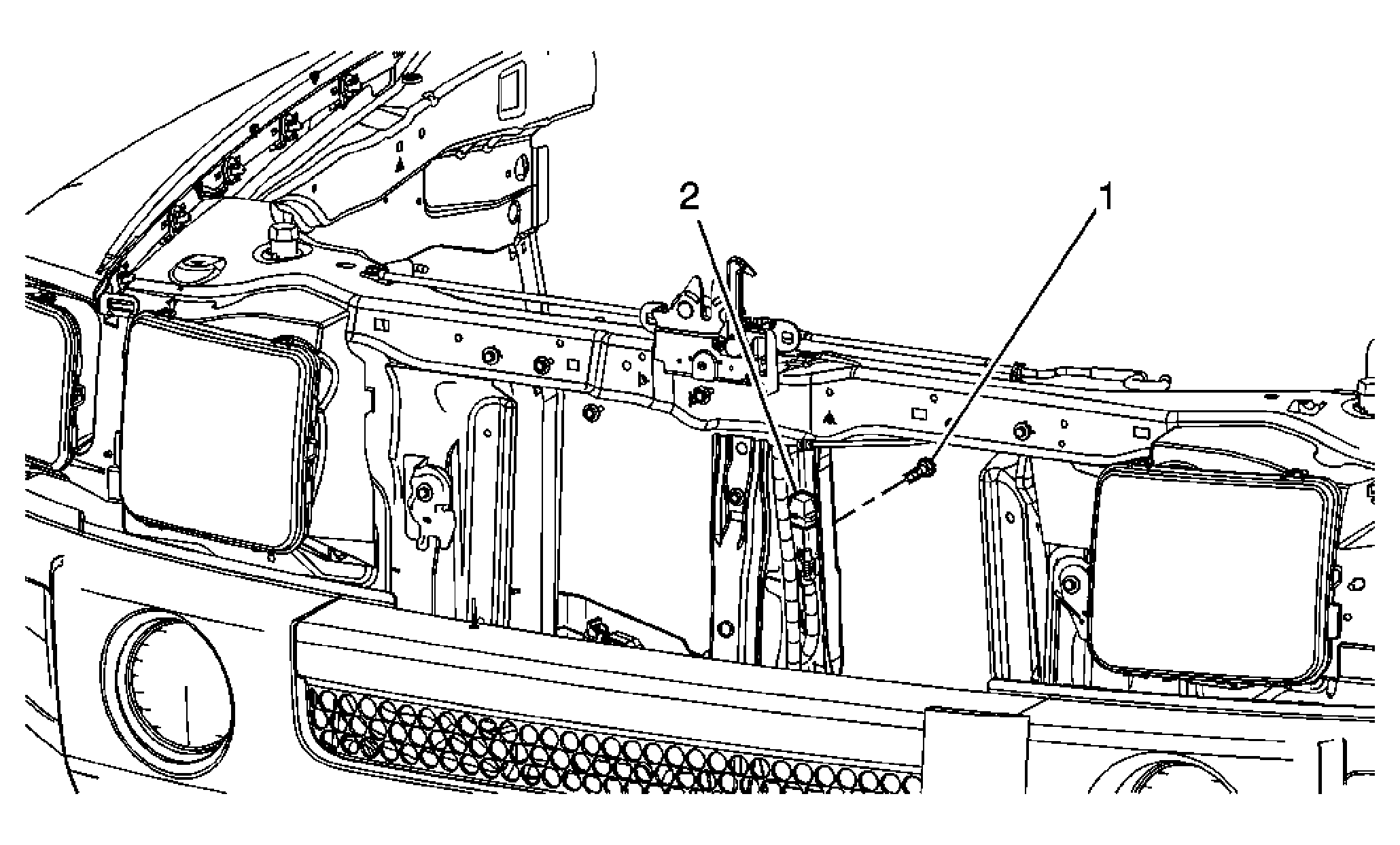

Fig 1: Ambient Air Temperature Sensor Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedures: Remove the front grille. Refer to Grille Replacement .
1	Screw, Sensor Ambient Air Temperature Tighten: 10 N.m (89 lb in)
2	Sensor, Ambient Air Temperature
