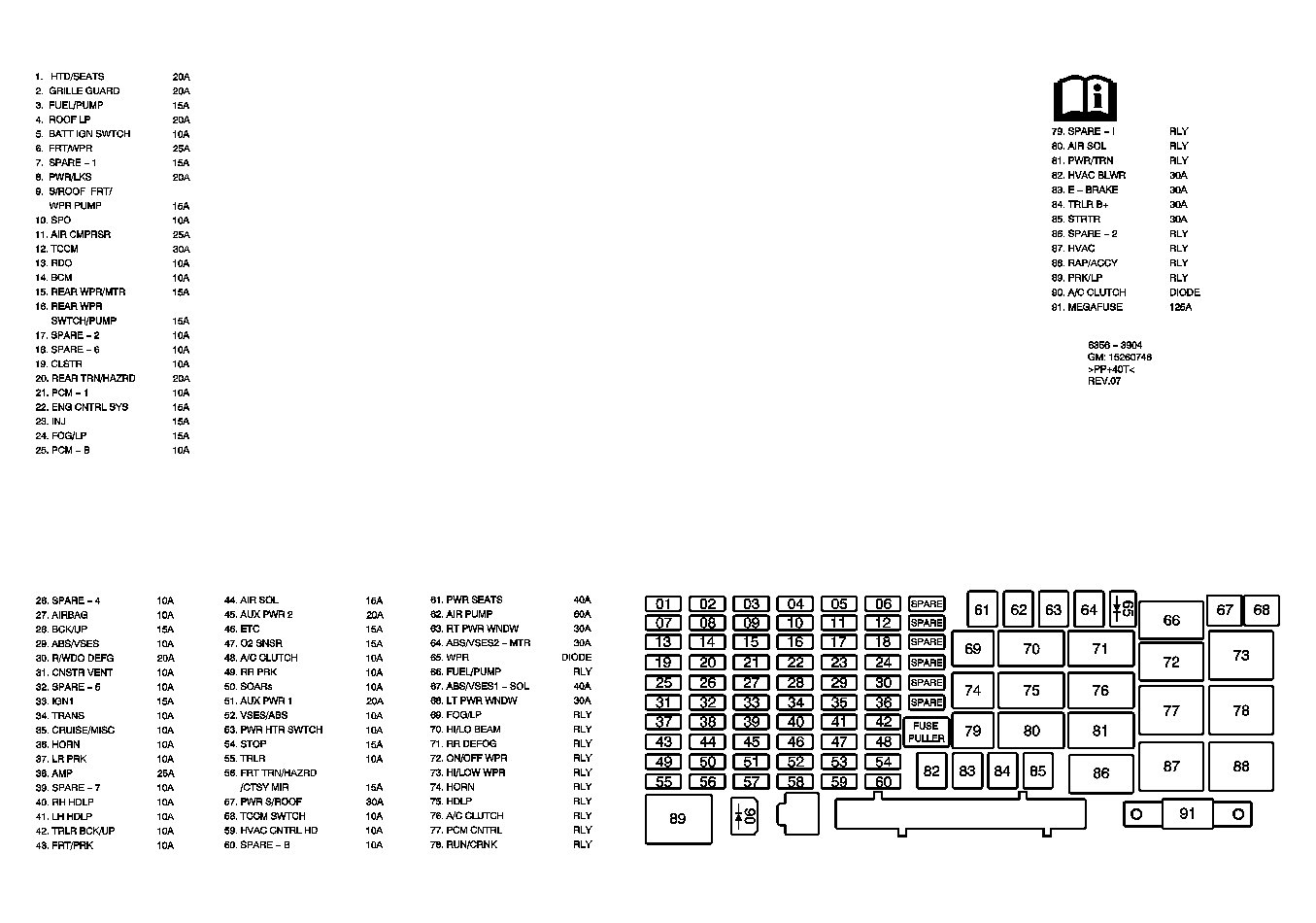

Fuse Block - Underhood Label
Fuse Block - Underhood Label
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | HTD/SEATS | 20A | Heater Element Seat Cushion - Driver, Heated Seat Module - Passenger |
| 2 | GRILLE GUARD | 20A | Not Used (Dealer Installed - Grille Guard Lights) |
| 3 | FUEL/PUMP | 15A | Fuel Pump and Sender Assembly |
| 4 | ROOF LP | 20A | Not Used (Dealer Installed - Roof Rack Lights) |
| 5 | BATT IGN SWTCH | 10A | Ignition Switch |
| 6 | FRT/WPR | 25A | ON/OFF WPR Relay |
| 7 | SPARE-1 | 15A | Not Used |
| 8 | PWR/LKS | 20A | Door Lock and Window Switch - Driver |
| 9 | S/ROOF FRT/WPR PUMP | 15A | Sunroof Module, Turn Signal/Multifunction Switch, Automatic Transmission Floor Shift Control |
| 10 | SPO | 10A | Not Used (To be added by SPO) |
| 11 | AIR CMPRSR | 25A | Not Used |
| 12 | TCCM | 30A | Transfer Case Shift Control Module |
| 13 | RDO | 10A | Radio, HVAC Control Module |
| 14 | BCM | 10A | Body Control Module (BCM) |
| 15 | REAR/WPR MTR | 15A | Rear Window Wiper/Washer Module |
| 16 | REAR WPR SWTCH/PUMP | 15A | Rear Window/Wiper Washer Switch, Rear Window Washer Fluid Pump |
| 17 | SPARE-2 | 10A | Not Used |
| 18 | SPARE-6 | 10A | Not Used |
| 19 | CLSTR | 10A | Instrument Panel Cluster (IPC) |
| 20 | REAR TRN/HAZRD | 20A | Body Control Module (BCM) |
| 21 | PCM-I | 10A | Powertrain Control Module (PCM) |
| 22 | ENG CNTRL SYS | 15A | Evaporative Emission (EVAP) Canister Purge Solenoid Valve, Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor |
| 23 | INJ | 15A | Fuel Injectors 1-5 |
| 24 | FOG/LP | 15A | Fog Lamp - Left/Right |
| 25 | PCM-B | 10A | Powertrain Control Module (PCM) C1 |
| 26 | SPARE-4 | 10A | Not Used |
| 27 | AIRBAG | 10A | Inflatable Restraint Vehicle Rollover Sensor, Accessory Switch, Inflatable Restraint Sensing and Diagnostic Module (SDM), Inflatable Restraint Front Passenger Presence System (PPS) Sensor |
| 28 | BCK/LP | 15A | Backup Lamp Switch (MA5), Park/Neutral Position (PNP) Switch (M30) |
| 29 | ABS/VSES | 10A | Electronic Brake Control Module (EBCM) |
| 30 | R/WDO DEFG | 20A | Rear Window Defogger |
| 31 | CNSTR VENT | 10A | Evaporative Emission (EVAP) Canister Vent Solenoid Valve |
| 32 | SPARE-5 | 10A | Not Used |
| 33 | IGN 1 | 15A | Clutch Start Switch (MA5), Park/Neutral Position (PNP) Switch (M30), Ignition Coils |
| 34 | TRANS | 10A | Automatic Transmission (M30) |
| 35 | CRUISE/MISC | 10A | Inside Rearview Mirror, Turn Signal/Multifunction Switch, Clutch Switch (MA5), TCC Brake/Cruise Release Switch |
| 36 | HORN | 10A | Horn |
| 37 | LR PRK | 10A | Tail/Stop and Turn Signal Lamp - Left, Body Control Module (BCM) |
| 38 | AMP | 25A | Digital Radio Receiver |
| 39 | SPARE-7 | 10A | Not Used |
| 40 | RH HDLP | 10A | Headlamp - Right |
| 41 | LH HDLP | 10A | Headlamp - Left |
| 42 | TRLR BCK/LP | 10A | Trailer Connector (UY7) |
| 43 | FRT/PRK | 10A | Marker Lamp LF/RF, Park/Turn Signal Lamp LF/RF, Door Lock and Window Switch - Driver/Passenger, Door Window Switch - LR/RR |
| 44 | AIR SOL | 15A | Not used |
| 45 | AUX PWR 2 | 20A | Accessory Power Outlet - Front, Accessory Power Outlet - Rear |
| 46 | ETC | 15A | Powertrain Control Module (PCM) |
| 47 | O2 SNSR | 15A | Heated Oxygen Sensor (HO2S) 1, Heated Oxygen Sensor (HO2S) 2 |
| 48 | A/C CLUTCH | 10A | A/C Compressor Clutch, A/C CLUTCH Diode |
| 49 | RR PRK | 10A | Tail/Stop and Turn Signal Lamp - Right, License Lamp |
| 50 | SDARs | 10A | Not Used |
| 51 | AUX PWR 1 | 20A | Cigar Lighter, Data Link Connector (DLC) |
| 52 | VSES/ABS | 10A | Electronic Brake Control Module (EBCM), Steering Wheel Position Sensor (JL4), Yaw Rate/Latereral and Longitudinal Accelerometer Sensor (JL4) |
| 53 | PWR HTR SWTCH | 10A | Lumbar Adjuster/Heater Switch - Driver/Passenger |
| 54 | STOP | 15A | Stop Lamp Switch |
| 55 | TRLR | 10A | Trailer Connector |
| 56 | FRT TRN/HAZRD/CTSY MIR | 15A | Body Control Module (BCM) |
| 57 | PWR S/ROOF | 30A | Sunroof Motor |
| 58 | TCCM SWTCH | 10A | Accessory Switch |
| 59 | HVAC CNTRL HD | 10A | HVAC Control Module |
| 60 | SPARE-B | 10A | Not Used |
| 61 | PWR SEATS | 40A | Power Seat Switches |
| 62 | AIR PUMP | 60A | Not Used |
| 63 | RT PWR WNDW | 30A | Door Lock and Window Switch - Passenger, Door Window Switch - RR |
| 64 | ABS/VSES2-MTR | 30A | Electronic Brake Control Module (EBCM) |
| 65 | WPR (DIODE) | Diode | Cathode-WIPER ON/OFF RELAY, Anode-WIPER HI/LO RELAY |
| 66 | FUEL/PUMP | Relay | FUEL/PUMP Fuse |
| 67 | ABS/VSES1-SOL | 40A | Electronic Brake Control Module (EBCM) |
| 68 | LT PWR WNDW | 30A | Door Lock and Window Switch - Driver, Door Window Switch - LR |
| 69 | FOG/LP | Relay | FOG/LP Fuse |
| 70 | HI/LO BEAM RELAY | Relay | HI Beam Headlamp, Low Beam Headlamp |
| 71 | RR DEFOG | Relay | R/WDO DEFG Fuse |
| 72 | ON/OFF WPR | Relay | HI/LOW WPR Relay |
| 73 | HI/LOW WPR | Relay | Windshield Wiper Motor |
| 74 | HORN | Relay | HORN Fuse |
| 75 | HDLP | Relay | LH HDLP, and RH HDLP Fuses |
| 76 | A/C CLUTCH | Relay | A/C CLUTCH Fuse |
| 77 | PCM CNTRL | Relay | Starter Solenoid |
| 78 | RUN/CRNK | Relay | AIRBAG, CRUISE/MISC, IGN1, TRANS, BCK/UP, ABS/VSES, ENG CNTRL SYS, PCM-I, and INJ Fuses |
| 79 | SPARE-1 RELAY | Relay | SPARE-1 RELAY |
| 80 | AIR SOL RELAY | Relay | Engine Control Module (ECM) |
| 81 | PWR/TRN | Relay | O2 SNSR, and ETC Fuse |
| 82 | HVAC BLWR | 30A | Blower Motor, High Speed Blower Motor Relay |
| 83 | E-BRAKE | 30A | Electronic Brake Module (Blunt Cut) |
| 84 | TRLR B+ | 30A | Trailer Connector |
| 85 | STRTR | 30A | PCM CNTRL Relay |
| 86 | SPARE-2 RELAY | Relay | Not Used |
| 87 | HVAC | Relay | HVAC BLWR, HVAC CNTRL HD, PWR HTR SWTCH, TCCM SWTCH, and VSES/ABS Fuses |
| 88 | RAP/ACCY | Relay | LT PWR WNDW, RT PWR WNDW, S/ROOF FRT/WPR, REAR WPR SWTCH/PUMP, SPO, and REAR/WPR MTR Fuses |
| 89 | PRK/LP | Relay | LR PRK, RR PRK, FRT/PRK, and TRLR Fuses |
| 90 | A/C CLUTCH | - | A/C Clutch Diode |
| 91 | MEGAFUSE | 125A | Generator |
