Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

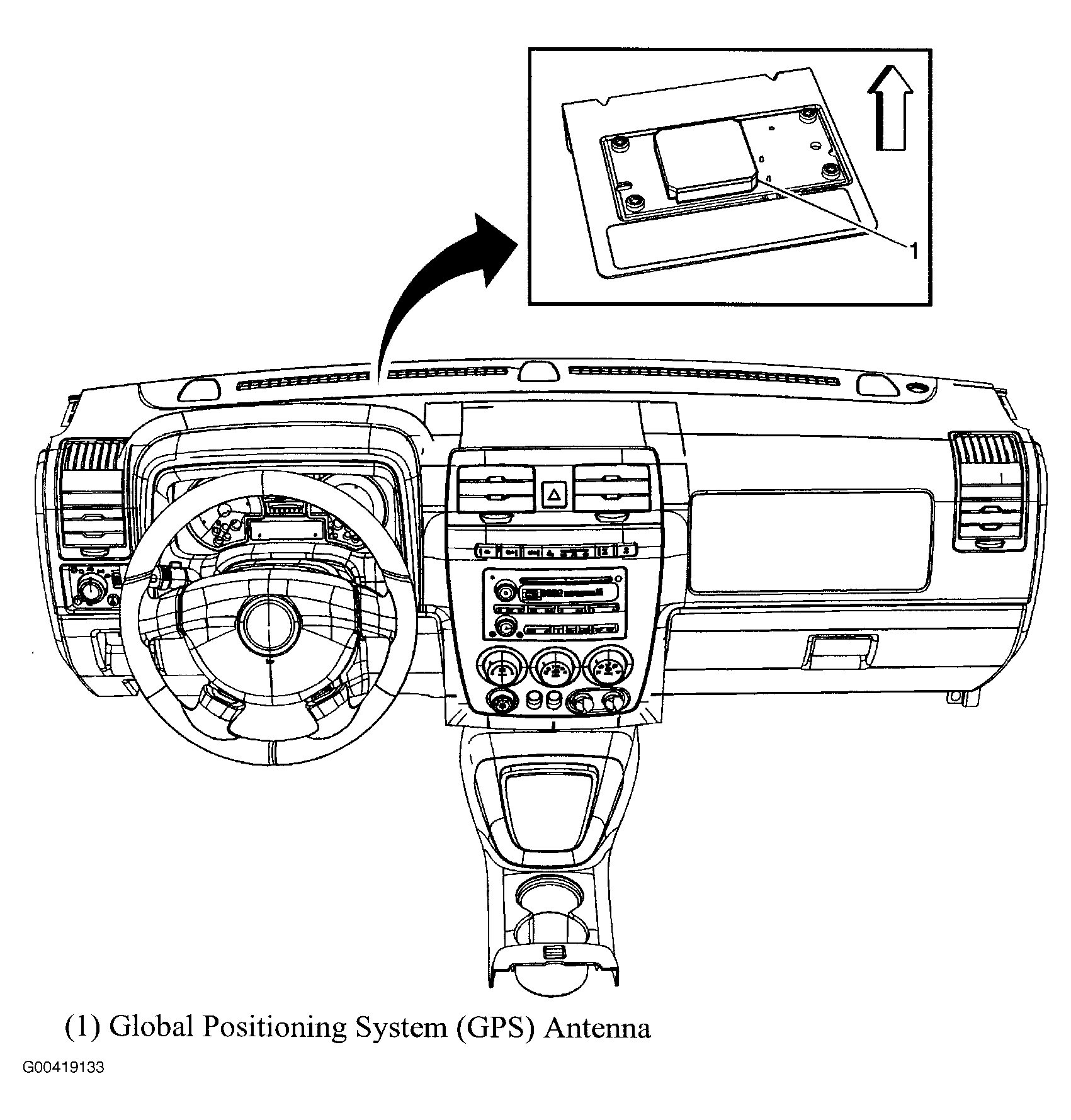

Fig 1: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 2: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 3: Brake Components
Courtesy of GENERAL MOTORS CORP.
Fig 4: Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

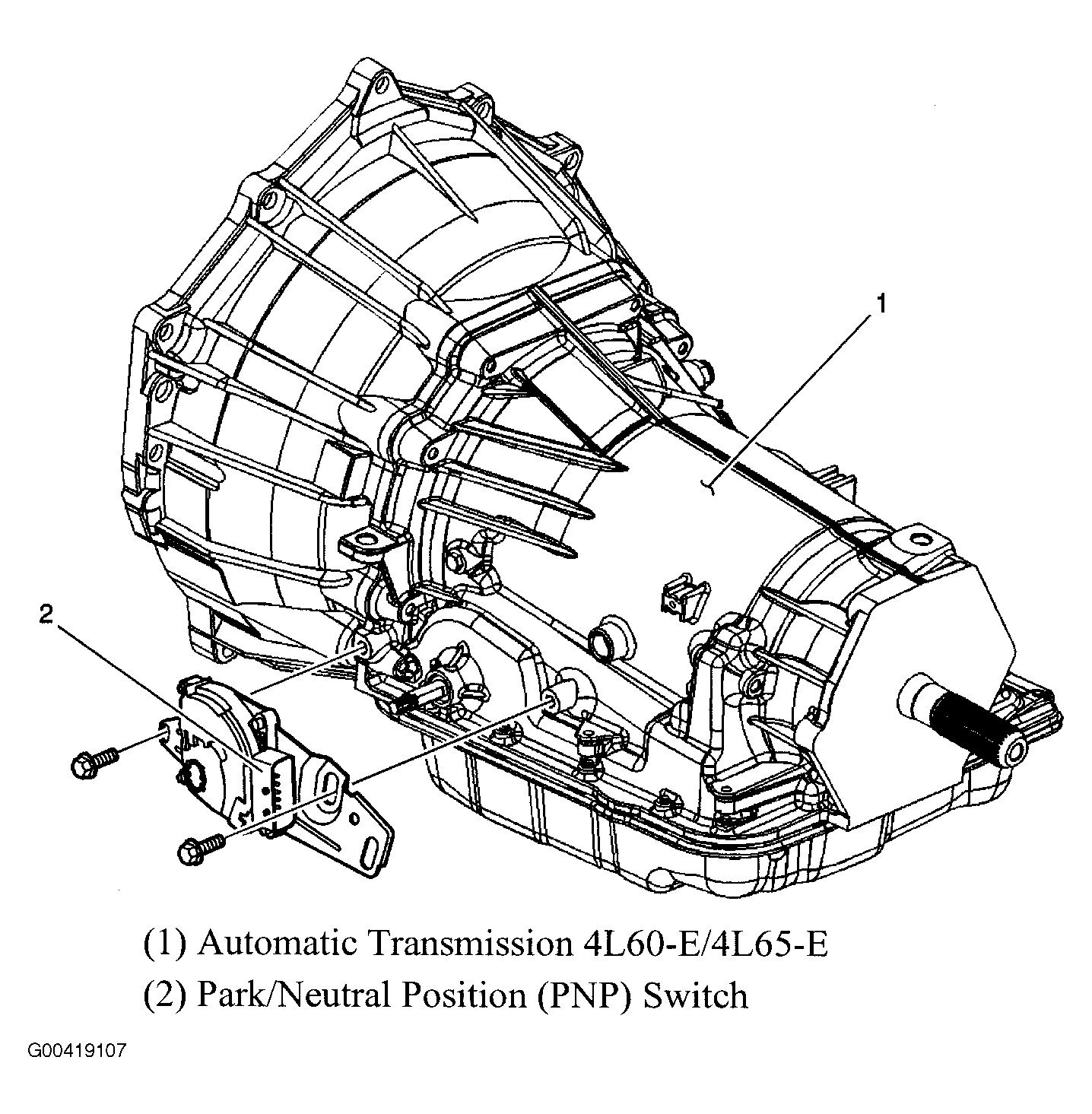

Fig 5: Transmission Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 6: Transmission Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 7: Transmission Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 8: Entertainment Components
Courtesy of GENERAL MOTORS CORP.
Fig 9: Headliner Components
Courtesy of GENERAL MOTORS CORP.
Fig 10: Right Front Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 11: Dash Harness
Courtesy of GENERAL MOTORS CORP.
Fig 12: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 13: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

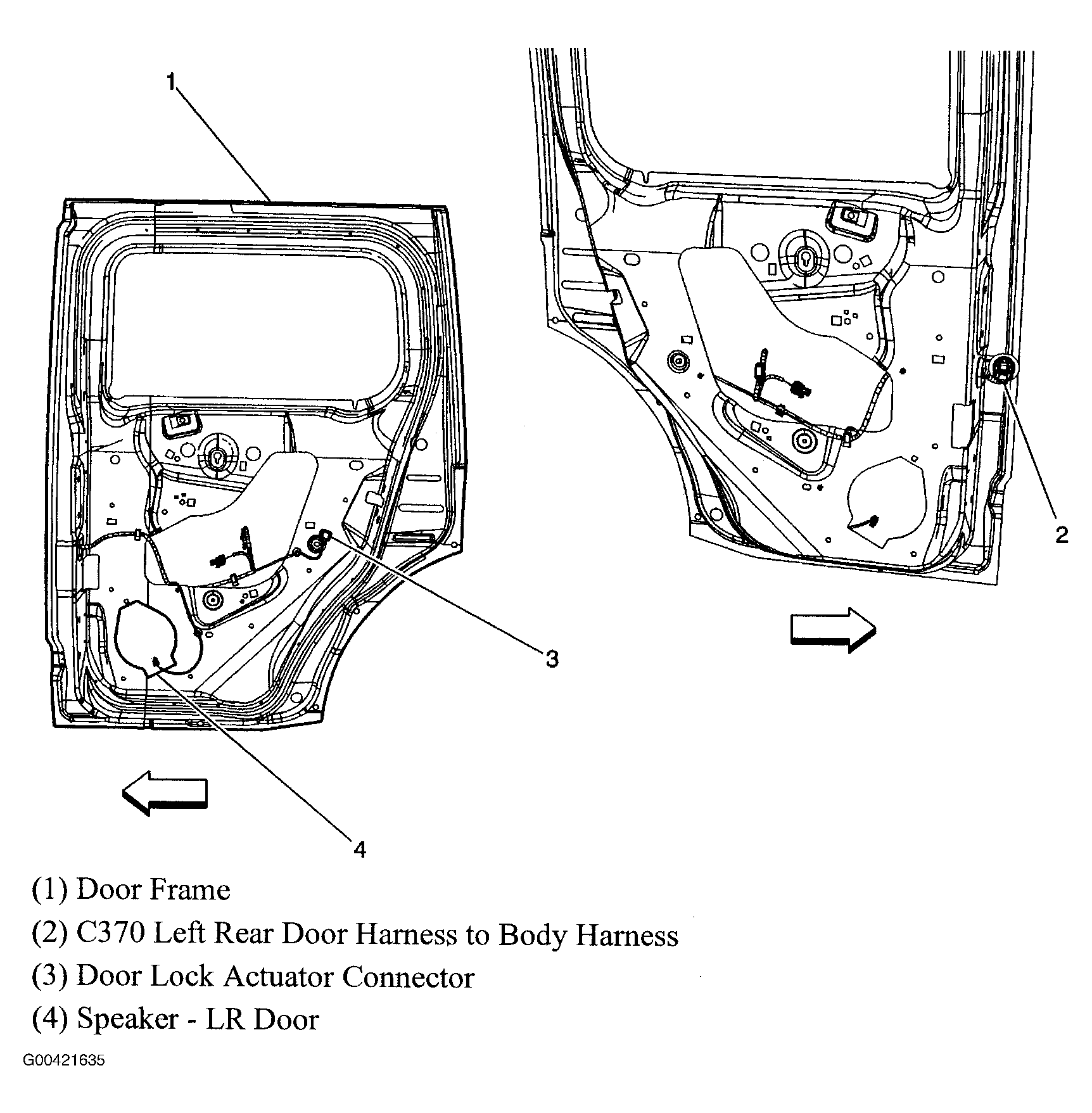

Fig 14: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 15: Endgate Components
Courtesy of GENERAL MOTORS CORP.

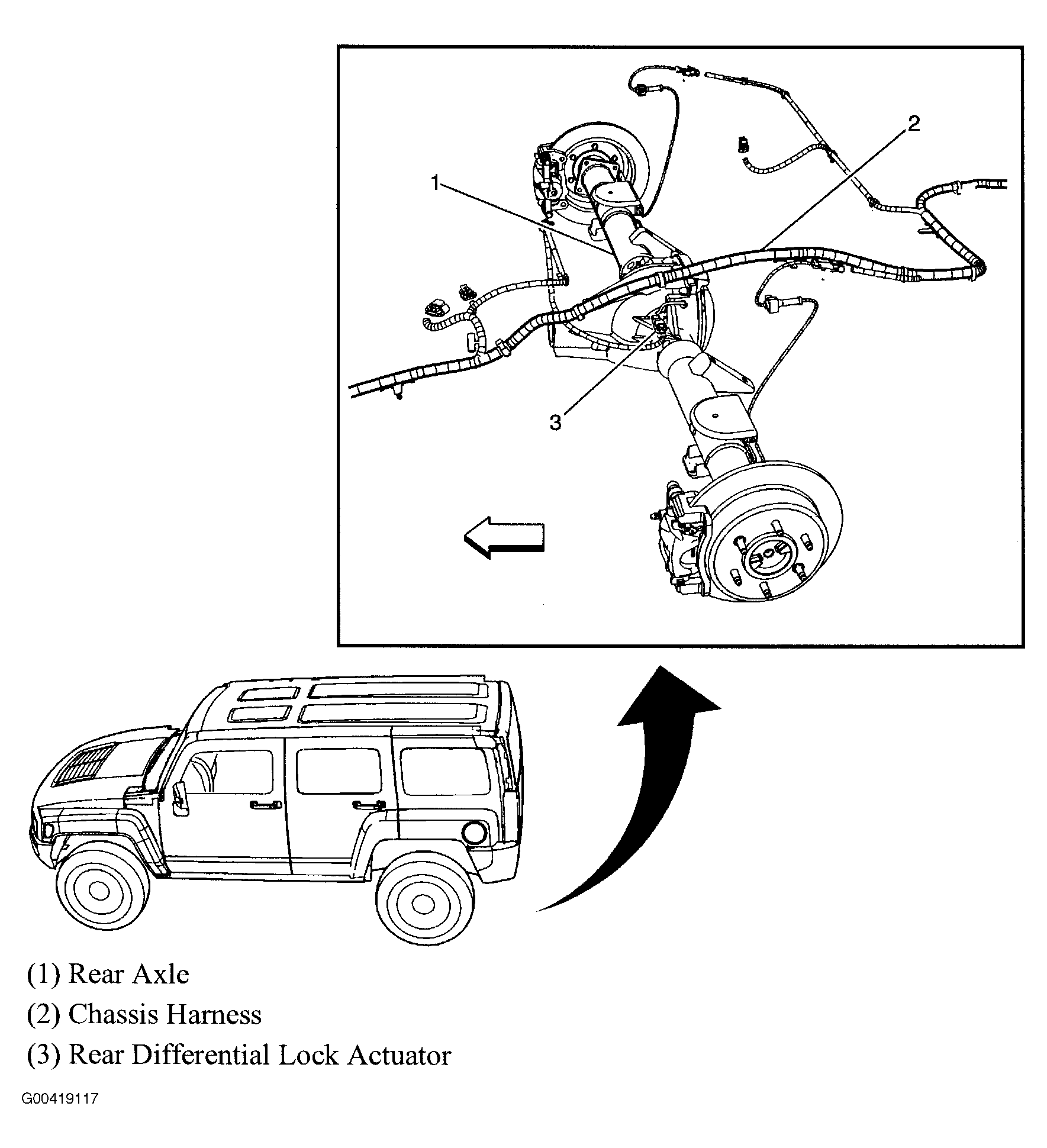

Fig 16: Rear Axle Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 17: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 18: Right Side Of Engine Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 19: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 20: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 21: Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 22: Engine Electrical Components
Courtesy of GENERAL MOTORS CORP.
Fig 23: Engine Electrical Components
Courtesy of GENERAL MOTORS CORP.
Fig 24: Left Rear Of Cargo Area
Courtesy of GENERAL MOTORS CORP.
Fig 25: Sunroof Component Views
Courtesy of GENERAL MOTORS CORP.
Fig 26: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 27: HVAC Components
Courtesy of GENERAL MOTORS CORP.
Fig 28: Forward Lamp Harness
Courtesy of GENERAL MOTORS CORP.
Fig 29: Dash Harness
Courtesy of GENERAL MOTORS CORP.
Fig 30: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.
Fig 31: Transmission Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 32: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 33: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 34: Side Impact Sensor (SIR) Components
Courtesy of GENERAL MOTORS CORP.

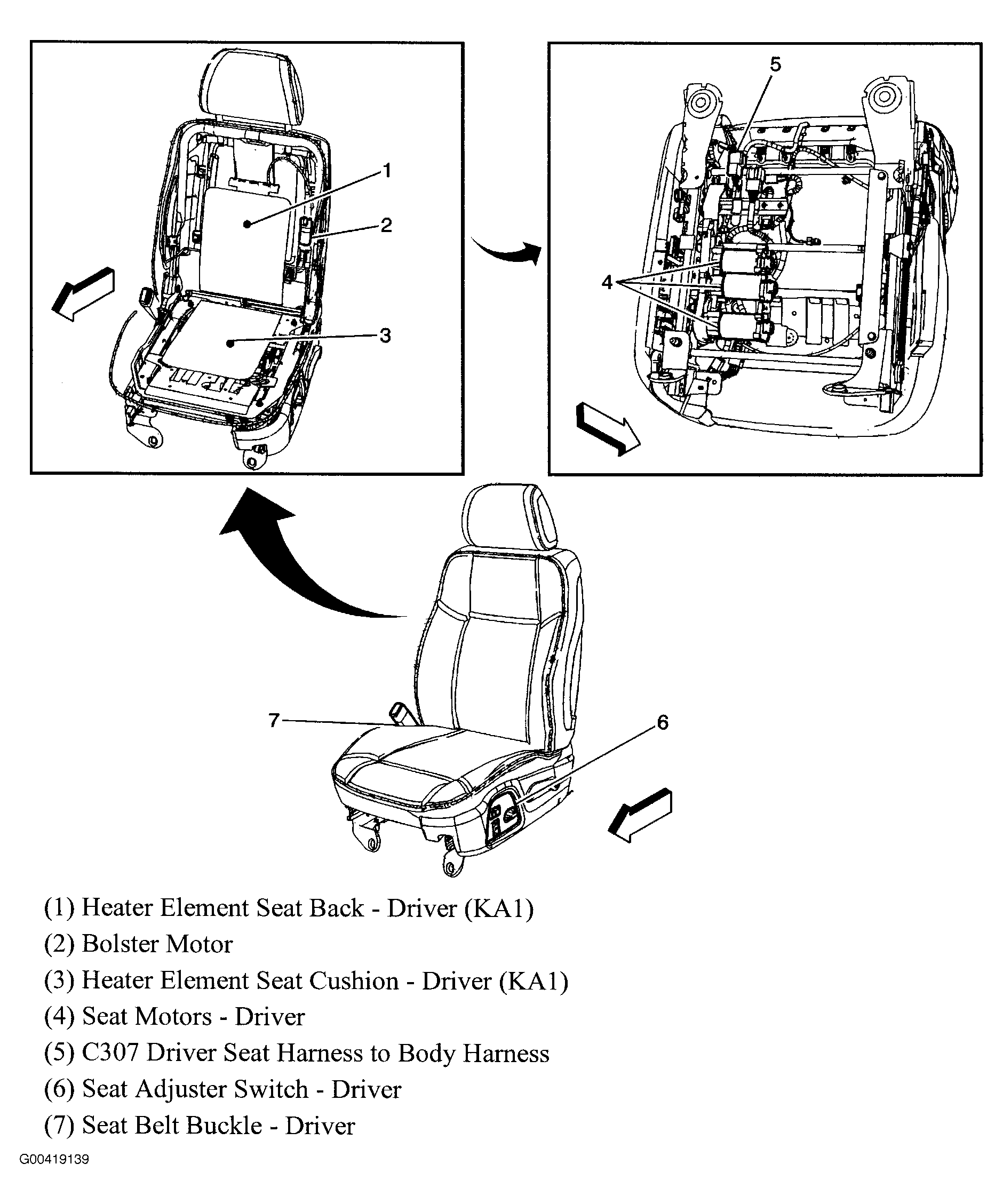

Fig 35: Driver's Seat
Courtesy of GENERAL MOTORS CORP.

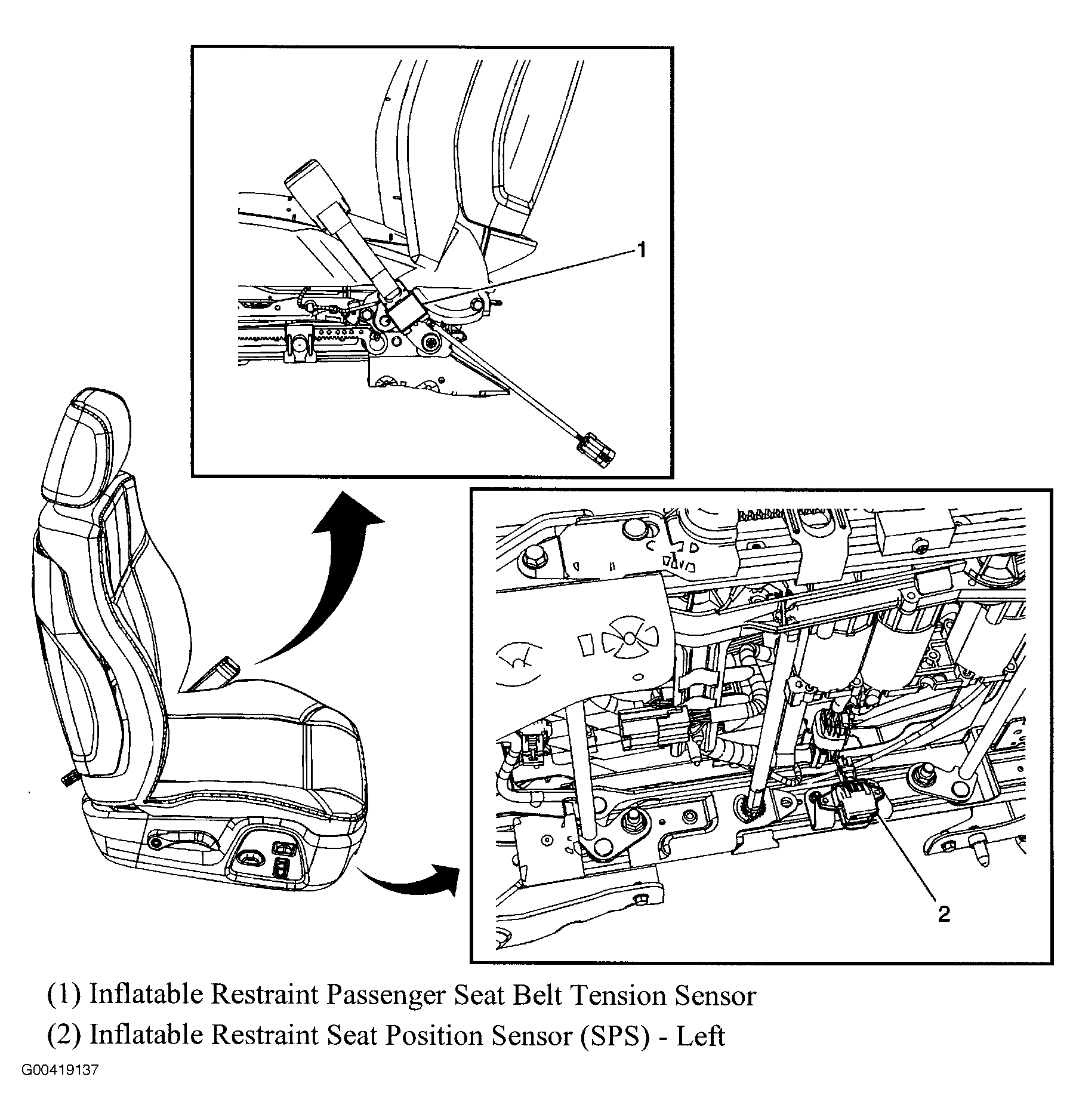

Fig 36: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

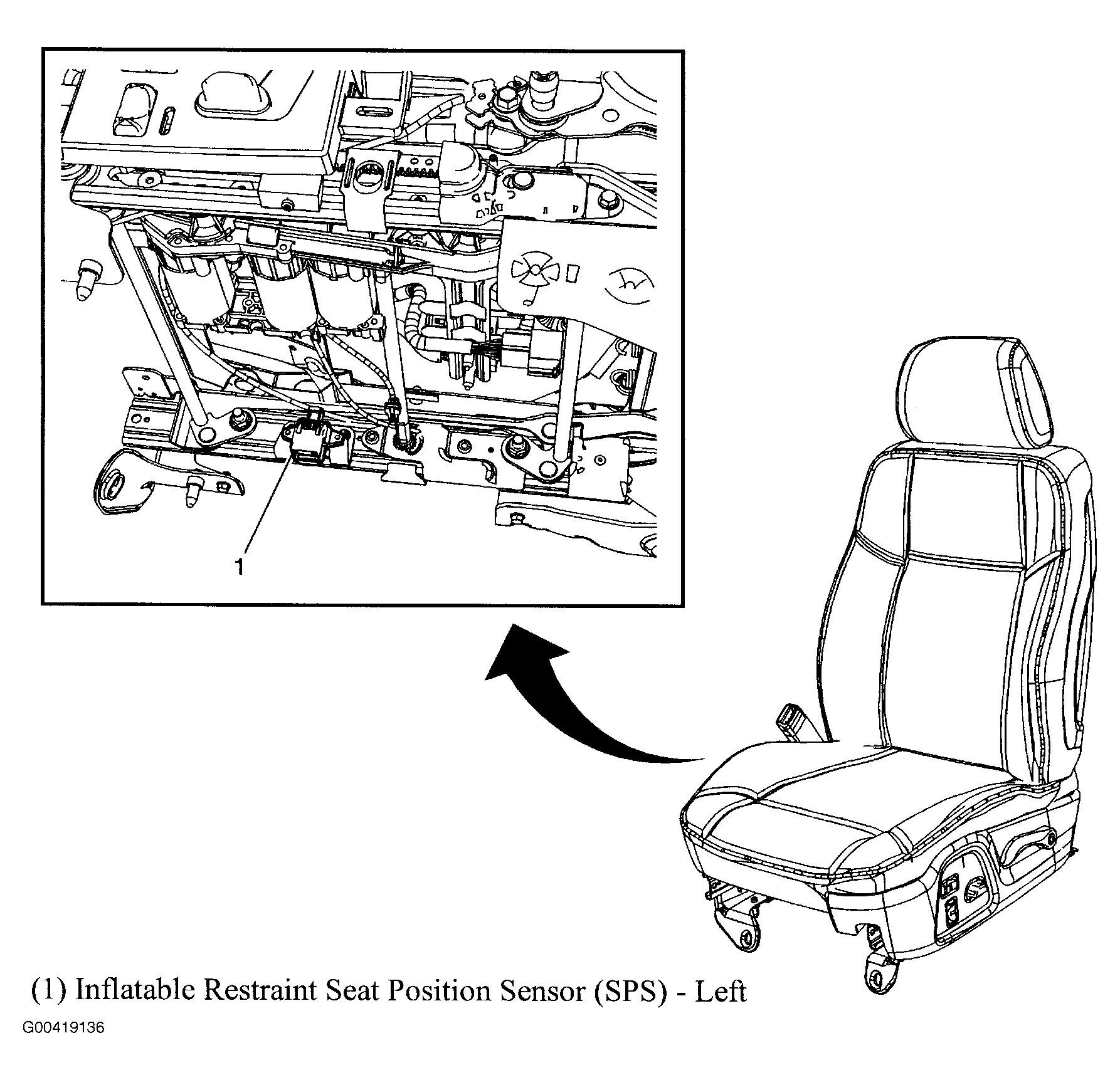

Fig 37: Passenger Seat Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 38: Driver's Seat
Courtesy of GENERAL MOTORS CORP.

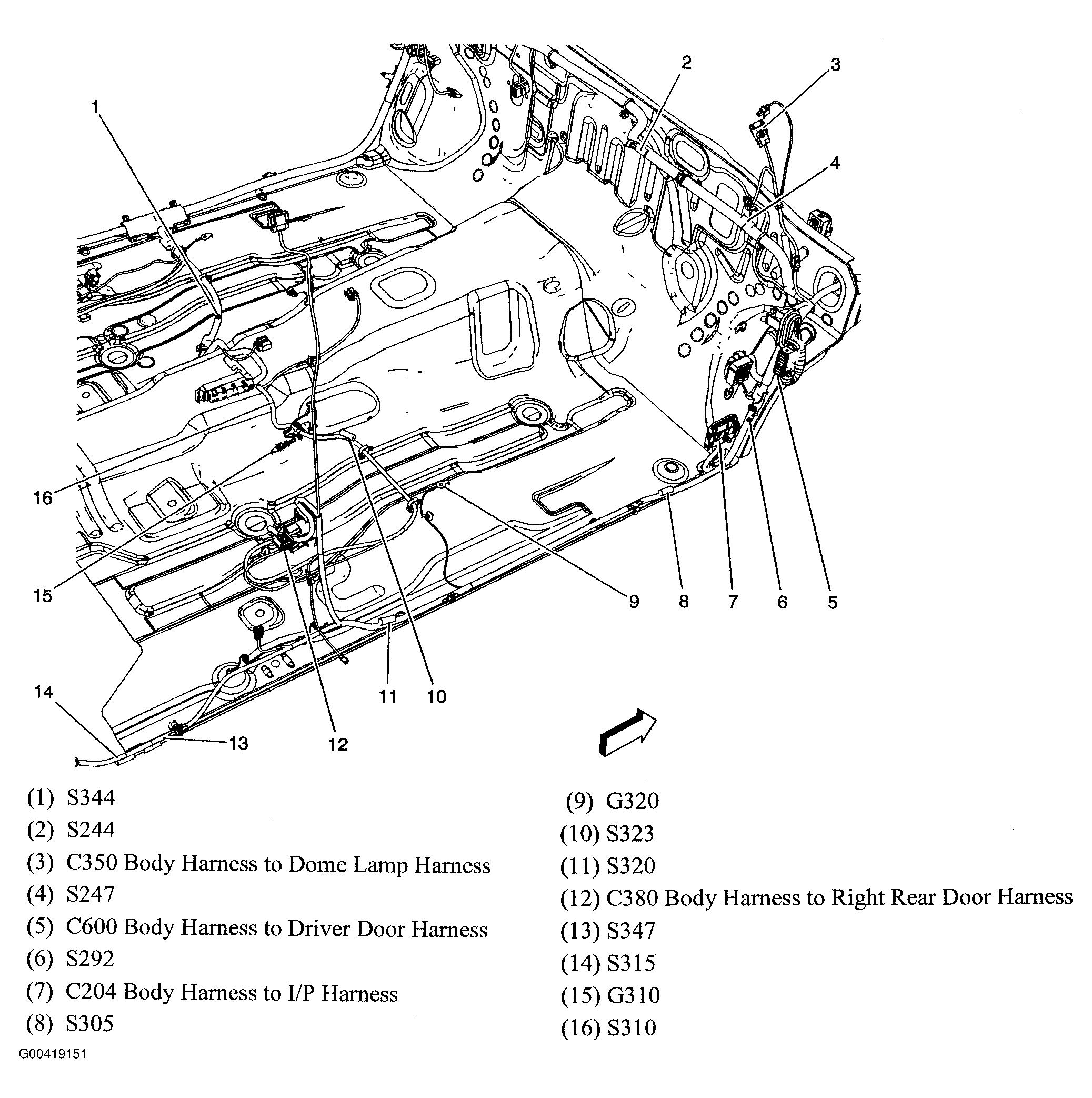

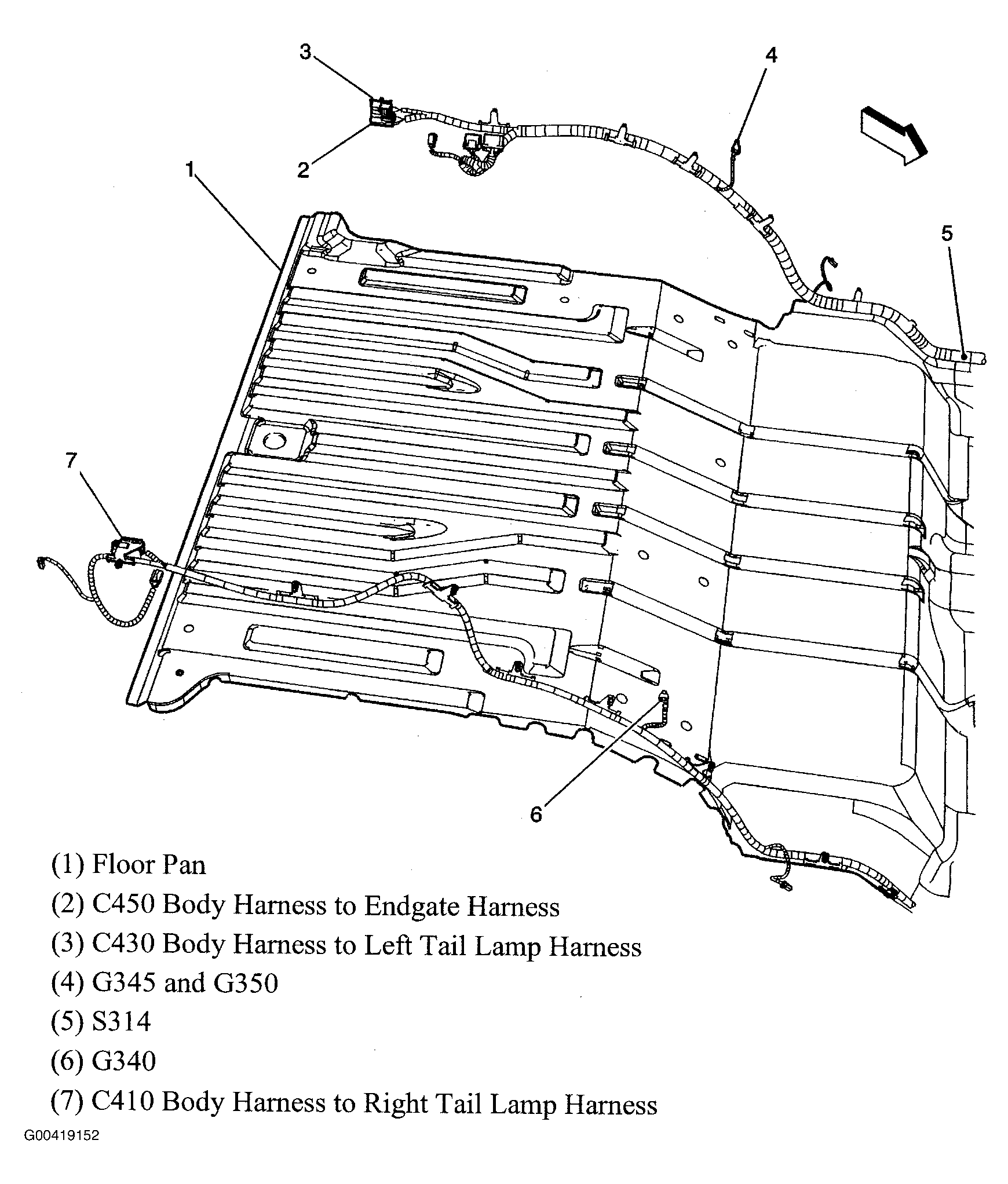

Fig 39: Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 40: Tire Assembly
Courtesy of GENERAL MOTORS CORP.

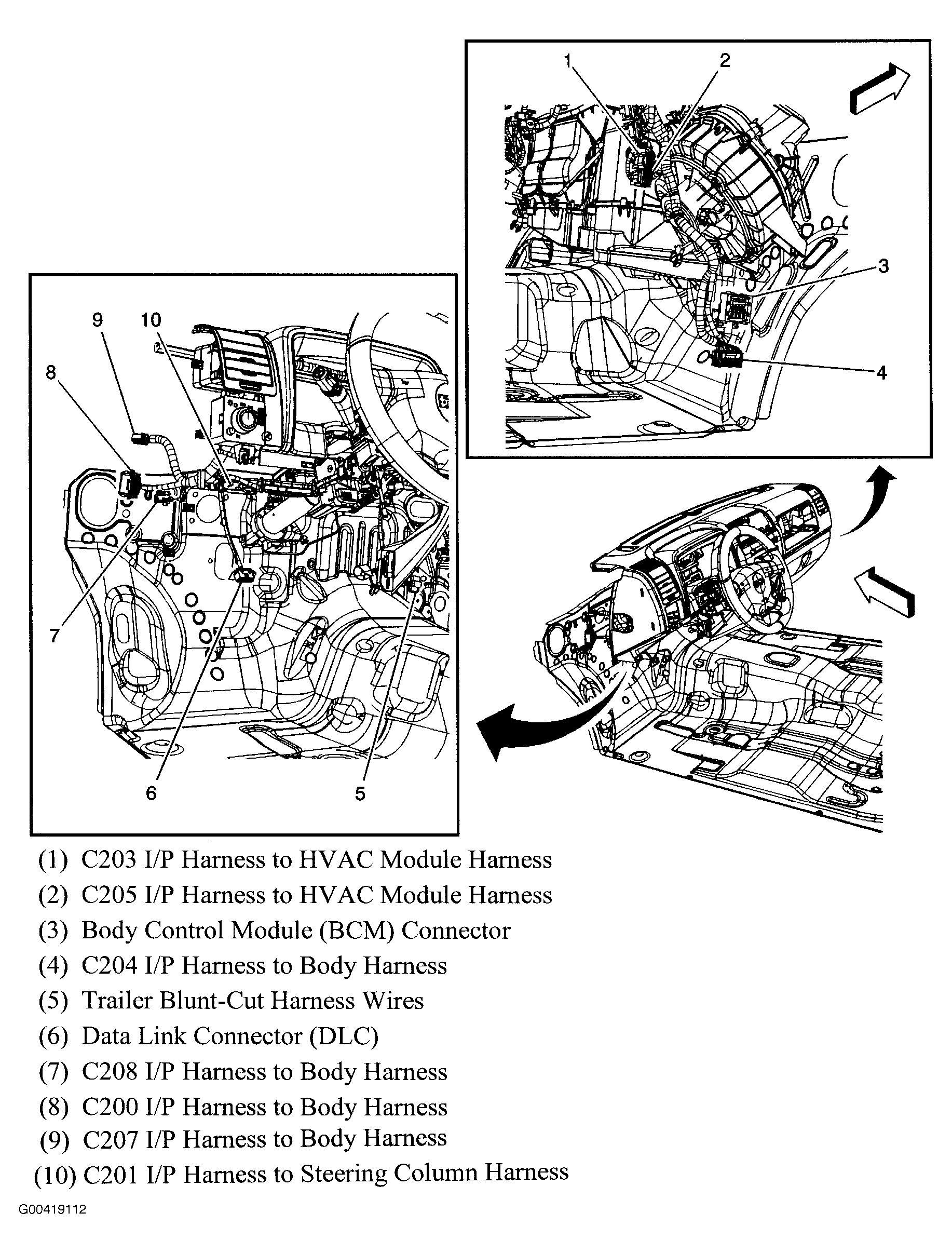

Fig 41: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 42: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 43: Front Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 44: Vehicle Overview
Courtesy of GENERAL MOTORS CORP.

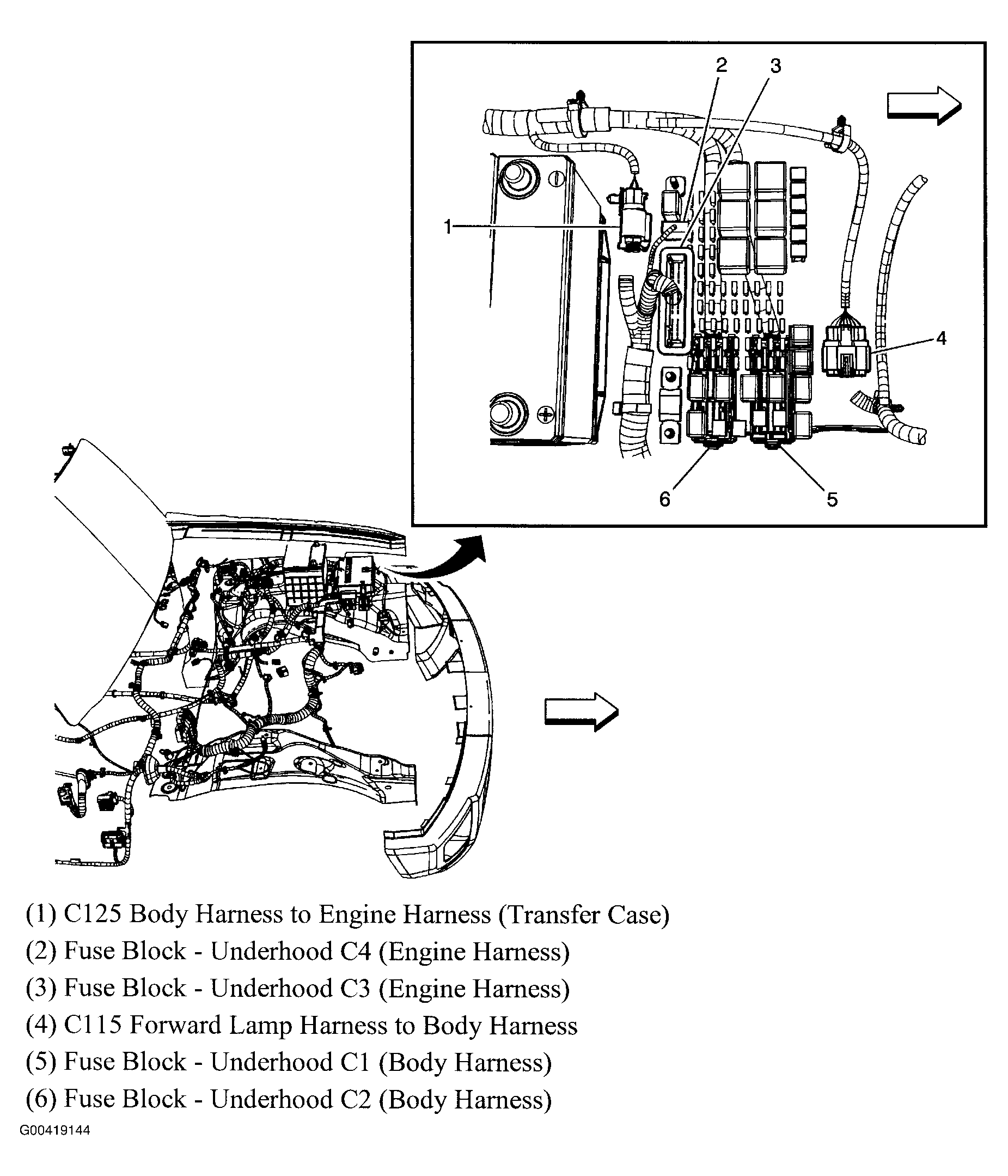

Fig 45: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 46: Dash Harness
Courtesy of GENERAL MOTORS CORP.
Fig 47: HVAC Module Harness
Courtesy of GENERAL MOTORS CORP.
Fig 48: Body Harness (Front)
Courtesy of GENERAL MOTORS CORP.

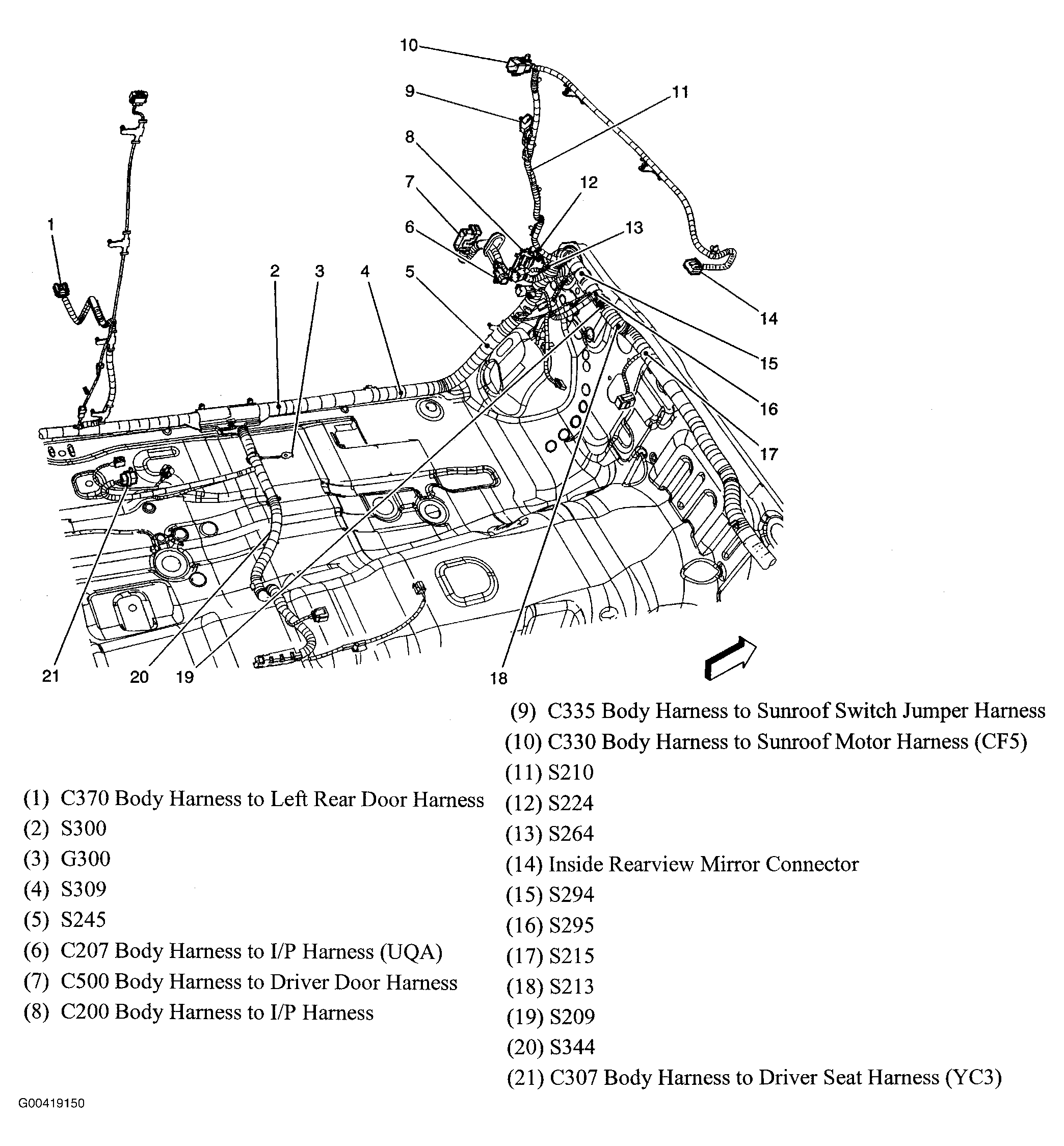

Fig 49: Driver's Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 50: Front Passenger's Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 51: Rear Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 52: Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 53: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 54: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

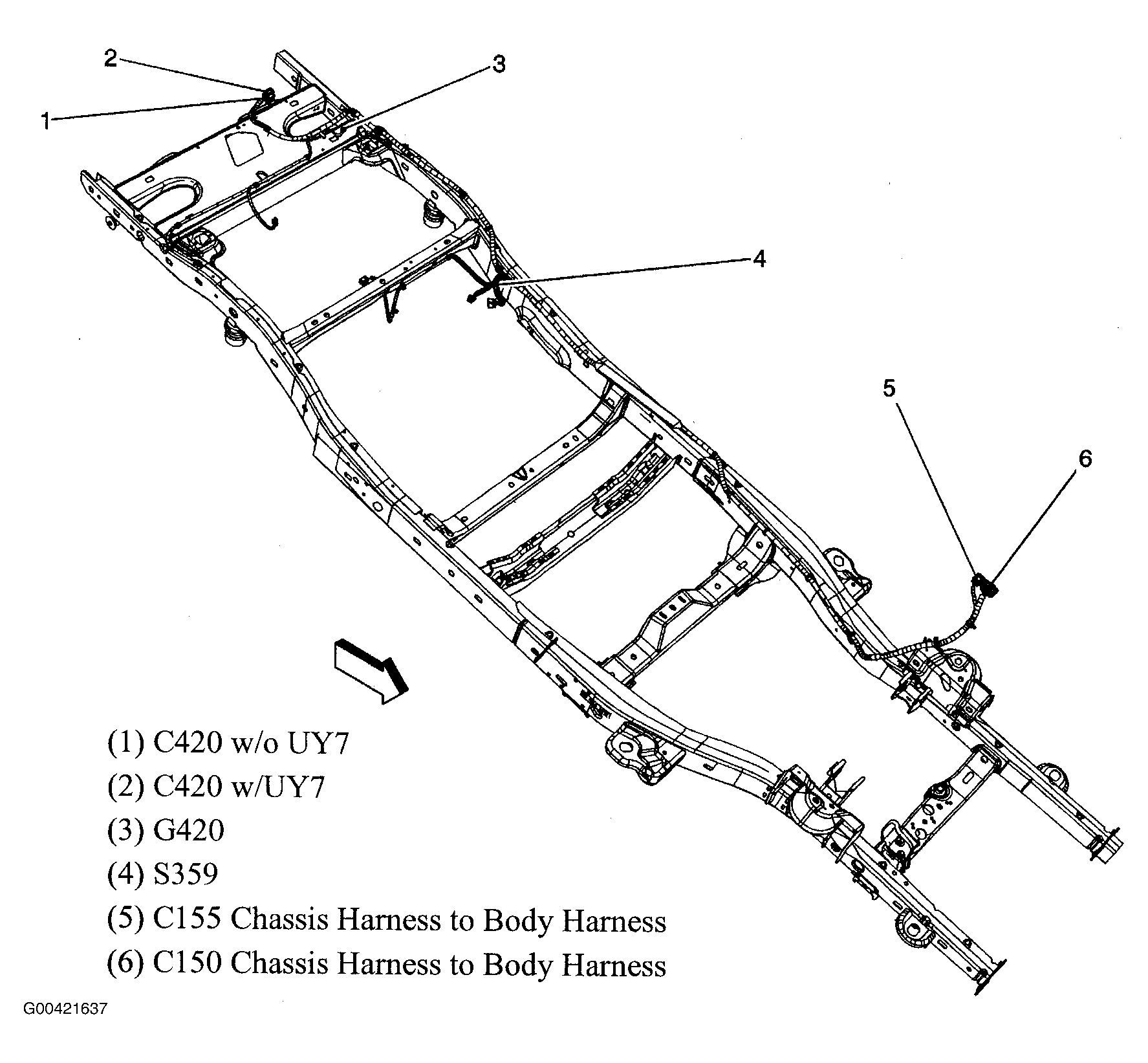

Fig 55: Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 56: Endgate
Courtesy of GENERAL MOTORS CORP.
