Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|
| C100 (Black, 4 Pin) | In engine harness to front axle jumper harness. |
| C101 (Black, 6 Pin) | Rear center of engine. See Figure . |
| C115 (Black, 16 Pin) | Right of left front fog lamp. See Figure . |
| C116 (Black, 8 Pin) | Behind left headlamp assembly. See Figure . |
| C117 (Black, 8 Pin) | Behind right headlamp assembly. See Figure . |

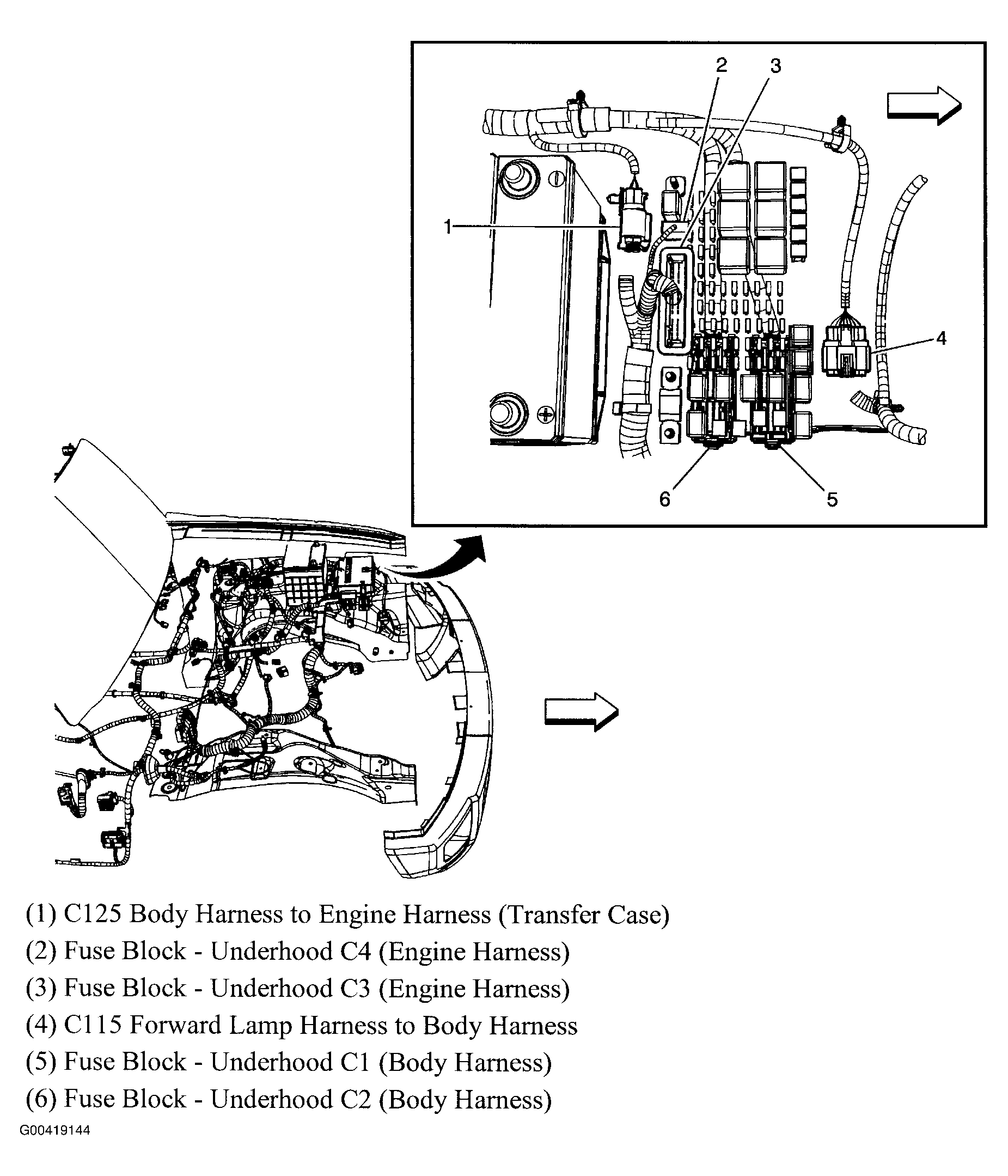

| C125 (Black, 16 Pin) | Near battery. See Figure . |
| C130 (Black, 2 Pin) | In body harness to battery cable harness. See Figure . |
| C150 (Black, 16 Pin) | Behind battery next to EBCM. See Figure . |
| C155 (Black, 4 Pin) | Next to EBCM. See Figure . |
| C175 (20 Pin) | Right side of transmission. |
| C200 (Black, 40 Pin) | Behind left of dash. See Figure . |
| C201 (Blue/Gray, 22 Pin) | Base of steering column. See Figure . |

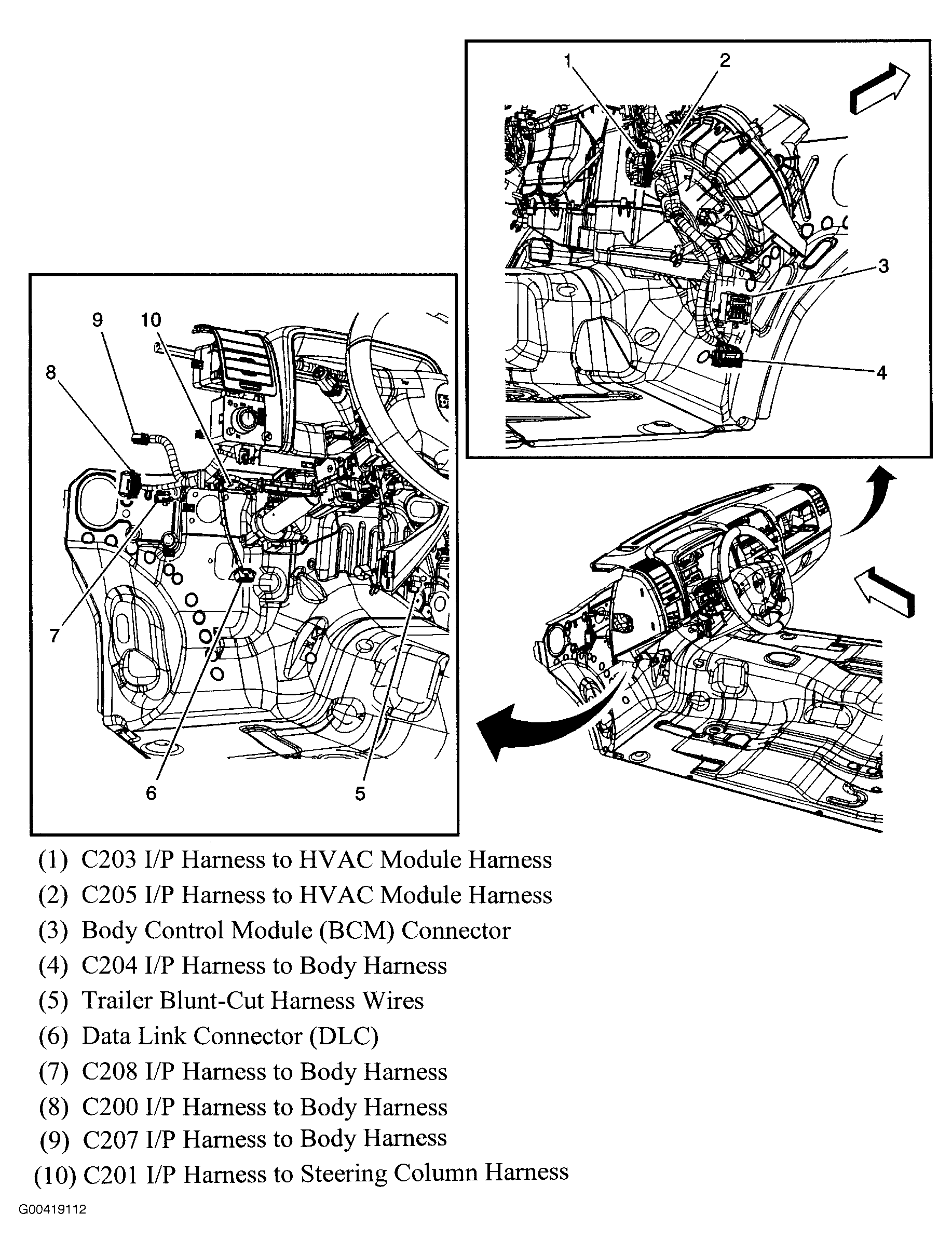

| C203 (White, 8 Pin) | Near blower motor. See Figure . |
| C204 (Blue/Gray, 22 Pin) | Behind right kick panel. See Figure . |
| C205 (White, 12 Pin) | Near blower motor. See Figure . |
| C207 (White, 12 Pin) | Behind left of dash. See Figure . |
| C208 (Yellow, 4 Pin) | Behind left of dash. See Figure . |
| C275 (Yellow, 4 Pin) | Next to C201. See Figure . |
| C307 (White, 8 Pin) | Under driver seat. See Figure . |
| C308 (White, 4 Pin) | In body harness to driver seat belt switch jumper harness. |
| C315 (White, 12 Pin) | Under passenger seat. See Figure . |
| C318 (Black, 3 Pin) | In passenger seat bottom. |
| C319 (Black, 3 Pin) | In driver seat bottom. |
| C320 (w/o Seat Heater) (4 Pin) | In body harness to passenger seat belt switch jumper harness. |
| C320 (w/Seat Heater) (8 Pin) | In body harness to passenger seat belt switch jumper harness. |
| C330 (White, 8 Pin) | Behind upper left A-pillar trim panel. See Figure . |
| C335 (White, 6 Pin) | Behind upper left A-pillar trim panel. See Figure . |
| C350 (White, 6 Pin) | Behind right lower A-pillar trim. See Figure . |
| C370 (White, 12 Pin) | In left rear passenger door. See Figure . |
| C380 (White, 12 Pin) | In right rear passenger door. See Figure . |
| C410 (Black, 4 Pin) | Behind right rear quarter trim panel near D-pillar. See Figure . |
| C420 (w/Heavy Duty harness) (Black, 16 Pin) | Rearward of left wheel well. See Figure . |
| C420 (w/o Heavy Duty Harness) (Gray, 4 Pin) | Rearward of left wheel well. See Figure . |
| C430 (White, 4 Pin) | Behind left rear quarter trim panel near D-pillar. See Figure . |
| C450 (White, 12 Pin) | Behind left rear quarter trim panel near D-pillar. See Figure . |
| C500 (Black/White, 30 Pin) | In driver door. See Figure . |
| C510 (White, 8 Pin) | Inside middle front of drivers door, near A-pillar. See Figure . |
| C600 (Black/White, 30 Pin) | Body harness to passenger door harness, in passenger door. See Figure . |
| C901 (White, 12 Pin) | Left middle of end gate near pass-through. See Figure . |
