Shoulder Belt Guide Adjuster Replacement - Front

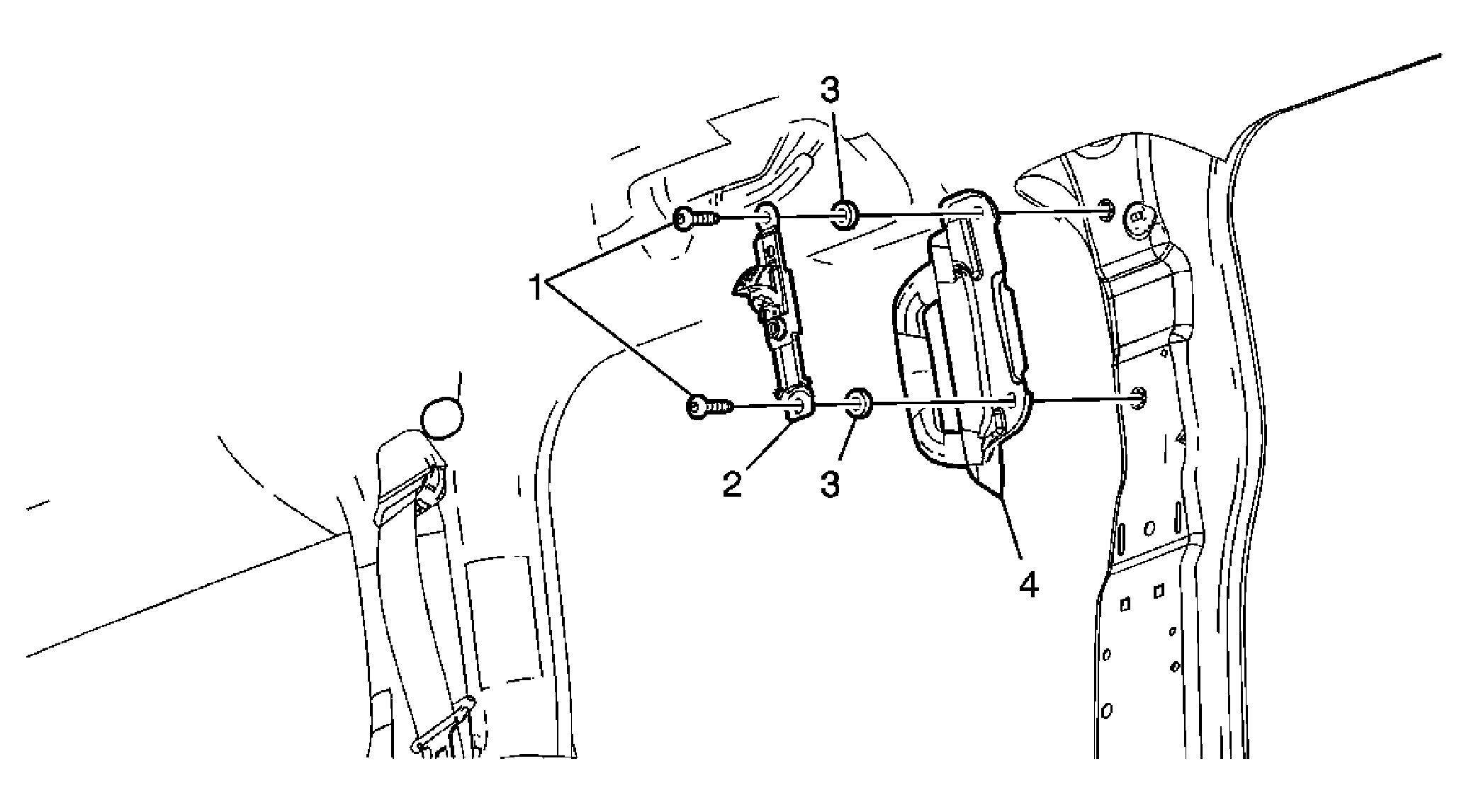

Fig 1: Shoulder Belt Guide Adjuster Replacement - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the seat belt retractor. Refer to Seat Belt Retractor Pretensioner Replacement - Front . Remove the center pillar upper trim panel. Refer to Trim Panel Replacement - Upper Center Pillar .
1	Bolt, Seat Shoulder Belt Guide Track (Qty: 2) Tighten: 52 N.m (38 lb ft)
2	Track, Seat Shoulder Belt Guide
3	Spacer, Seat Shoulder Belt Guide Track (Qty: 2)
4	Handle Assembly, C-Pillar Assist
