Automatic Transmission Shift Lock Control Component Views

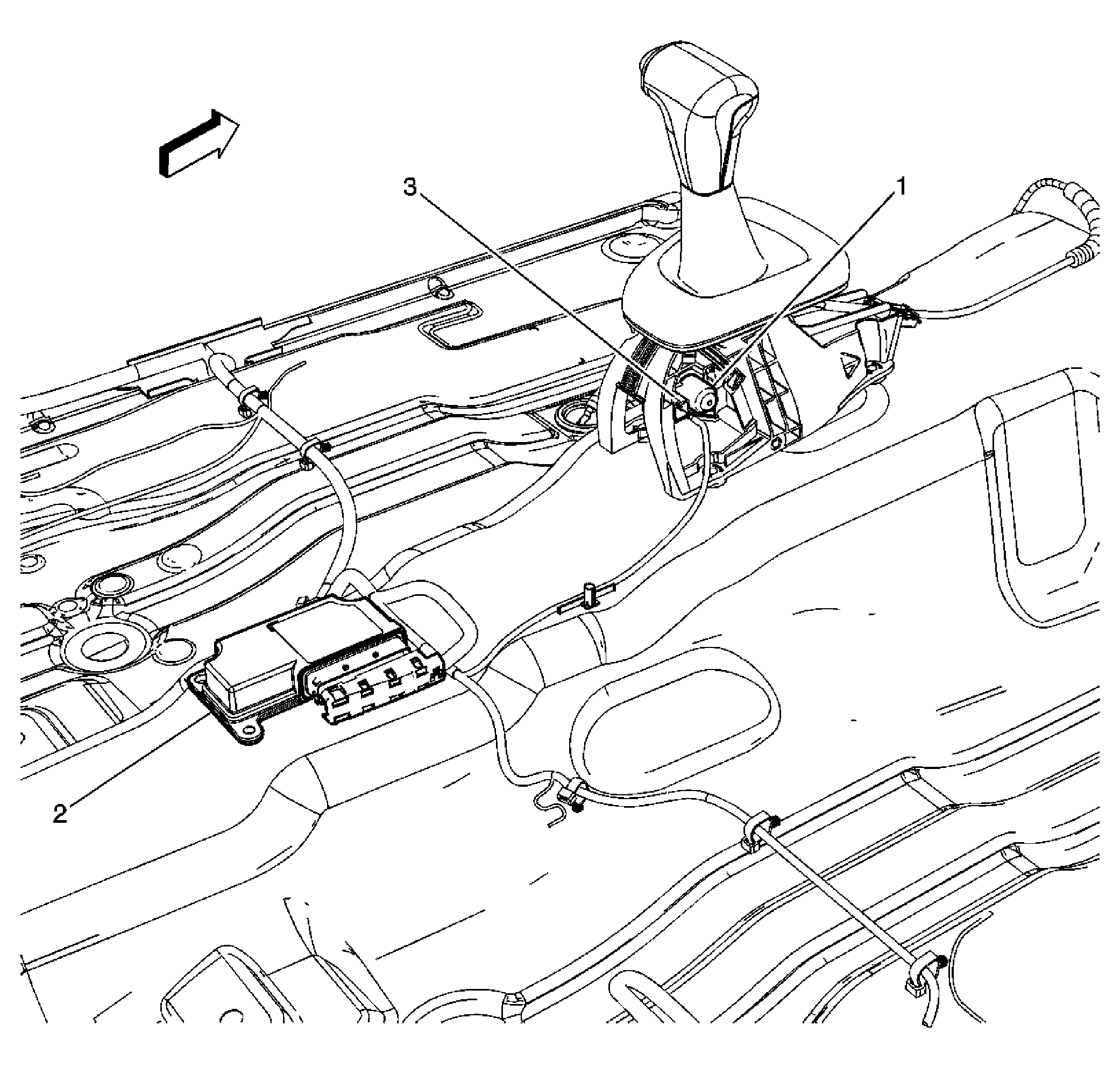

Fig 1: Floor Shift Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	Inflatable Restraint Sensing and Diagnostic Module (SDM)
3	Automatic Transmission Floor Shift Control
