Transfer Case Shift Control Module Replacement

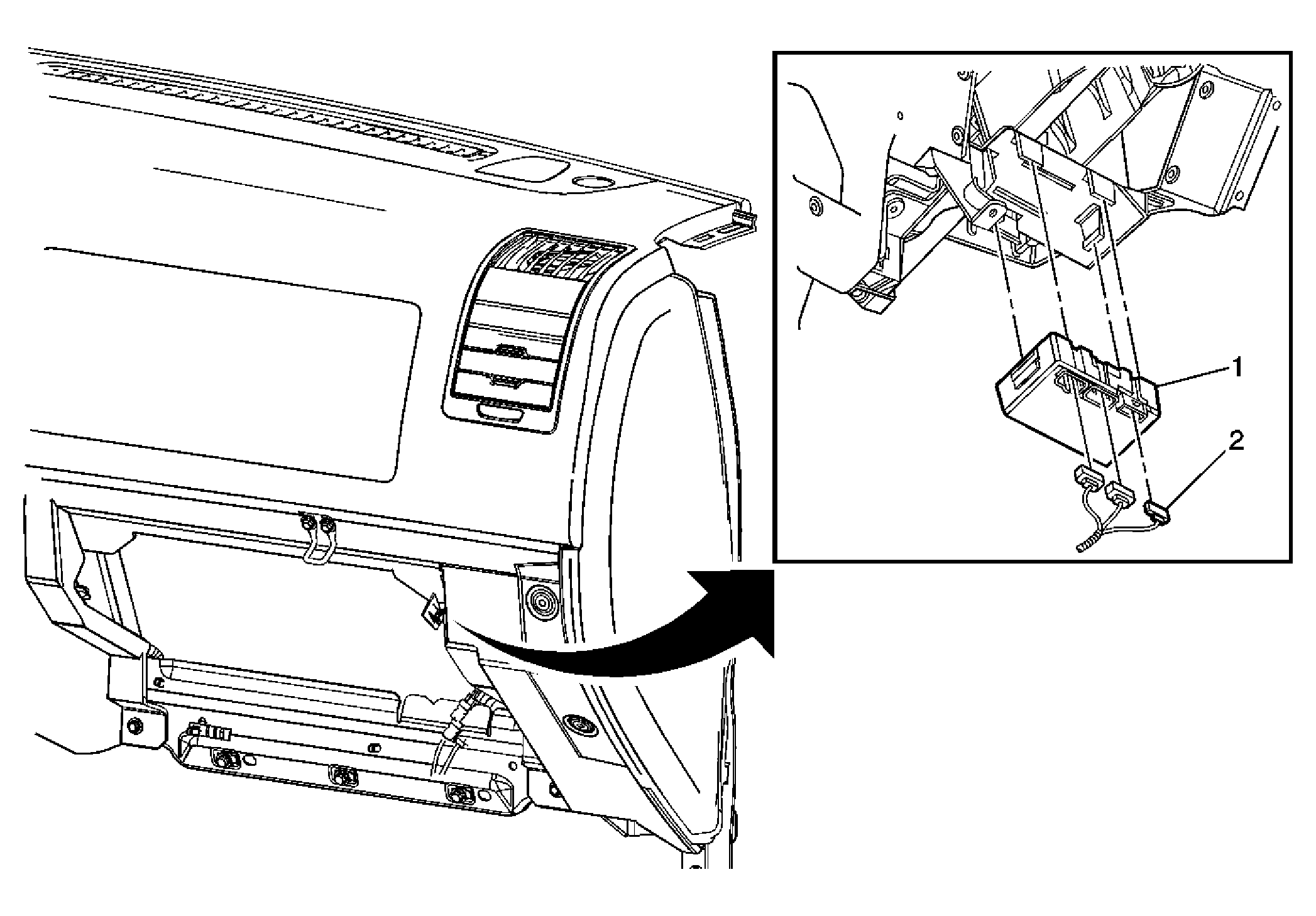

Fig 1: Transfer Case Shift Control Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the glove box compartment. Refer to Compartment Replacement - Instrument Panel (I/P)
1	Module, Transfer Case Control Tip: Remove the control module from the mounting bracket before disconnecting the electrical connectors.
2	Connector, Transfer Case Control Module Electrical.
