Cruise Control Inoperative/Malfunctioning

CRUISE CONTROL INOPERATIVE/MALFUNCTIONING

DIAGNOSTIC AIDS
Perform the following in order to avoid a misdiagnosis:
- Ensure that the following cruise control switches are not stuck in the engaged position:
- On/off switch
- Set/coast switch
Resume/accel switch
- Inspect for proper operation of the stop lamps.
- Inspect for proper adjustment of the TCC brake/cruise release switch. Refer to Cruise Release Switch Adjustment.
- Inspect for proper adjustment of the clutch release switch. Refer to Clutch Pedal Cruise Control Release Switch Adjustment.
- Inspect for proper operation of the clutch pedal.
- For an intermittent condition, refer to Testing for Intermittent Conditions and Poor Connections. Component Tests and General Diagnostics

TEST

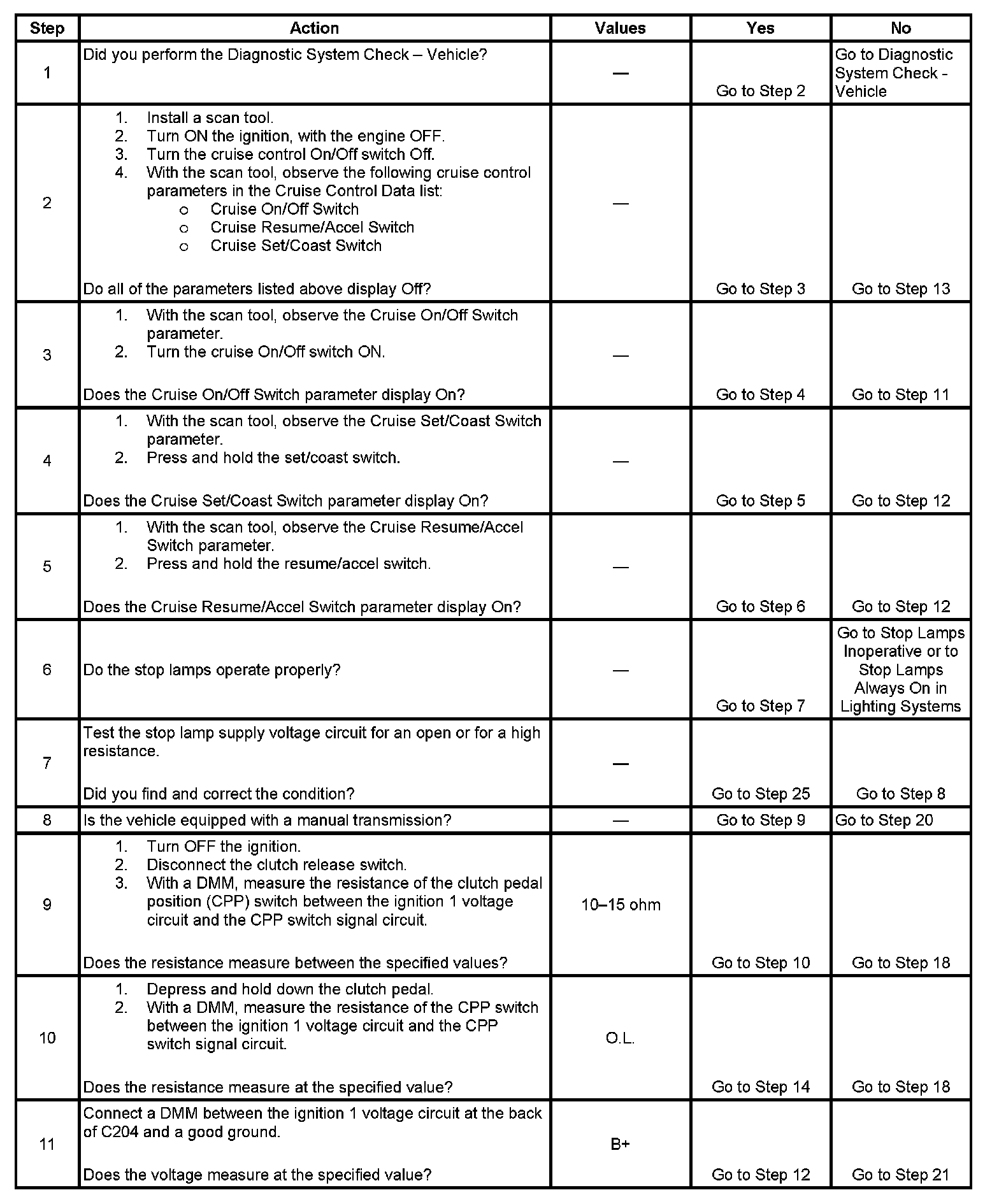

Step 1 - Step 11:

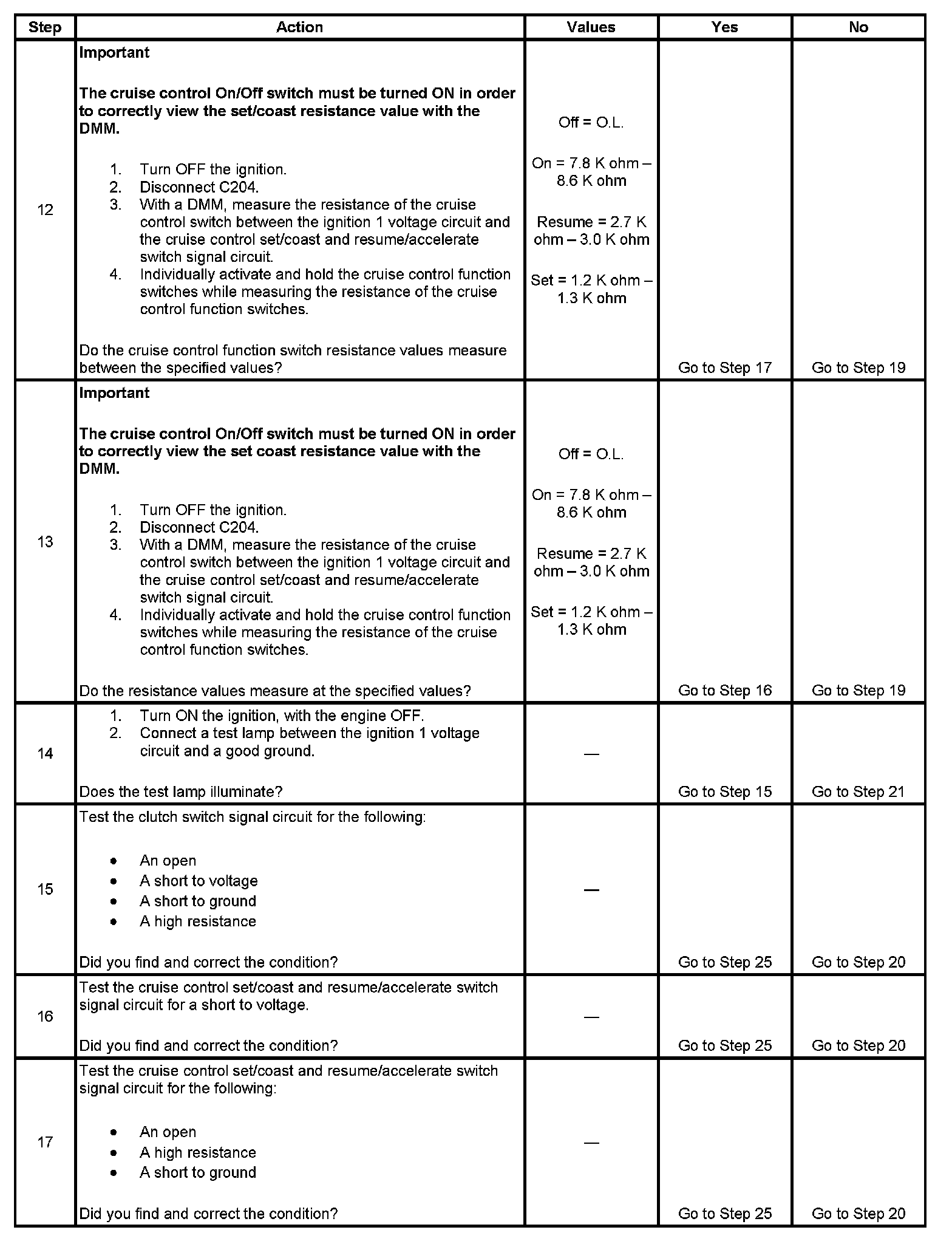

Step 12 - Step 17:

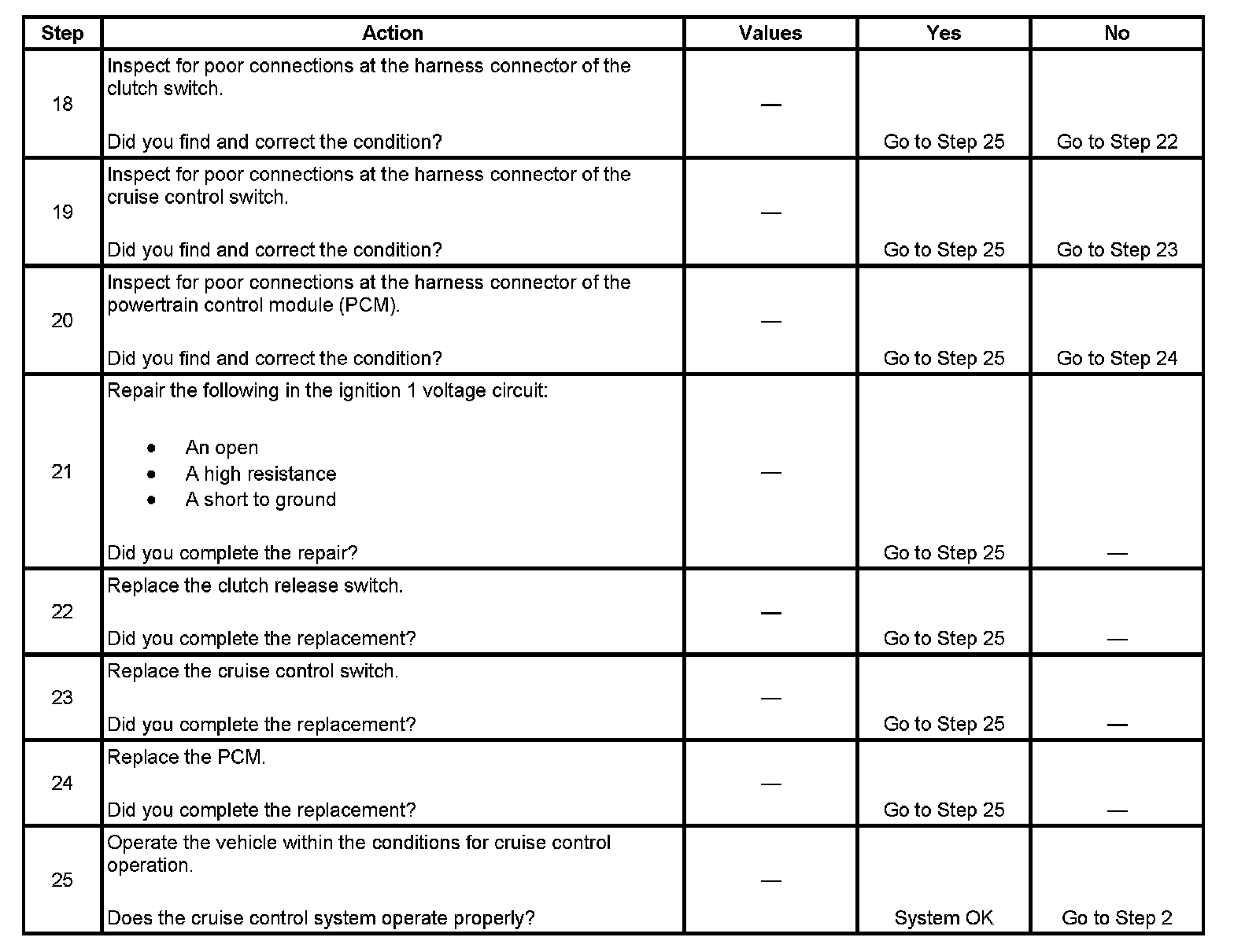

Step 18 - Step 25:
