Body Control Module (BCM) C1

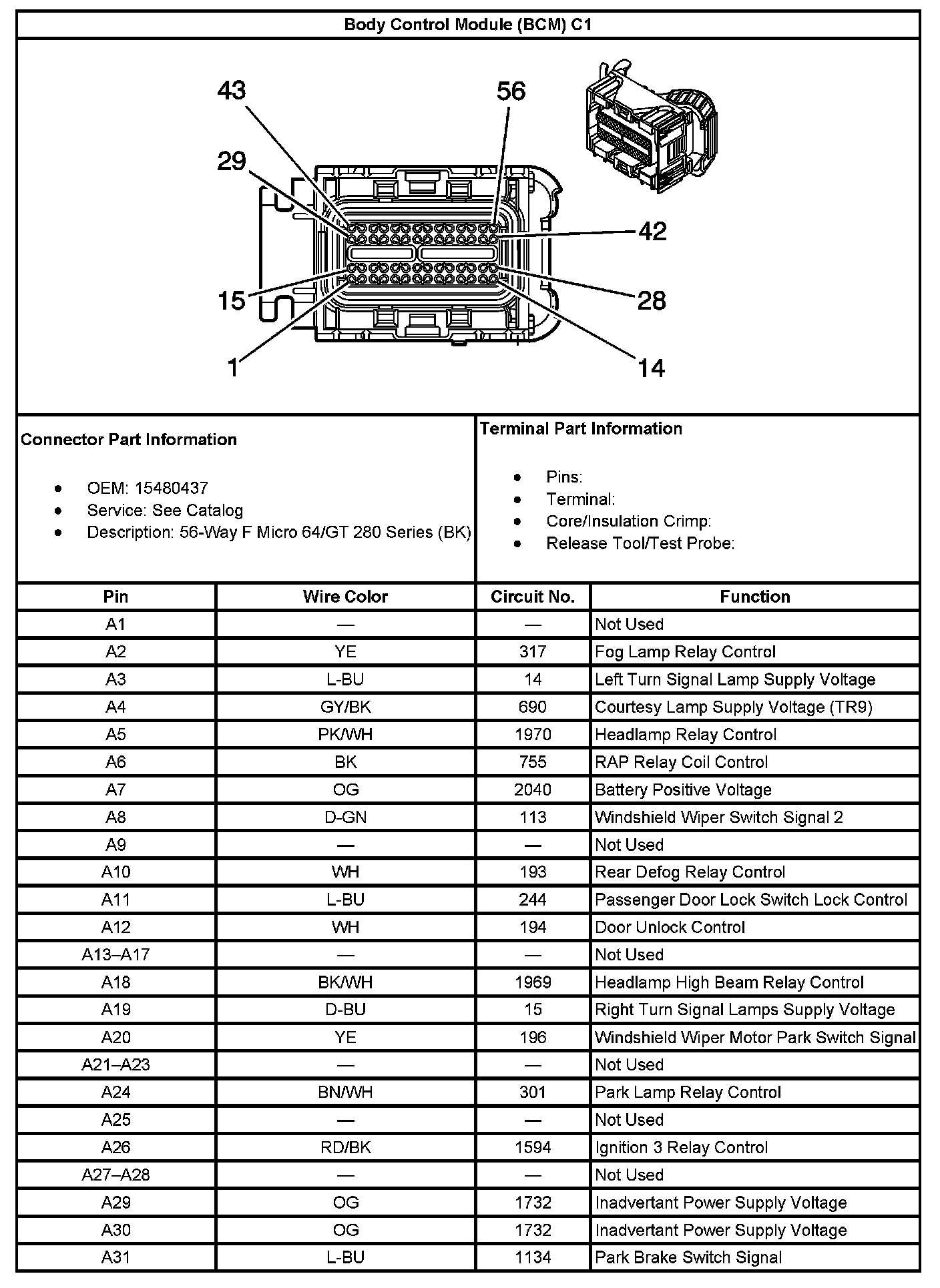

Body Control Module (BCM) C1 (Part 1):

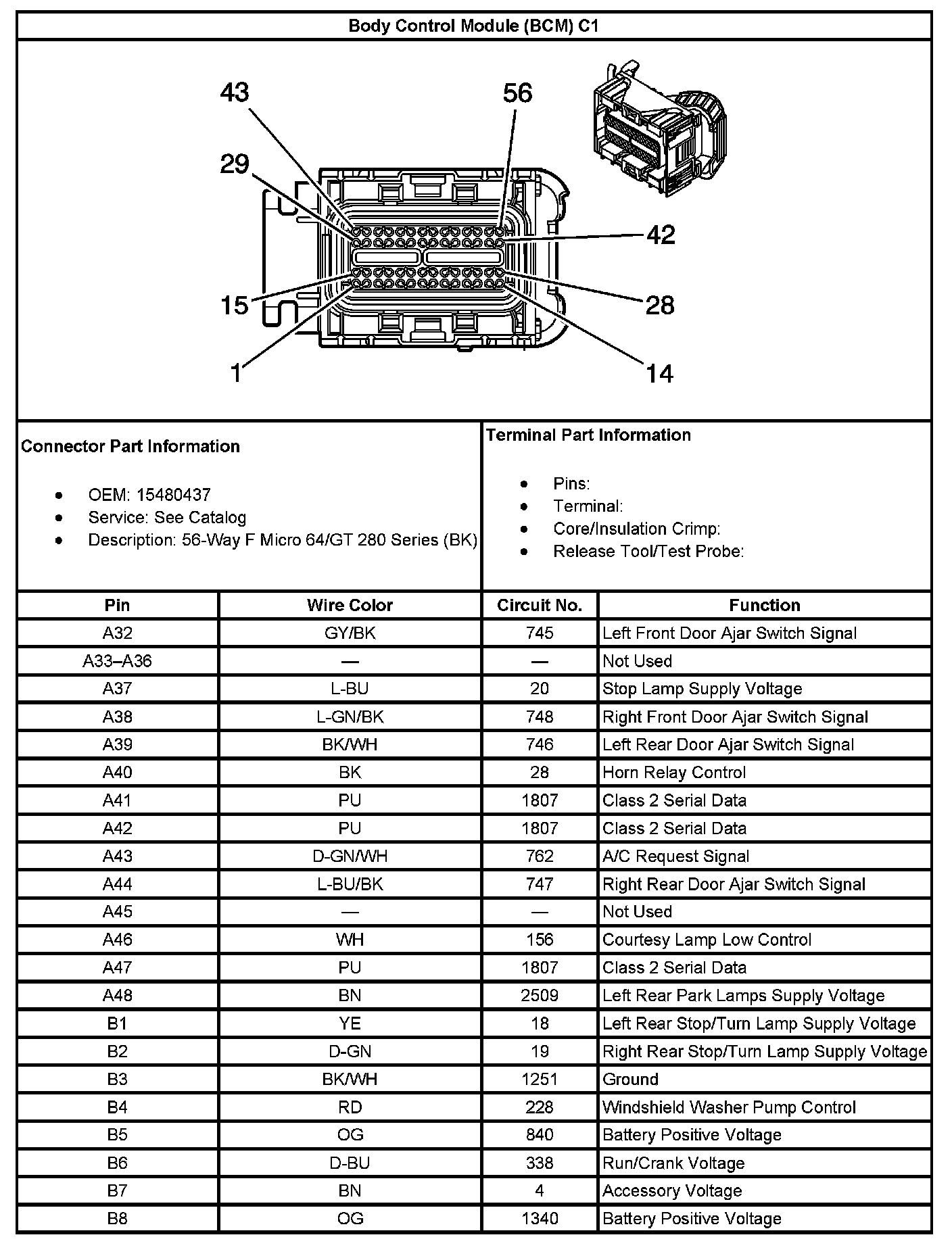

Body Control Module (BCM) C1 (Part 2):
