Brake Fluid Level Sensor/Switch
Hydraulic Brakes Connector End Views

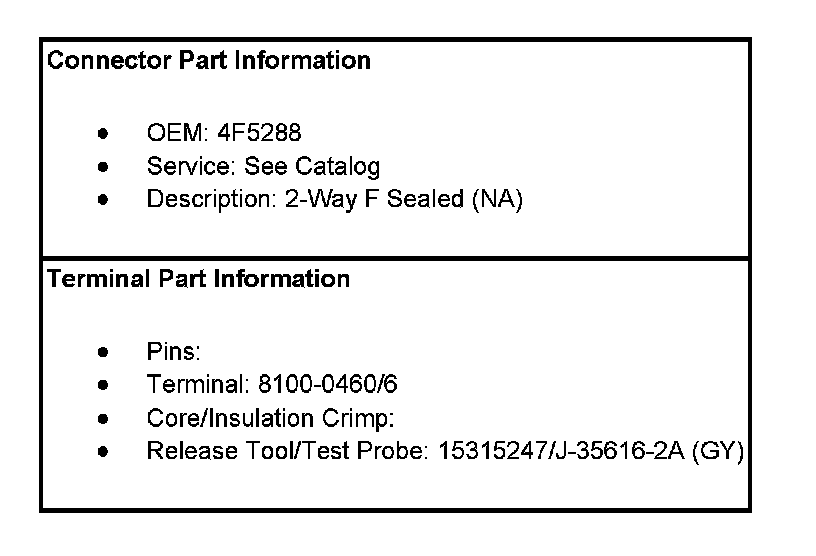

Brake Fluid Level Switch

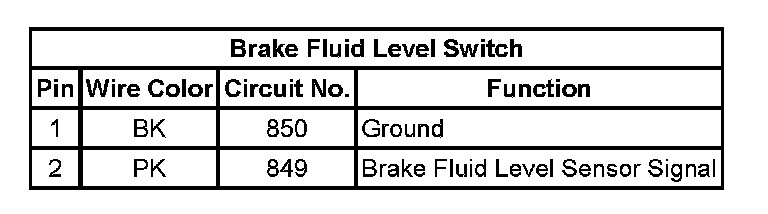

Brake Fluid Level Switch:
