Door Switch

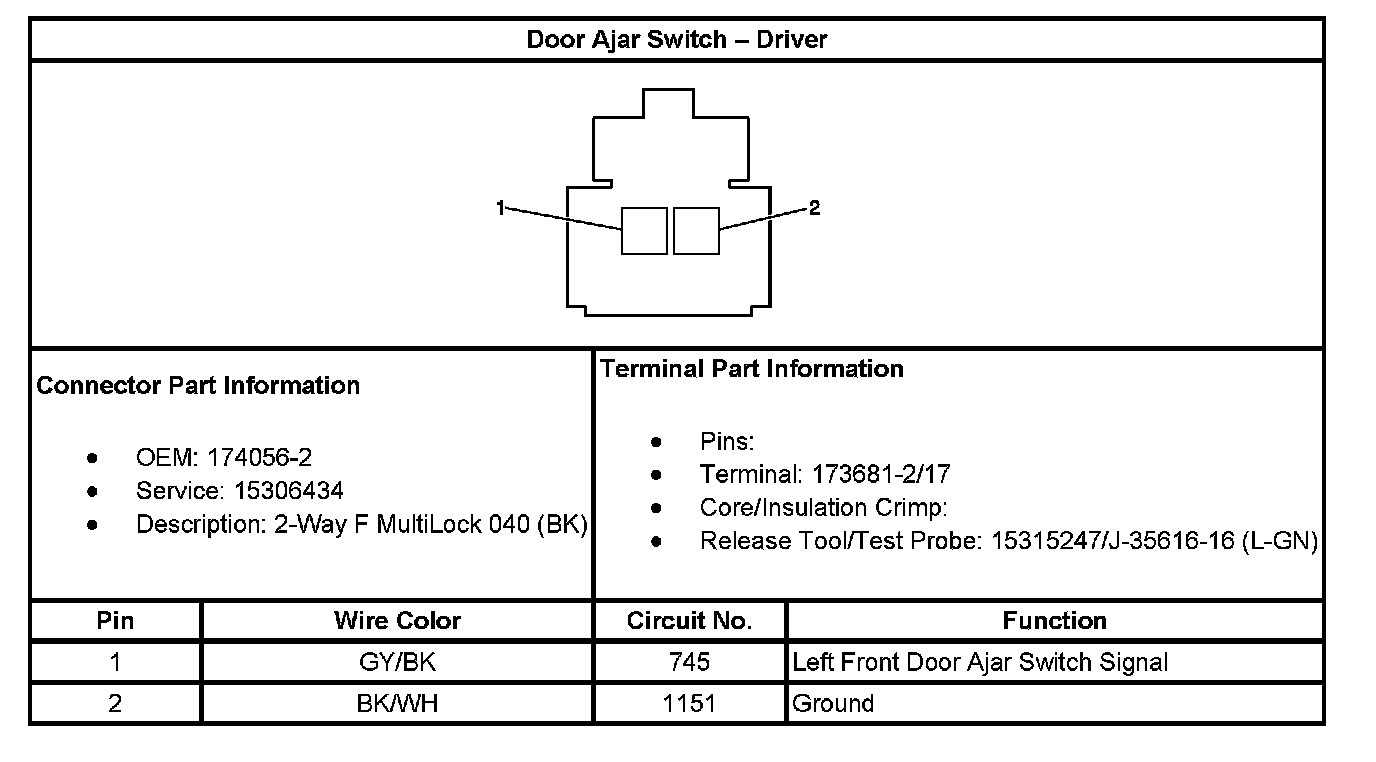

Door Ajar Switch - Driver:

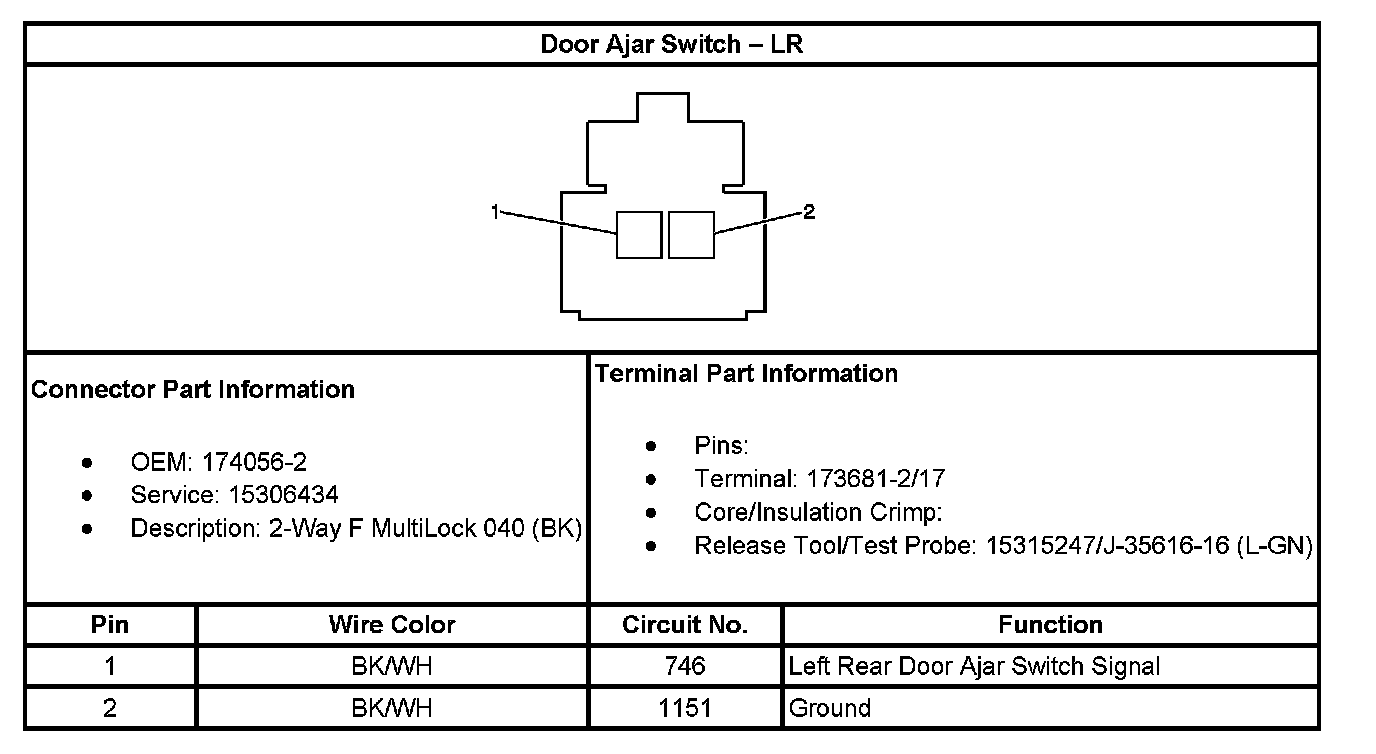

Door Ajar Switch - LR:

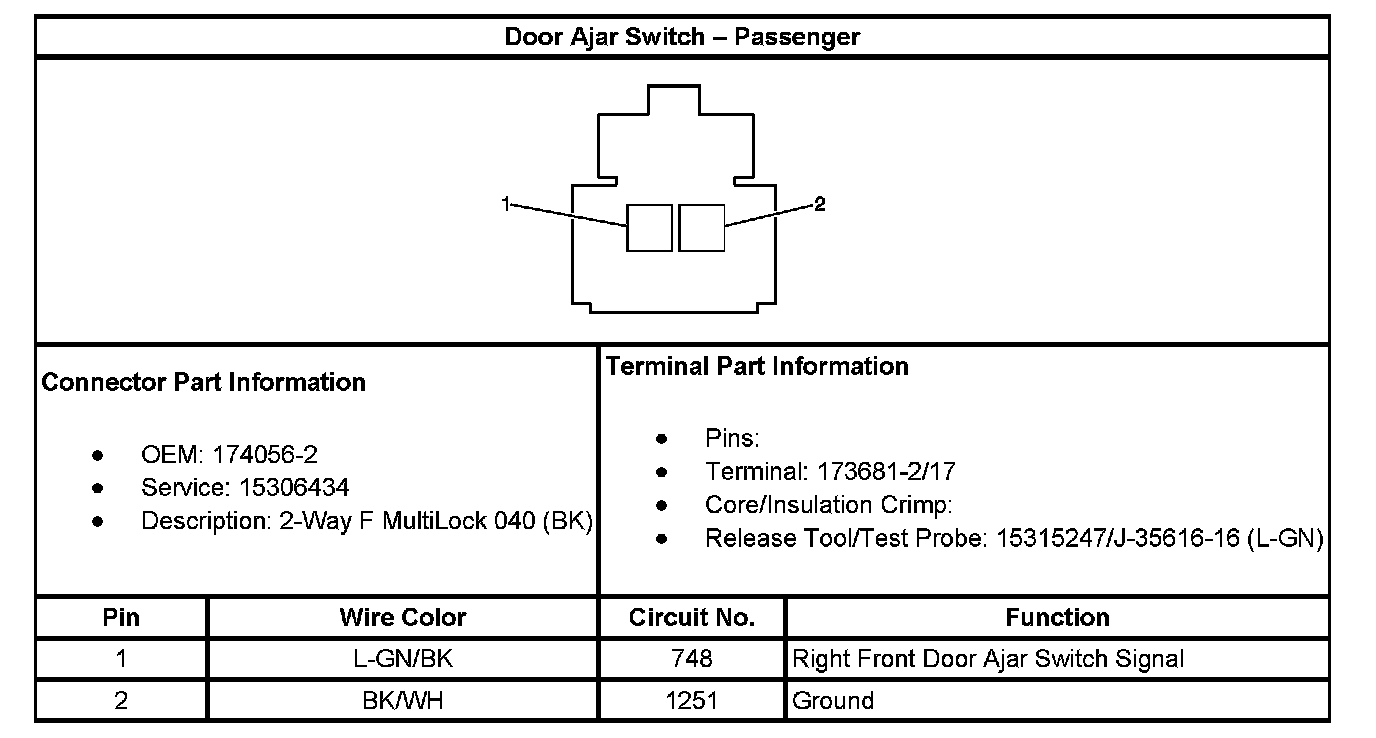

Door Ajar Switch - Passenger:
Door Ajar Switch - RR:
