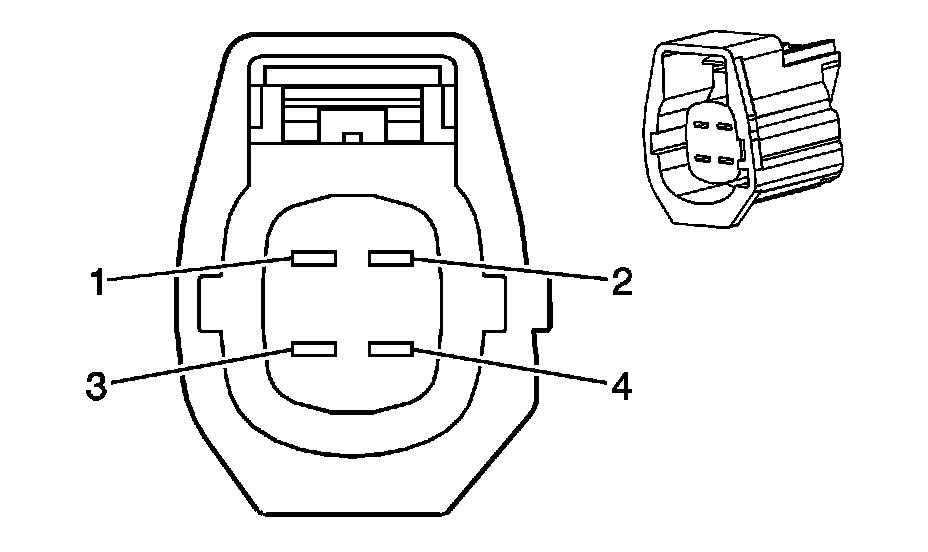

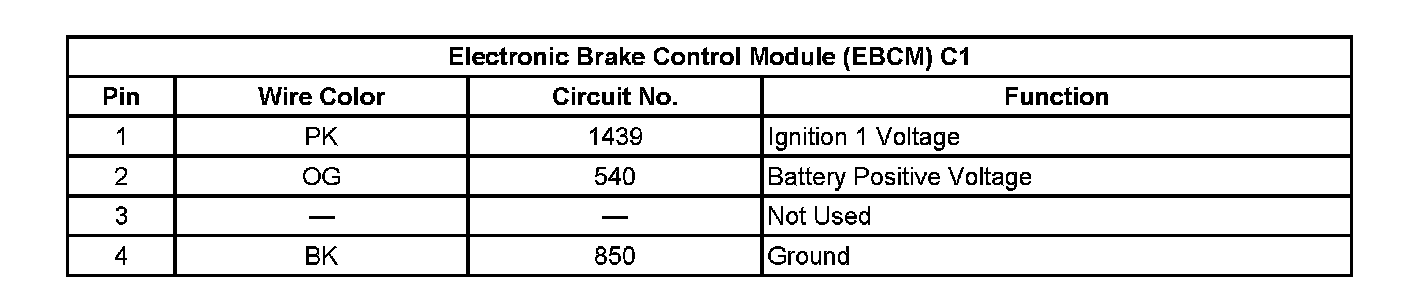

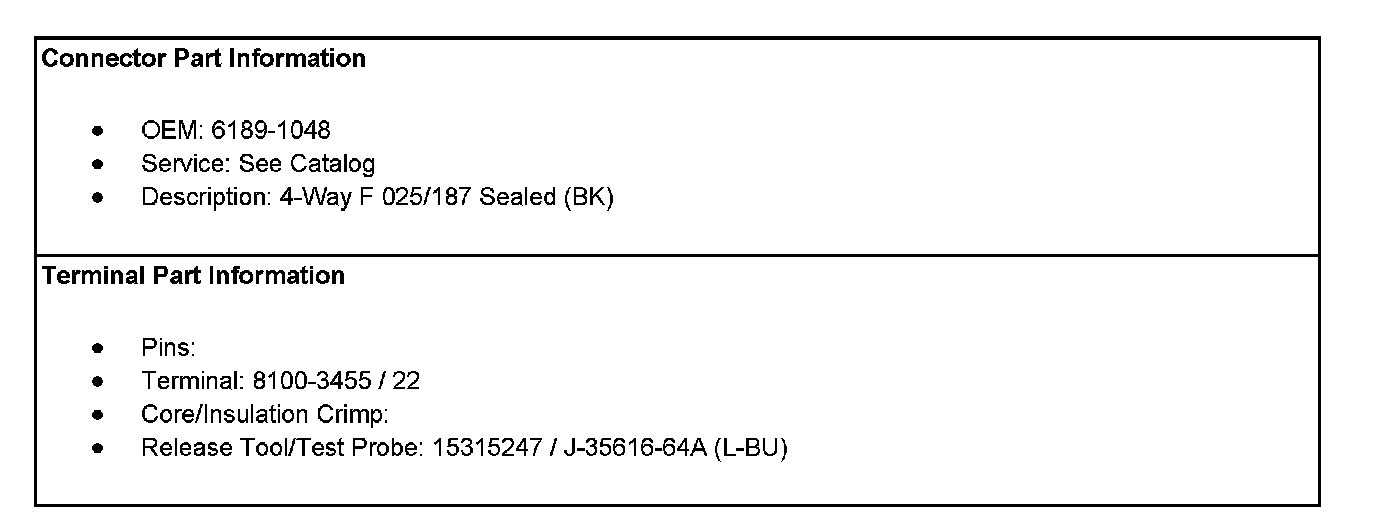

Electronic Brake Control Module (EBCM) C1
Electronic Brake Control Module
(EBCM) C1
Electronic Brake Control Module (EBCM) C1:
