Powertrain Control Module (PCM) C1

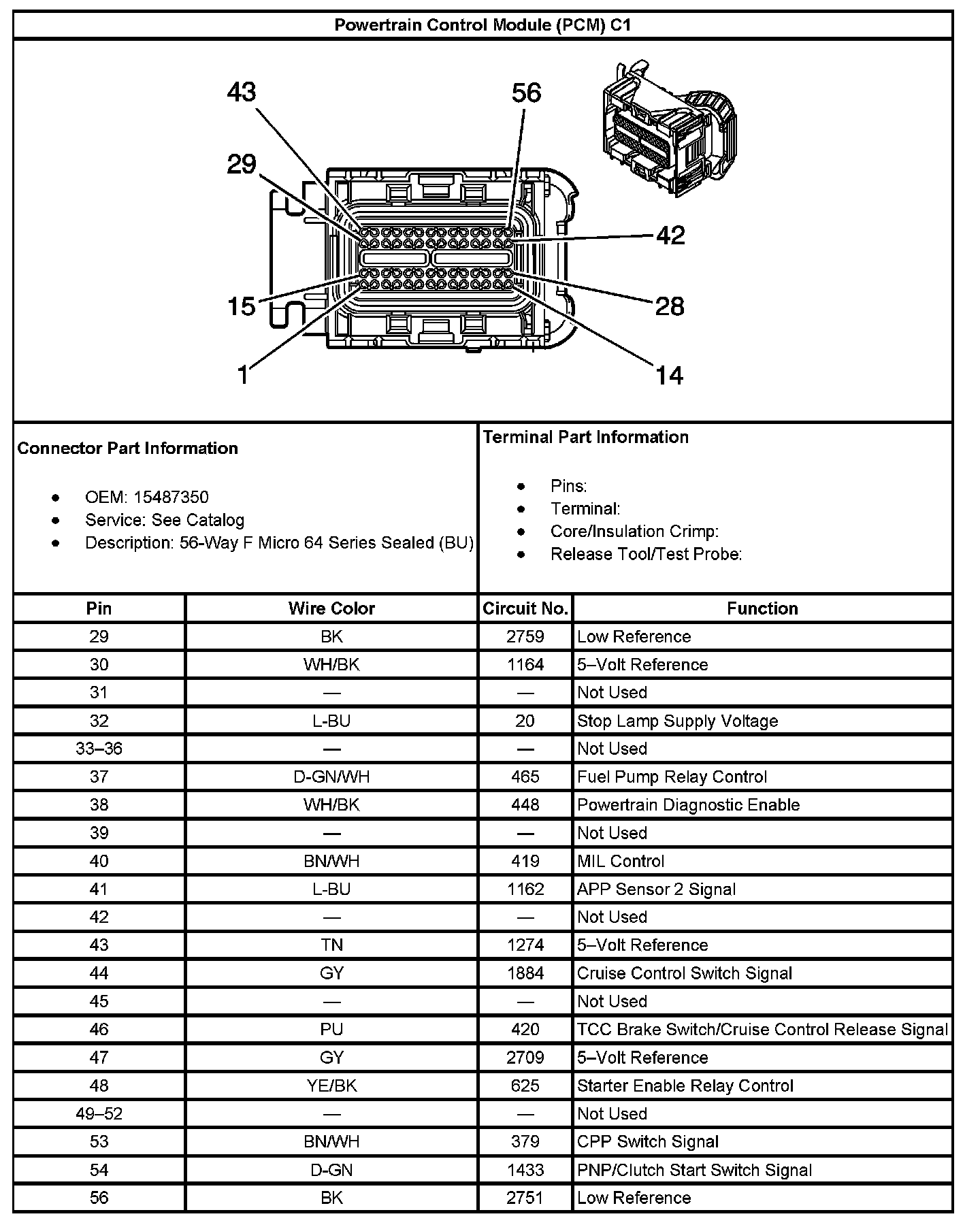

Powertrain Control Module (PCM) C1 (Part 1):

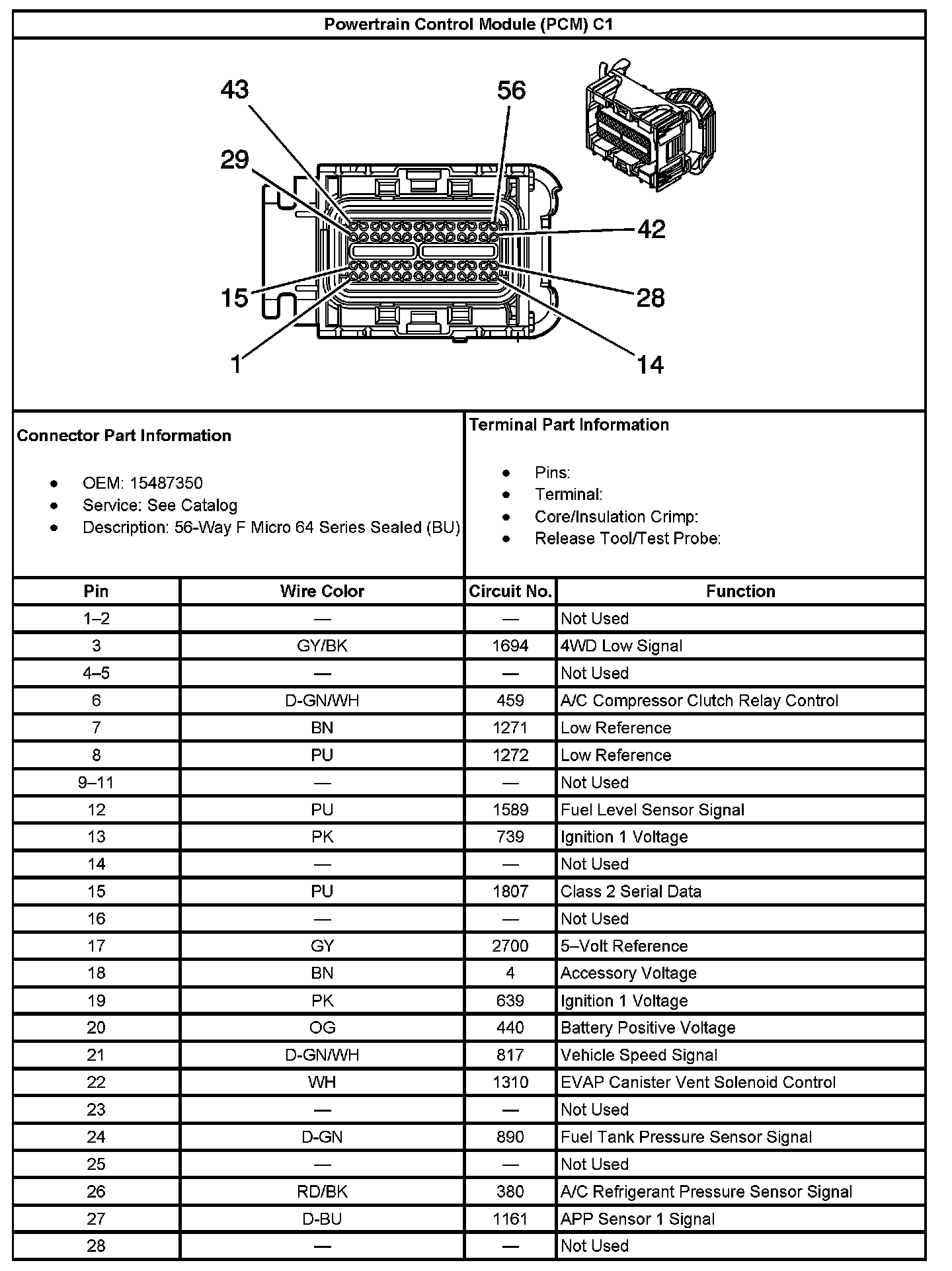

Powertrain Control Module (PCM) C1 (Part 2):
