Fuse Block - Underhood C3

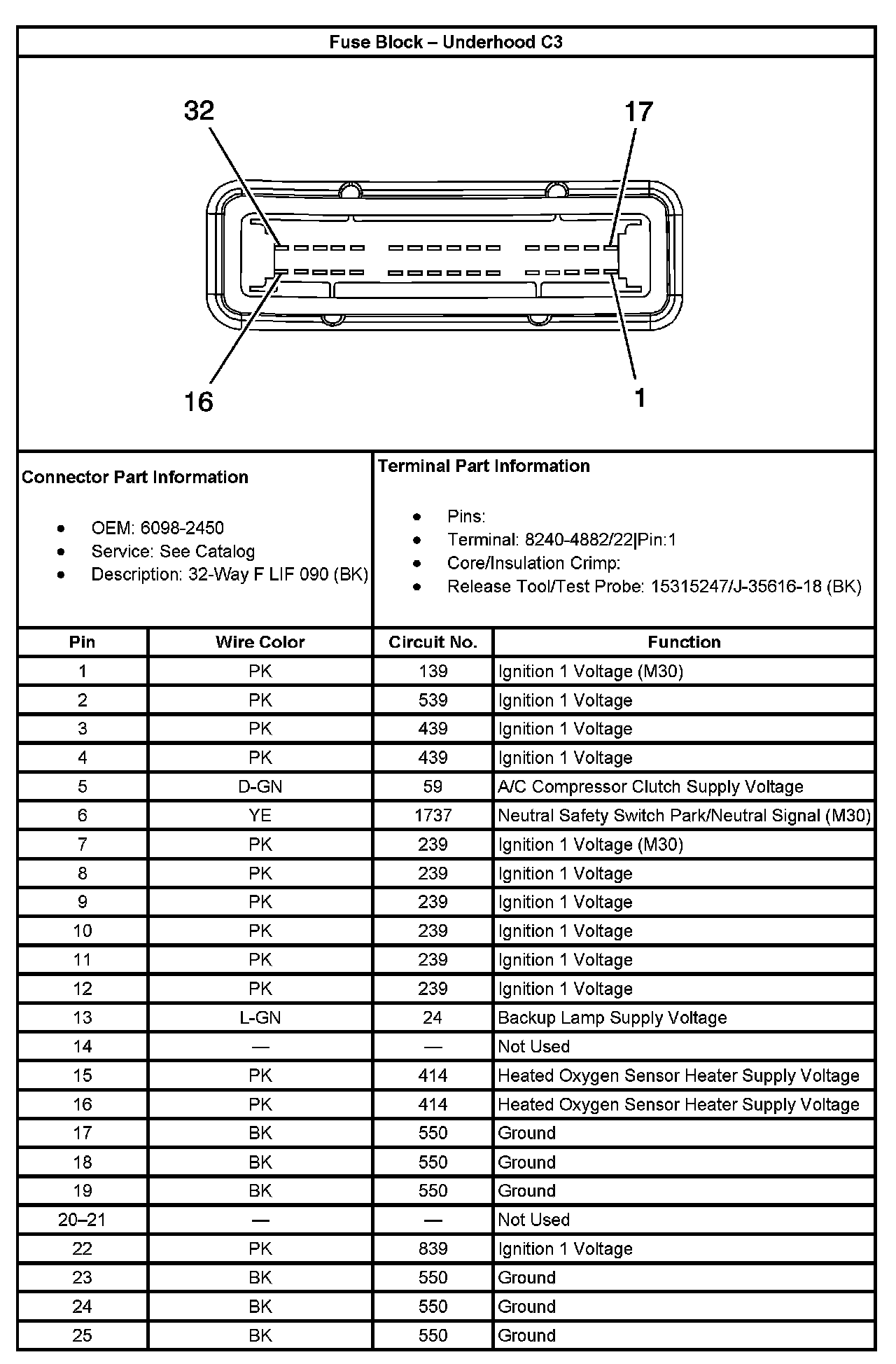

Fuse Block - Underhood C3 (Part 1):



Fuse Block - Underhood C3 (Part 2):
