Control Module: Locations

Component Locator



Transfer Case Control Component Views

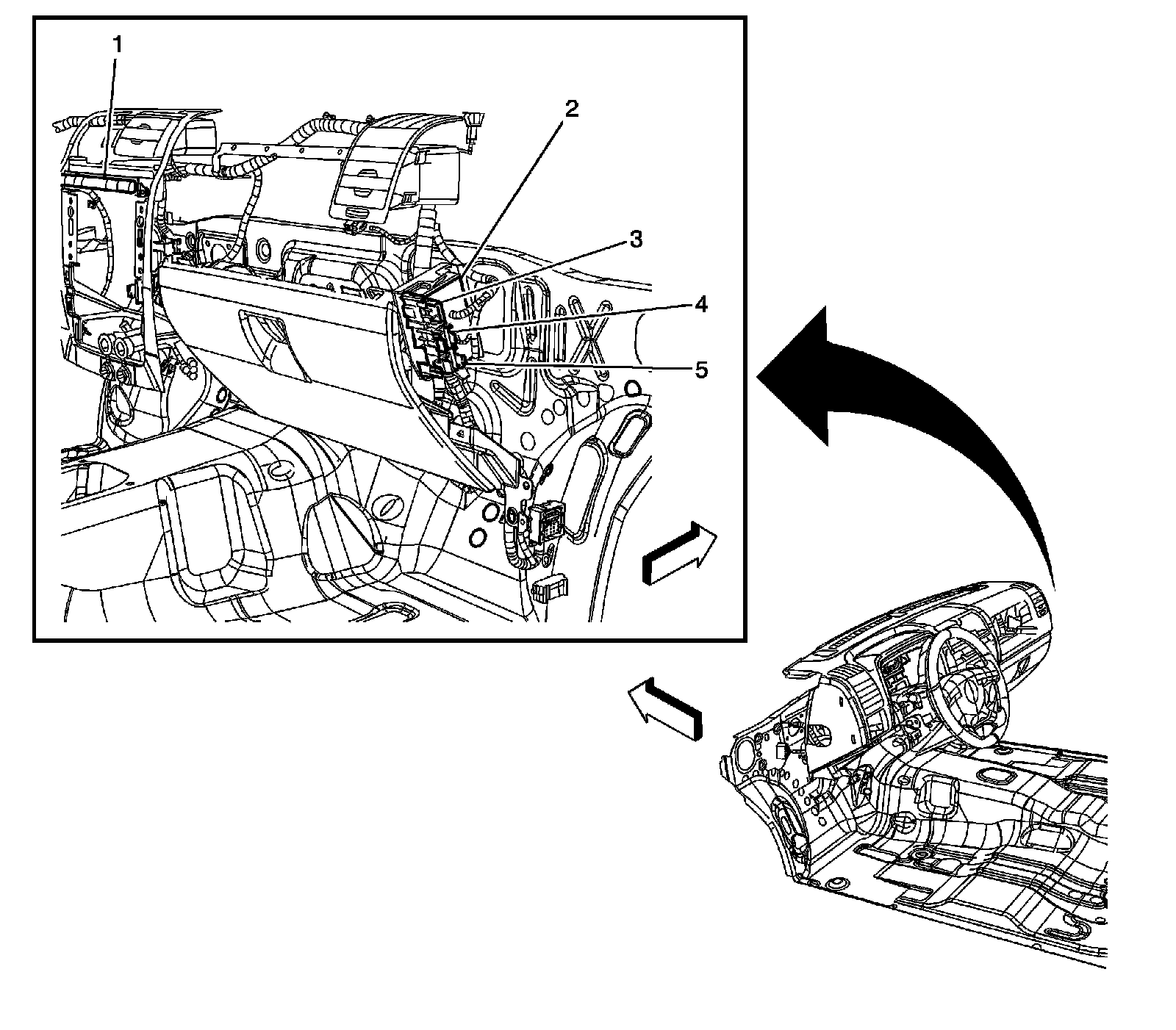

Transfer Case Components:

1 - Accessory Switch
2 - Transfer Case Shift Control Module
3 - Transfer Case Shift Control Module C3
4 - Transfer Case Shift Control Module C2
5 - Transfer Case Shift Control Module C1

Engine Harness - Rear (MA5):

1 - Transmission Case
2 - Backup Lamp Switch
3 - Heated Oxygen Sensor (HO2S) 2
4 - Transfer Case Encoder Motor Connector
5 - Vehicle Speed Sensor (VSS) Connector

Engine Harness - Rear (M30):

1 - Transmission Case
2 - C175 Engine Harness to Transmission Internal Harness
3 - Heated Oxygen Sensor (HO2S) 2
4 - Transfer Case Encoder Motor Connector
5 - Vehicle Speed Sensor (VSS) Connector
6 - Park / Neutral Position (PNP) Switch
