Armrest Bracket Replacement

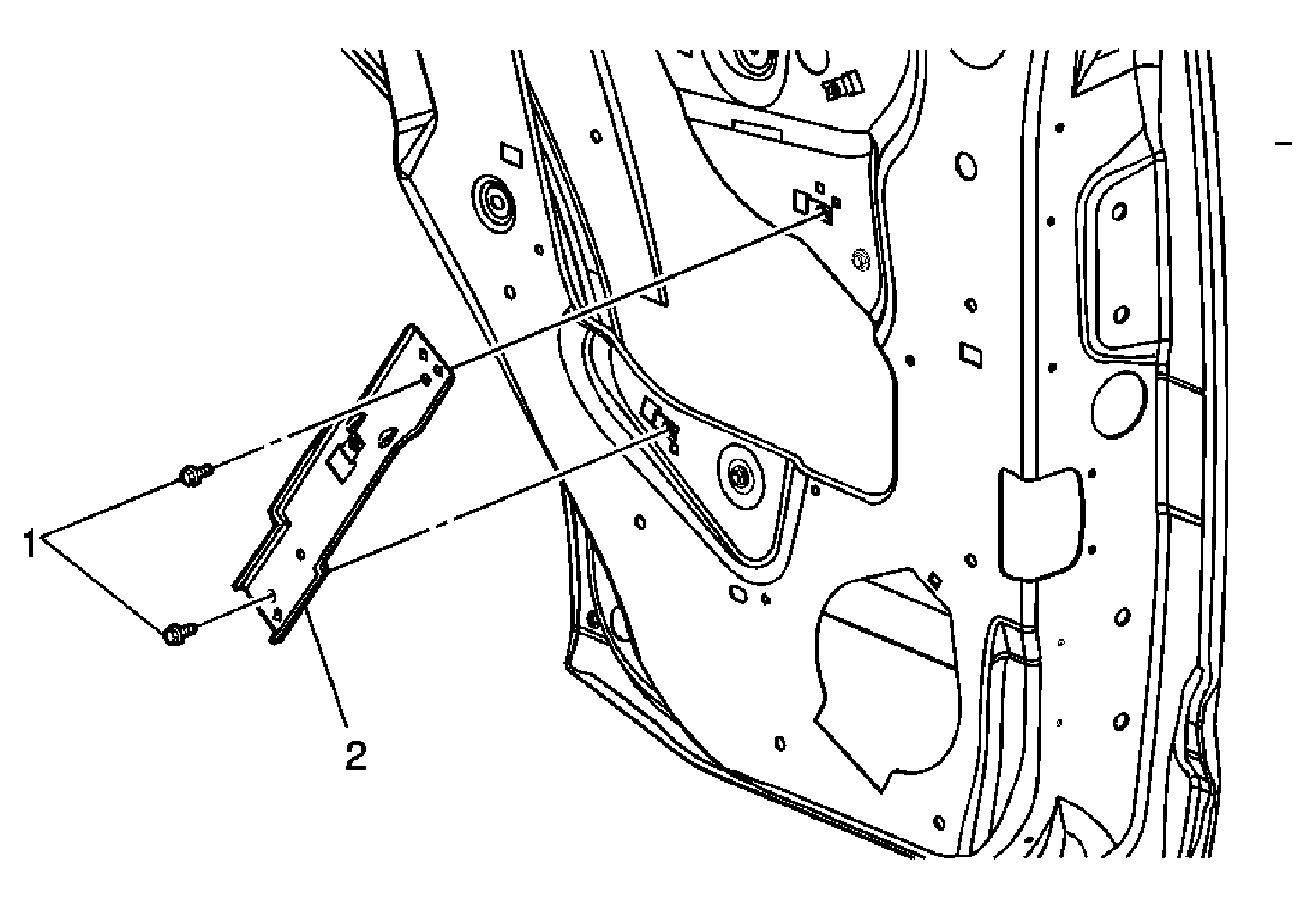

Fig 1: Armrest Bracket Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Side Rear Door . Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
1	Bolt, Rear Side Door Armrest Bracket (Qty: 2) Tighten: 10 N.m (89 lb in)
2	Bracket, Rear Side Door Armrest

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the interior trim panel. Refer to Trim Panel Replacement - Side Rear Door .
Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .

Bolt, Rear Side Door Armrest Bracket (Qty: 2)

Tighten: 10 N.m (89 lb in)

Bracket, Rear Side Door Armrest
