Power Distribution Schematics

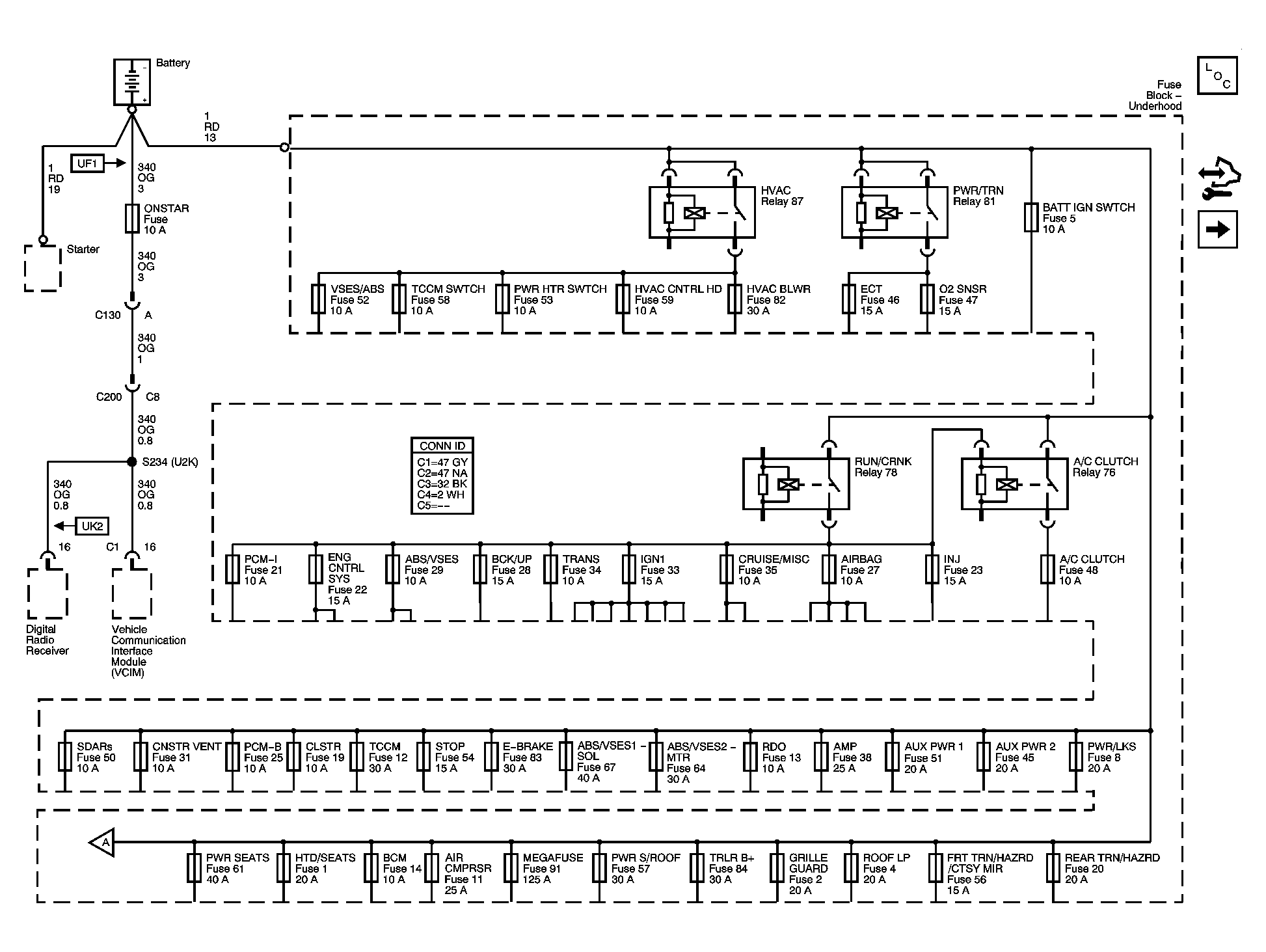

Fig 1: B+ Bus - Underhood Fuse Block - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Fig 2: B+ Bus - Underhood Fuse Block - 2 of 2

Courtesy of GENERAL MOTORS CORP.

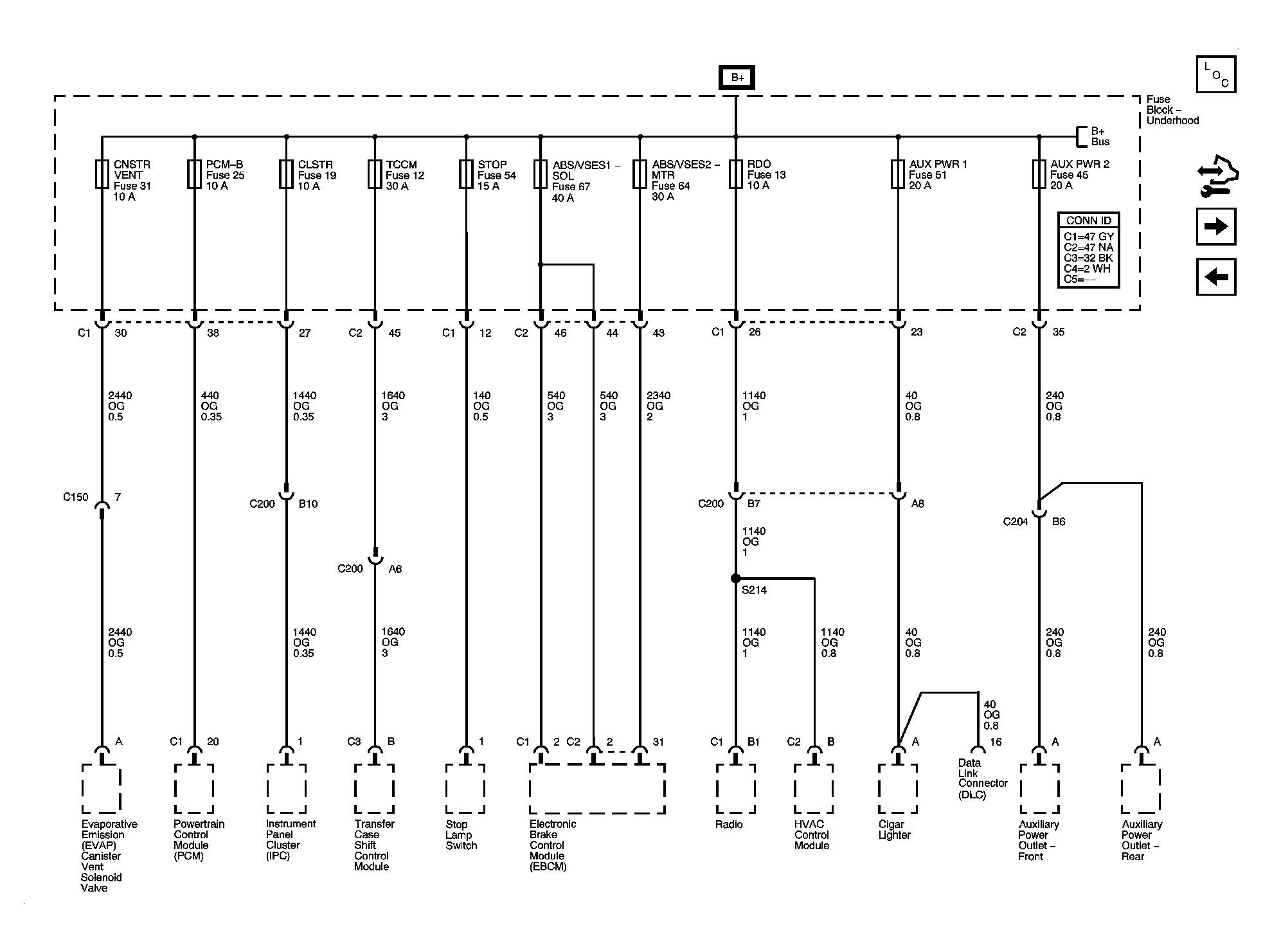

Fig 3: ABS/VES1-SOL, ABS/VES2-MTR, AUX PWR 1, AUX PWR 2, CLSTR, CNSTR VENT, PCM-B, RDO, STOP, and TCCM Fuses

Courtesy of GENERAL MOTORS CORP.

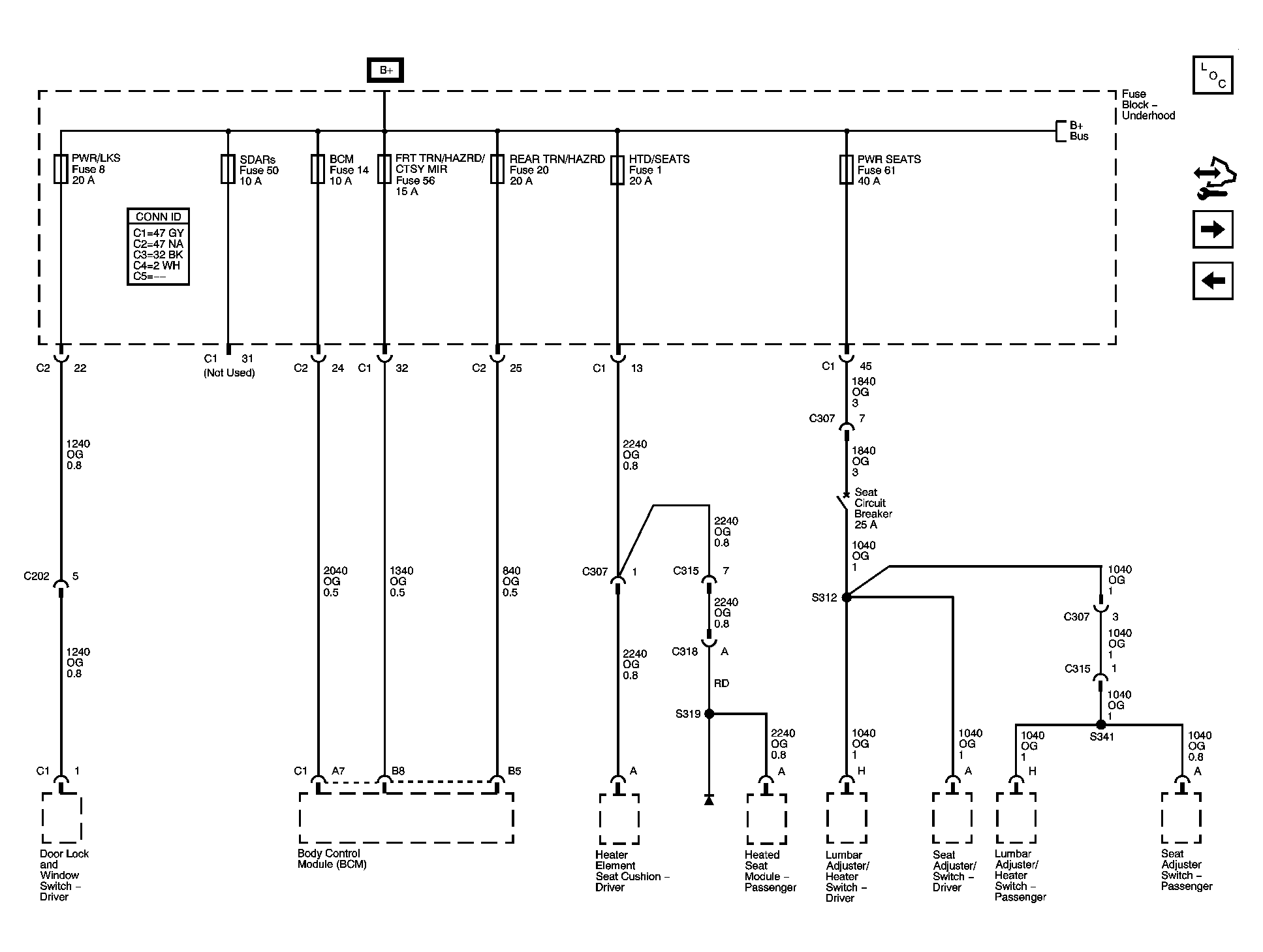

Fig 4: BCM, FRT TRN/HAZRD/CTSY MIR, HTD/SEATS, PWR/LKS, PWR SEATS, REAR TRN/HAZRD, and SDARs Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 5: AIR CMPRSR, AMP, E-BRAKE, GRILLE GUARD, MEGAFUSE, PWR S/ROOF, ROOF LP, and TRLR B+ Fuses

Courtesy of GENERAL MOTORS CORP.

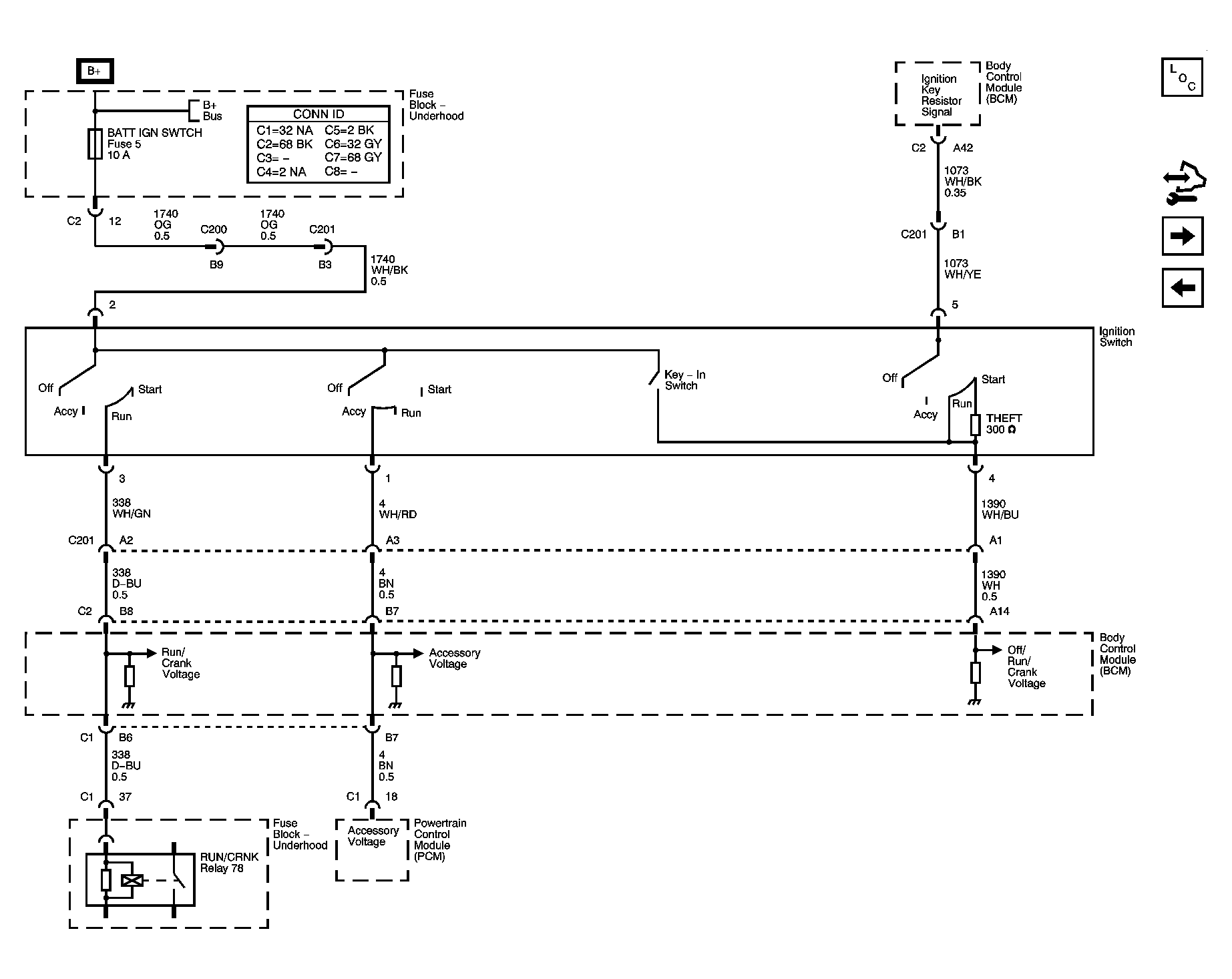

Fig 6: Ignition Switch and BATT IGN SWTCH Fuse

Courtesy of GENERAL MOTORS CORP.

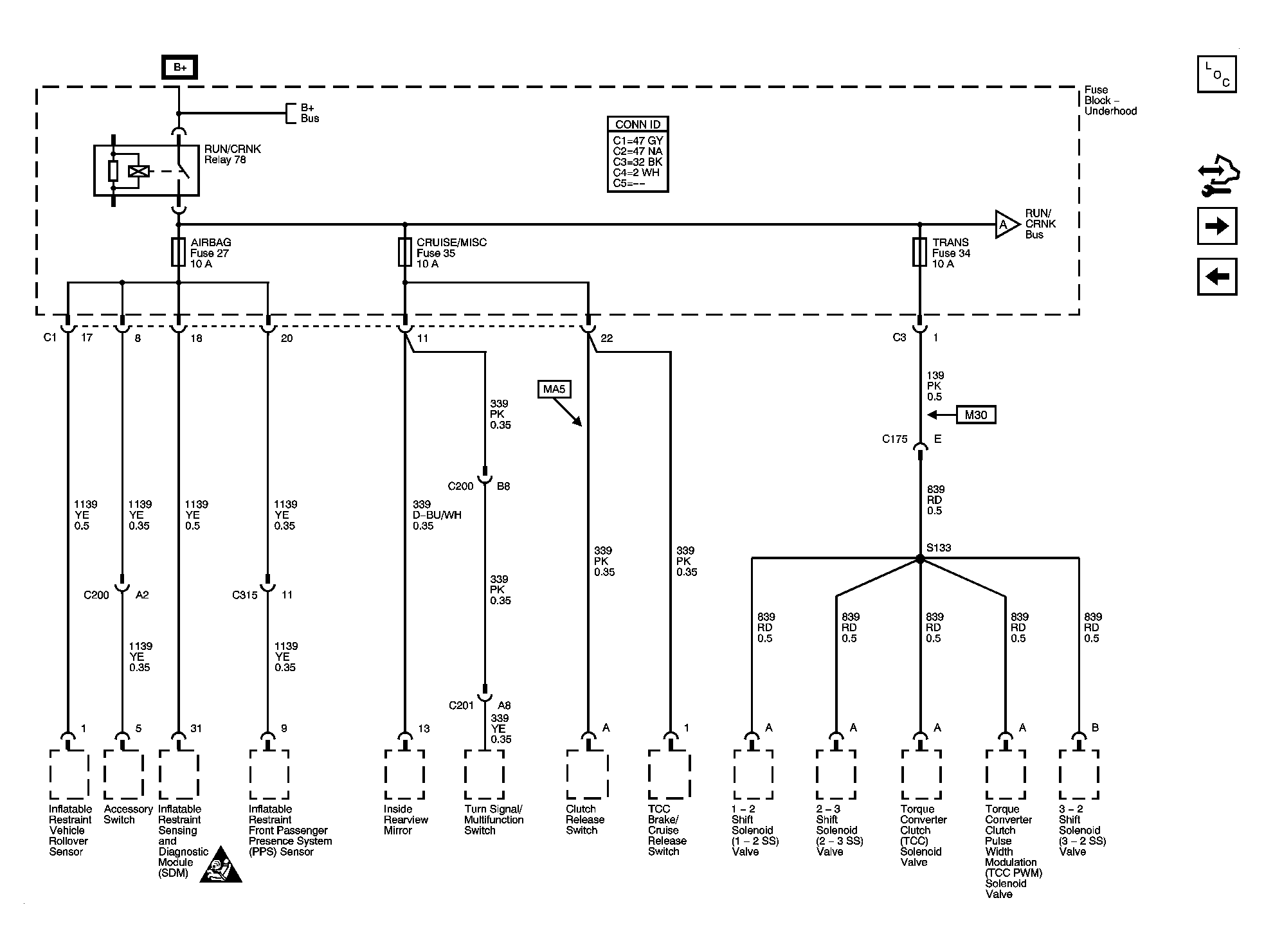

Fig 7: RUN/CRNK Relay Bus - 1 of 3, AIRBAG, CRUISE/MISC, and TRANS Fuses

Courtesy of GENERAL MOTORS CORP.

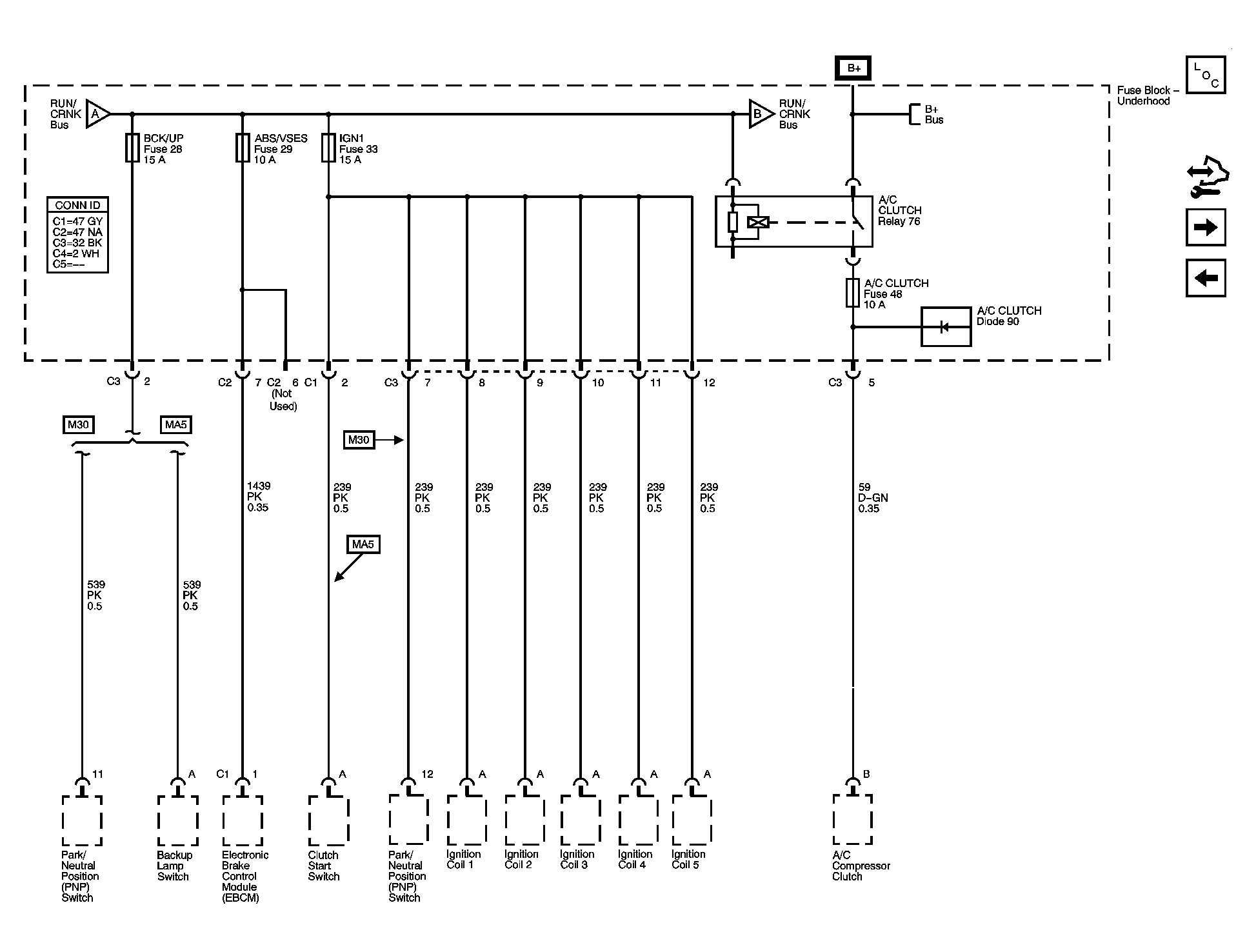

Fig 8: RUN/CRNK Relay Bus - 2 of 3, ABS/VSES, A/C CLUTCH, BCK/UP, and IGN1 Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 9: RUN/CRNK Relay Bus - 3 of 3, ENG CNTRL SYS, INJ, and PCM-I Fuses

Courtesy of GENERAL MOTORS CORP.

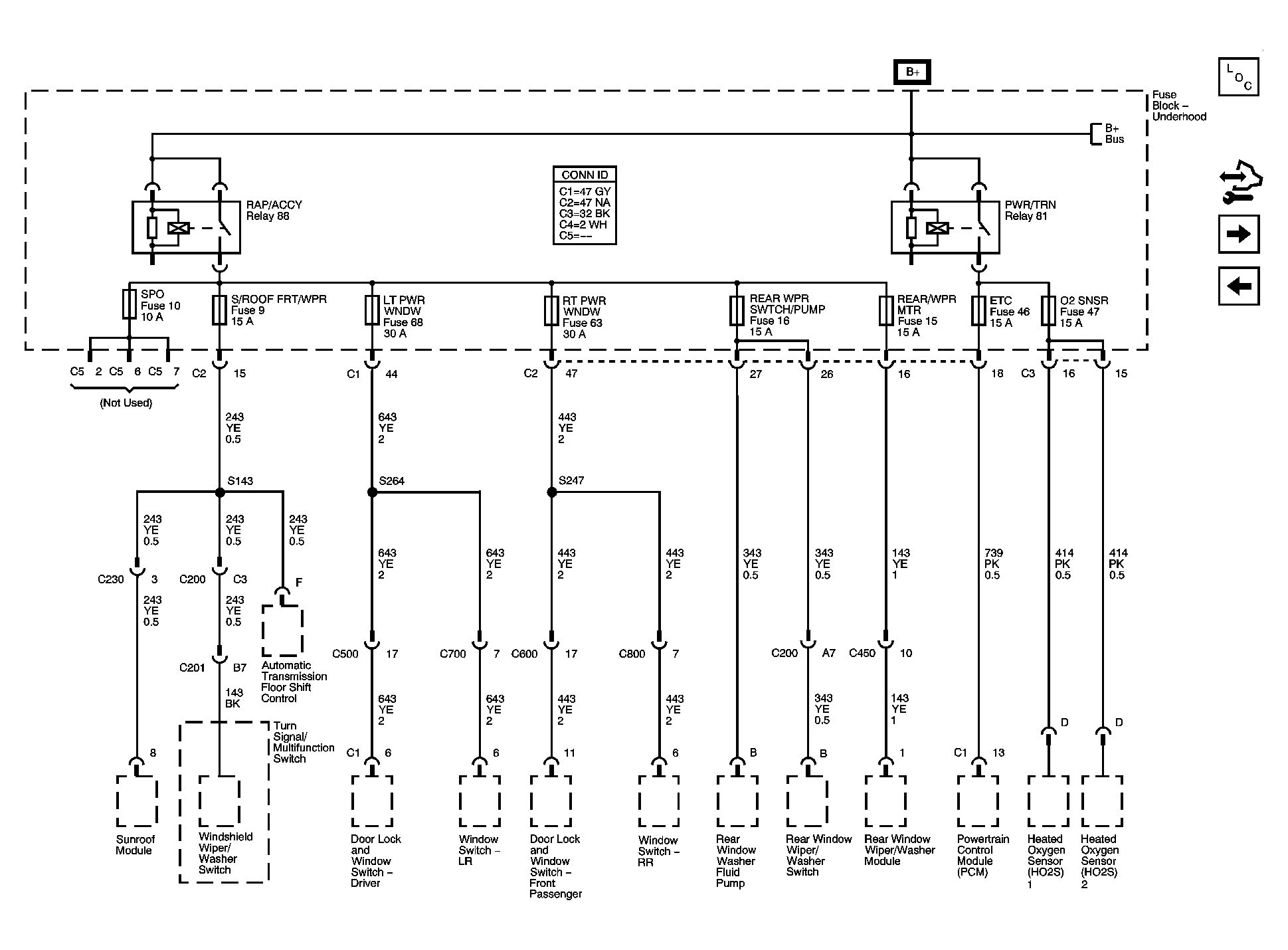

Fig 10: ETC, LT PWR WNDW, O2 SNSR, REAR/WPR MTR, REAR WPR SWTCH/PUMP, RT PWR WNDW, SPO, and S/ROOF FRT/WPR Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 11: FUEL/PUMP, LH HDLP, and RH HDLP Fuses

Courtesy of GENERAL MOTORS CORP.

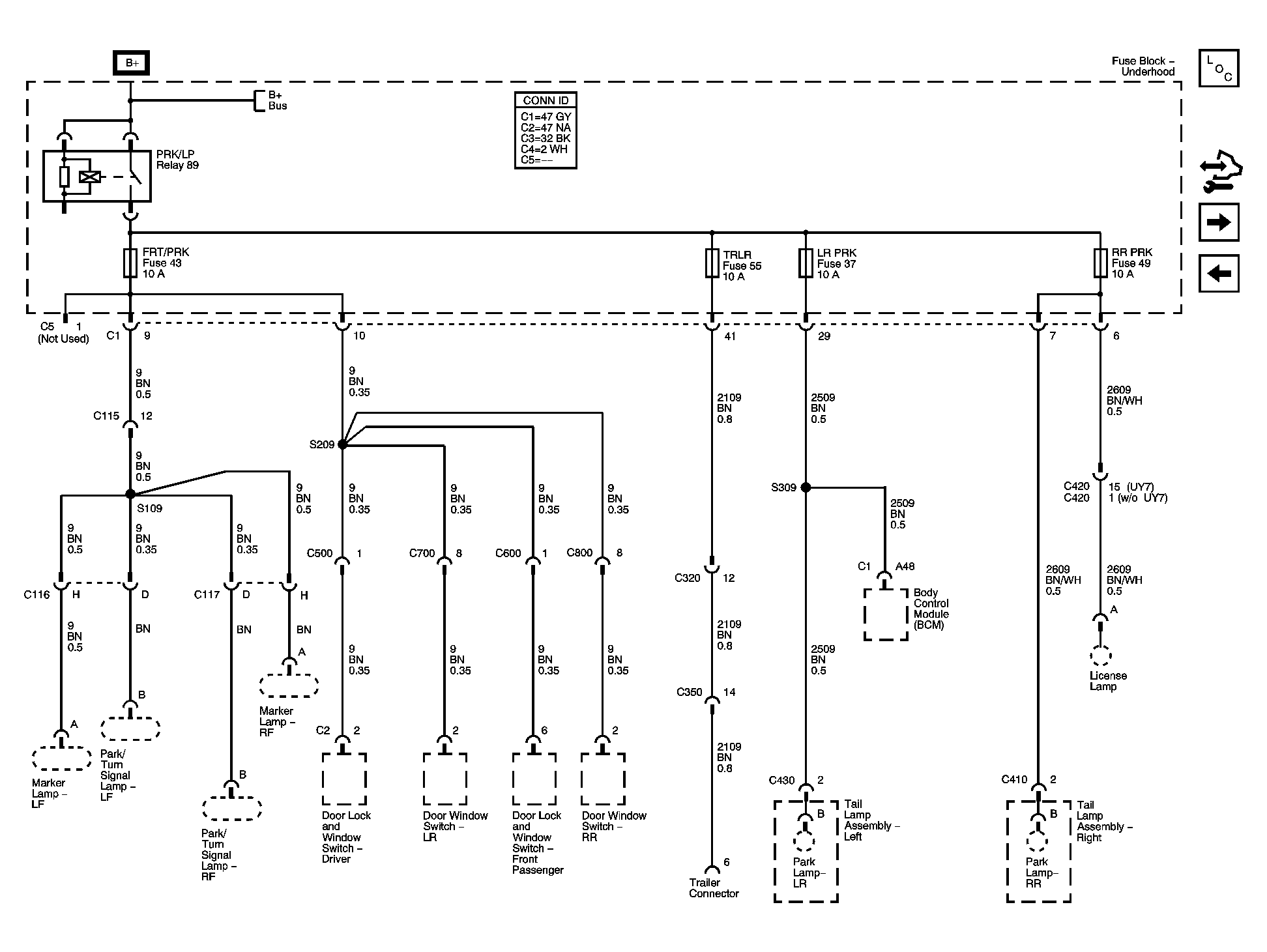

Fig 12: FRT/PRK, LR PRK, RR PRK, and TRLR Fuses

Courtesy of GENERAL MOTORS CORP.

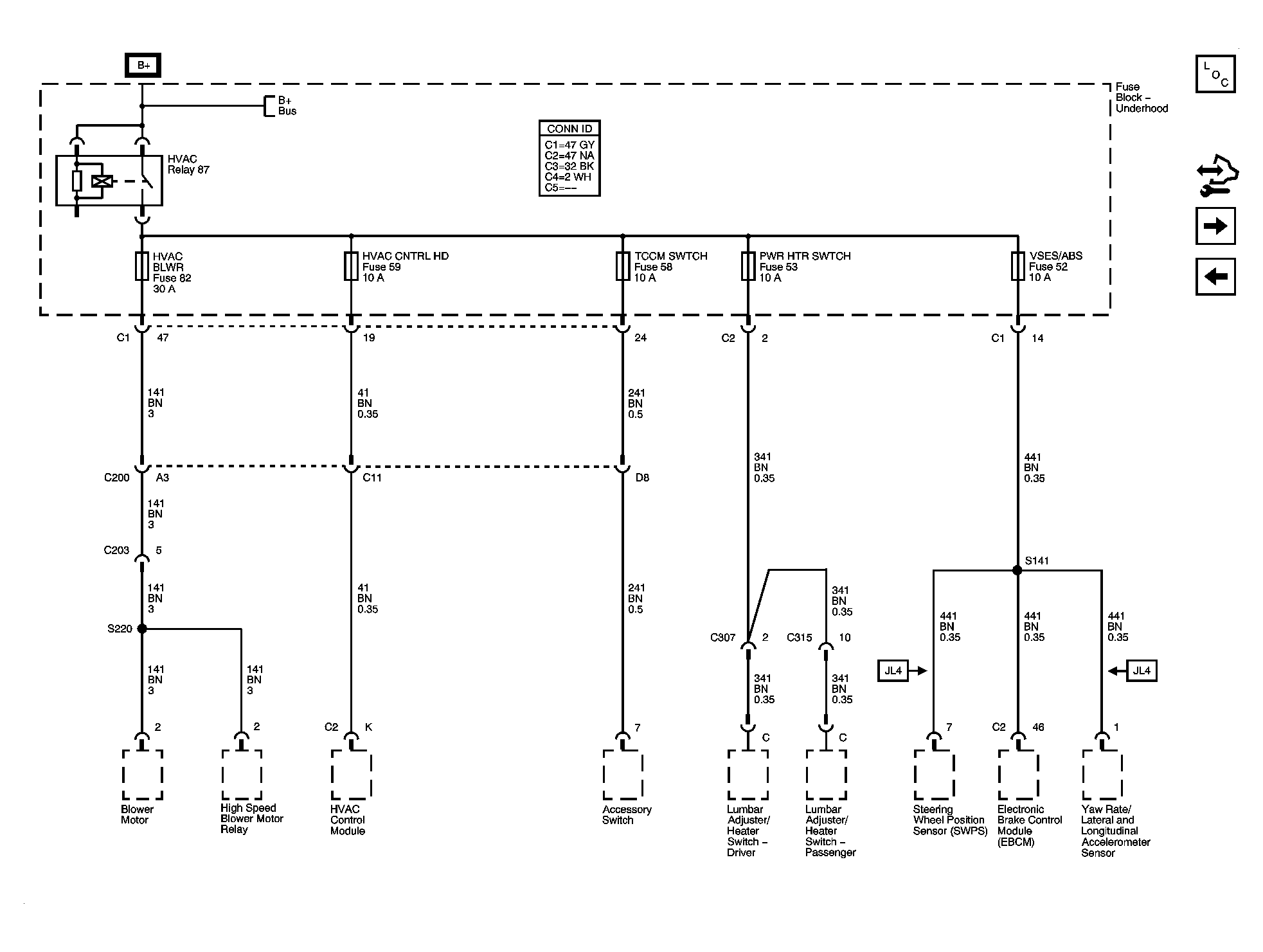

Fig 13: HVAC BLWR, HVAC CNTRL HD, PWR HTR SWTCH, TCCM SWTCH, and VSES/ABS Fuses

Courtesy of GENERAL MOTORS CORP.

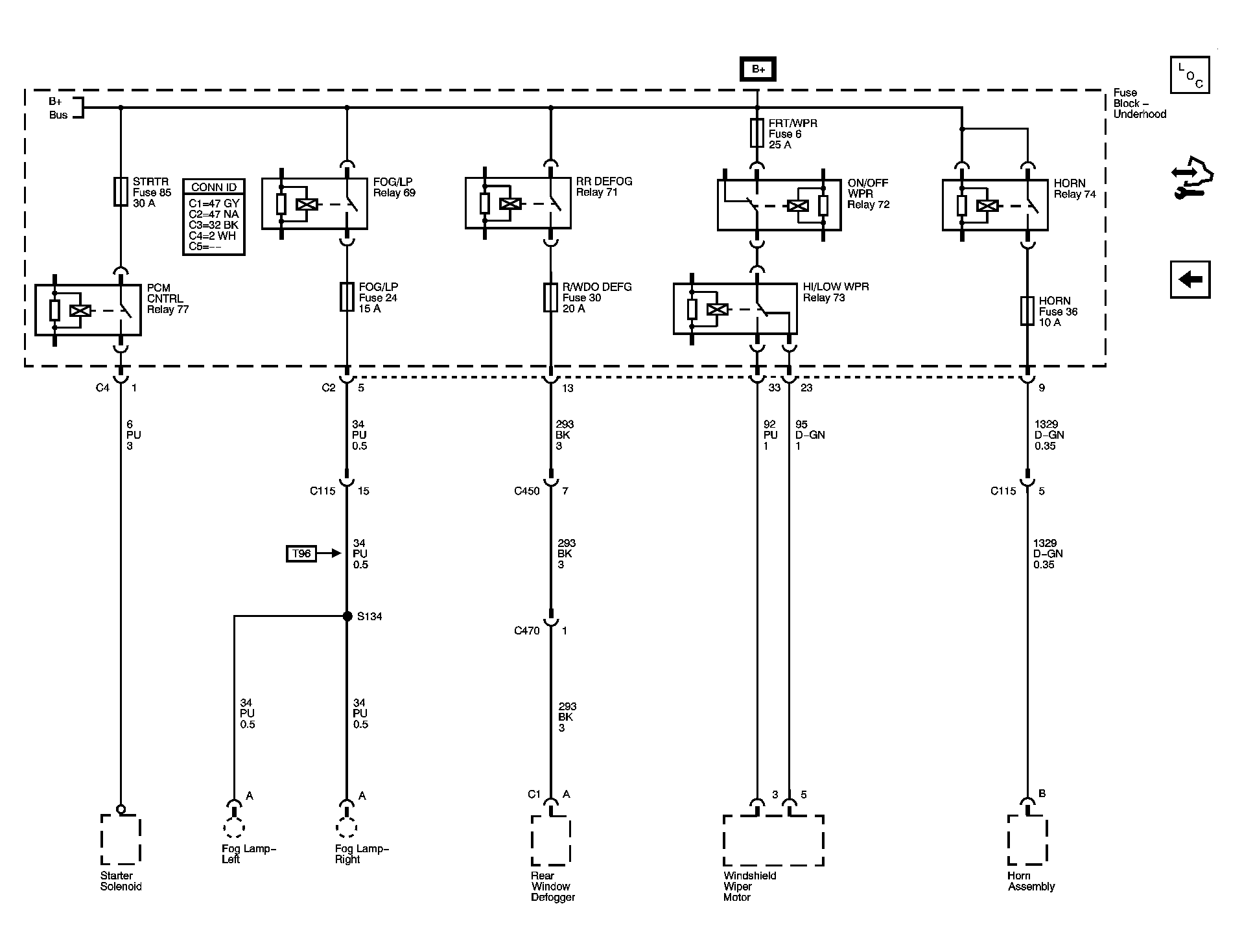

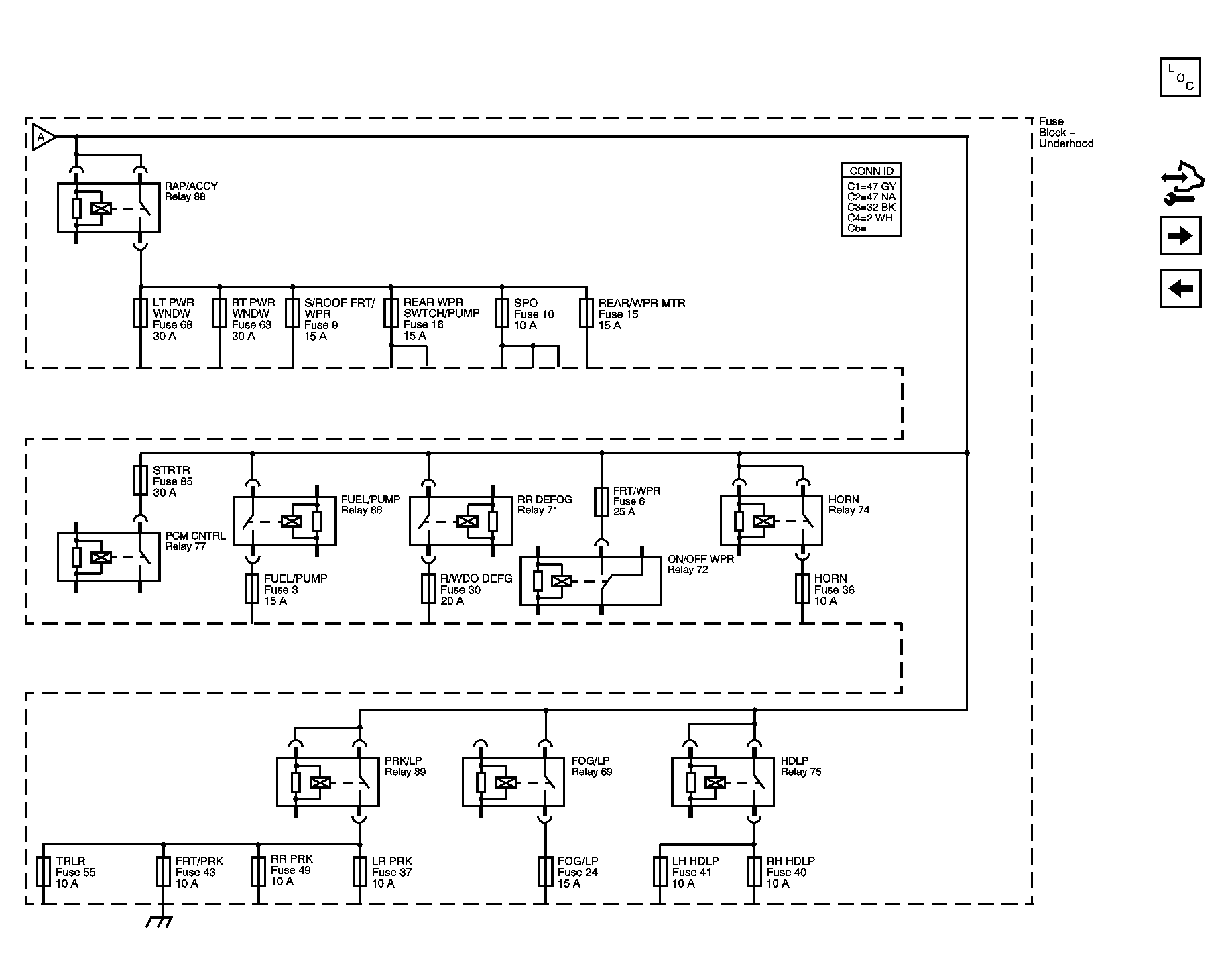

Fig 14: FOG/LP, FRT/WPR, HORN, R/WDO DEFG, and STRTR Fuses

Courtesy of GENERAL MOTORS CORP.
