Removal Procedure

  1. Remove the drive belt. Refer to Drive Belt Replacement (Without A/C) or Drive Belt Replacement (With A/C) for the 3.5L engine.
    2. Fig 1: View Of Power Steering Pump Pulley Remover
    GM649303Courtesy of GENERAL MOTORS CORP.
  2. Remove the power steering pump pulley using J 25034-C  . See Special Tools .

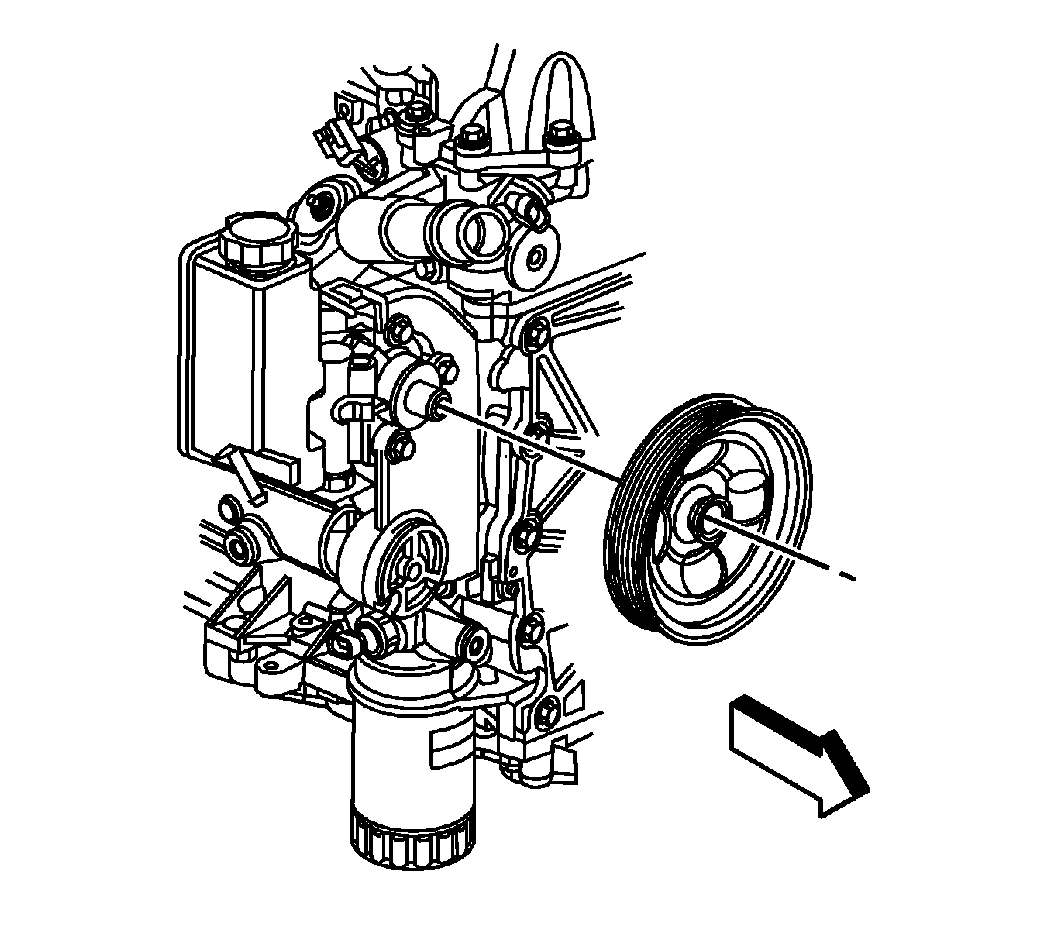

    3. Fig 2: View Of Power Steering Pump Pulley
    GM1201377Courtesy of GENERAL MOTORS CORP.
  3. Remove the pulley from the pump shaft.
