Window Systems Component Views

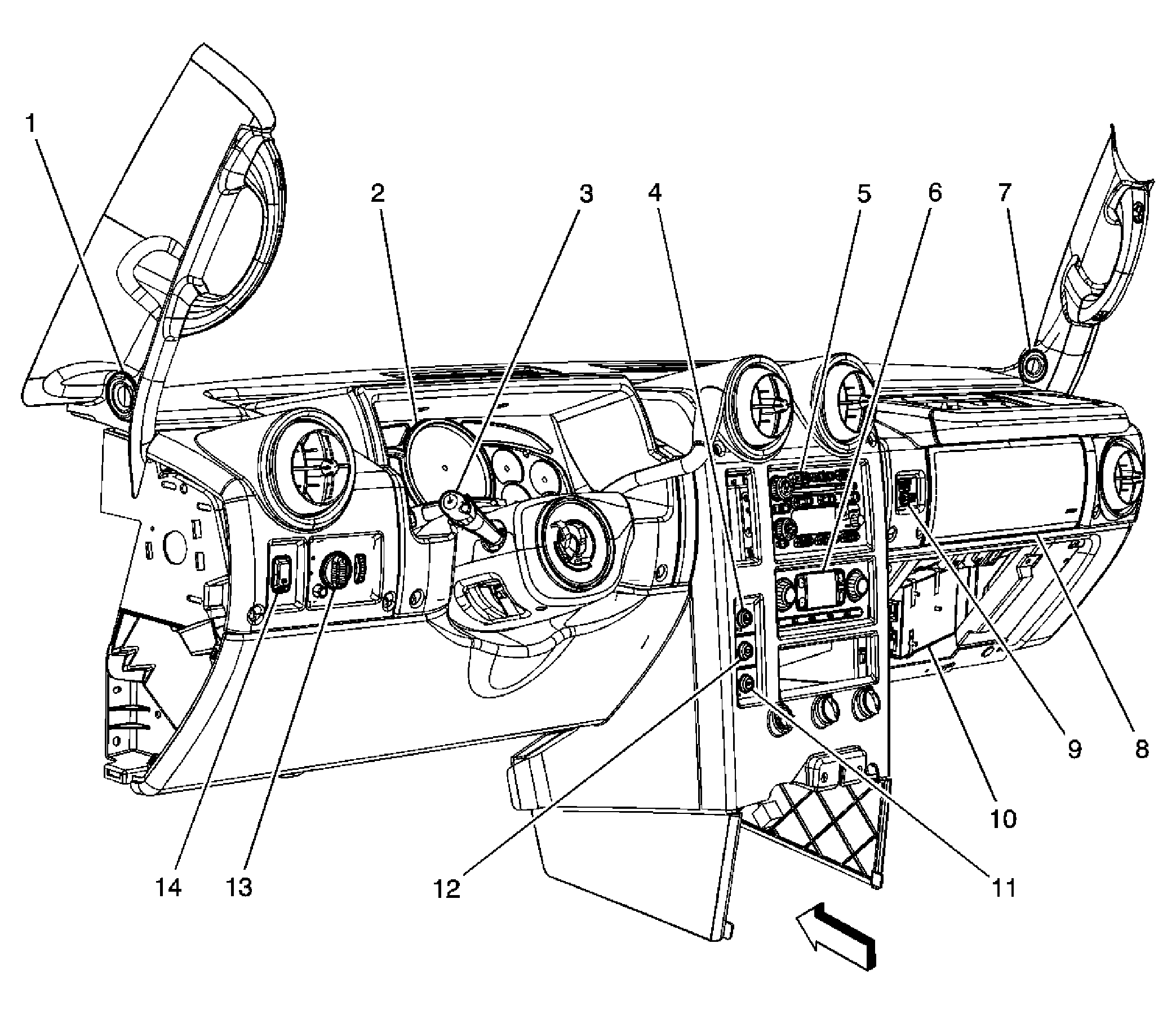

| Callout | Component Name |
|---|---|
| 1 | Speaker - LF Tweeter |
| 2 | Instrument Cluster |
| 3 | Turn Signal/Multifunction Switch |
| 4 | Traction Control Switch |
| 5 | Radio |
| 6 | HVAC Control Module |
| 7 | Speaker - RF Tweeter |
| 8 | Inflatable Restraint I/P Module |
| 9 | Inflatable Restraint I/P Module Disable Switch |
| 10 | Digital Radio Receiver |
| 11 | Ride Height Switch (ZM6) |
| 12 | Tow/Haul Switch |
| 13 | Headlamp and Panel Dimmer Switch |
| 14 | Midgate Window Switch (SUT) or Rear Wiper/Washer Switch (Except SUT) |

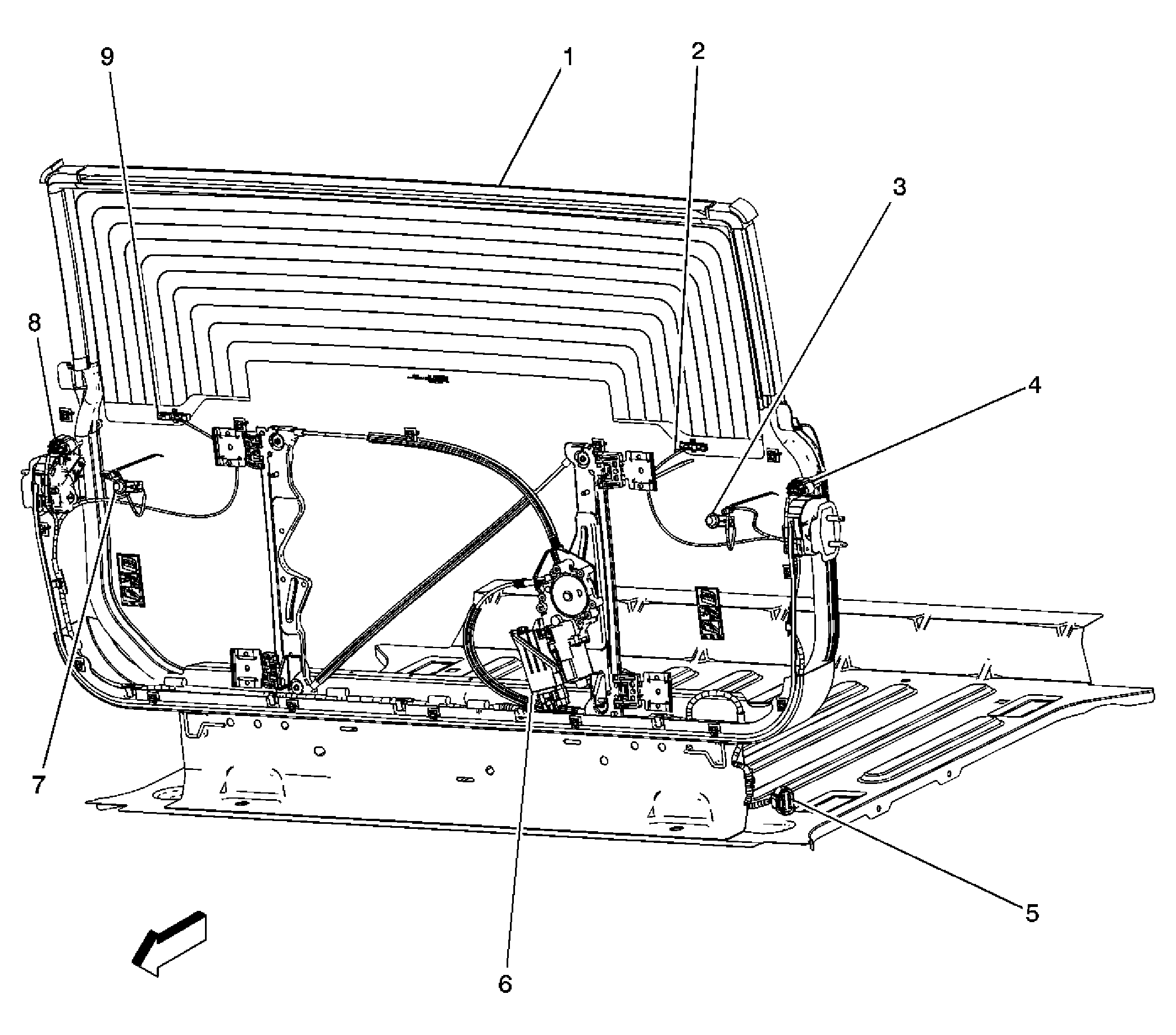

| Callout | Component Name |
|---|---|
| 1 | Midgate Window |
| 2 | Defogger Grid Connector - Left |
| 3 | Midgate Latch Release Switch - Left |
| 4 | Midgate Latch - Left |
| 5 | C300 |
| 6 | Midgate Control Module |
| 7 | Midgate Latch Release Switch - Right |
| 8 | Midgate Latch - Right |
| 9 | Defogger Grid Connector - Right |
