Midgate Control Module (SUT)
Midgate Control Module (SUT) Connector Parts Information
Connector Part Information
|

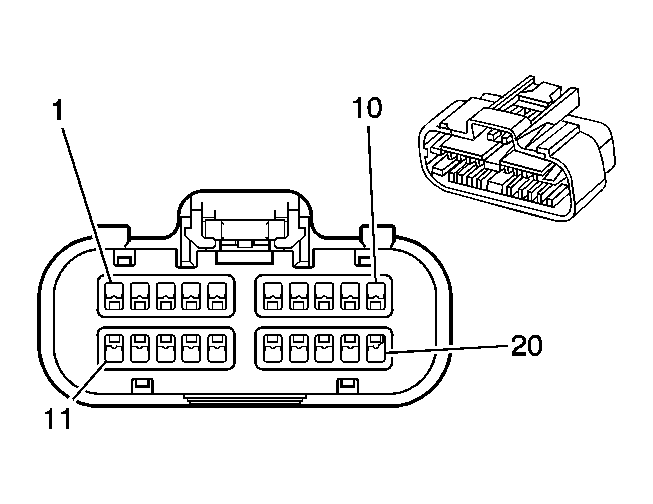

Midgate Control Module (SUT) Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | RD | 197 | Rear Defog Element Supply Voltage |
| 2 | TN | 5458 | Midgate Switch Up Signal |
| 3 | WH | 5457 | Midgate Switch Down Signal |
| 4 | GY | 295 | Midgate Latch Release Control |
| 5 | WH/BK | 1221 | Midgate Latch Release Switch Signal |
| 6 | BK | 3150 | Ground |
| 7 | GY | 5459 | Midgate Ajar Switch Signal 1 |
| 8 | YE | 243 | Accessory Voltage |
| 9 | - | - | Not Used |
| 10 | OG | 3040 | Battery Positive Voltage |
| 11 | RD | 197 | Rear Defog Element Supply Voltage |
| 12 | PK/BK | 1303 | Midgate Ajar Indicator Signal |
| 13 | PU | 293 | Rear Defog Element Supply Voltage |
| 14 | - | - | Not Used |
| 15 | PU | 293 | Rear Defog Element Supply Voltage |
| 16 | BK | 3150 | Ground |
| 17-18 | - | - | Not Used |
| 19 | D-GN | 5461 | Midgate Motor Up Signal |
| 20 | OG | 3040 | Battery Positive Voltage |
