Rear View Camera

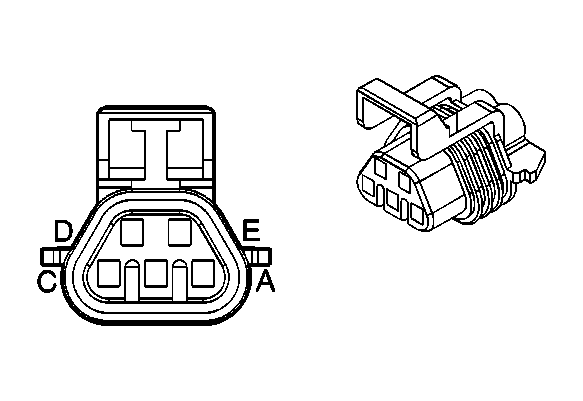

Fig 1: Rear View Camera Connector End View
GM646169Courtesy of GENERAL MOTORS CORP.
Rear View Camera Connector Parts Information

Connector Part Information
  • OEM: 12146045
  • Service: 12146045
  • Description: 5-Way F Metri-Pack 150 Series (NA)
Rear View Camera Connector Terminal Identification

Pin Wire Color Circuit No. Function
A OG VP Video +
B GN DI Drain
C RD CPWR Ignition 3 Voltage
D BK CGND Ground
E BU VN Video -
