Rearview Camera Replacement

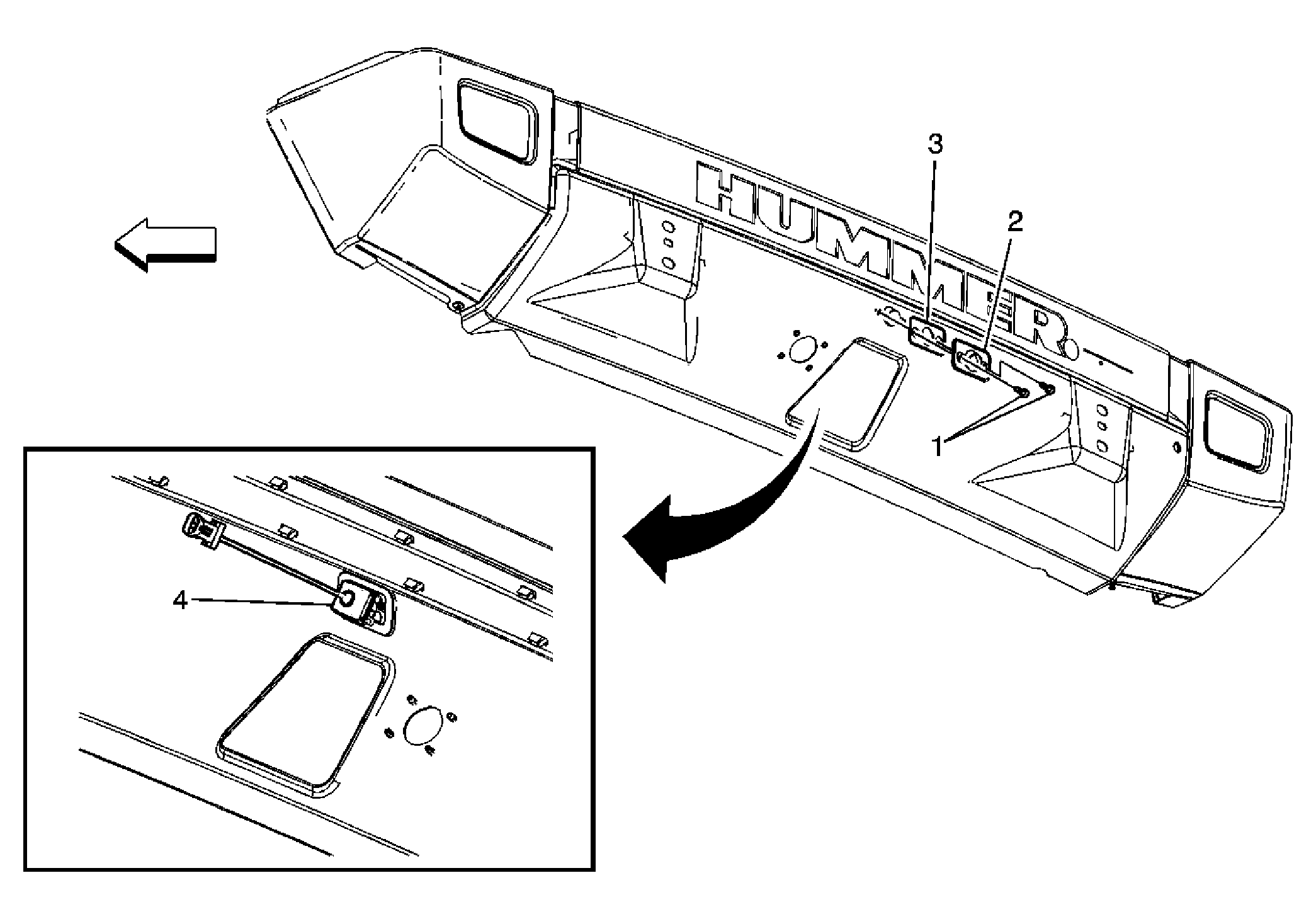

Fig 1: Locating Rearview Camera
GM1619305Courtesy of GENERAL MOTORS CORP.
  1. Remove rear bunper. See REAR BUMPER REPLACEMENT (SUT) OR (SUV) . Remove 2 rearview camera screws. When installing, tighten to 25 N.m (18 lb. ft)
  2. Remove rear View Camera Bracket. When installing, tighten to 25 N.m (18 lb ft)
  3. Remove rear View Camera Bracket Seal
  4. Remove rear View Camera Assembly. Reverse removal to install
