Moveable Window Schematics

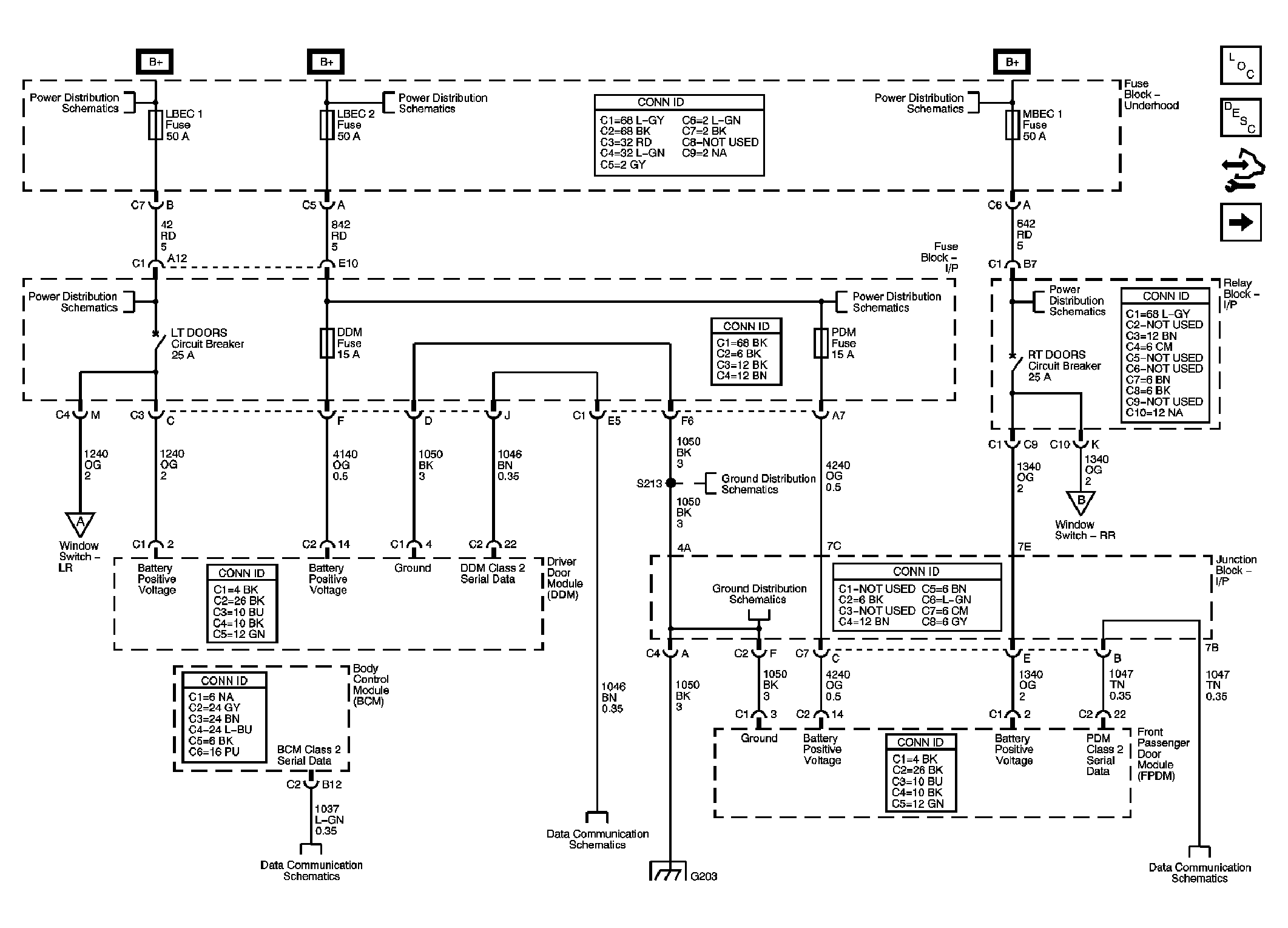

Fig 1: Power, Ground, and Serial Data Schematic

Courtesy of GENERAL MOTORS CORP.

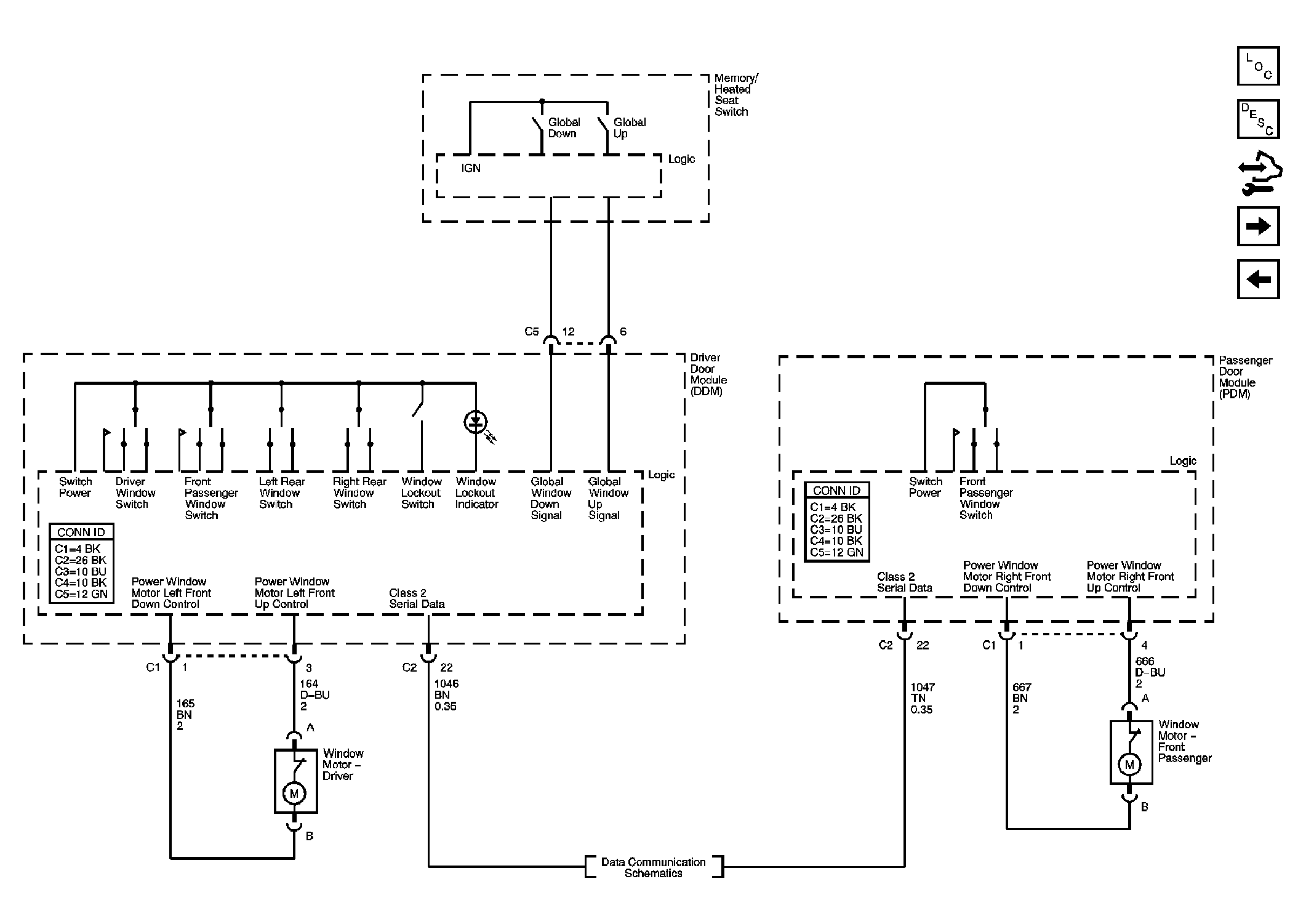

Fig 2: Front Door Window Schematic

Courtesy of GENERAL MOTORS CORP.

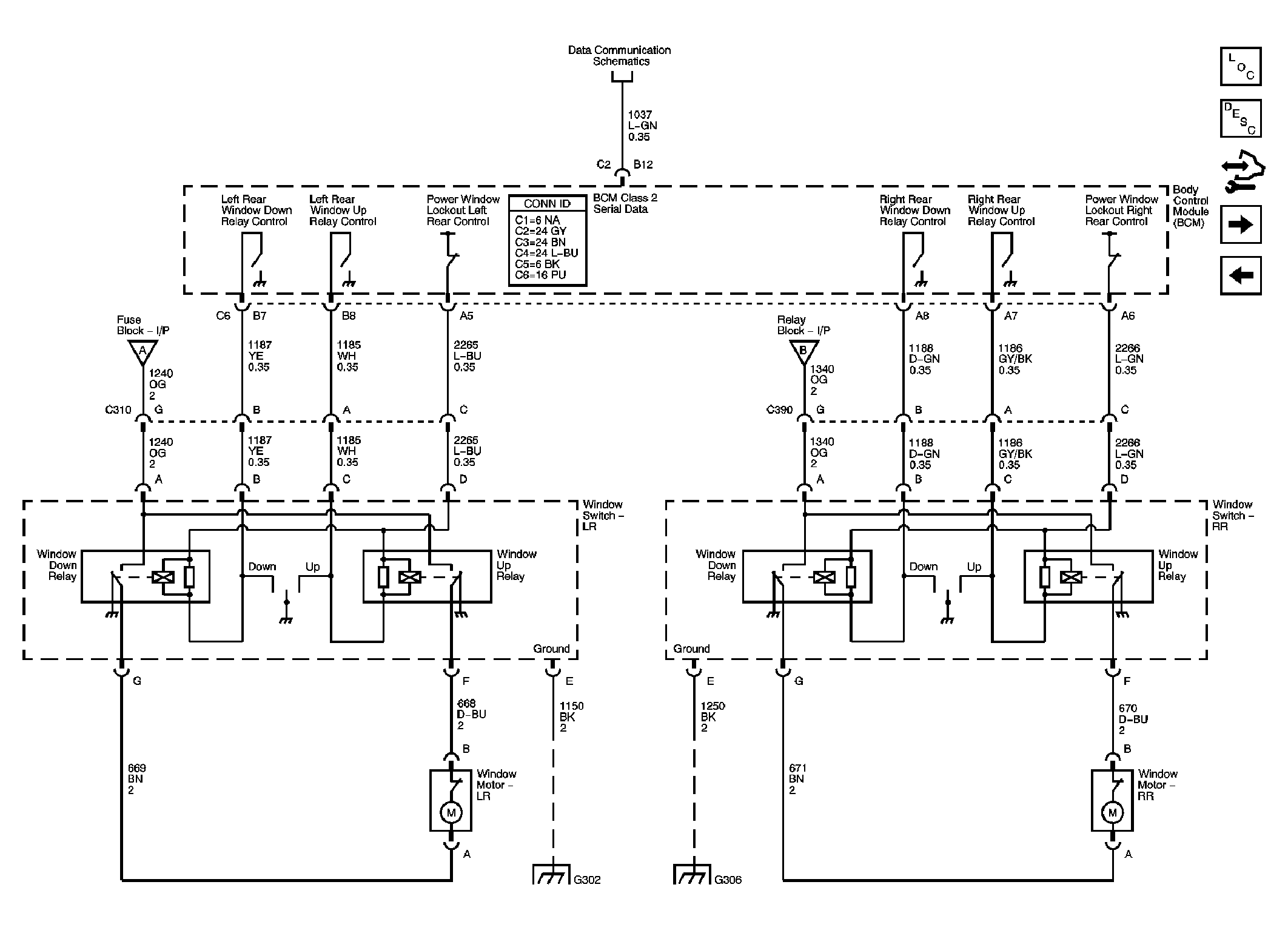

Fig 3: Rear Door Window Schematic

Courtesy of GENERAL MOTORS CORP.

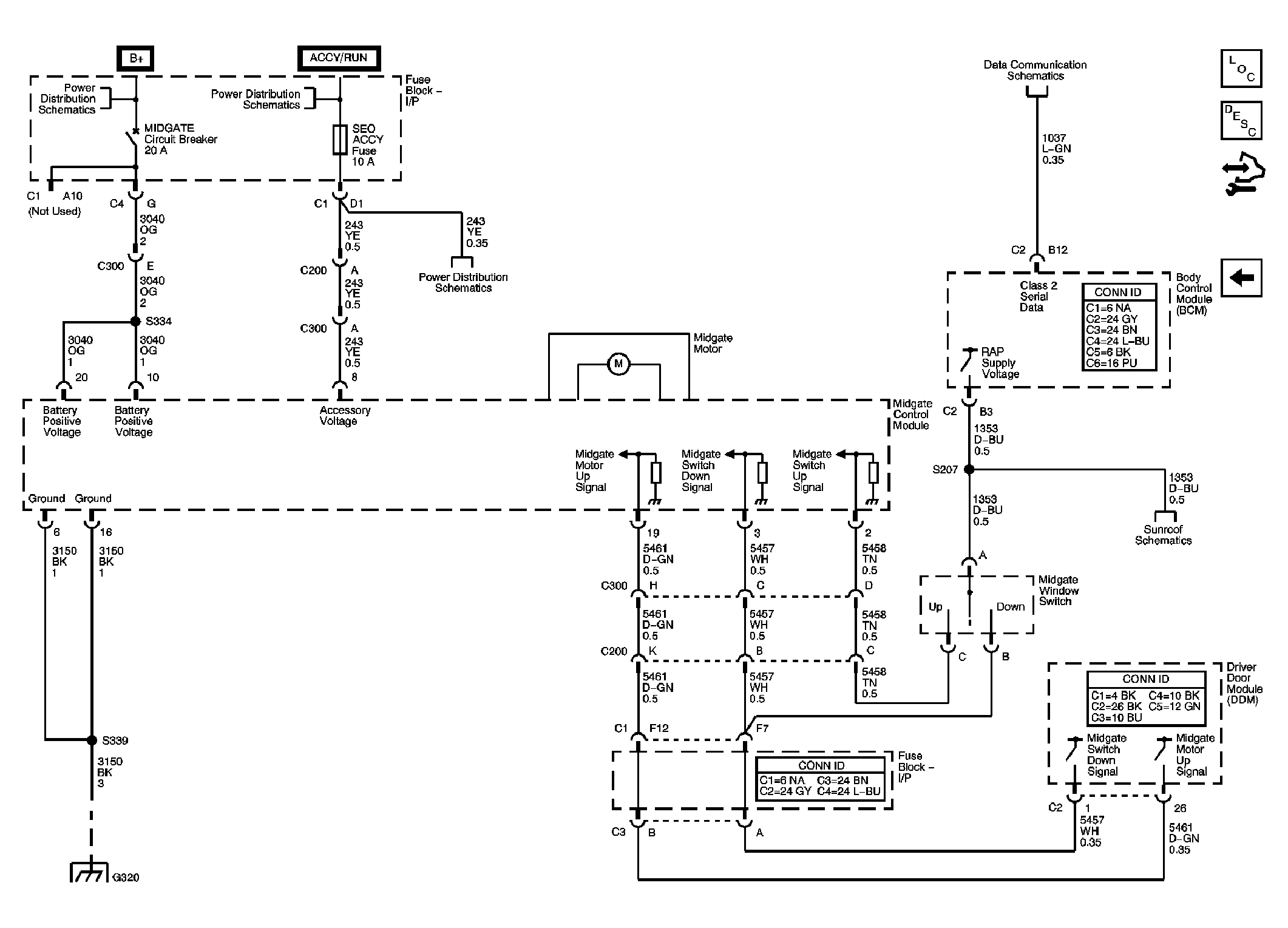

Fig 4: Midgate Window Schematic

Courtesy of GENERAL MOTORS CORP.
