Mirror Component Views

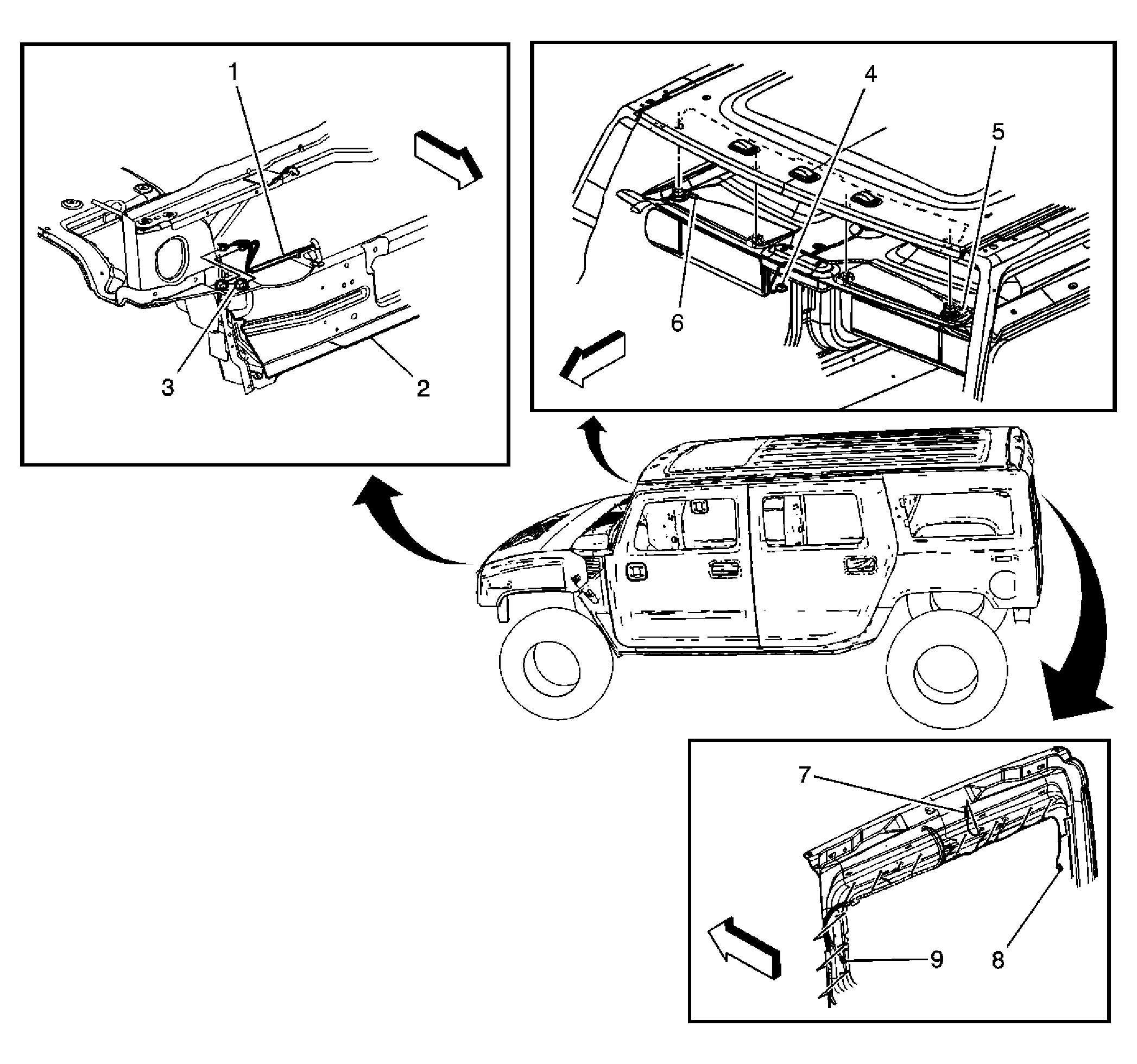

| Callout | Component Name |
|---|---|
| 1 | Forward Lamp Harness |
| 2 | Radiator Support |
| 3 | Ambient Air Temperature Sensor - HVAC |
| 4 | Ambient Air Temperature Sensor - Mirror |
| 5 | Inside Rearview Mirror Connector |
| 6 | Vanity Mirror Lamp Connector - Left |
| 7 | Vanity Mirror Lamp Connector - Right |
| 8 | Center High Mounted Stop Lamp (CHMSL) Connector |
| 9 | Rear Window Defogger Grid Connector |
| 10 | Rear Window Defogger Grid Connector |

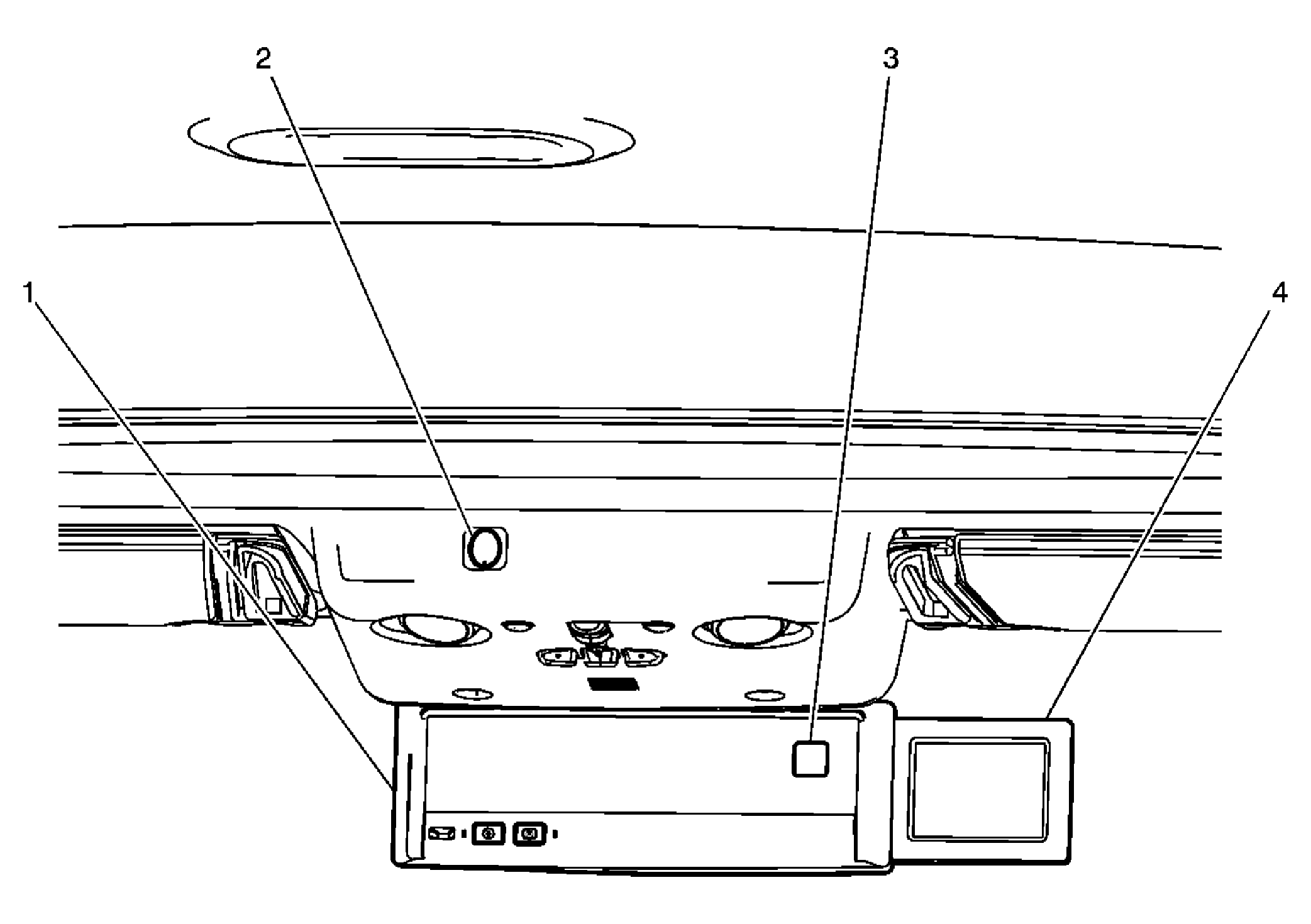

| Callout | Component Name |
|---|---|
| 1 | Inside Rearview Mirror (ISRVM) |
| 2 | Off-Road Lamps Switch (USB, USC, USD, UNR) |
| 3 | Outside Temperature/Compass Display |
| 4 | Rear Vision Camera Display (UVC) |
