Power Outlet Component Views

Fig 1: Interior Auxiliary Power Outlets
GM1479842Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cigar Lighter
2 Auxiliary Power Outlet - Front 1
3 Auxiliary Power Outlet - Front 2
4 Auxiliary Power Outlet - Console 1
5 Auxiliary Power Outlet - Console 2
Fig 2: Auxiliary Power Outlet - Rear Component Views
GM1262311Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Inflator Switch (ZM6)
2 Liftgate
3 Auxiliary Power Outlet - Rear

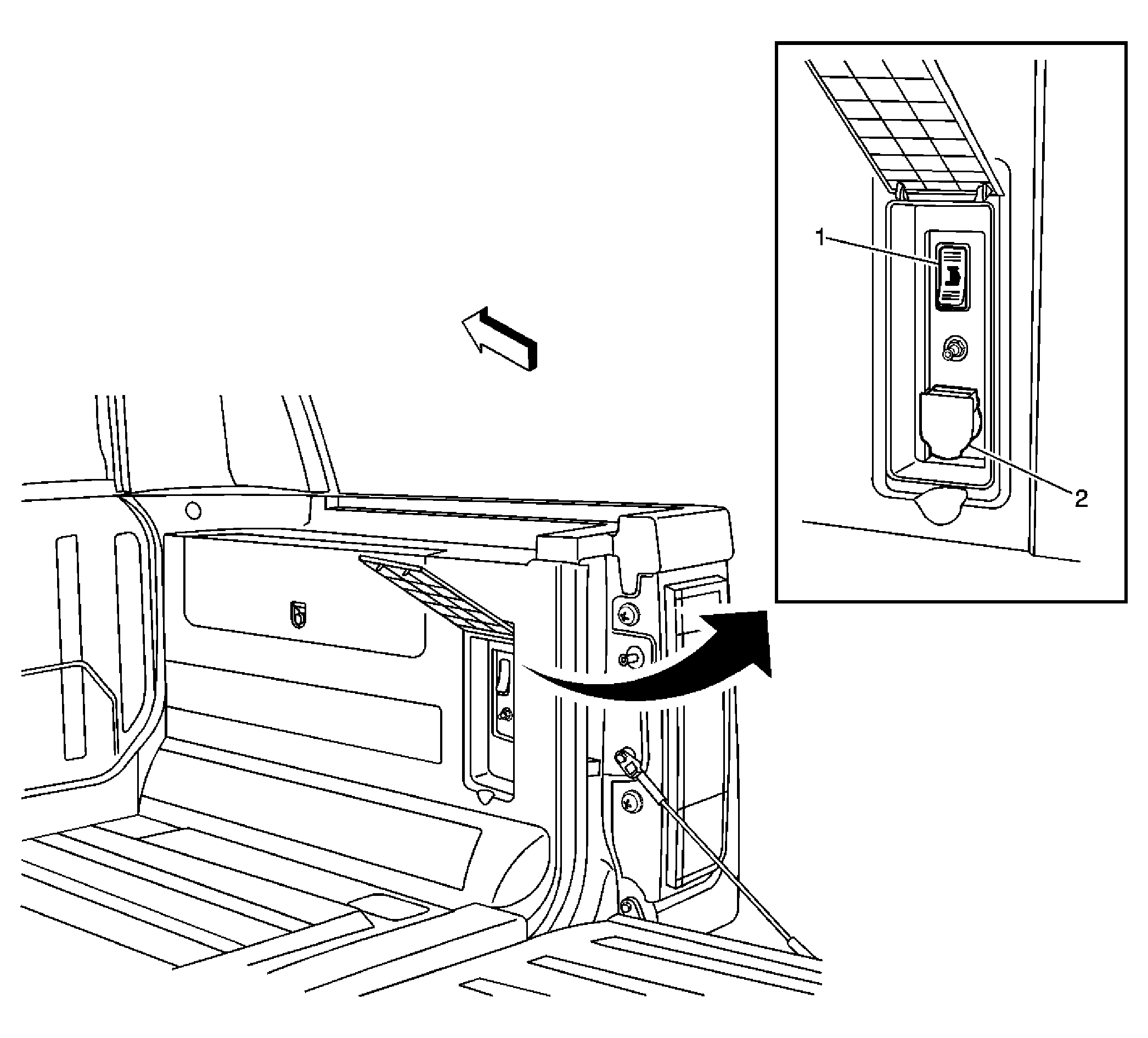

Fig 3: Right Rear Corner of Cargo Bed (SUT)
GM1489087Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Inflator Switch (ZM6)
2 Auxiliary Power Outlet - Cargo (SUT)
