Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Left End Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left End Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 3: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 4: Front Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 5: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

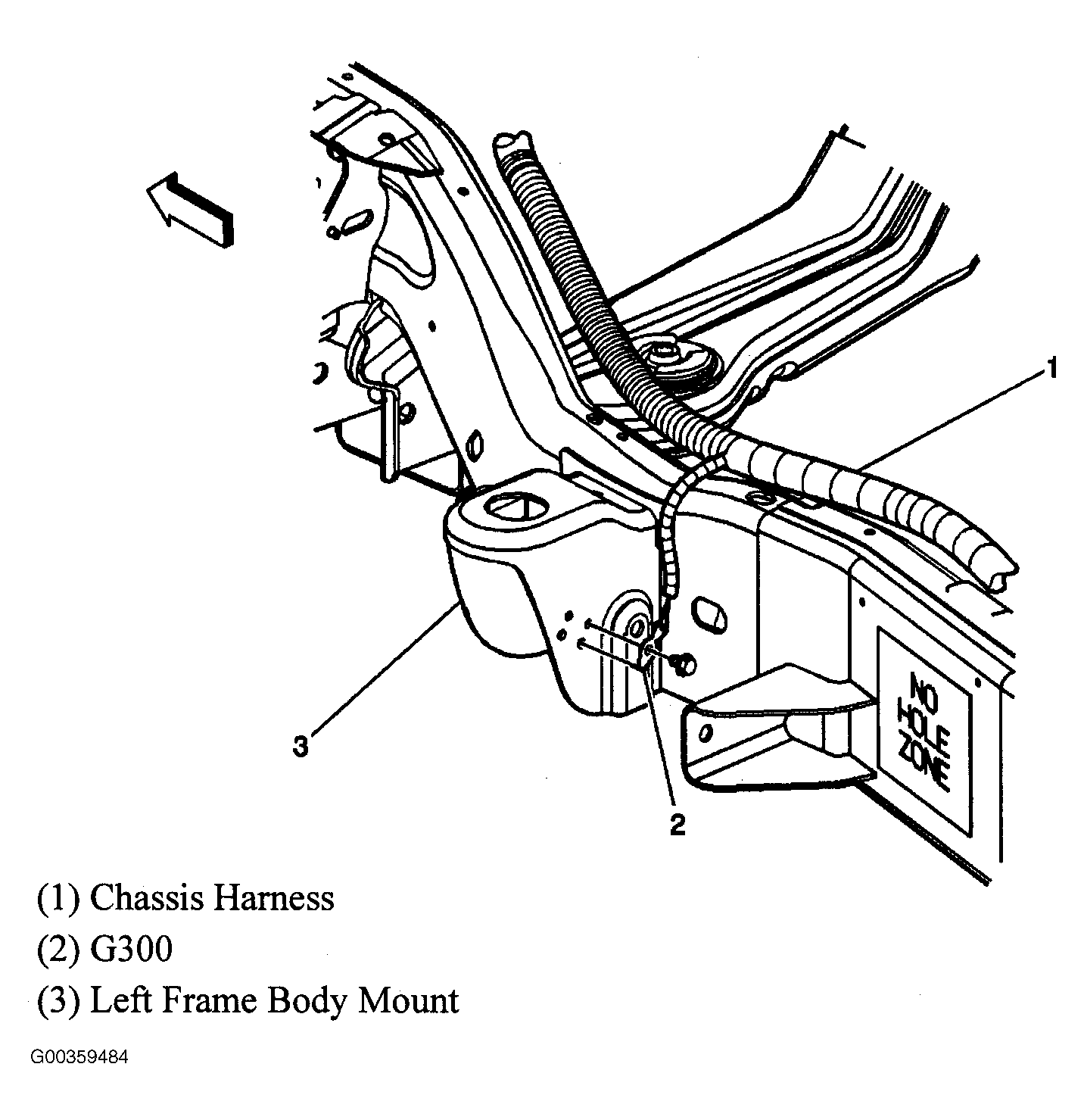

Fig 6: Left Front Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 7: Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 8: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 9: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 10: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 11: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 12: Left Kick Panel
Courtesy of GENERAL MOTORS CORP.
Fig 13: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.

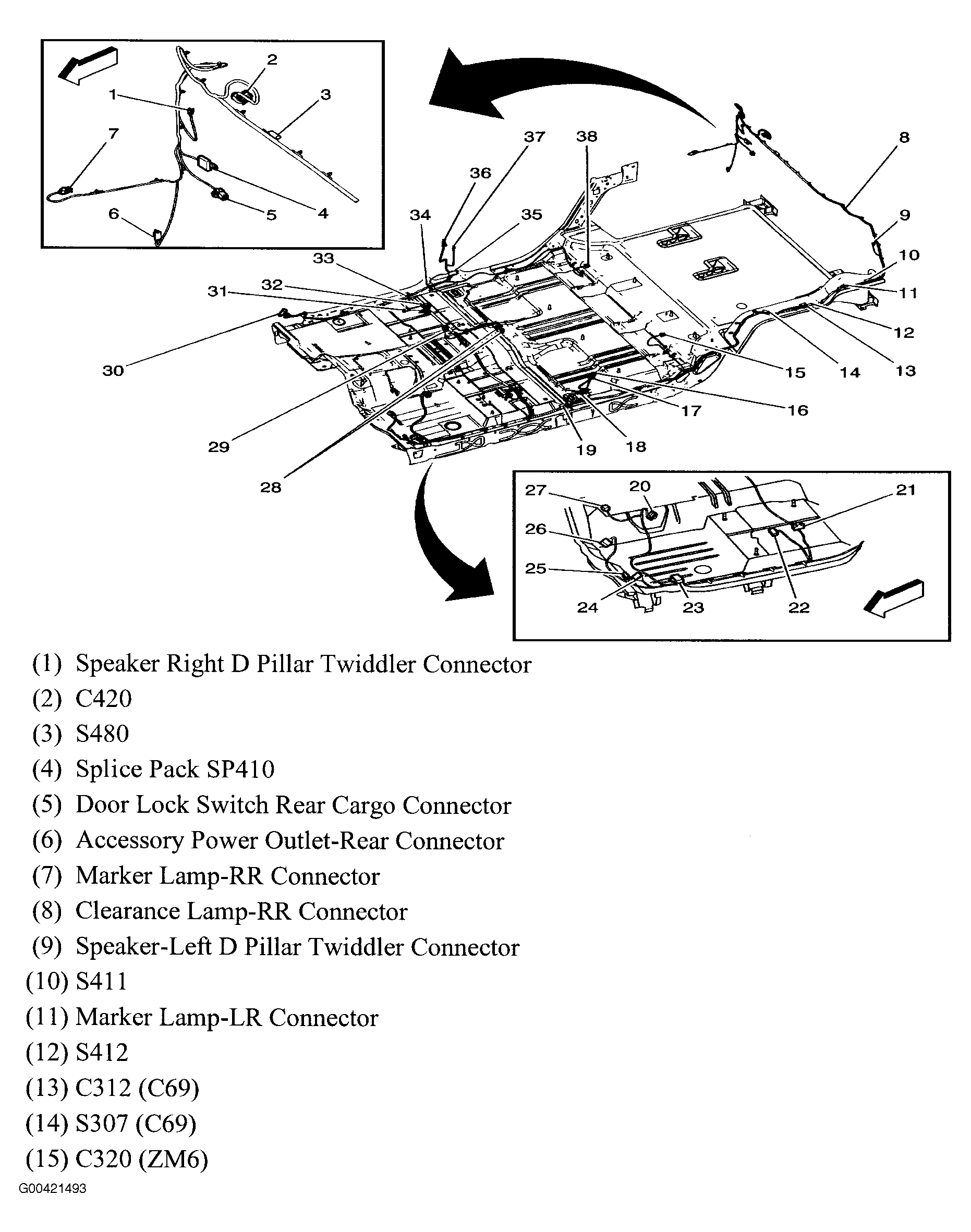

Fig 14: Vehicle Floor
Courtesy of GENERAL MOTORS CORP.
Fig 15: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 16: Right Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 17: Left Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 18: Rear Of Left Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 19: Rear Of Right Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 20: Right Rear Corner Of Vehicle
Courtesy of GENERAL MOTORS CORP.

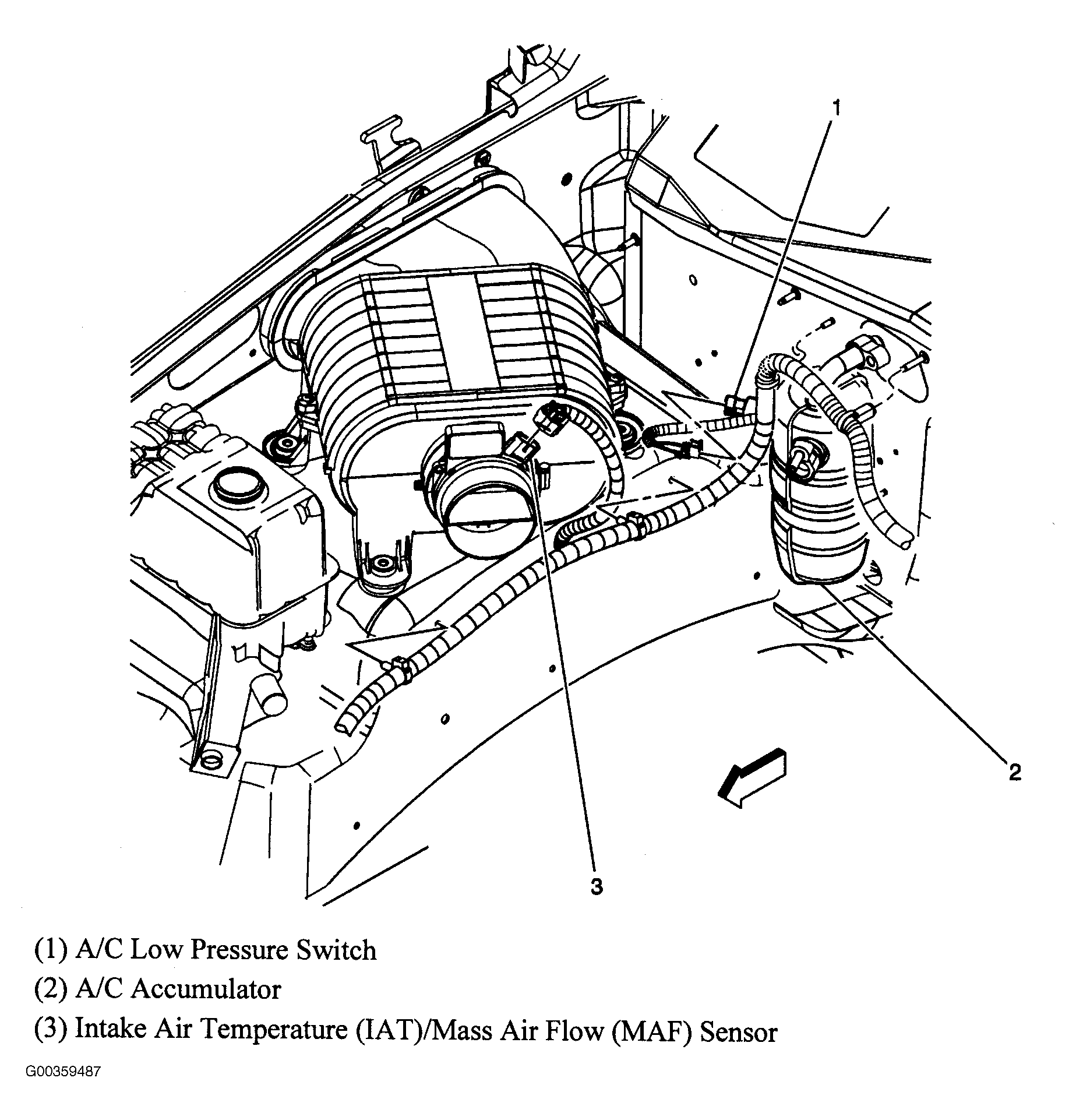

Fig 21: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 22: Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 23: HVAC Subsystem Components
Courtesy of GENERAL MOTORS CORP.
Fig 24: HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 25: Steering Column (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 26: Steering Column (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 27: Air Suspension Components
Courtesy of GENERAL MOTORS CORP.
Fig 28: Locking Differential
Courtesy of GENERAL MOTORS CORP.
Fig 29: Rear Axle
Courtesy of GENERAL MOTORS CORP.
Fig 30: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 31: Rear Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 32: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 33: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 34: ABS Components
Courtesy of GENERAL MOTORS CORP.
Fig 35: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 36: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 37: Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 38: Engine Compartment & Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 39: Right Rear, Left Rear & Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 40: Frame
Courtesy of GENERAL MOTORS CORP.
Fig 41: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 42: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

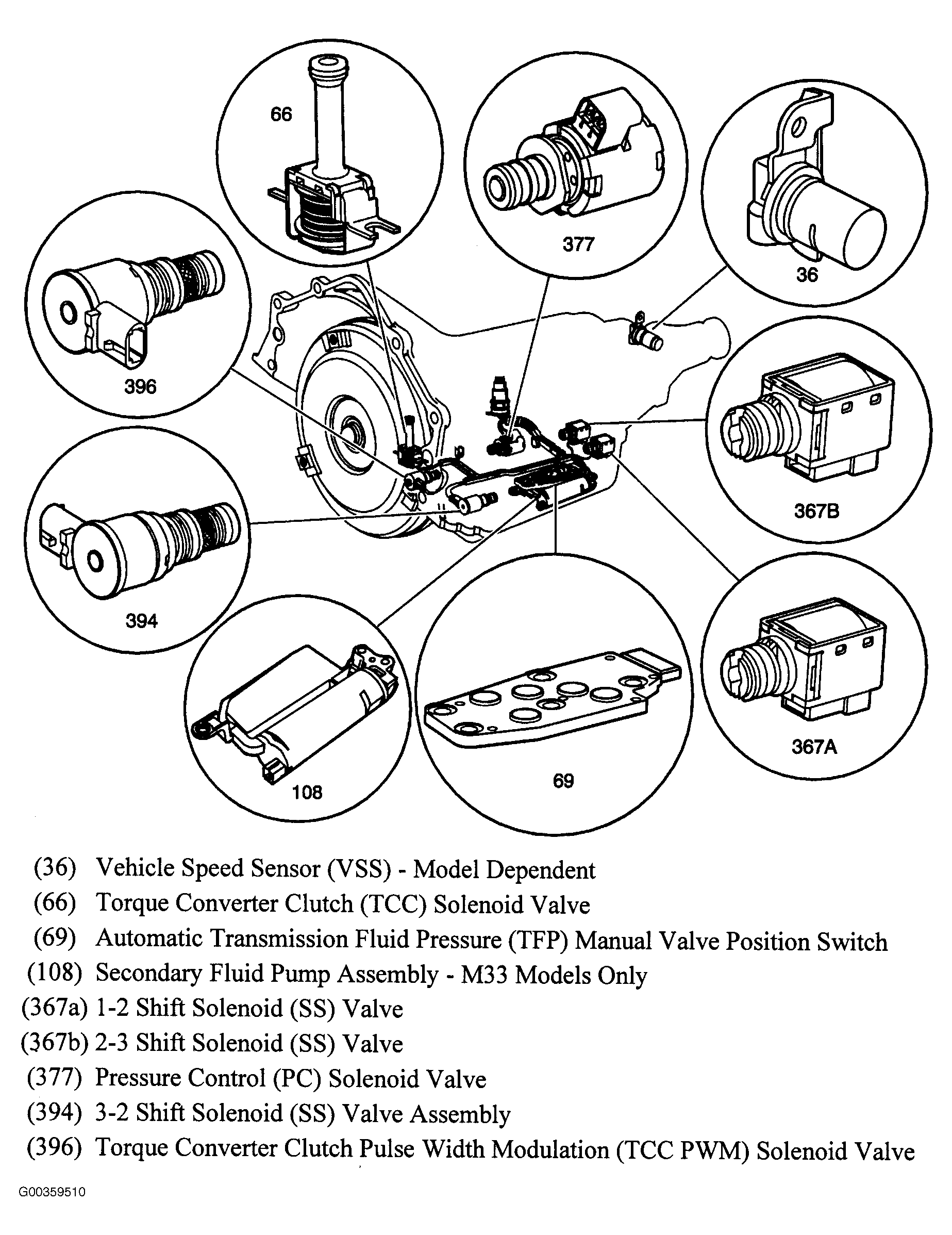

Fig 43: Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 44: Left Side Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 45: Rear Of Transfer Case
Courtesy of GENERAL MOTORS CORP.

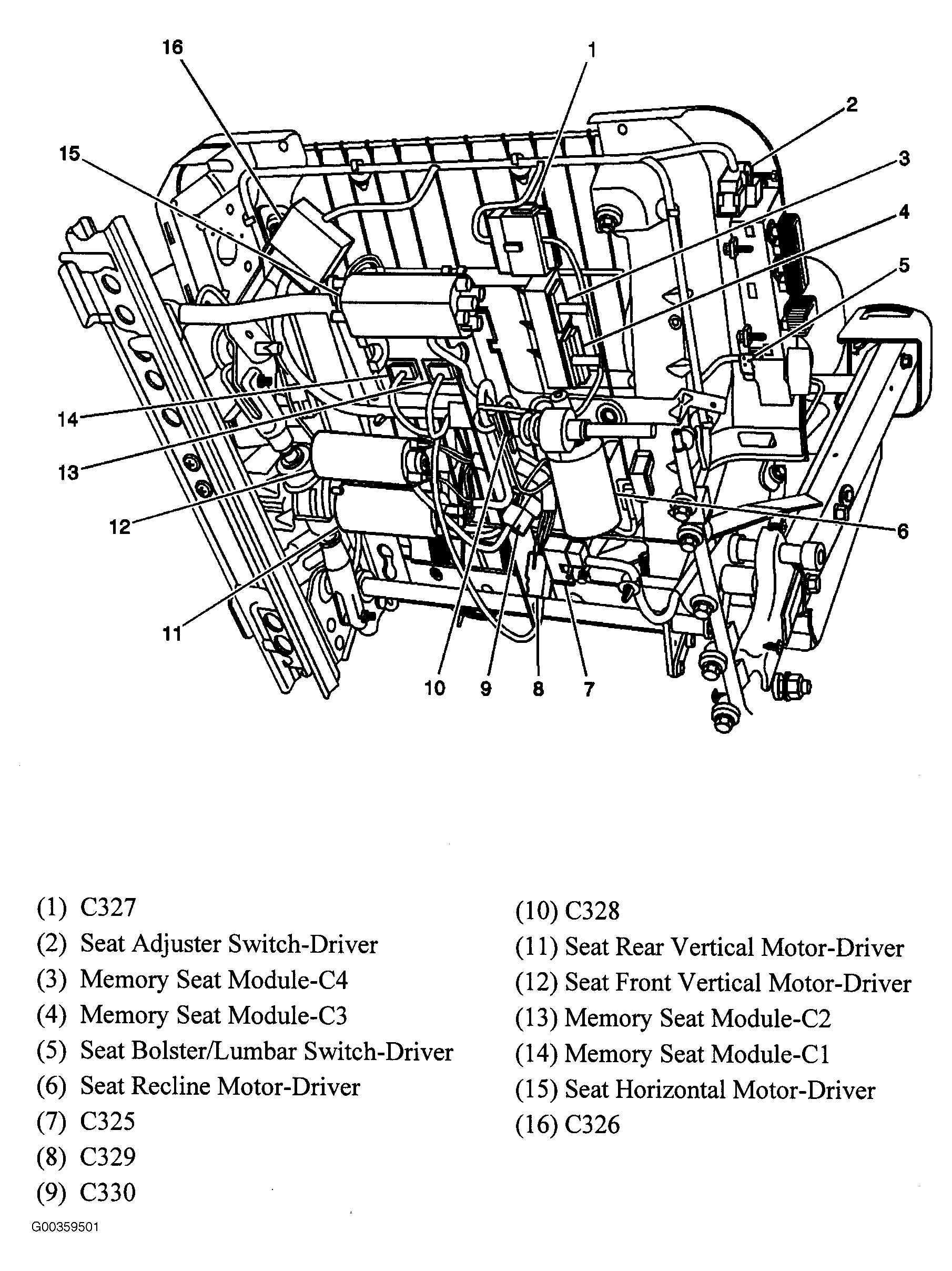

Fig 46: Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 47: SIR Components (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 48: SIR Components (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 49: SIR Components
Courtesy of GENERAL MOTORS CORP.

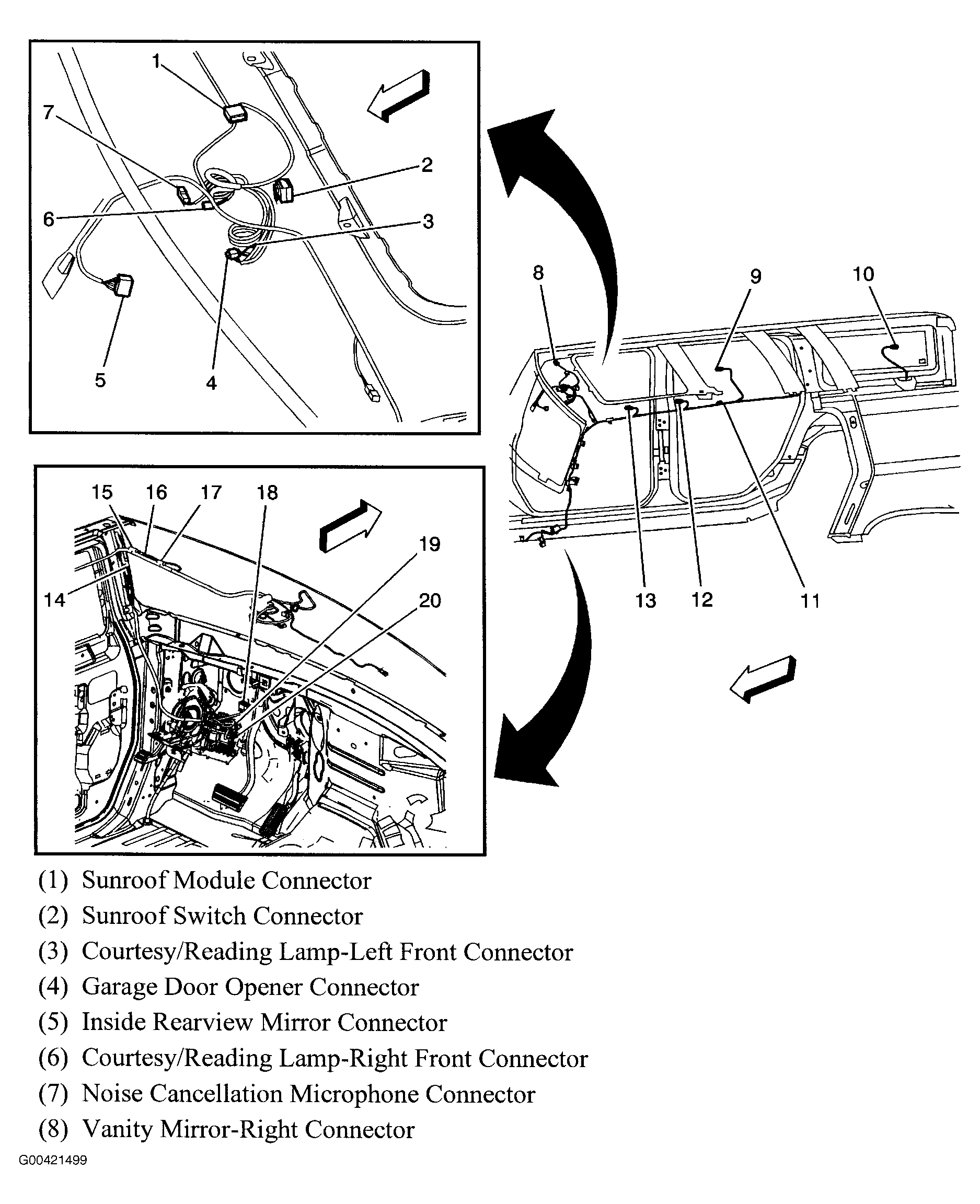

Fig 50: Front Of Roof
Courtesy of GENERAL MOTORS CORP.

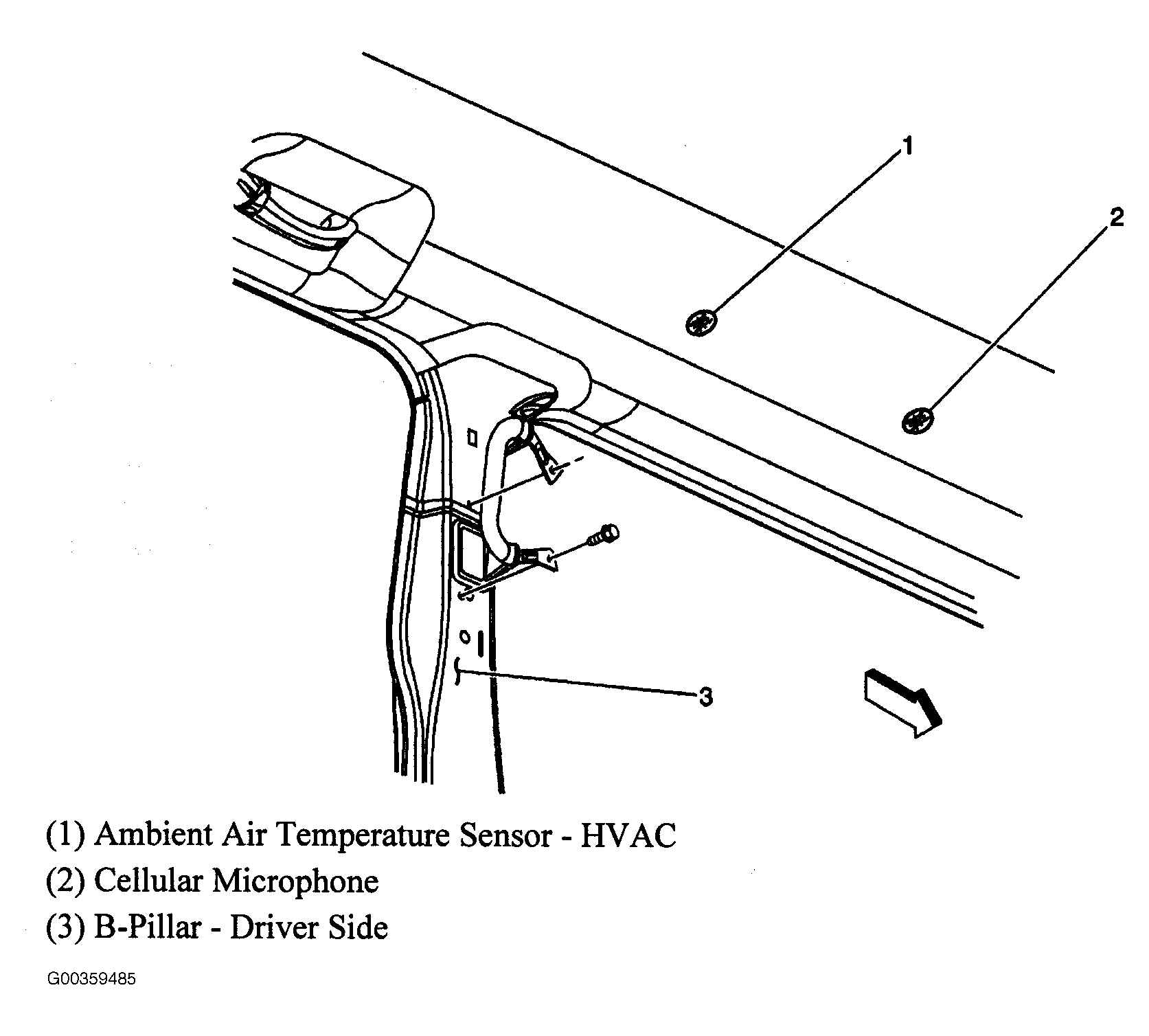

Fig 51: Top Of Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 52: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 53: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 54: Driver Door
Courtesy of GENERAL MOTORS CORP.
Fig 55: Passenger Door
Courtesy of GENERAL MOTORS CORP.

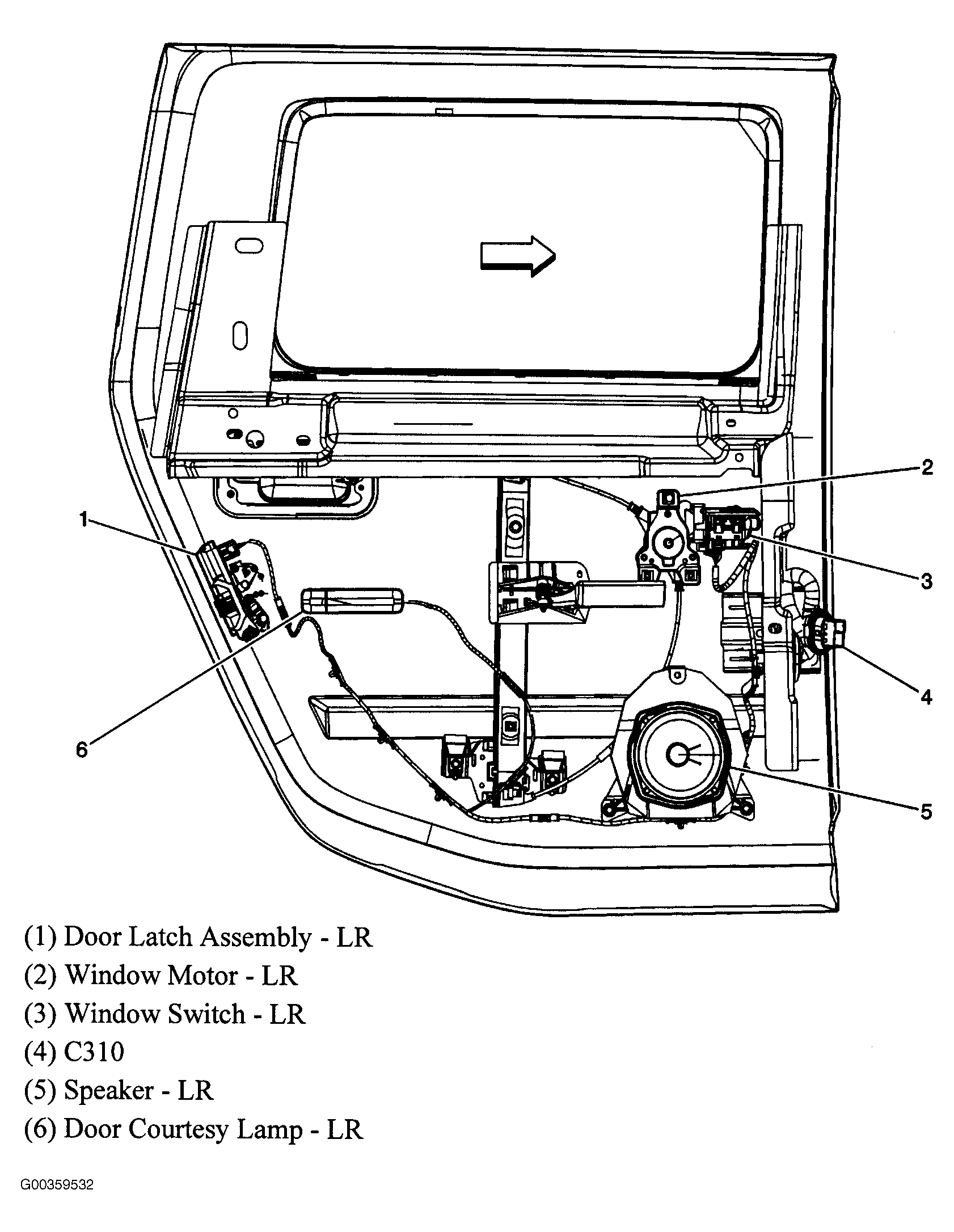

Fig 56: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 57: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 58: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 59: Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 60: Lower Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 61: Front Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 62: Left "A" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 63: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 64: Under Passenger Seat
Courtesy of GENERAL MOTORS CORP.

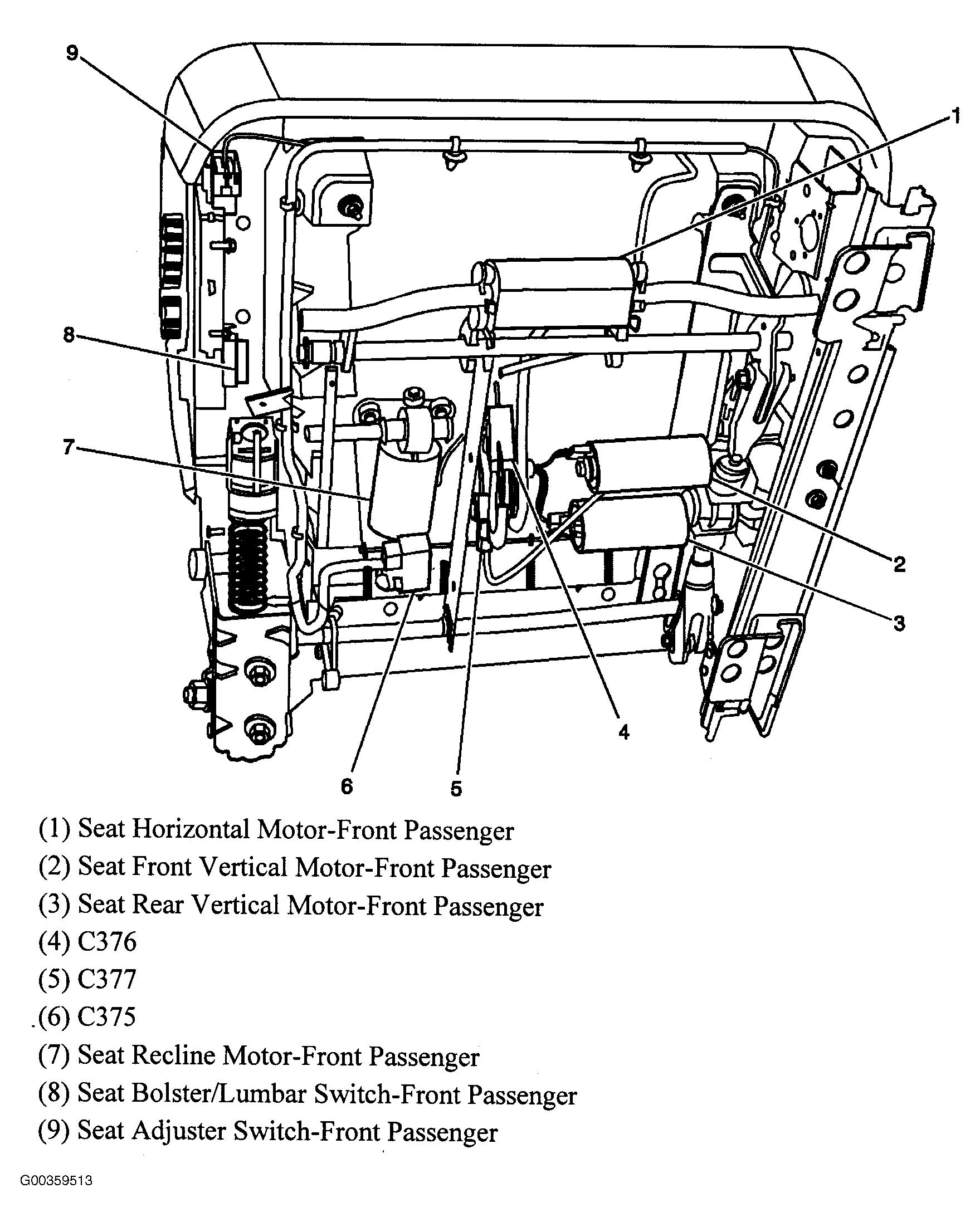

Fig 65: Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 66: Wiper/Washer System Components
Courtesy of GENERAL MOTORS CORP.
Fig 67: Front Floor Console
Courtesy of GENERAL MOTORS CORP.

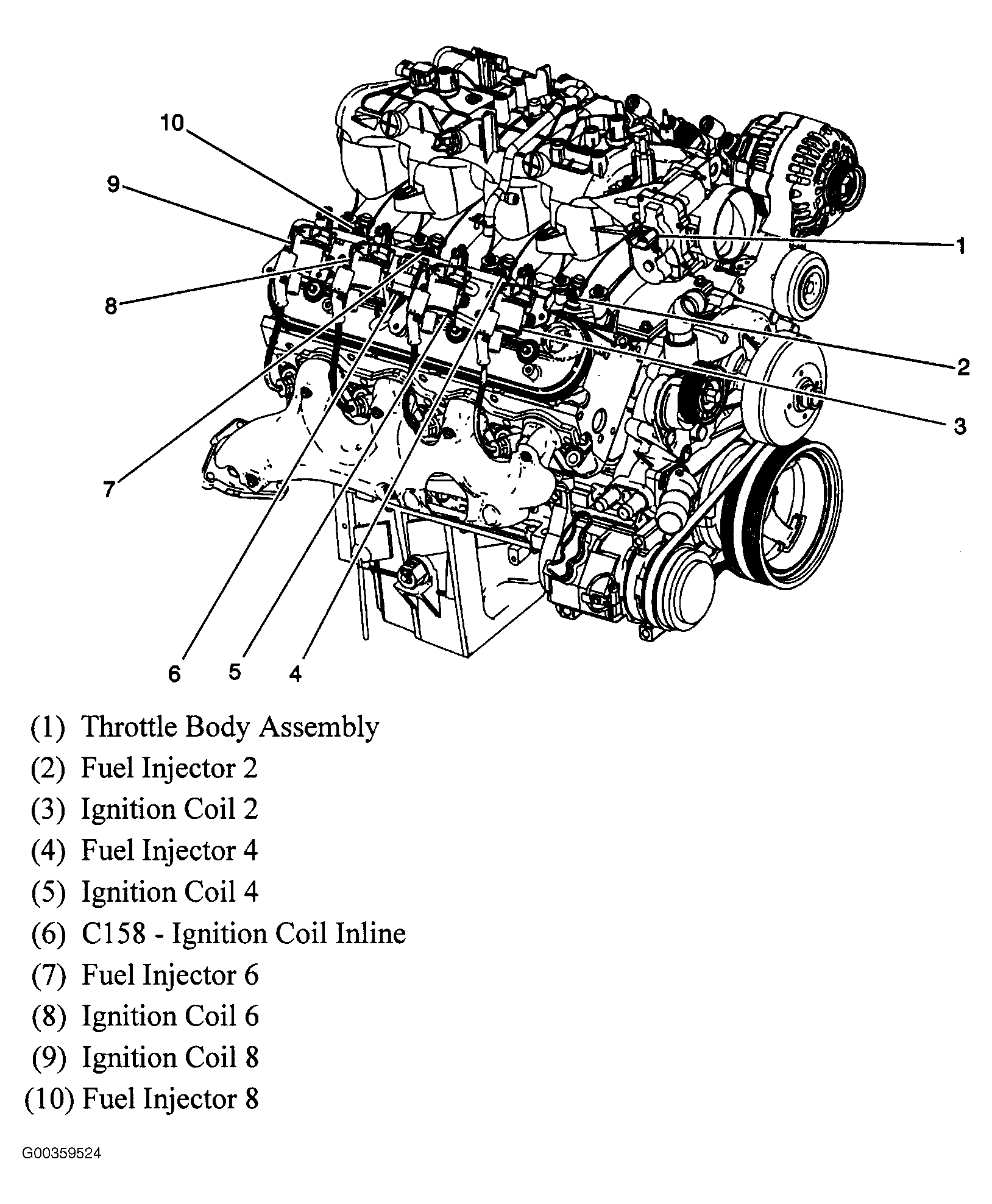

Fig 68: Engine (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

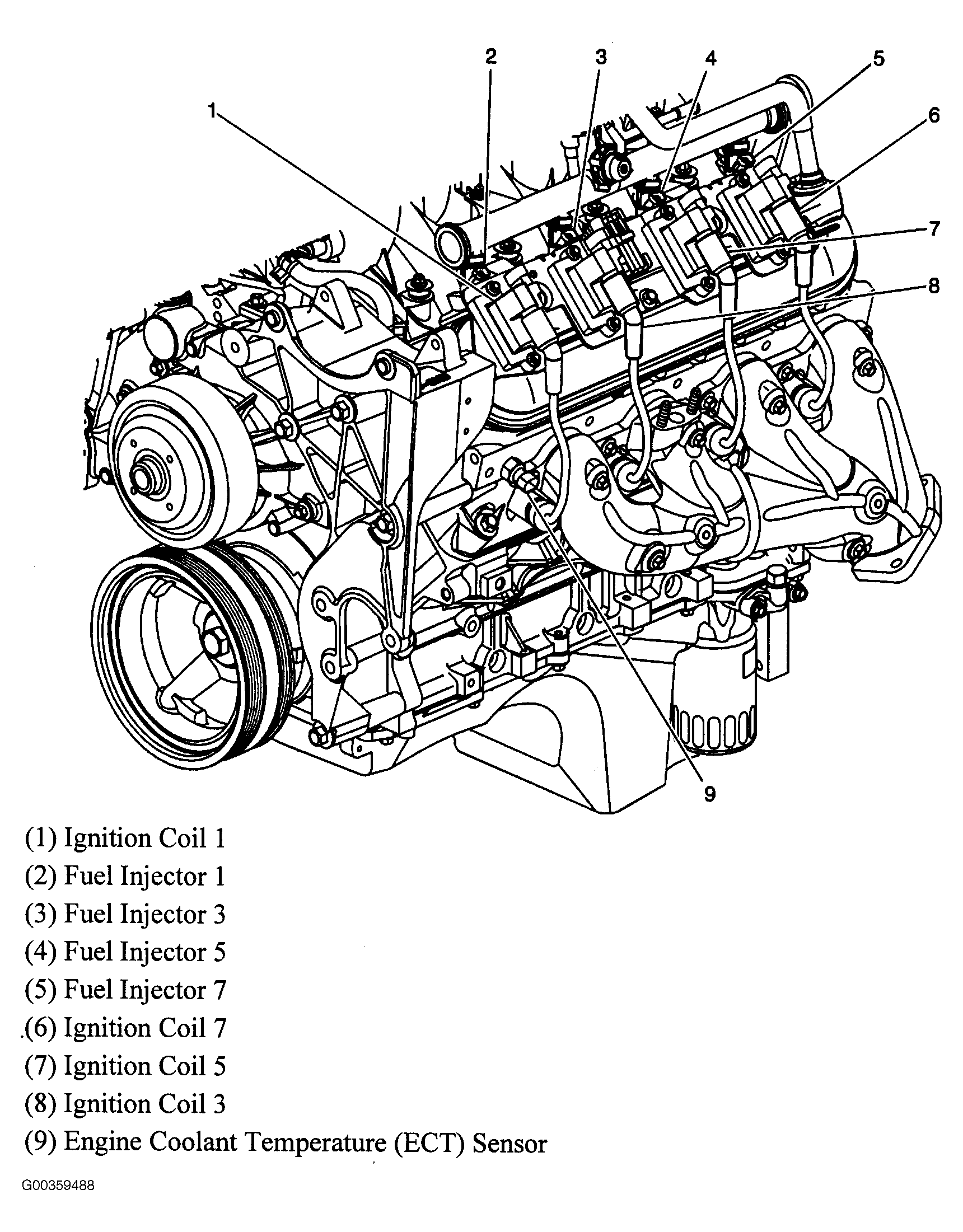

Fig 69: Engine (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 70: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 71: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 72: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 73: Front Floor Console
Courtesy of GENERAL MOTORS CORP.

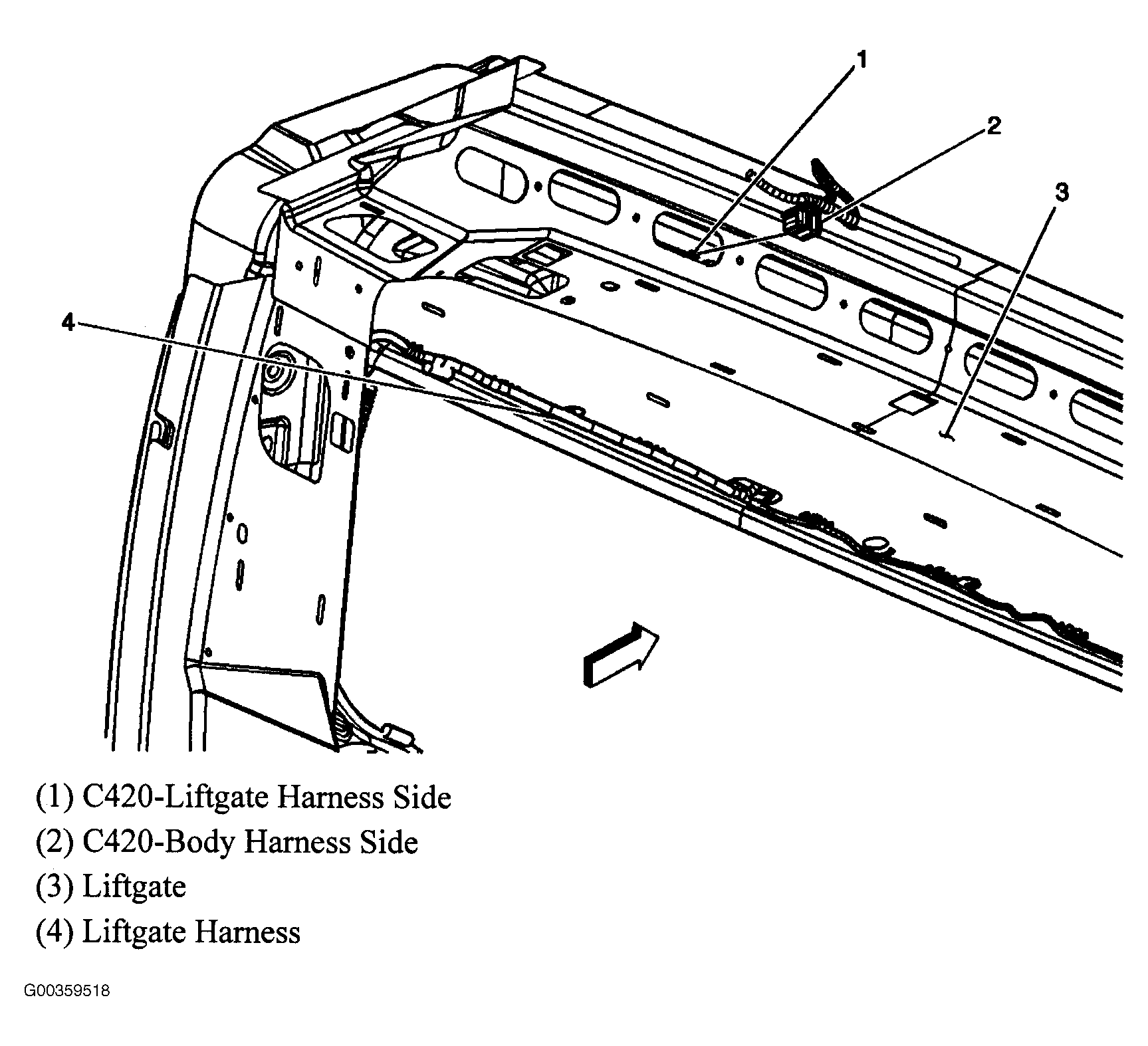

Fig 74: Top Of Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 75: Liftgate
Courtesy of GENERAL MOTORS CORP.

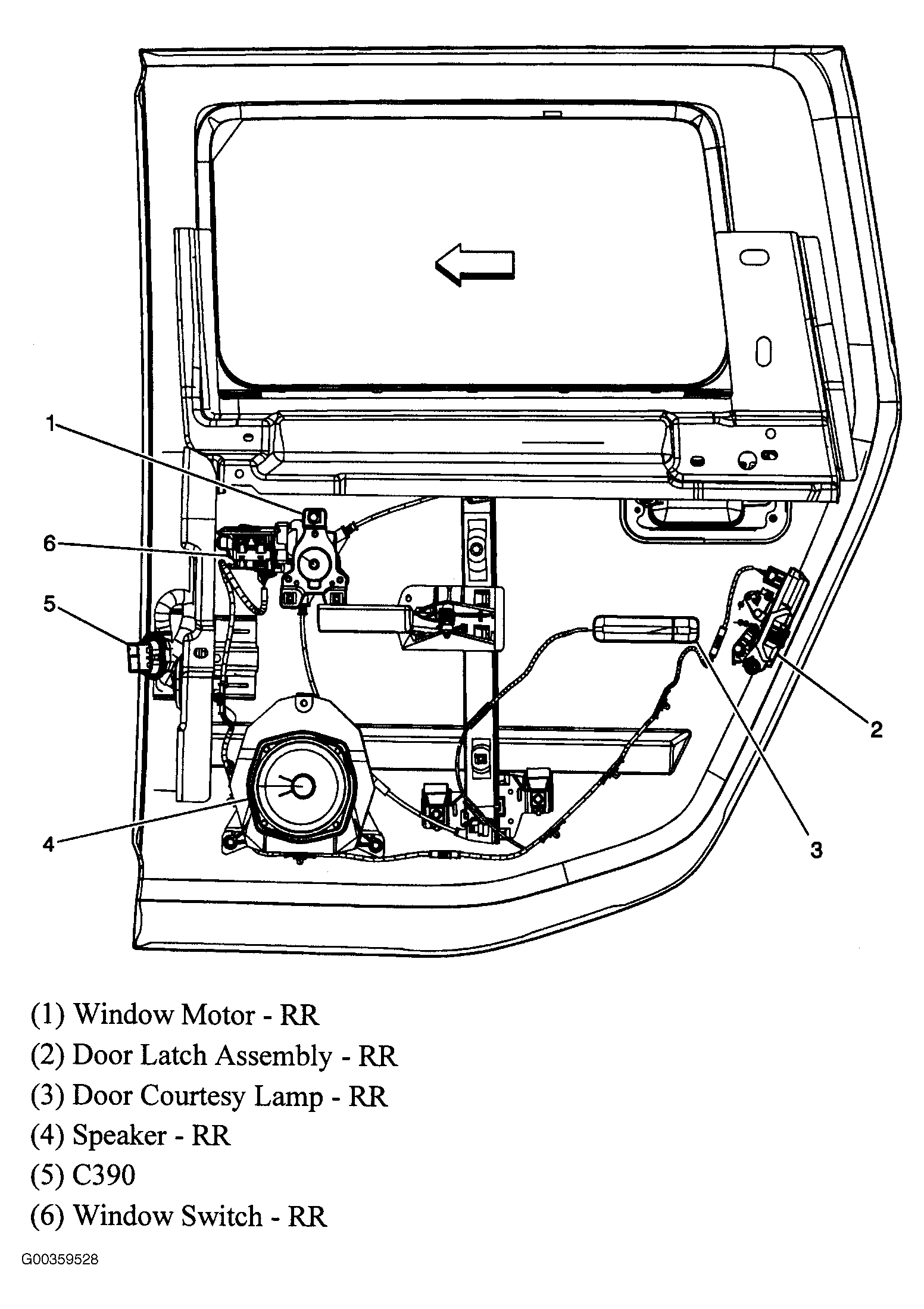

Fig 76: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 77: Left Front Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 78: Lower Underside Of Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 79: Antenna Locations
Courtesy of GENERAL MOTORS CORP.
Fig 80: Second Row Heated Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 81: Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Fig 82: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 83: Under Passenger Front Seat
Courtesy of GENERAL MOTORS CORP.
Fig 84: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

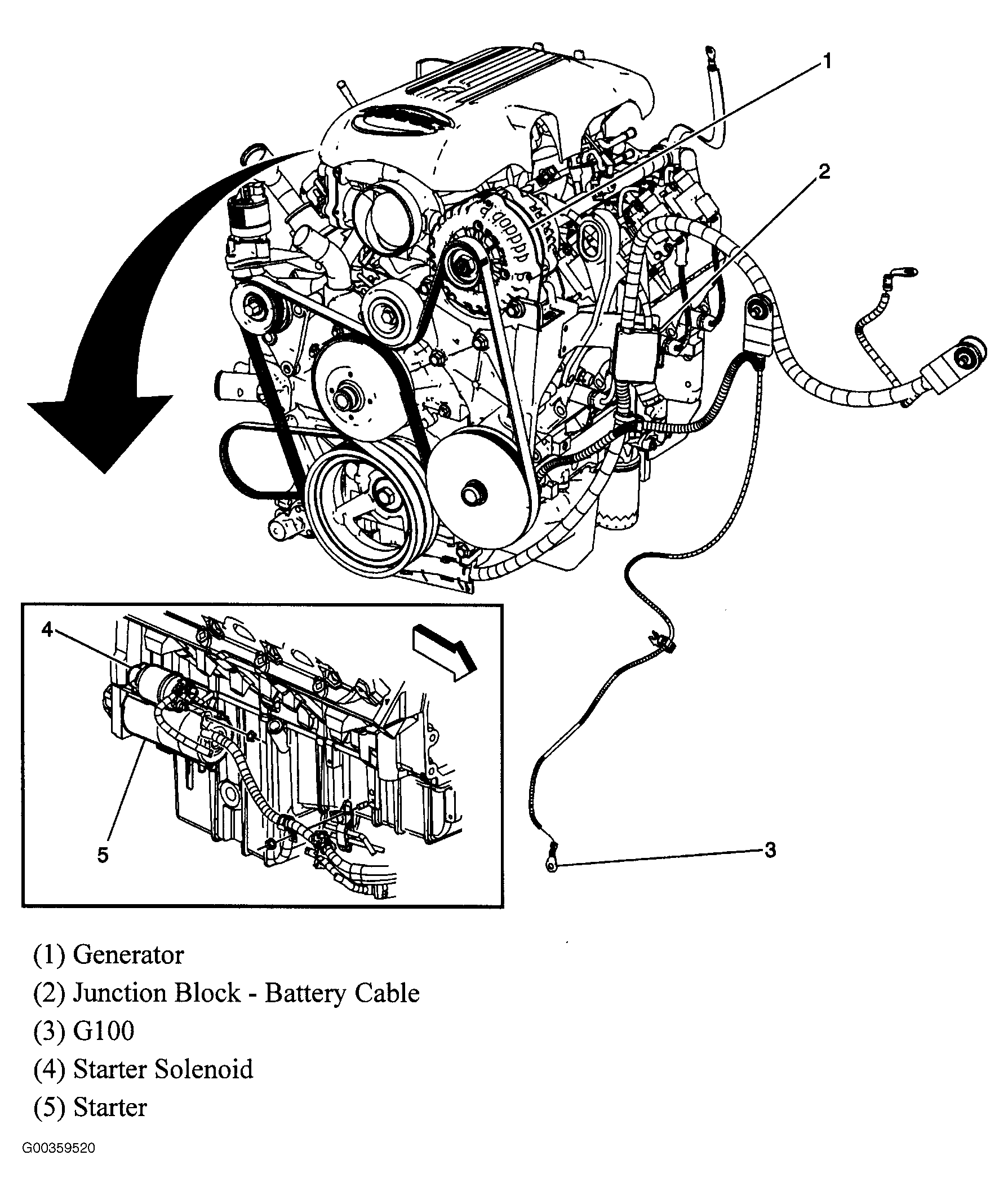

Fig 85: Engine Electrical Components
Courtesy of GENERAL MOTORS CORP.

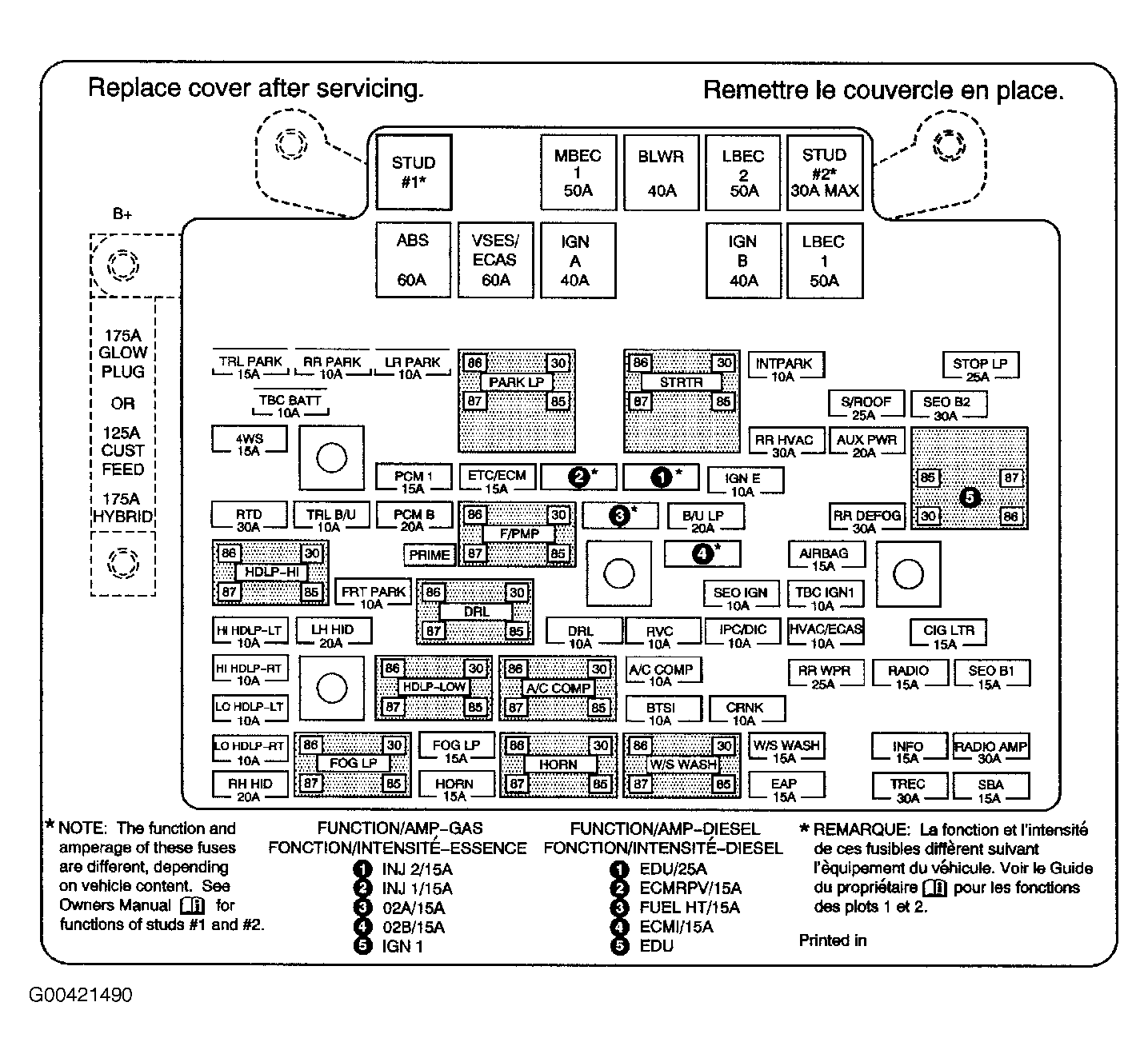

Fig 86: Under Hood Fuse Block
Courtesy of GENERAL MOTORS CORP.

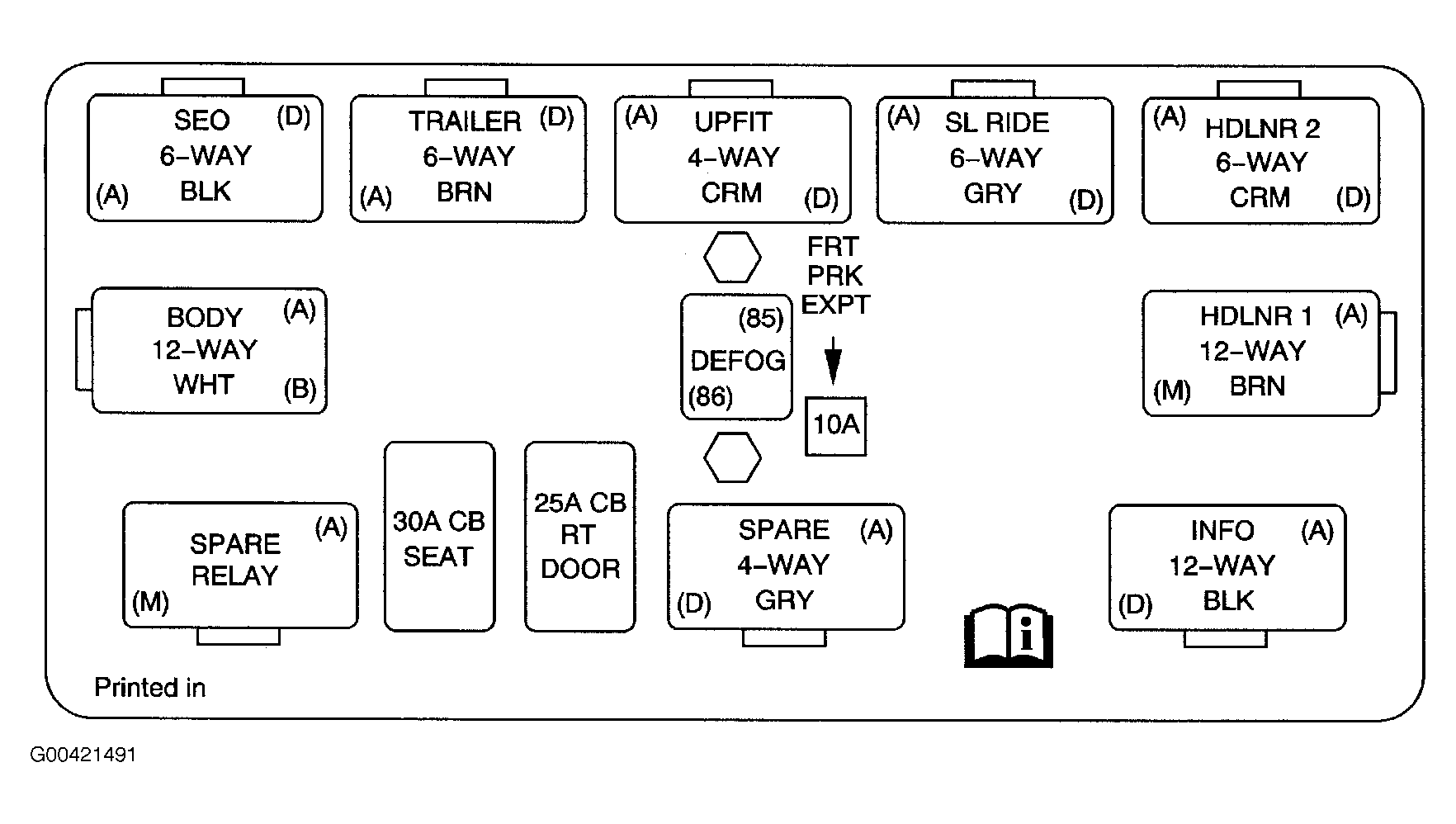

Fig 87: I/P Relay Block
Courtesy of GENERAL MOTORS CORP.

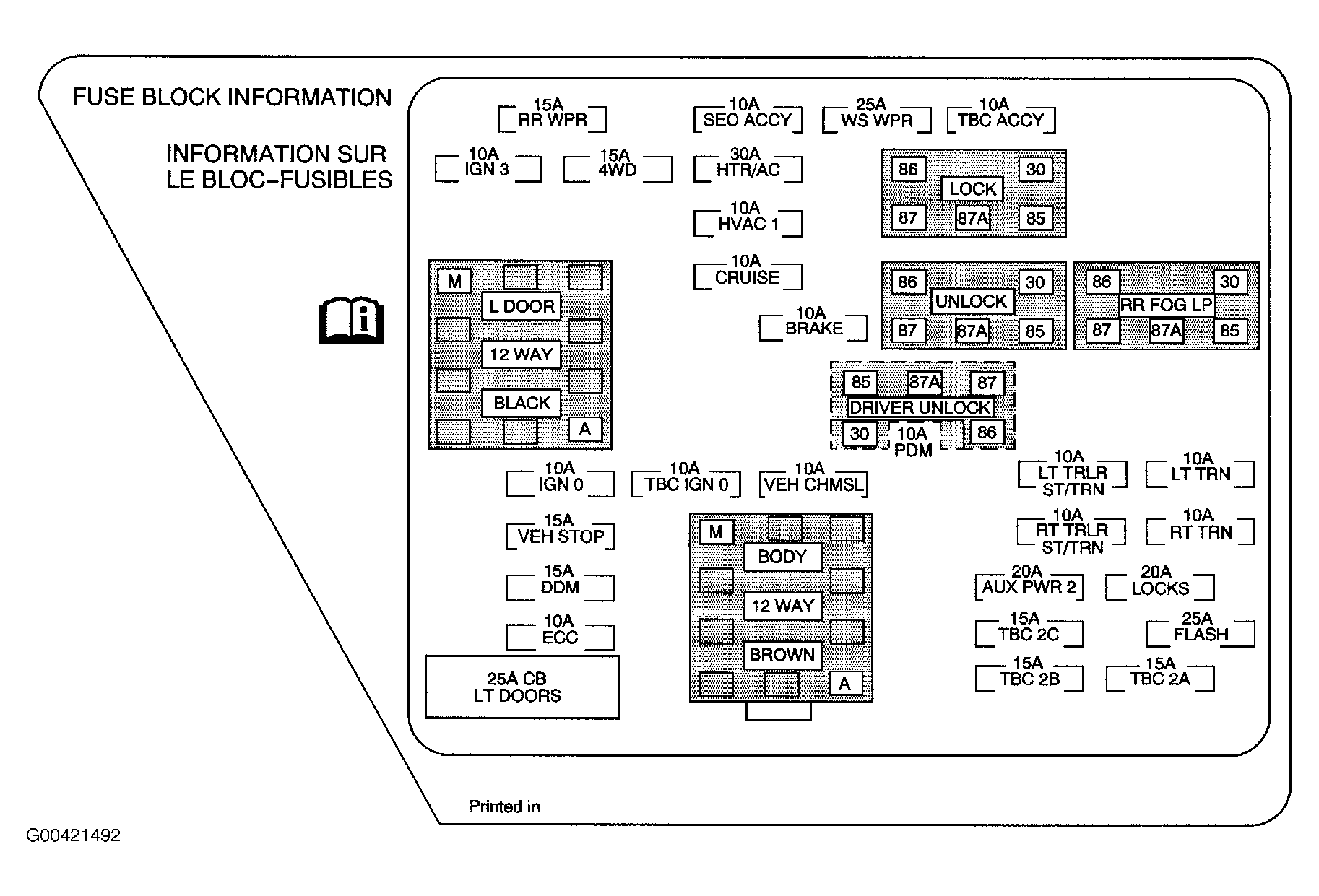

Fig 88: I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.

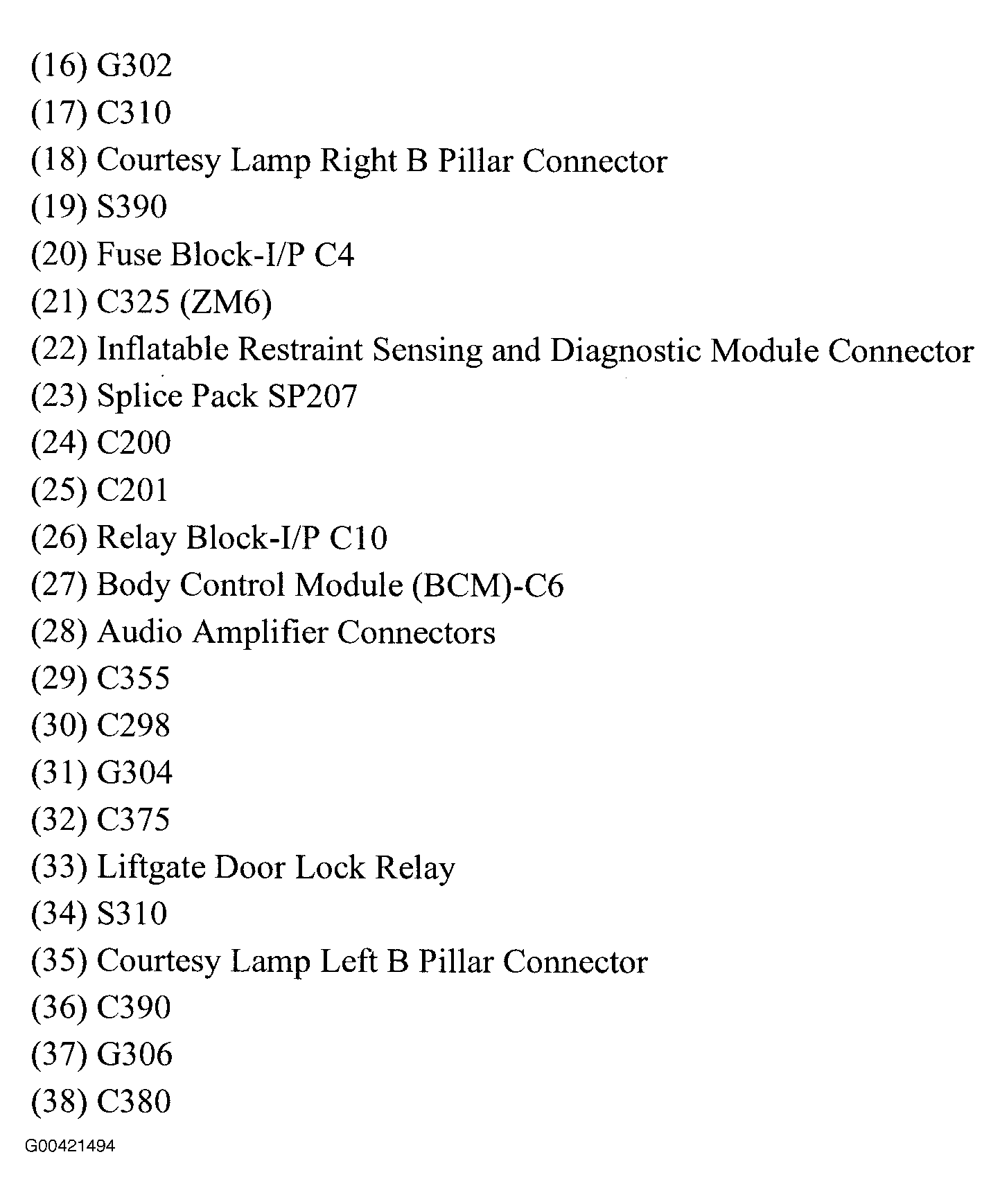

Fig 89: Body Harness Overview (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 90: Body Harness Overview (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

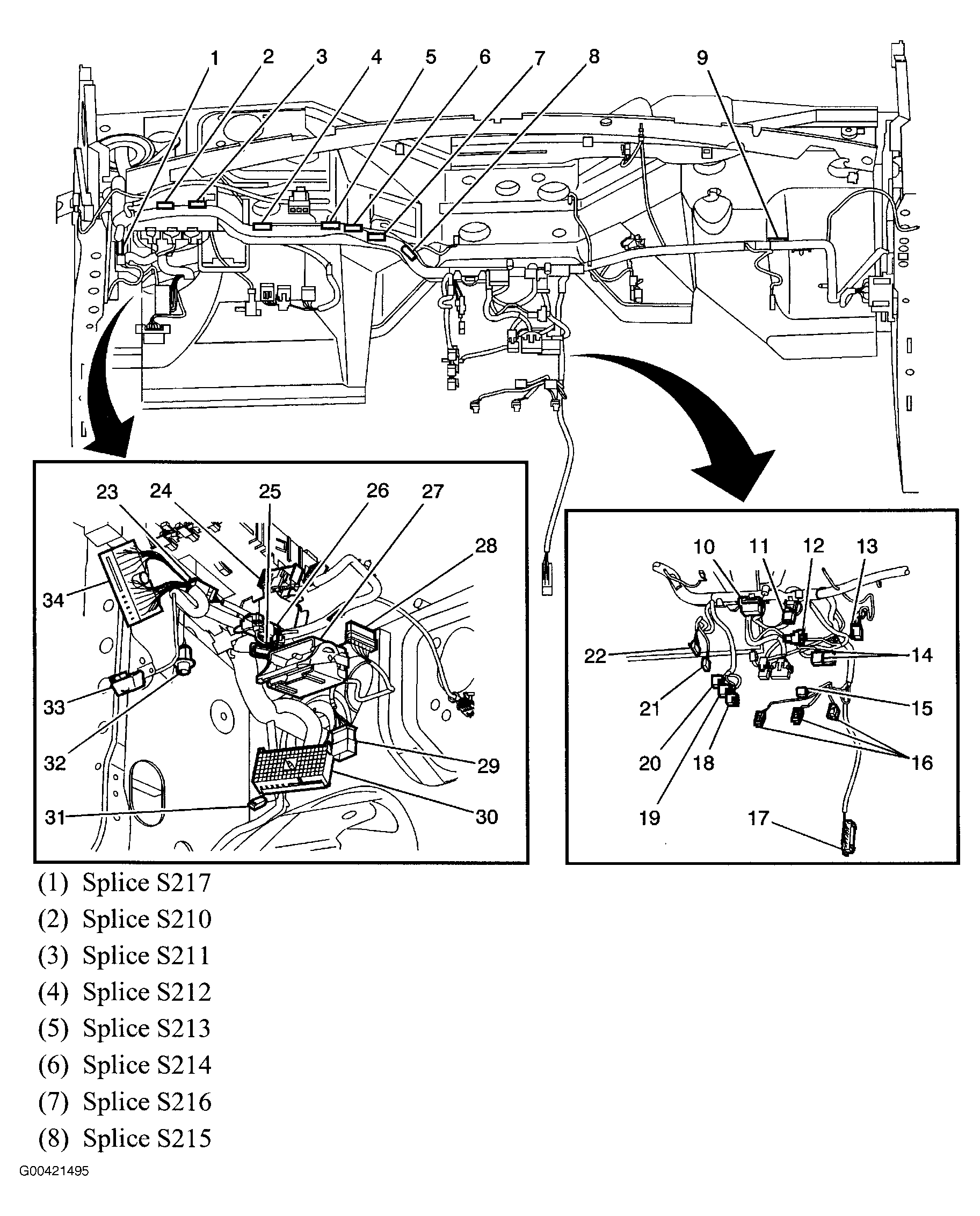

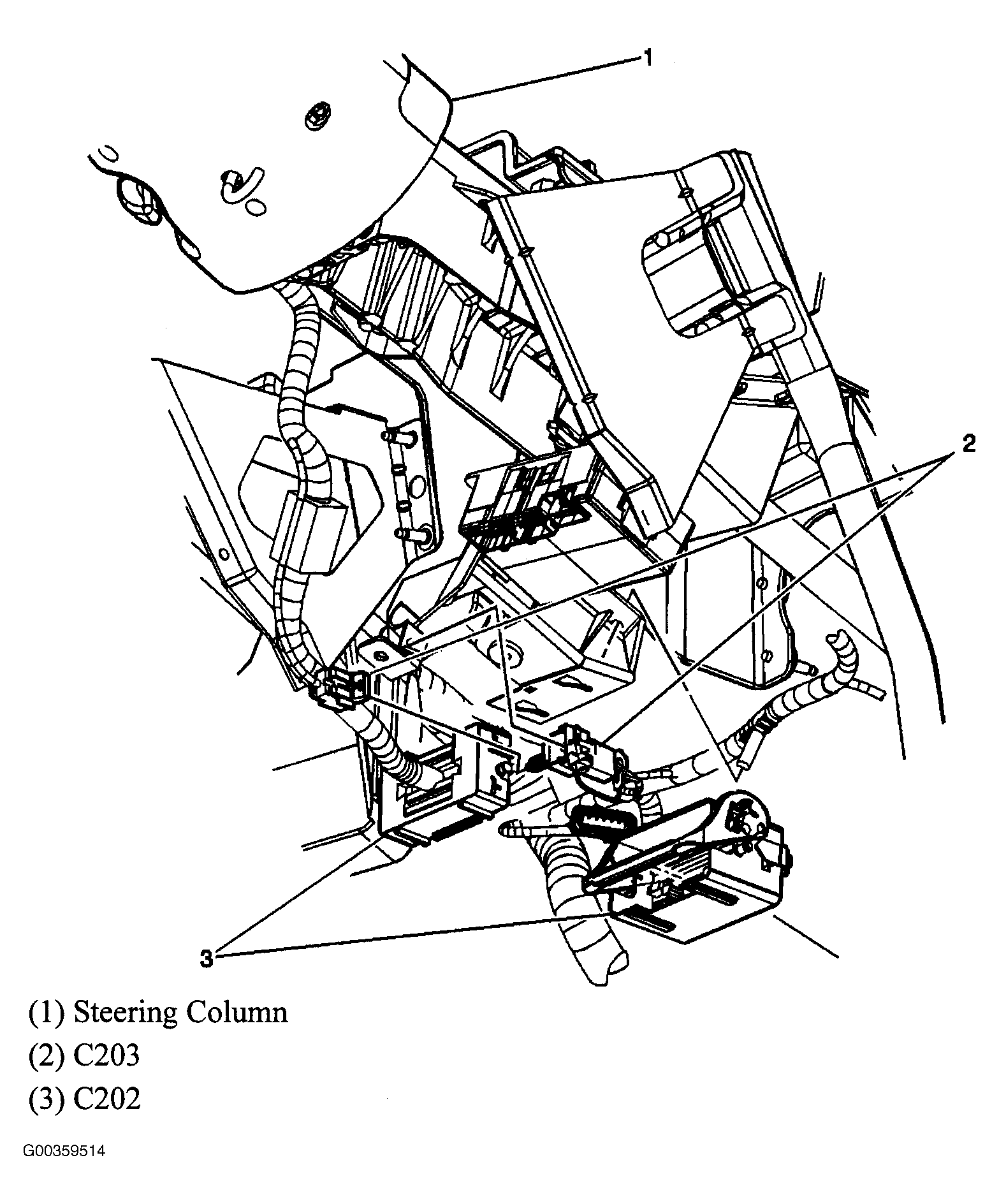

Fig 91: Behind I/P (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 92: Behind I/P (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

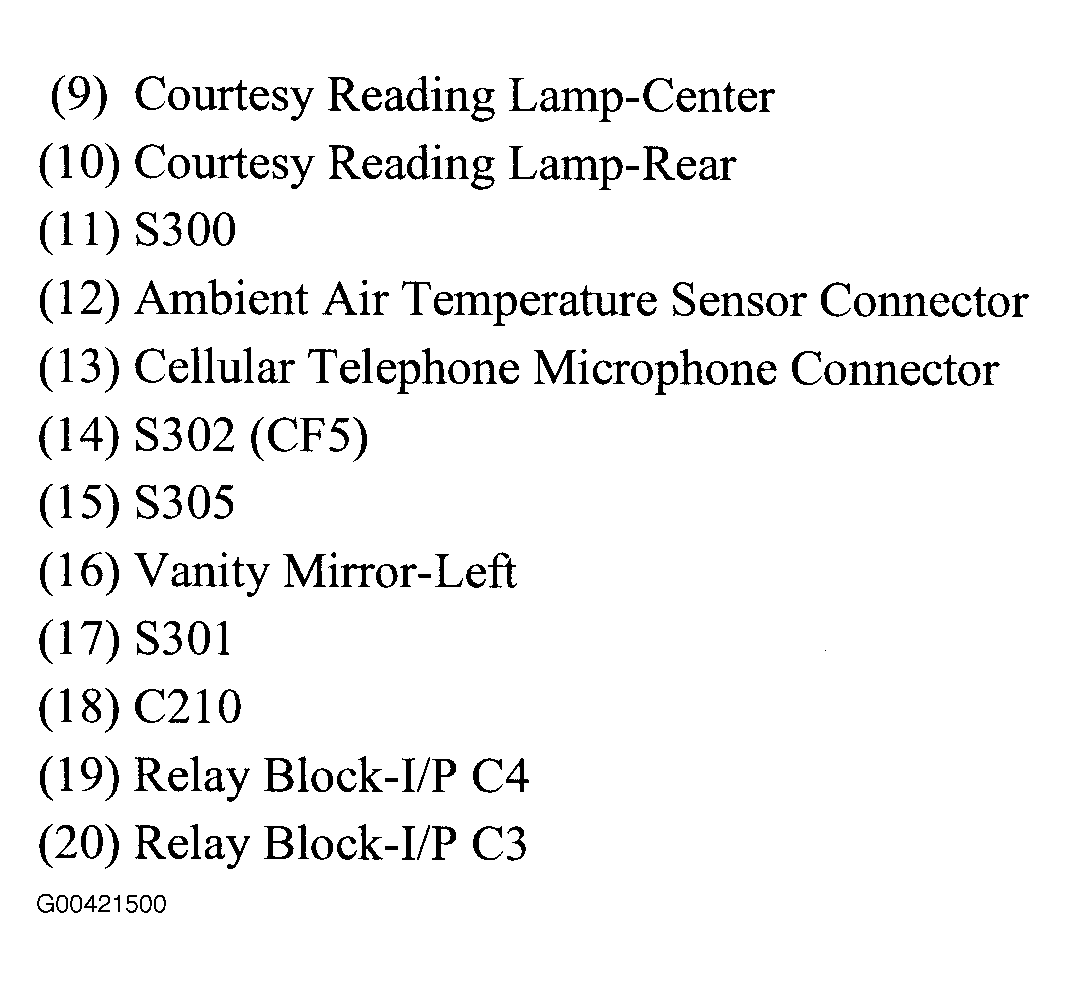

Fig 93: Headliner (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 94: Headliner (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
