Control Units

CONTROL UNITS LOCATION

Component	Location
Air Suspension Module	Near left side of compressor.
Blower Motor Control Processor	Behind right side of dash, on HVAC assembly. See Figure.
Body Control Module (BCM)	On top left side of dash, above I/P fuse block. See Figure.

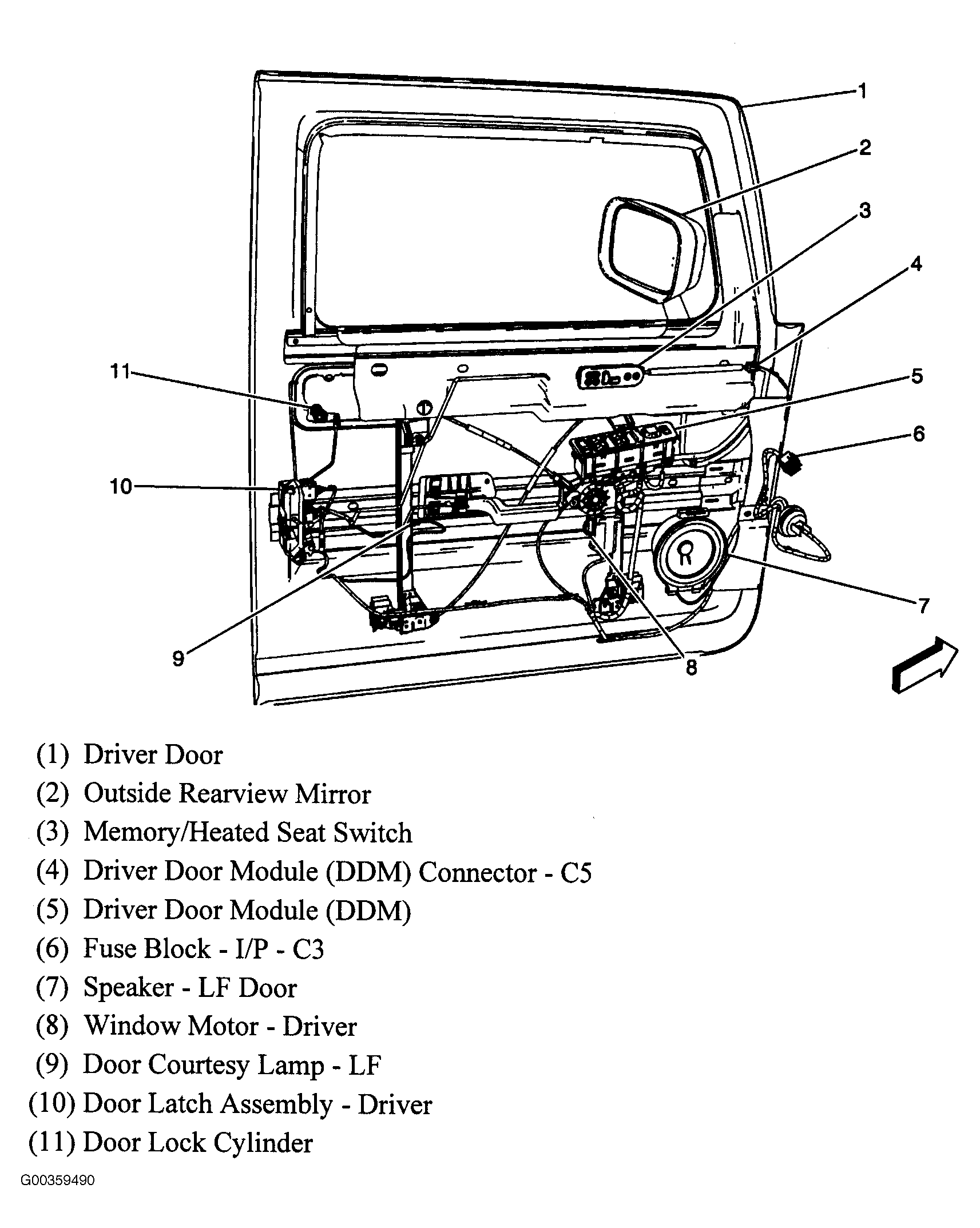

Driver Door Module (DDM)	Behind driver's door panel. See Figure.
Electronic Brake Control Module (ECBM)	On left side of inner frame. See Figure.

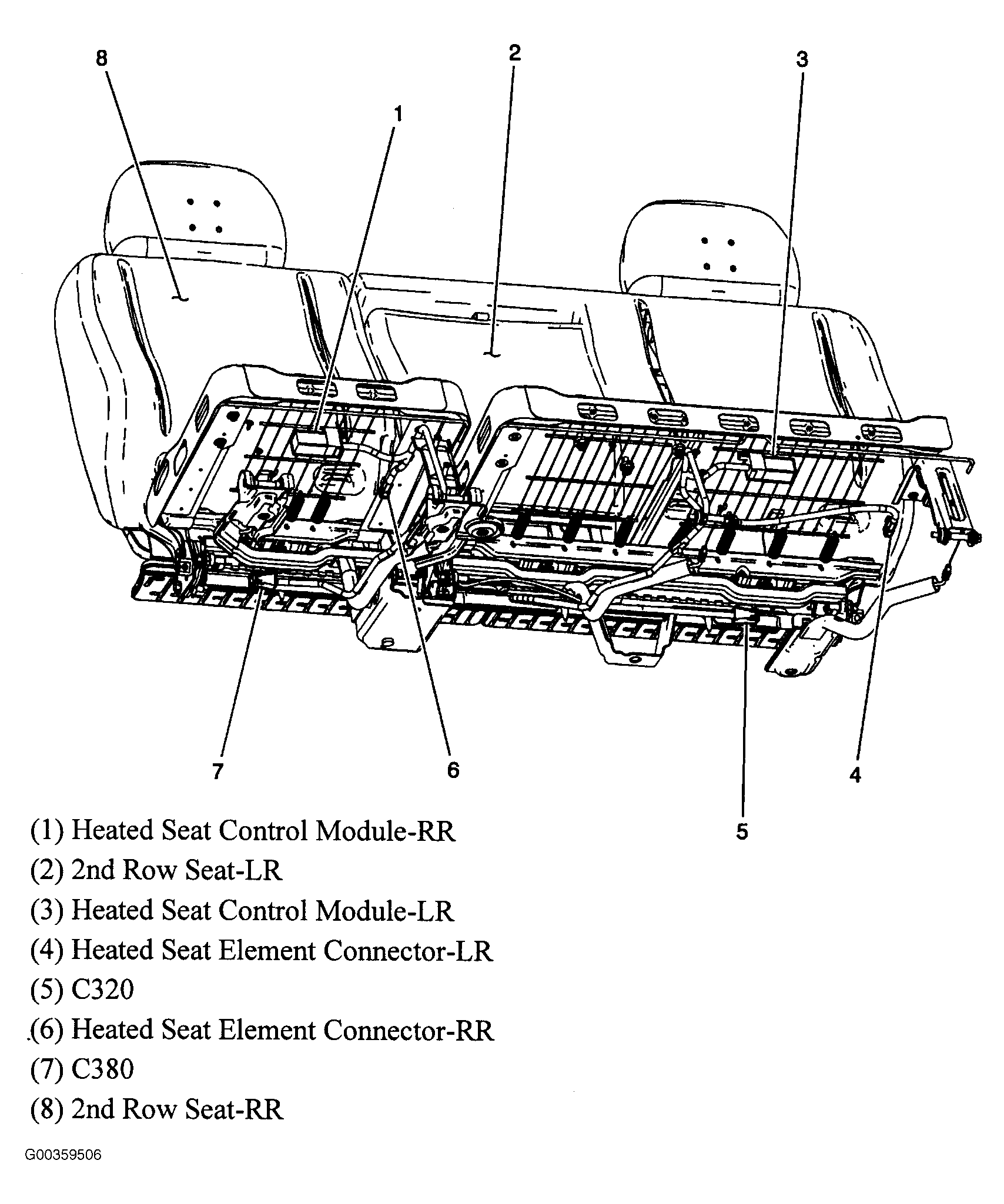

Heated Seat Control Module-LR	Under left side of 2nd row seat. See Figure.
Heated Seat Control Module-RR	Under right side of 2nd row seat. See Figure.

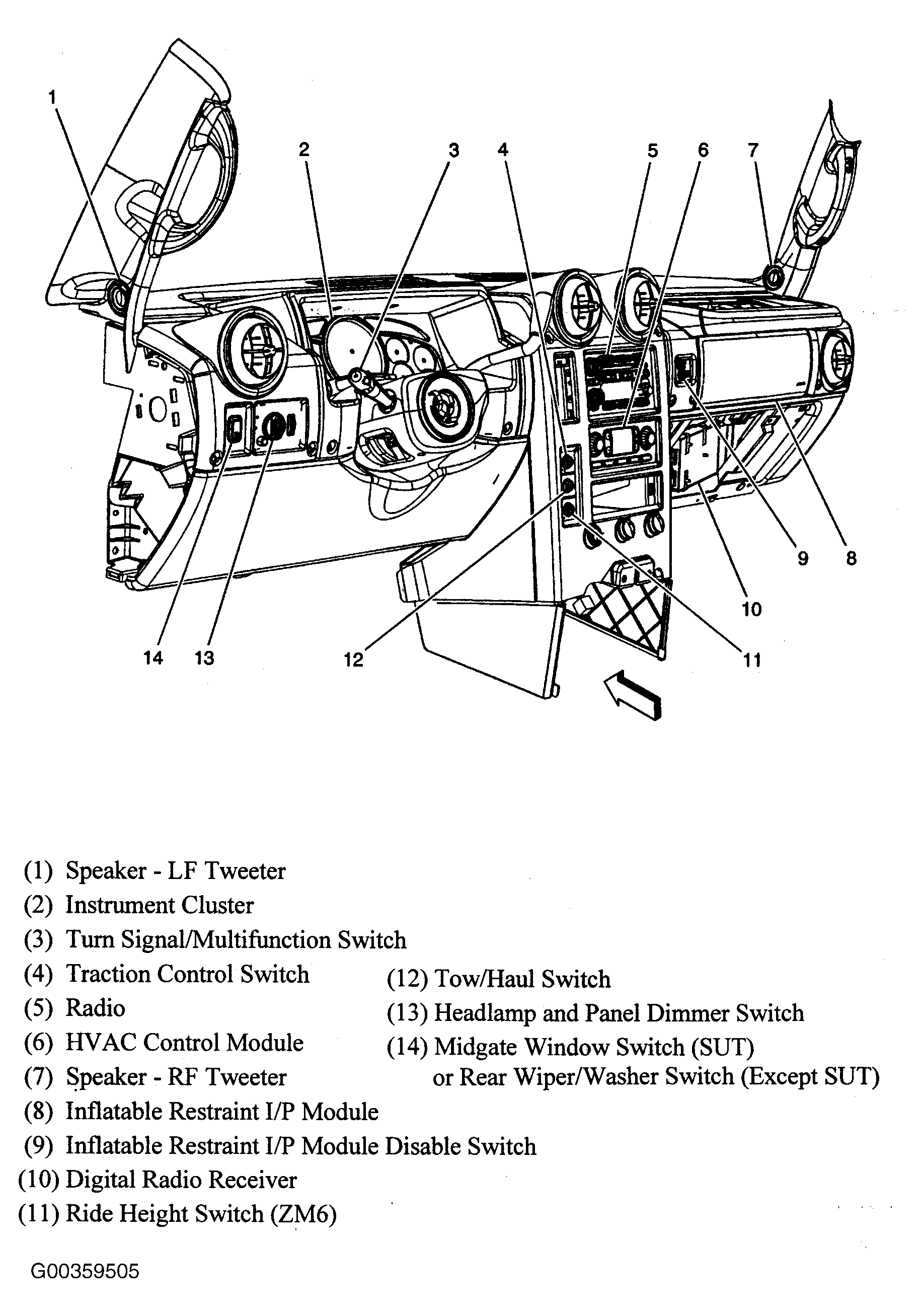

HVAC Control Module	Center of dash. See Figure.
HVAC Module	On HVAC assembly. See Figure.
Inflatable Restraint I/P Module	Behind right side of dash. See Figure.
Inflatable Restraint I/P Module Connector	Behind right side of dash. See Figure.
Inflatable Restraint Sensing & Diagnostic Module (SDM)	Under left front seat. See Figure.
Inflatable Restraint Sensing & Diagnostic Module (SDM) Connector	Under left front seat. See Figure.
Inflatable Restraint Steering Wheel Module	Under horn pad. See Figure.
Memory Seat Module	Under driver seat. See Figure.
Midgate Control Module	Center of midgate assembly, attached to window regulator assembly.

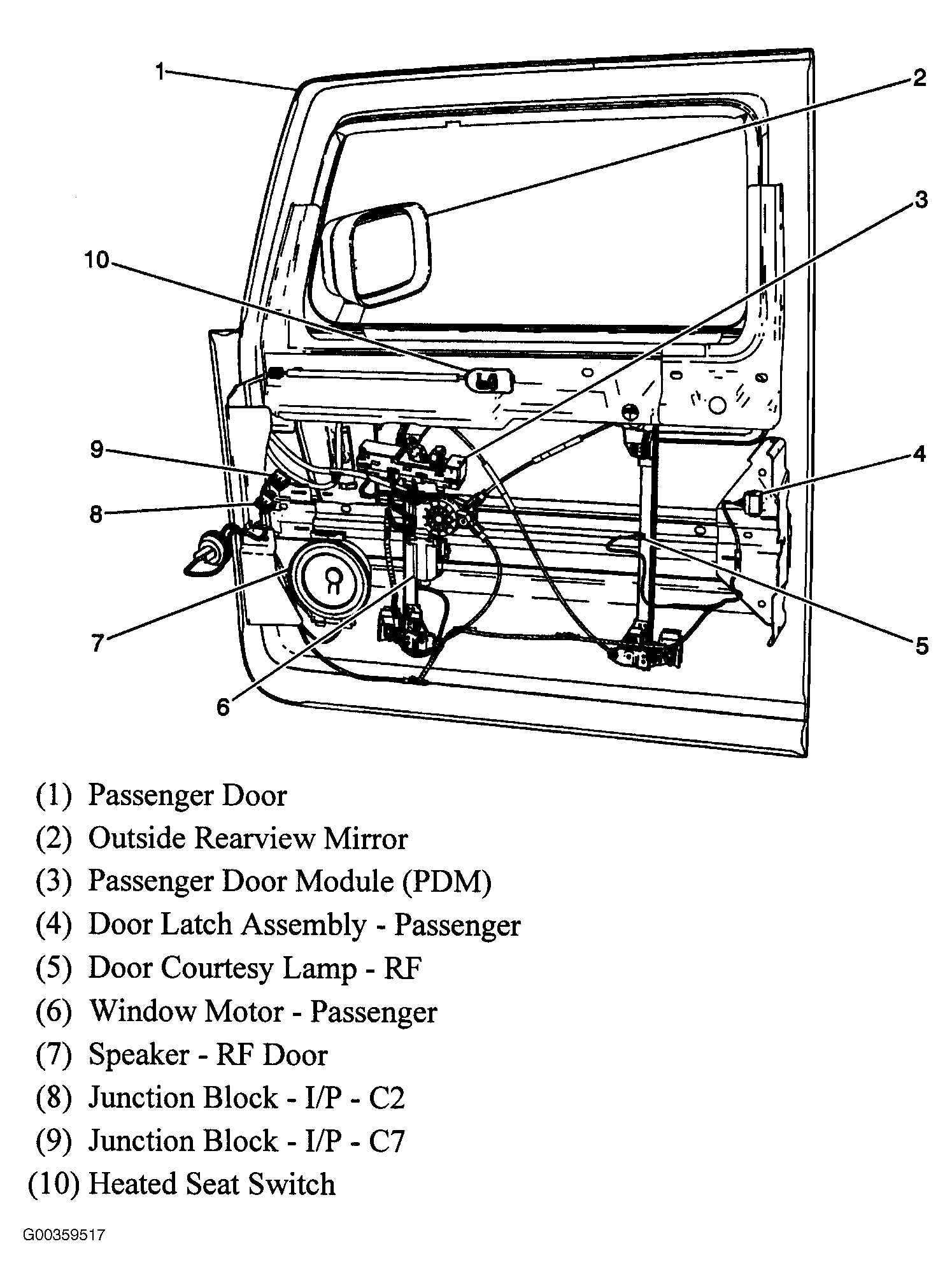

Passenger Door Module (PDM)	In passenger door. See Figure.
Powertrain Control Module (PCM)	On left front of engine compartment. See Figure.
Rear Window Wiper/Washer Module	At center of liftgate. See Figure.
RSA Controller	At rear of center console. See Figure.
Sunroof Module	In front of headliner, near front overhead console. See Figure.
Throttle Actuator Control (TAC) Module	At left rear of engine compartment. See Figure.
Transfer Case Shift Control Module	Behind headlight switch. See Figure.
Vehicle Communication Interface Module	At center of dash, below HVAC control module. See Figure.
Windshield Wiper/Washer Module	Under windshield cowl, between wiper arms. See Figure.
