Horn Component Views

Fig 1: Horns - Low/High Note Component Views
GM826091Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Horn - Low Note
2 Horn - High Note
3 Horn Connector - High Note
4 Forward Lamp Harness

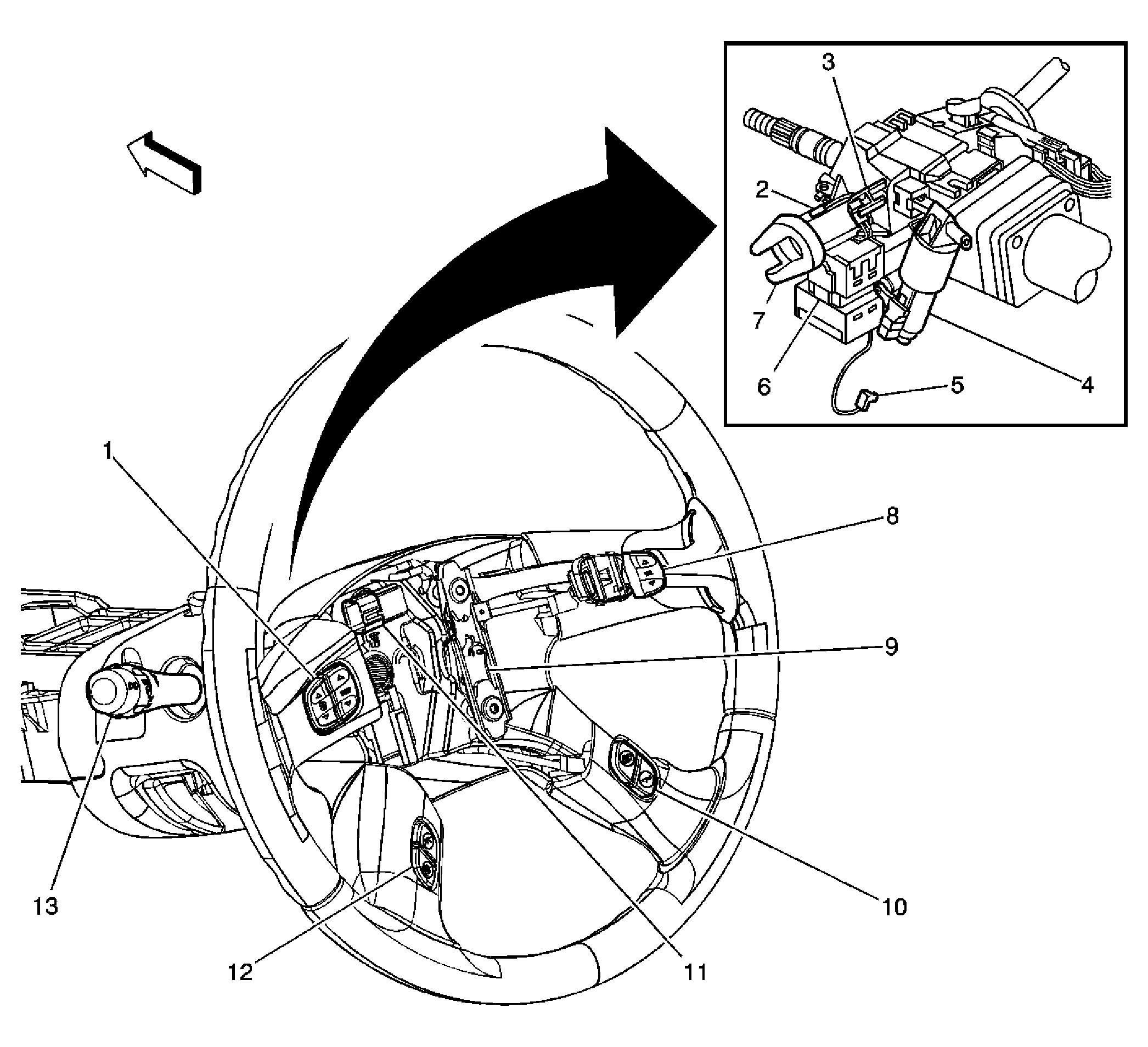

Fig 2: Steering Wheel and Column Sub-System Component Views
GM856748Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Wheel Control Switch Assembly - Upper Left
2 Passlock Sensor Connector
3 Ignition Key Alarm Switch
4 Ignition Lock Cylinder Control Actuator
5 Ignition Lock Cylinder Control Actuator Connector
6 Ignition Switch
7 Ignition Key Cylinder
8 Steering Wheel Control Switch Assembly - Upper Right
9 Horn Switch
10 Steering Wheel Control Switch Assembly - Lower Right
11 C277
12 Steering Wheel Control Switch Assembly - Lower Left
13 Turn Signal/Multifunction Switch
