Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

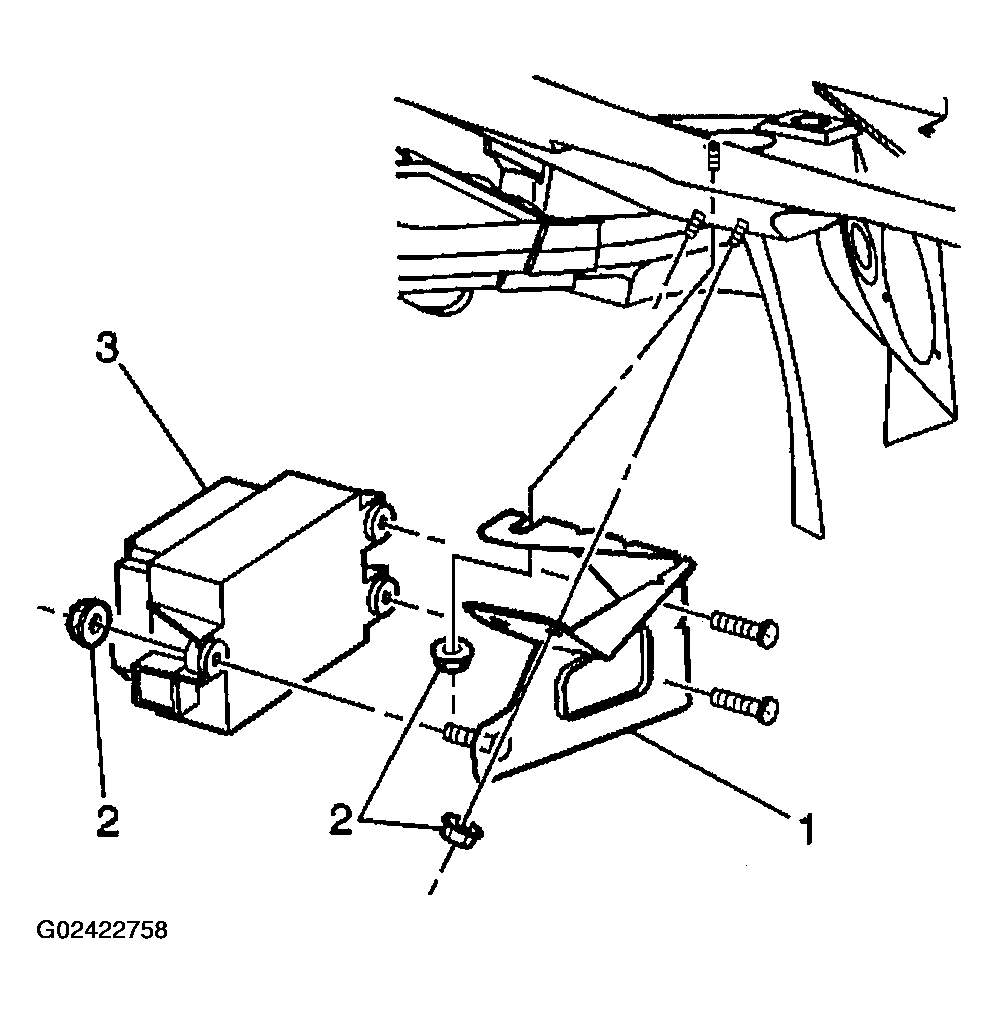

- Install the cruise control module (3) to the vehicle.
- Install the cruise control module (3) to the cruise control bracket (1).CAUTION: Refer to FASTENER NOTICE .
- Install the nuts (2) that retain the cruise control module (3) to the cruise control bracket (1).
Tighten
Tighten the nuts to 5 N.m (44 lb in).
- Connect the cruise control cable to the cruise control module. Refer to Cruise Control Cable Replacement .
- Connect the electrical connector to the cruise control module.
- Install the air cleaner assembly to the vehicle.
- Close the hood.
