Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the hood.
  2. Remove the air cleaner assembly from the vehicle.
  3. Disconnect the electrical connector from the cruise control module.
  4. Disconnect the cruise control cable from the cruise control module. Refer Cruise Control Cable Replacement .
  5. Remove the nuts (2) that retain the cruise control module to the cruise control bracket.
  6. Remove the cruise control module (3) from the cruise control bracket (1).
  7. Remove the cruise control module (3) from the vehicle.

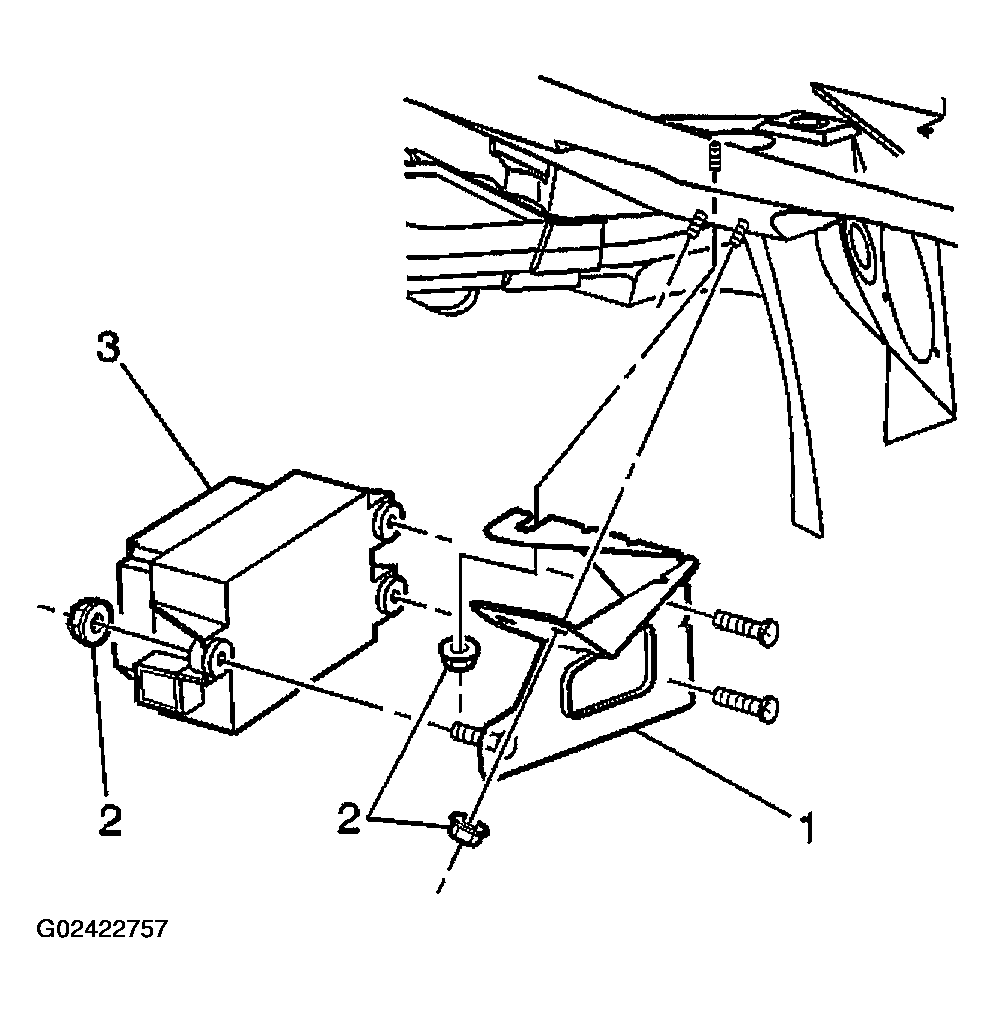

    8. Fig 1: Removing Cruise Control Module
    G02422757Courtesy of GENERAL MOTORS CORP.
