Steering Wheel and Column

Steering Wheel and Column:

1 - Steering Wheel Control Switch Assembly - Upper Left
2 - Passlock Sensor Connector
3 - Ignition Key Alarm Switch
4 - Ignition Lock Cylinder Control Actuator
5 - Ignition Lock Cylinder Control Actuator Connector
6 - Ignition Switch
7 - Ignition Key Cylinder
8 - Steering Wheel Control Switch Assembly - Upper Right
9 - Horn Switch
10 - Steering Wheel Control Switch Assembly - Lower Right
11 - C277
12 - Steering Wheel Control Switch Assembly - Lower Left
13 - Turn Signal/Multifunction Switch

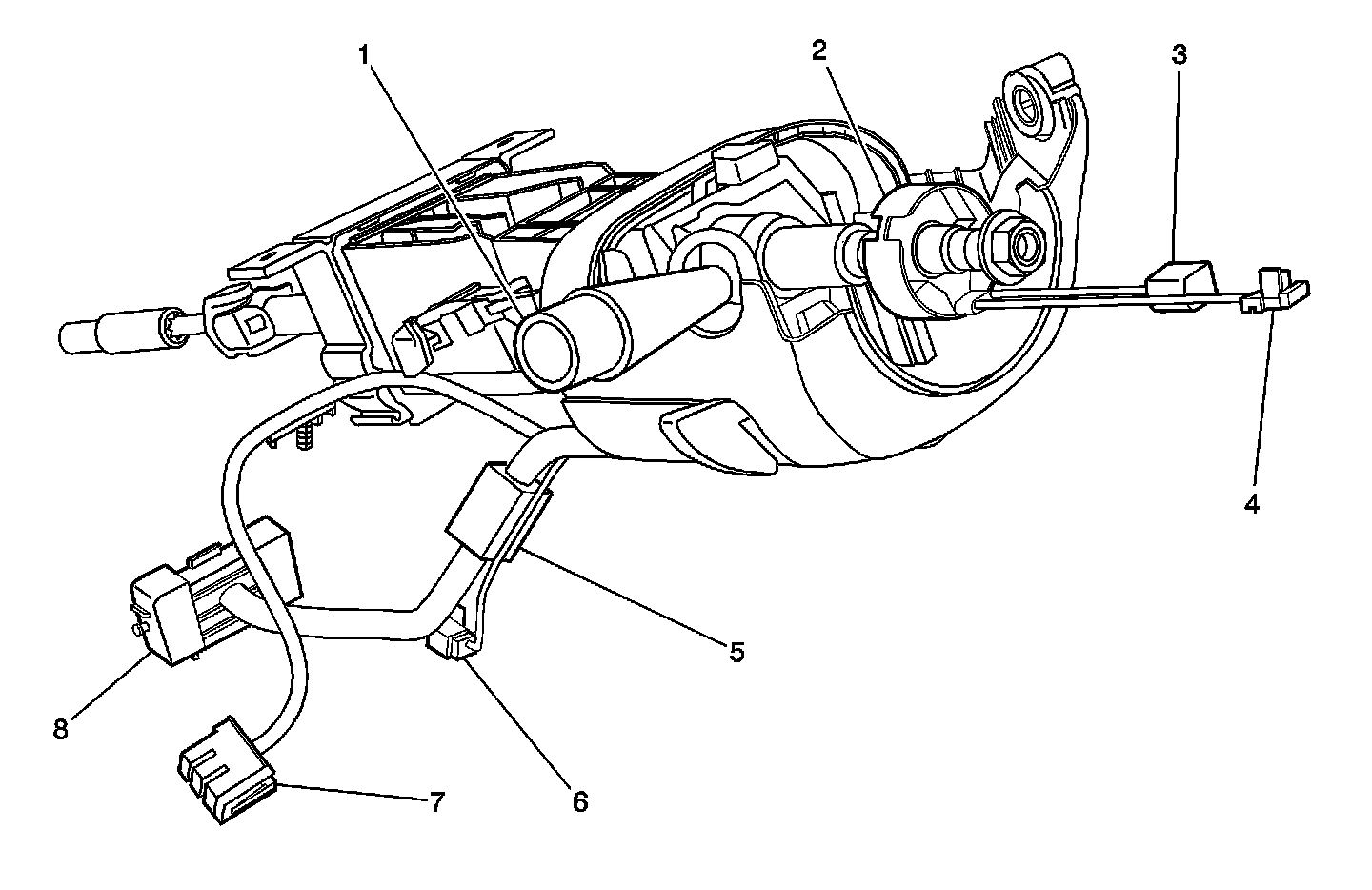

Steering Column Harness

Steering Column Harness:

1 - Turn Signal/Multifunction Switch
2 - Inflatable Restraint Steering Wheel Module Coil
3 - C277
4 - Inflatable Restraint Steering Wheel Module Connector
5 - Steering Wheel Controls Backlight Fuse
6 - C203
7 - Fuse Block - I/P C2
8 - C201
