Amplifier, Sound System
Entertainment/Communication Connector End Views

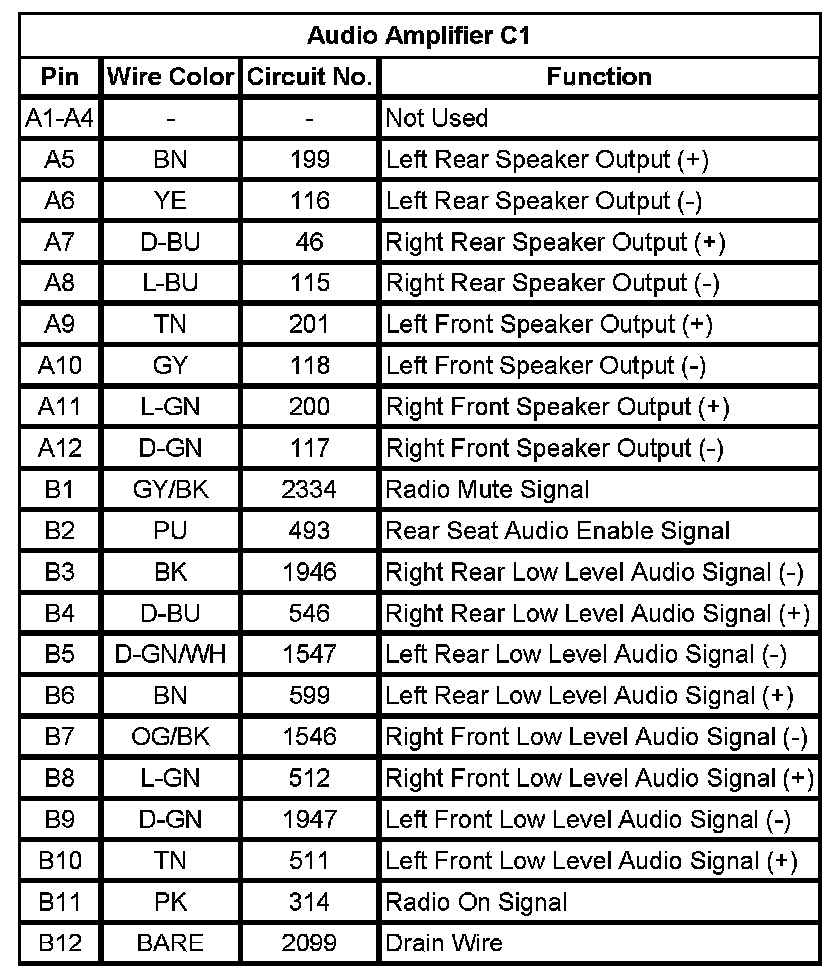

Audio Amplifier C1

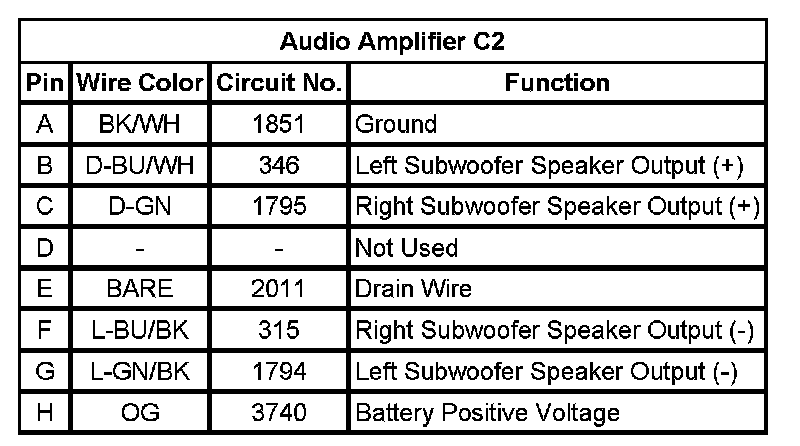

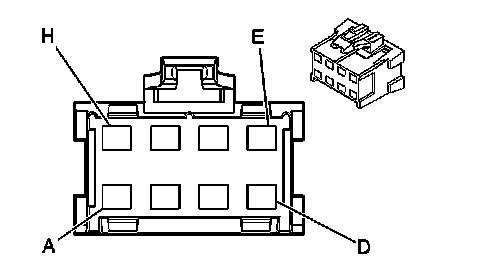

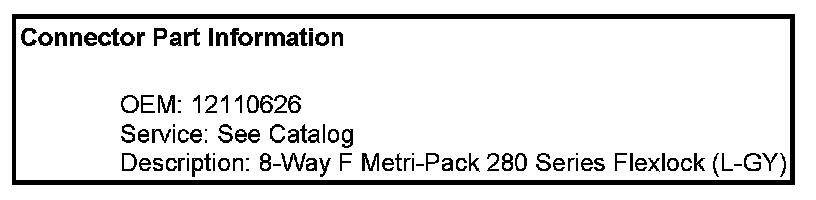

Audio Amplifier C2
