Brake Lamp



Lighting Systems Connector End Views

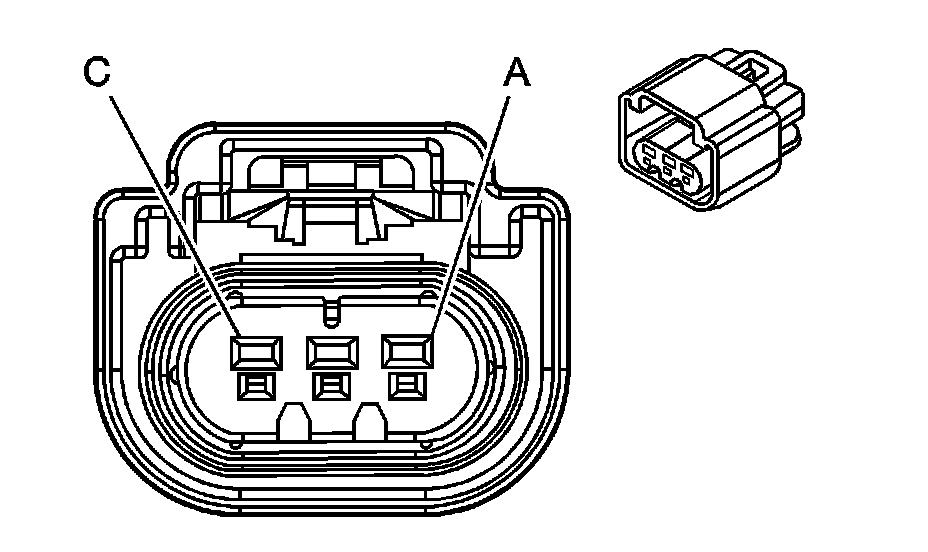

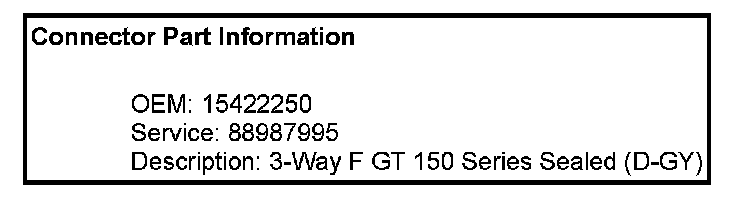

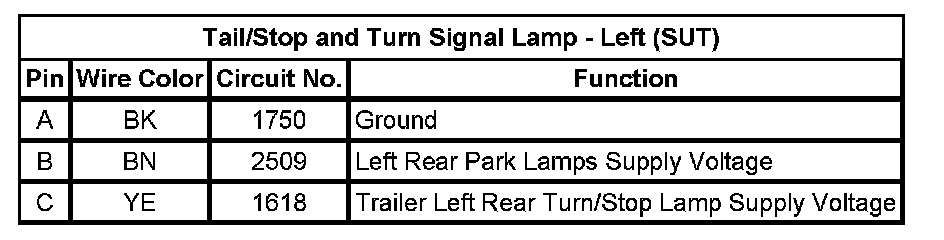

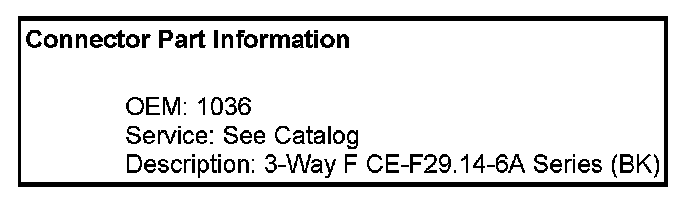

Tail/Stop and Turn Signal Lamp - Left (SUT)

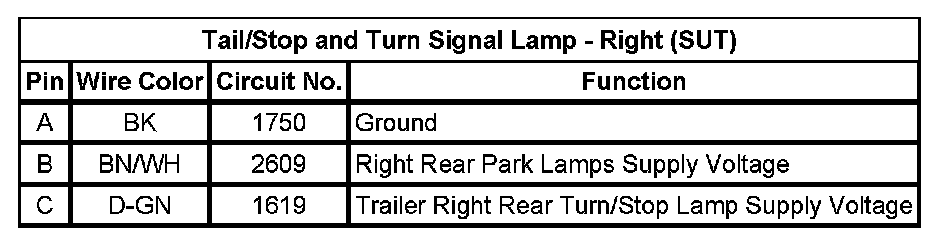

Tail/Stop and Turn Signal Lamp - Right (SUT)

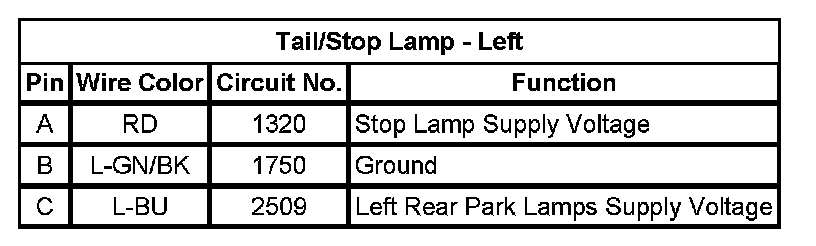

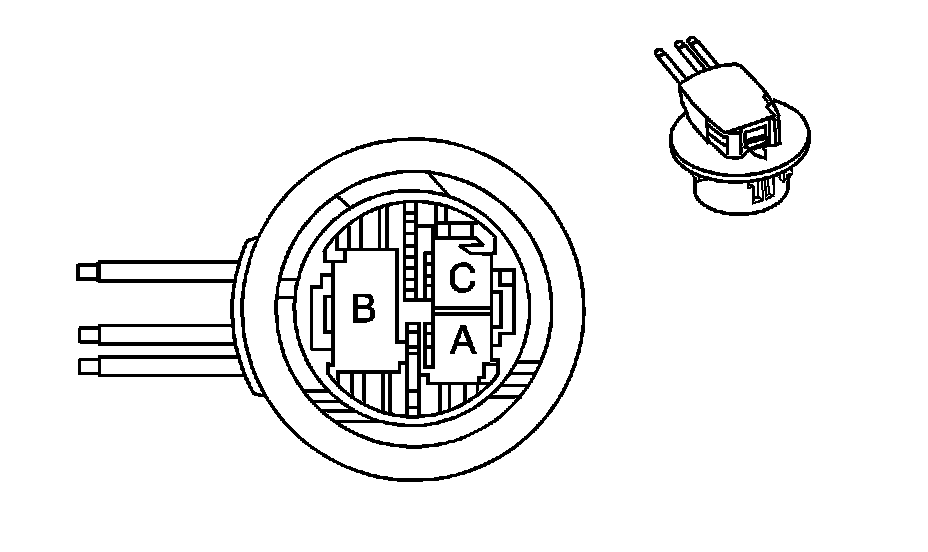

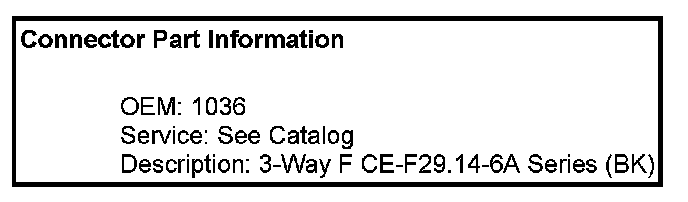

Tail/Stop Lamp - Left

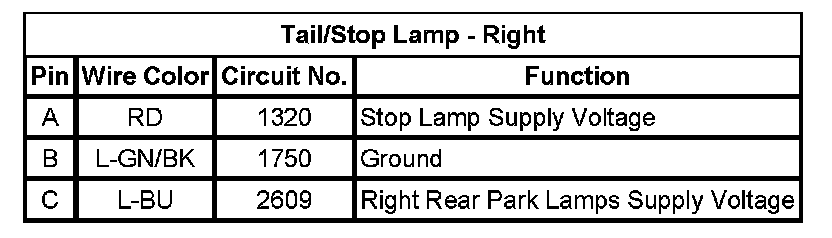

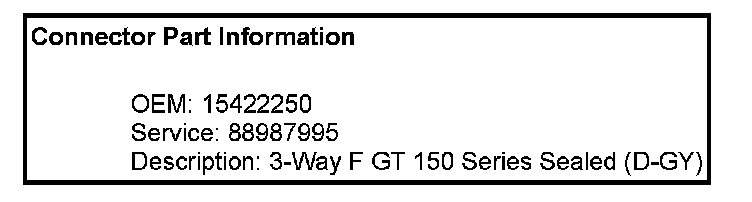

Tail/Stop Lamp - Right
