Combination Switch



Lighting Systems Connector End Views

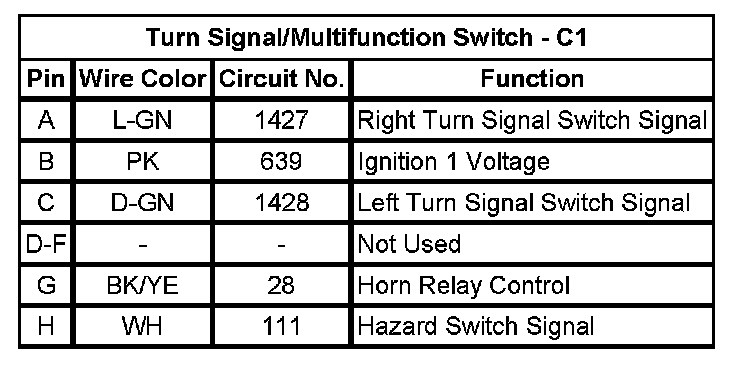

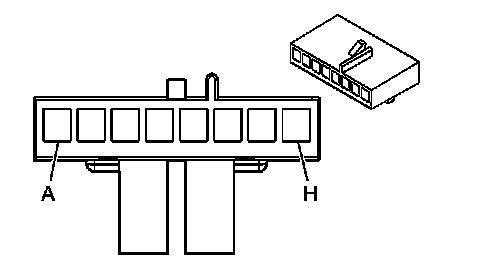

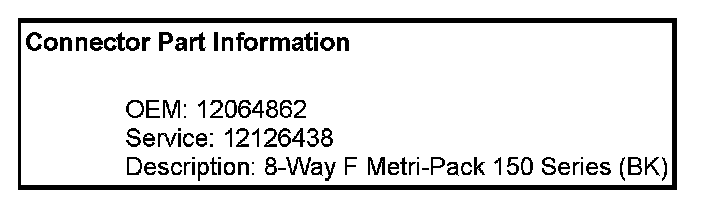

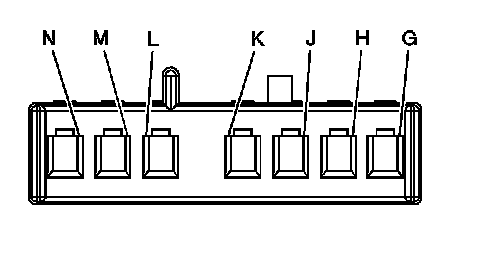

Turn Signal/Multifunction Switch - C1

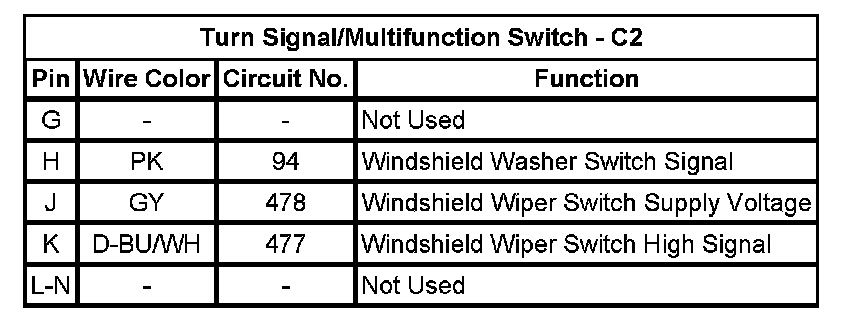

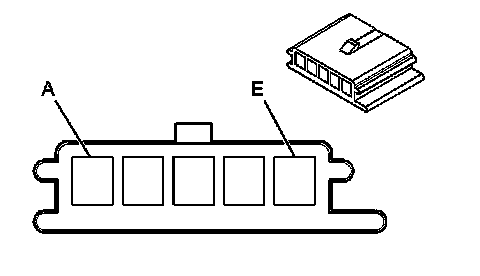

Turn Signal/Multifunction Switch - C2

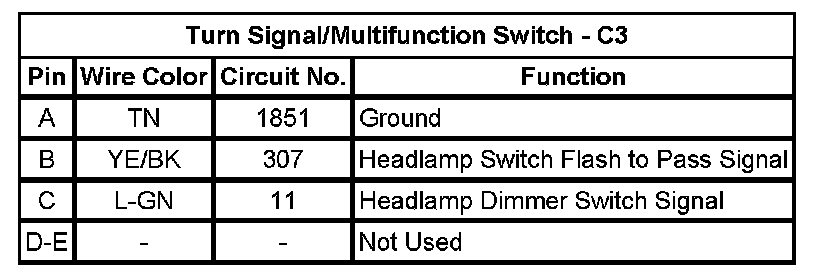

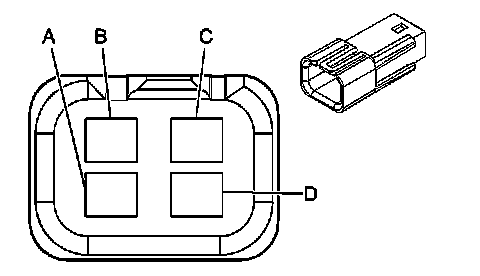

Turn Signal/Multifunction Switch - C3

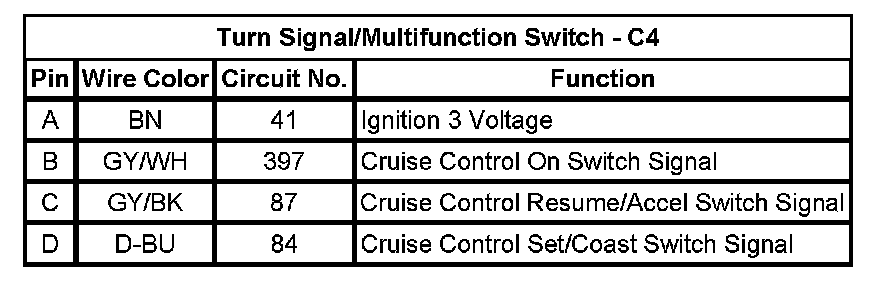

Turn Signal/Multifunction Switch - C4
