Control Assembly, HVAC



HVAC Connector End Views

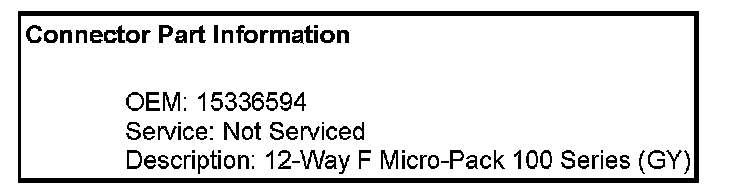

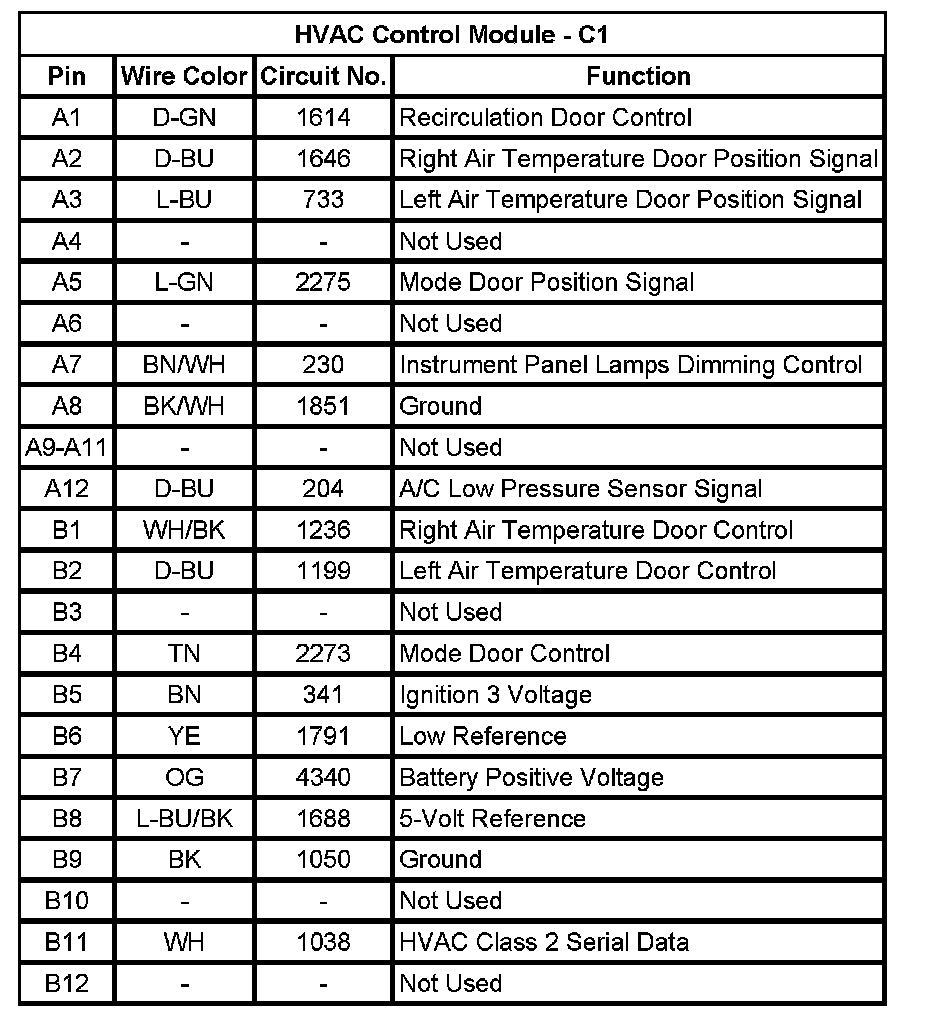

HVAC Control Module - C1

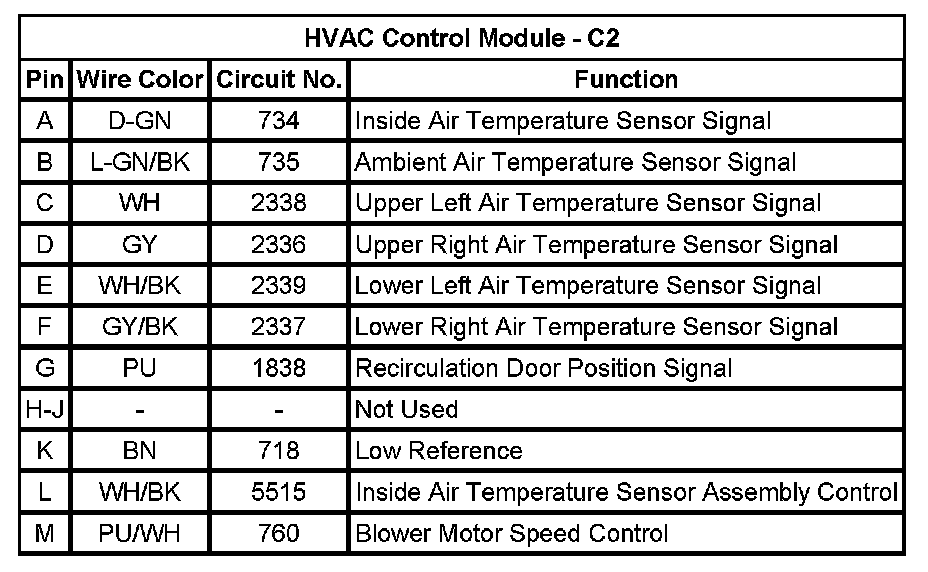

HVAC Control Module - C2
