Electronic Brake Control Module

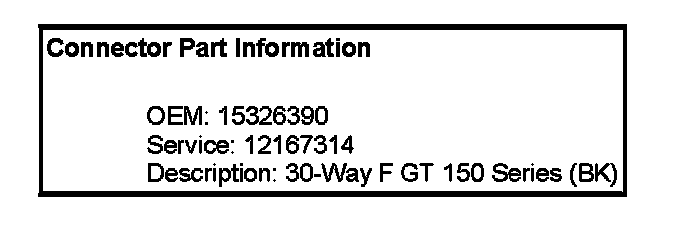

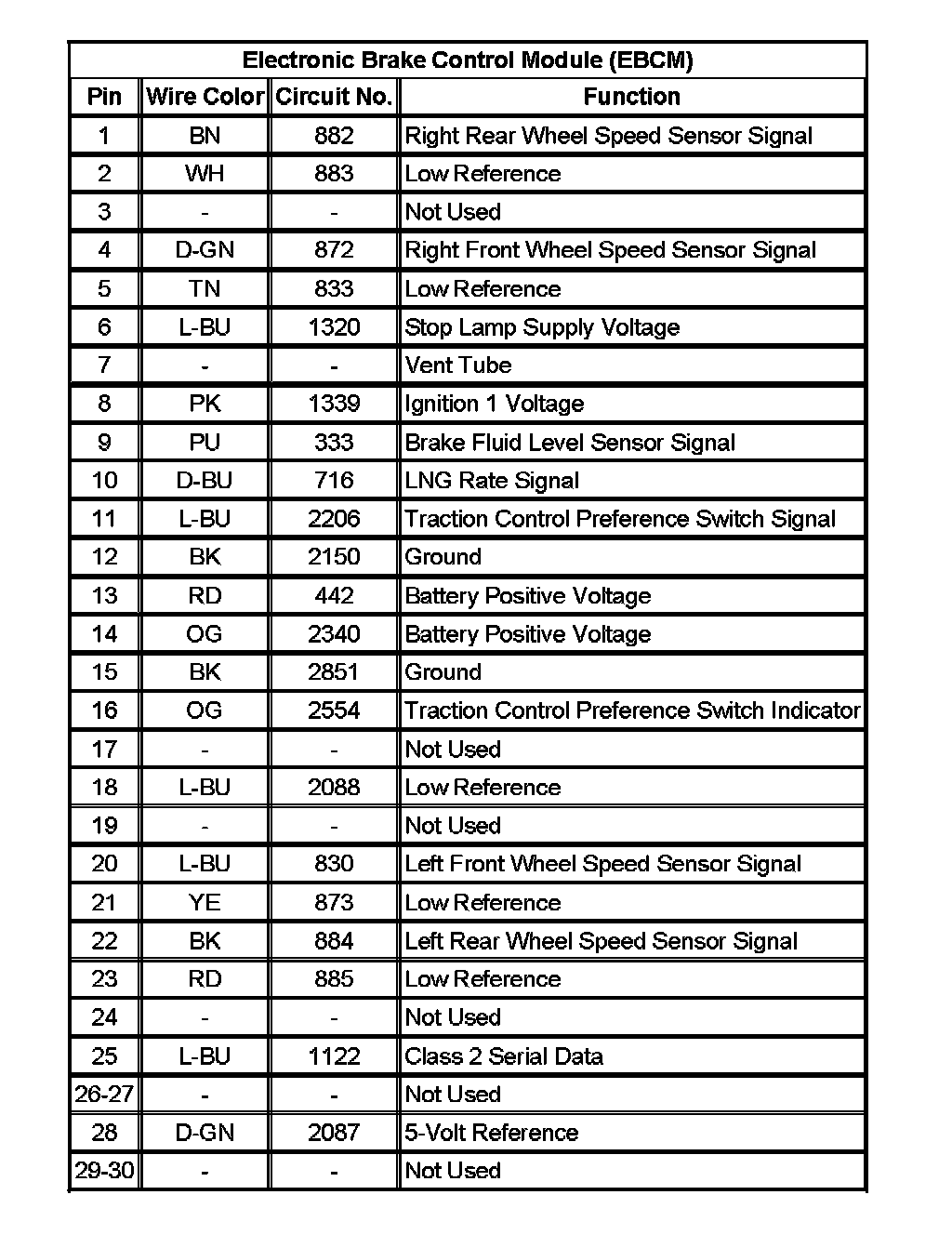

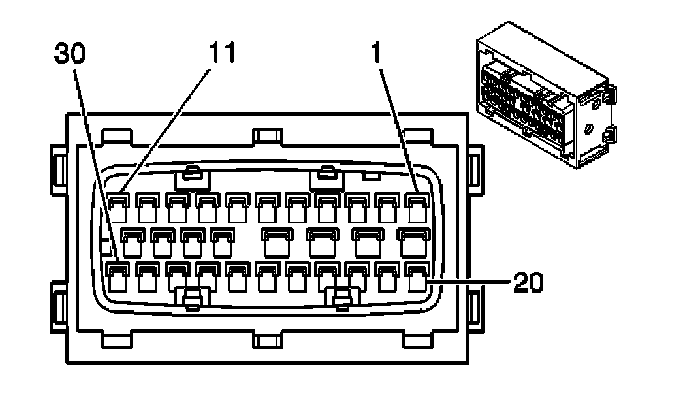

Electronic Brake Control Module (EBCM)







Electronic Brake Control Module (EBCM):
