Heated/Cooled Seat Connector End Views



Heated/Cooled Seat Connector End Views

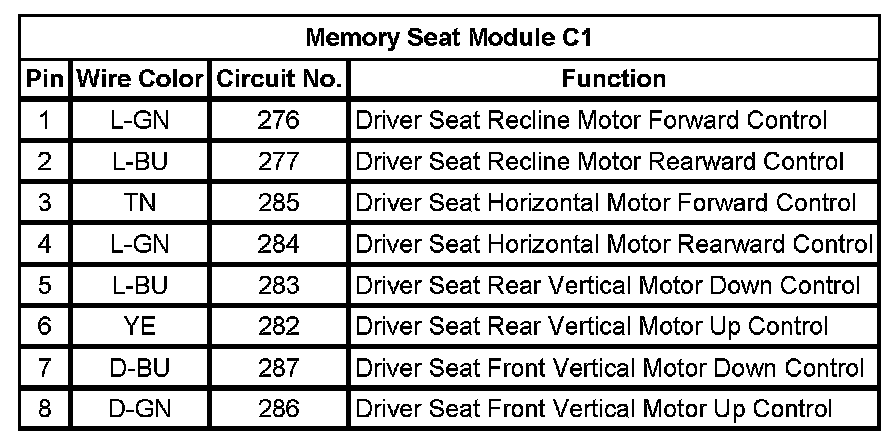

Memory Seat Module C1

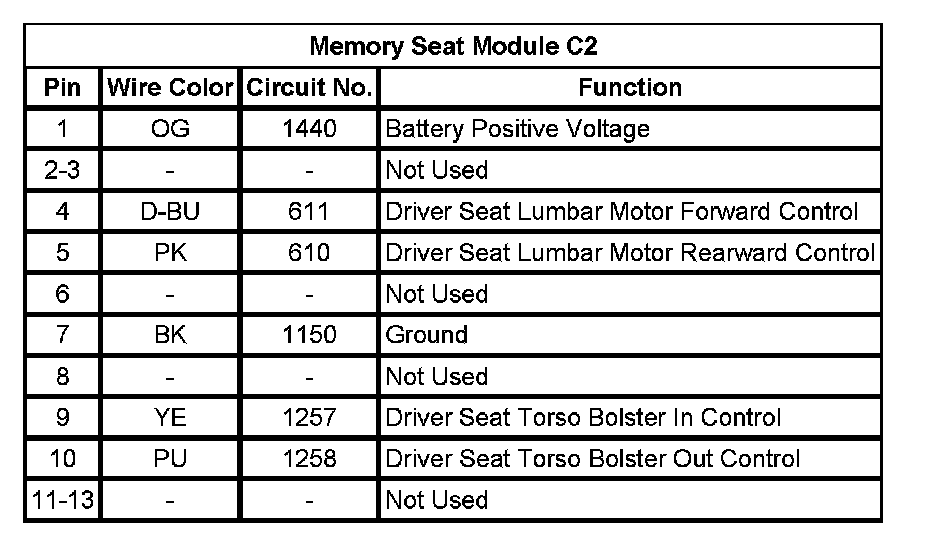

Memory Seat Module C2

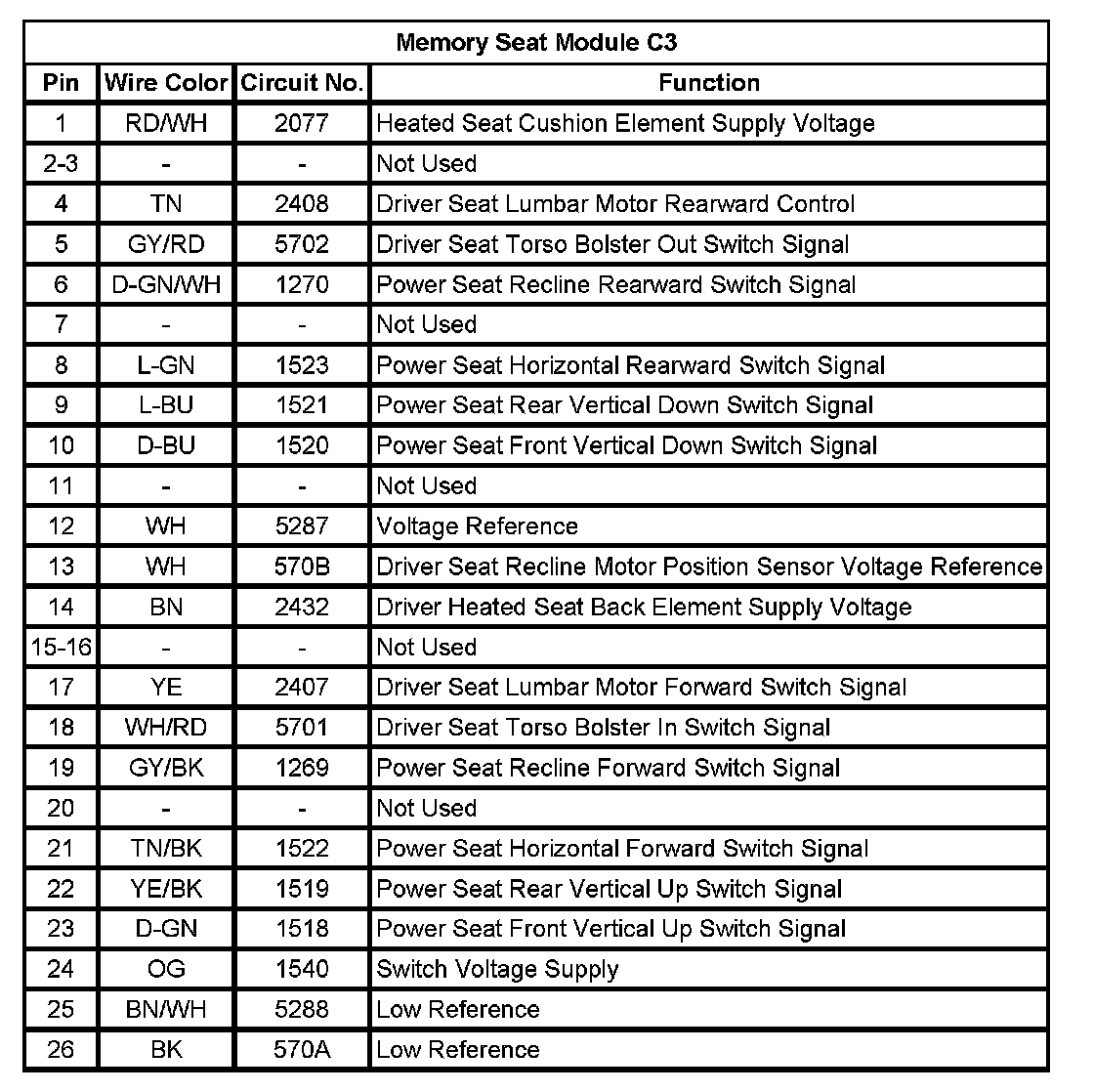

Memory Seat Module C3

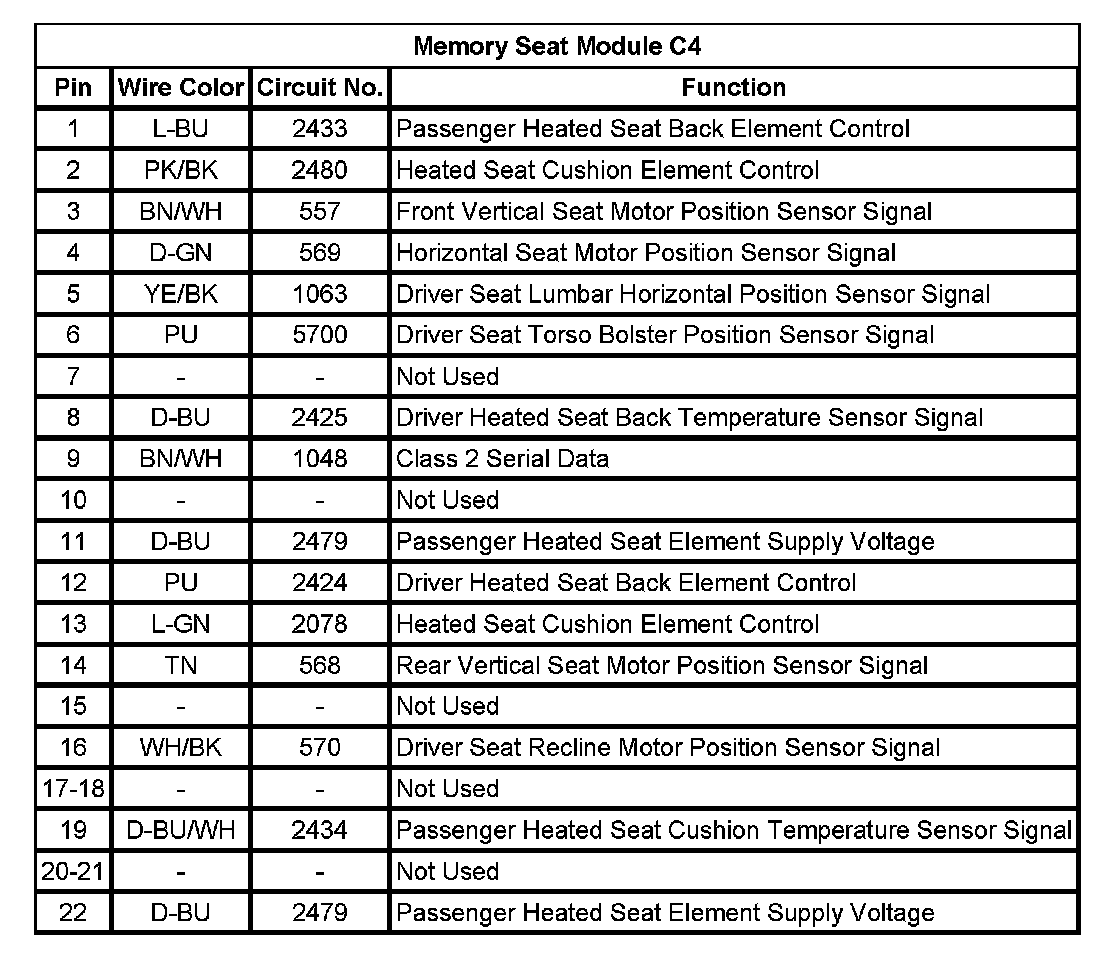

Memory Seat Module C4
