Power Seat Connector End Views



Power Seat Connector End Views

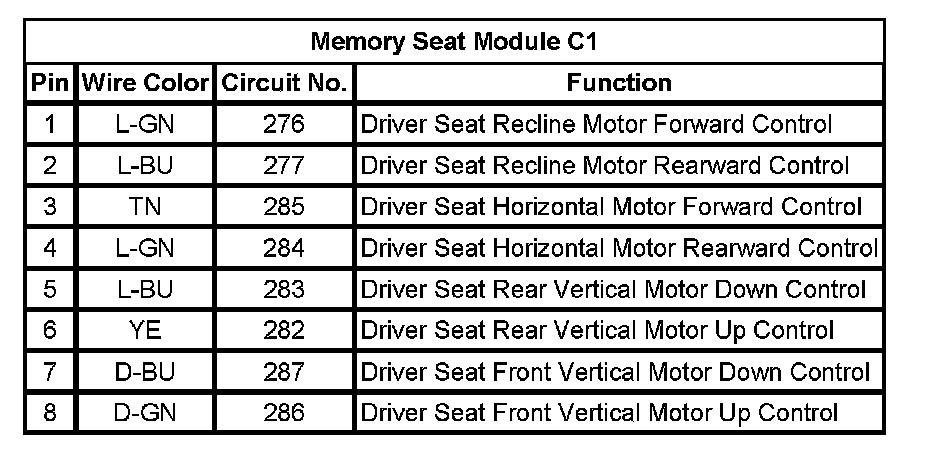

Memory Seat Module C1

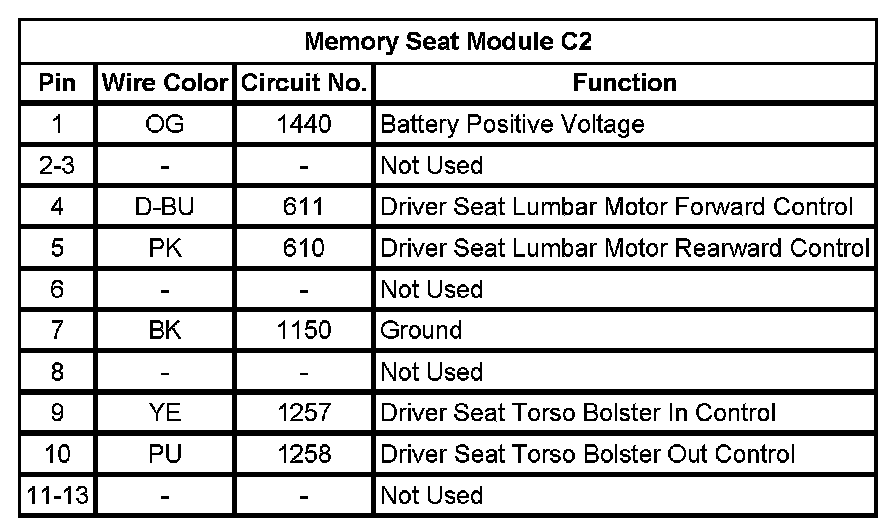

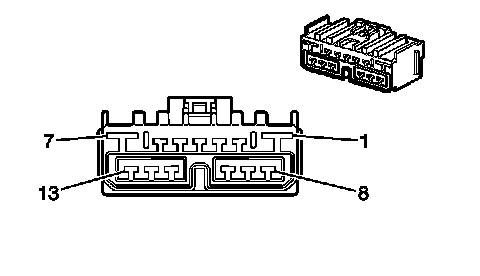

Memory Seat Module C2

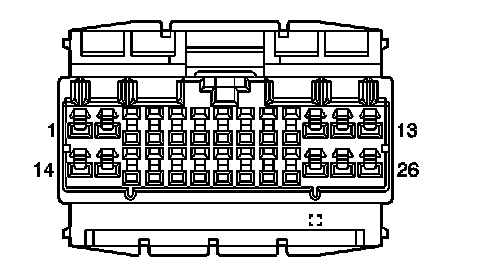

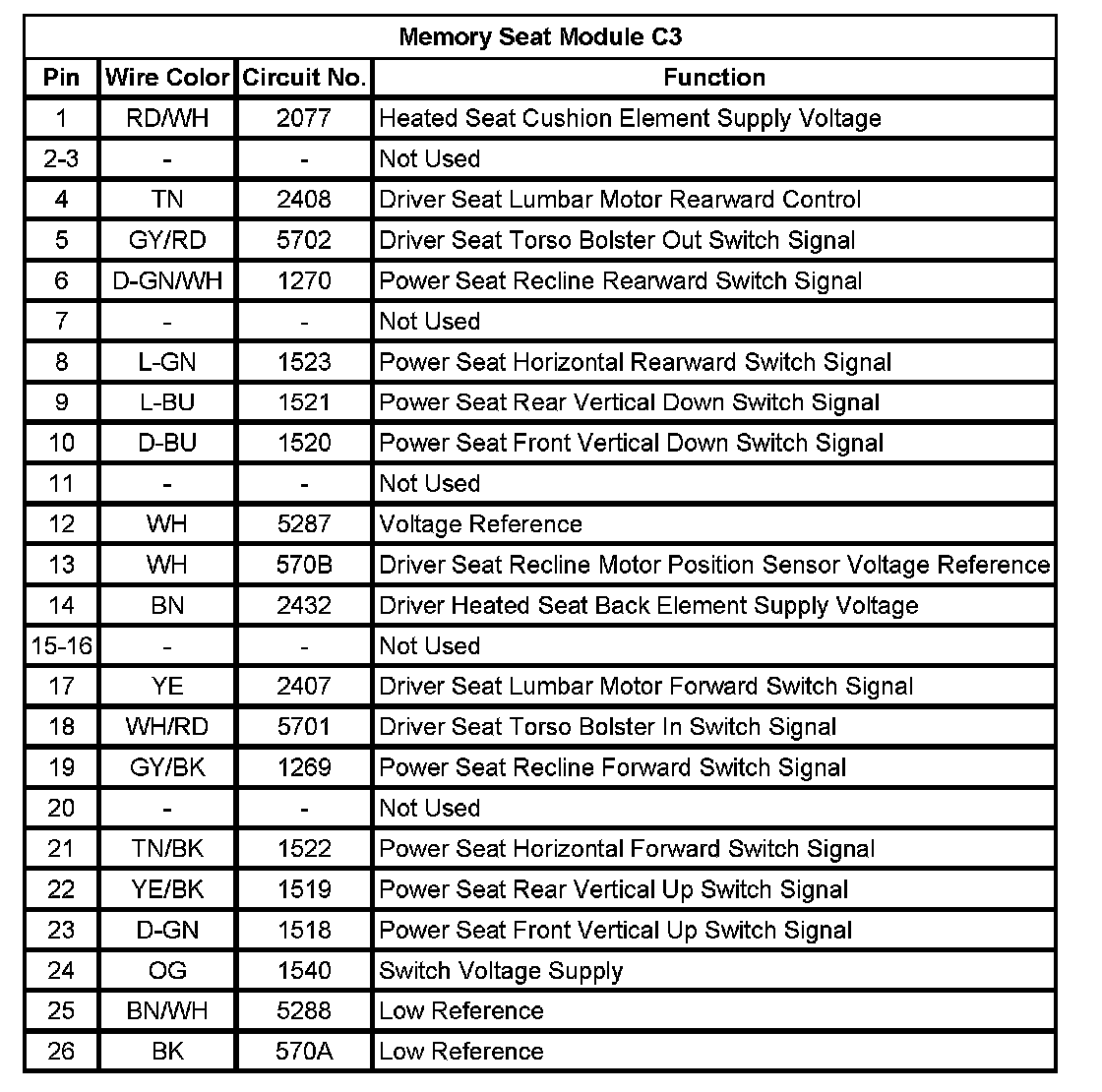

Memory Seat Module C3

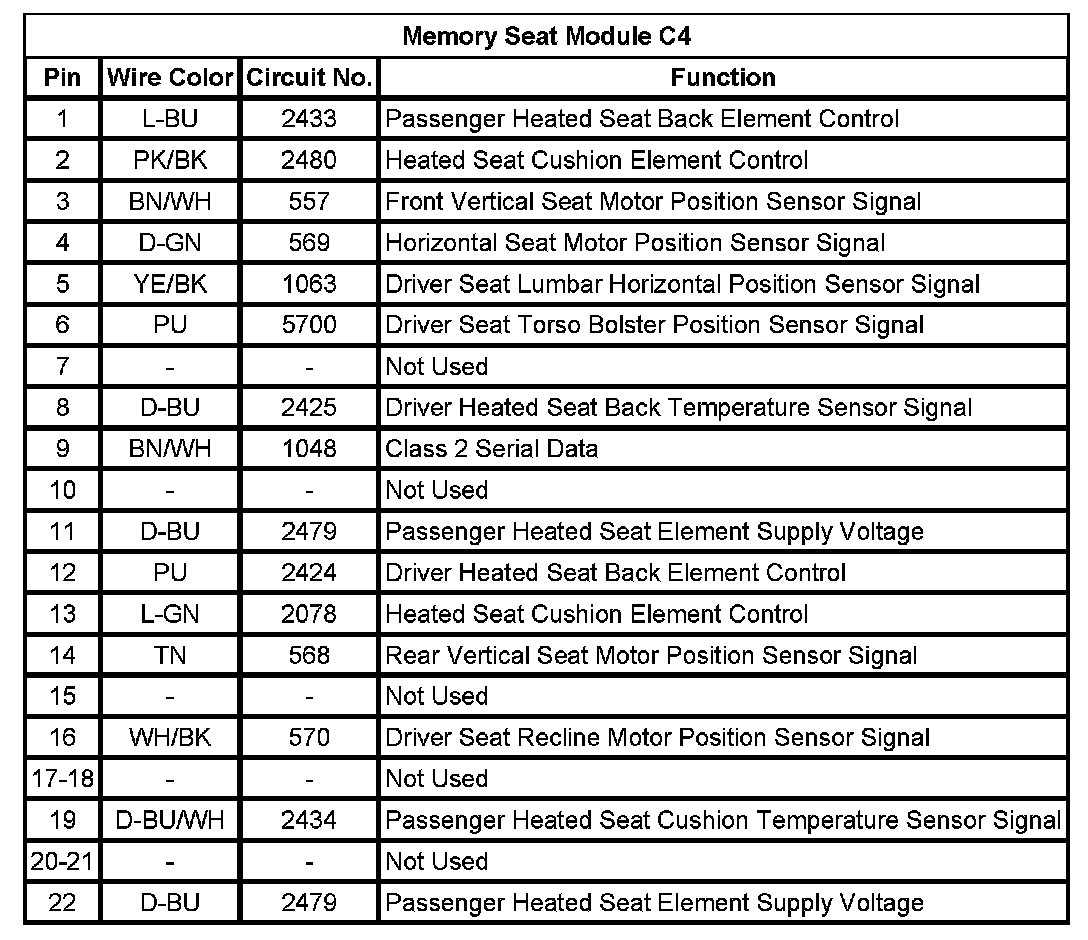

Memory Seat Module C4
