Power Trunk / Liftgate Control Module



Window Systems Connector End Views

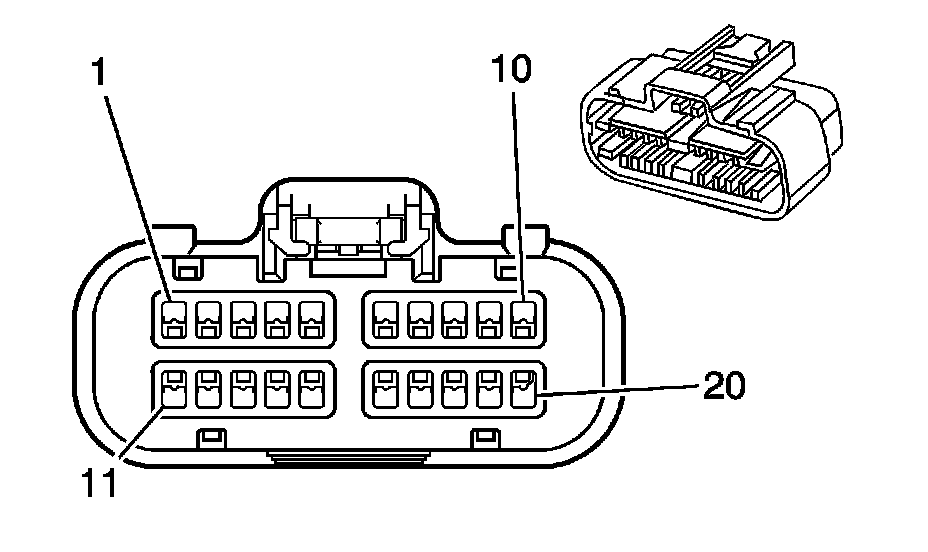

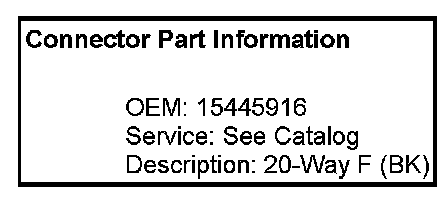

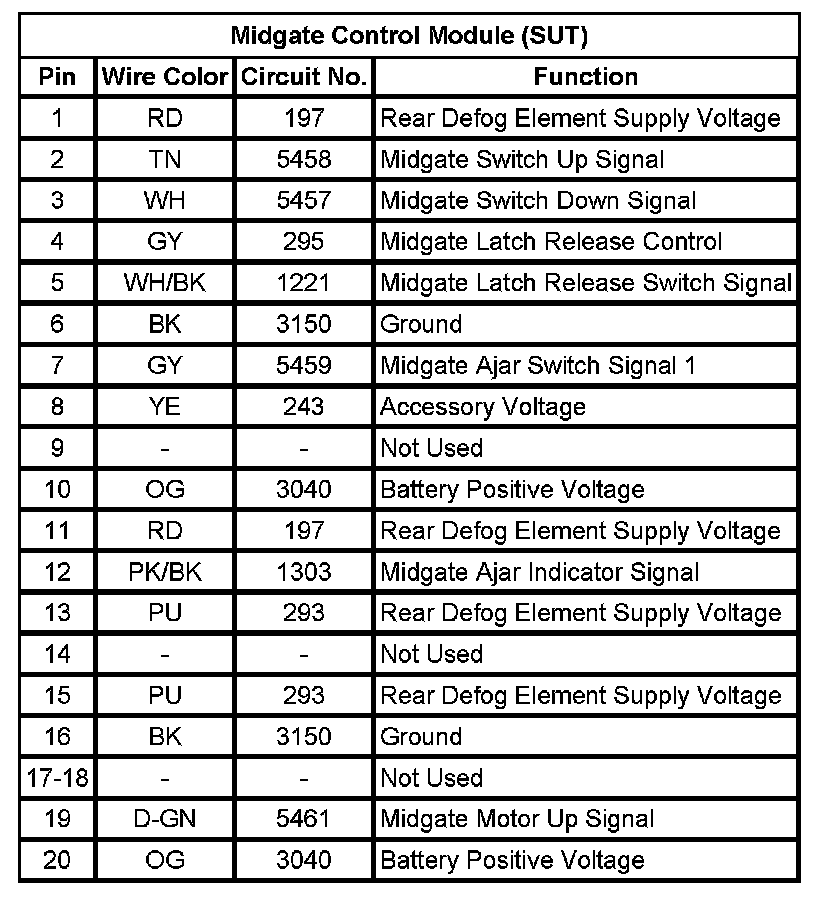

Midgate Control Module (SUT)
